Pedal Positioning Module
Pedal Positioning Module

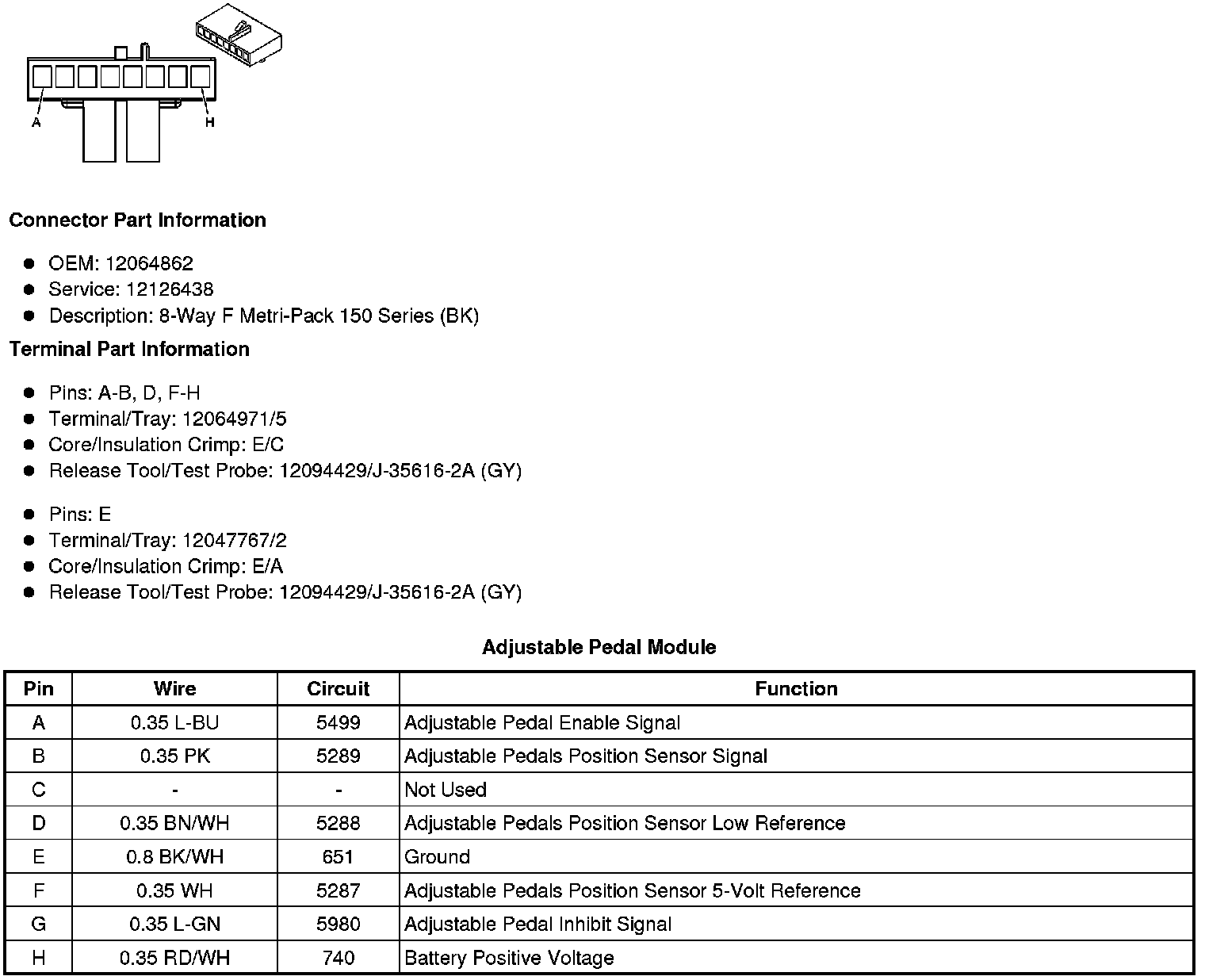

Component Connector End Views
Adjustable Pedal Module
