Variable Induction Control Valve
Component Connector End Views

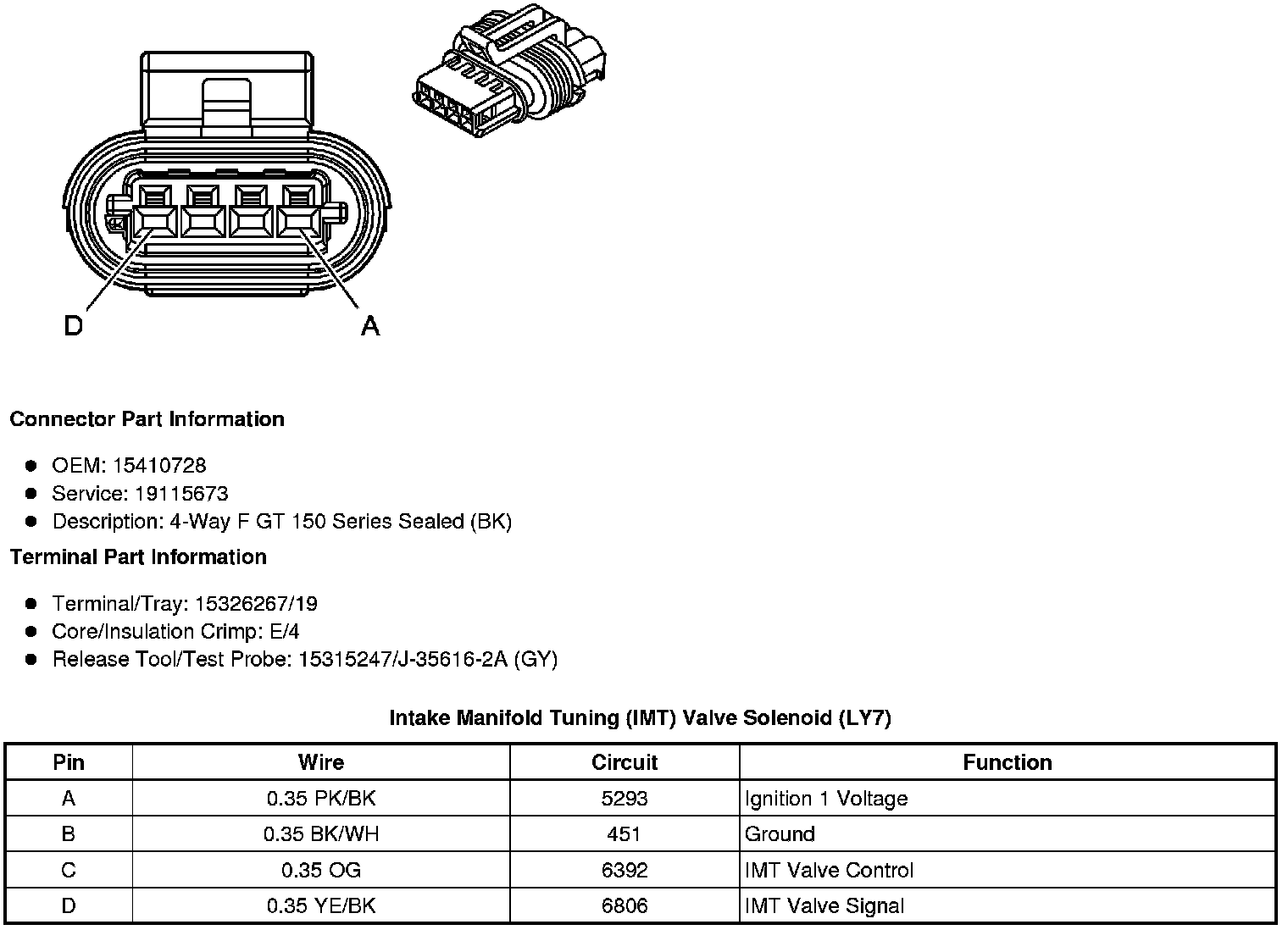

Intake Manifold Tuning (IMT) Valve Solenoid (LY7)
