Home >> Saturn >> 2006 >> ION L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Components

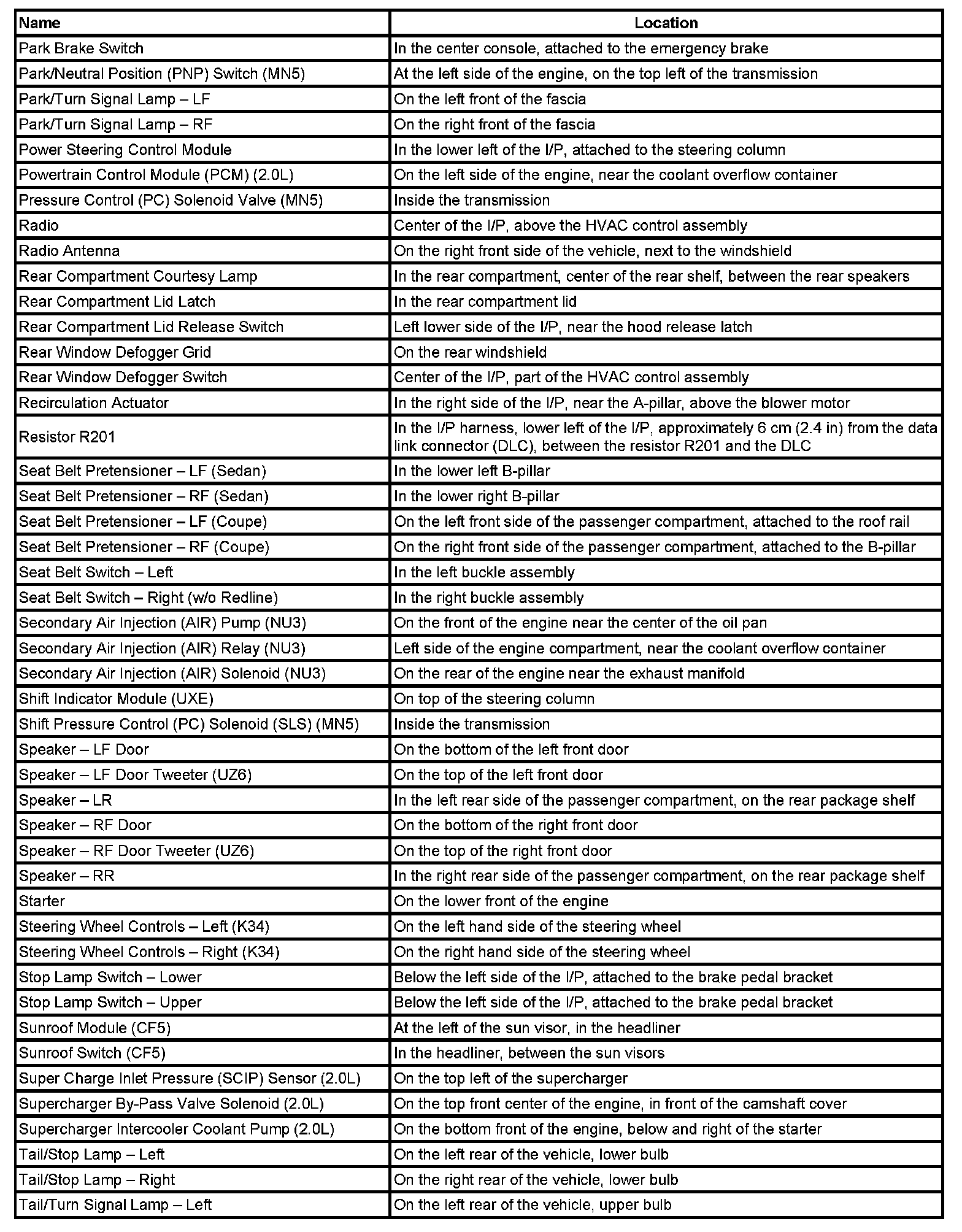

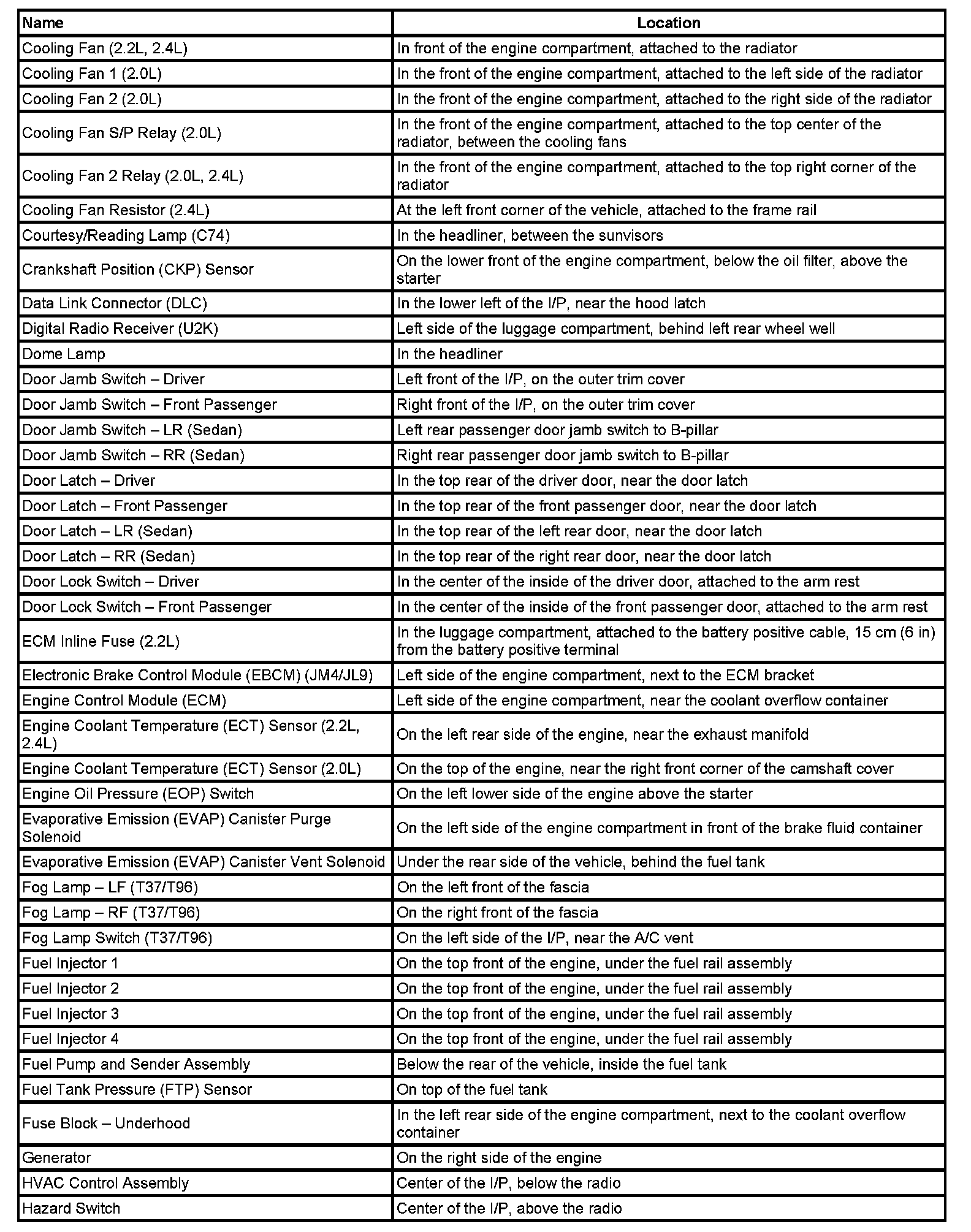

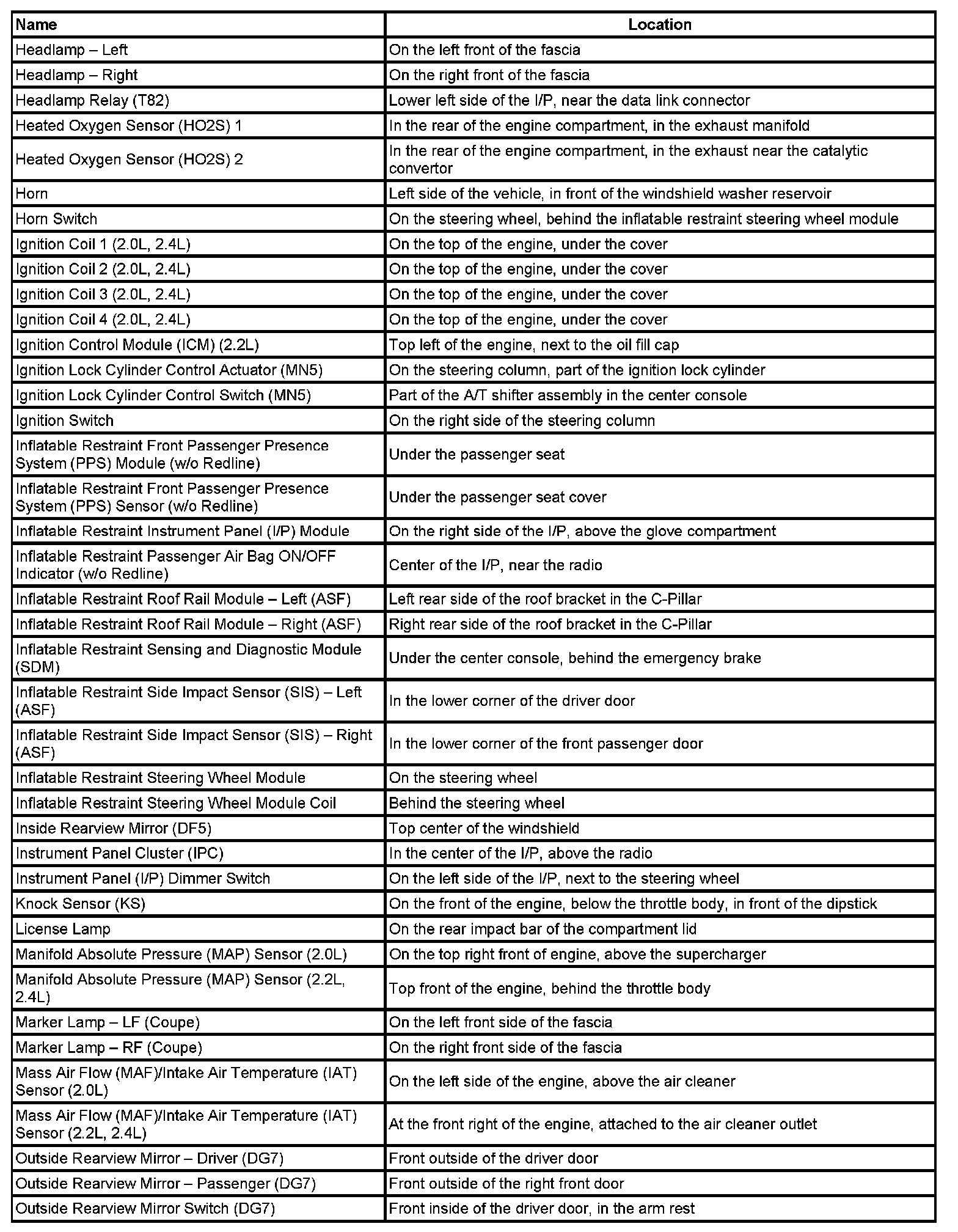

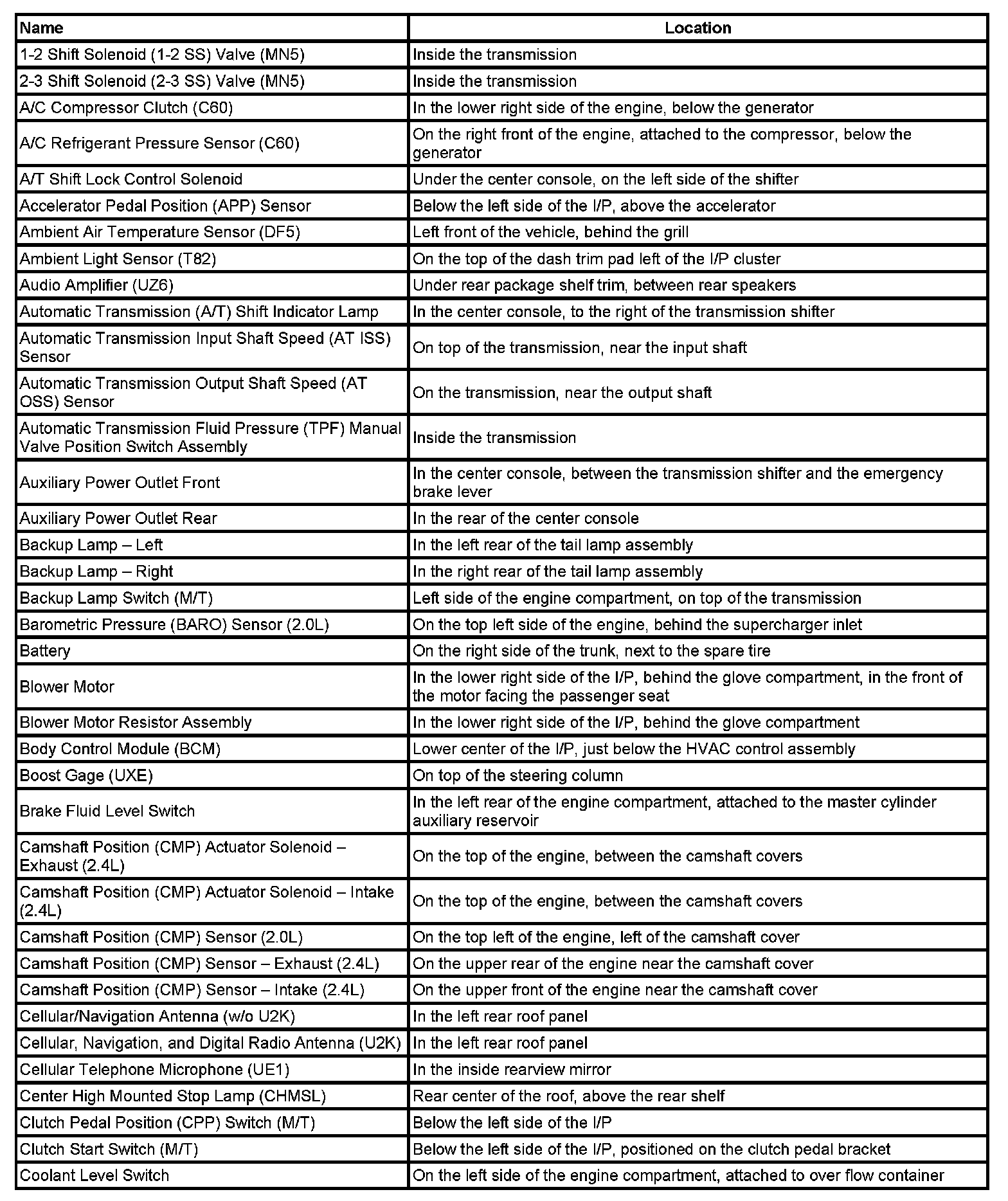

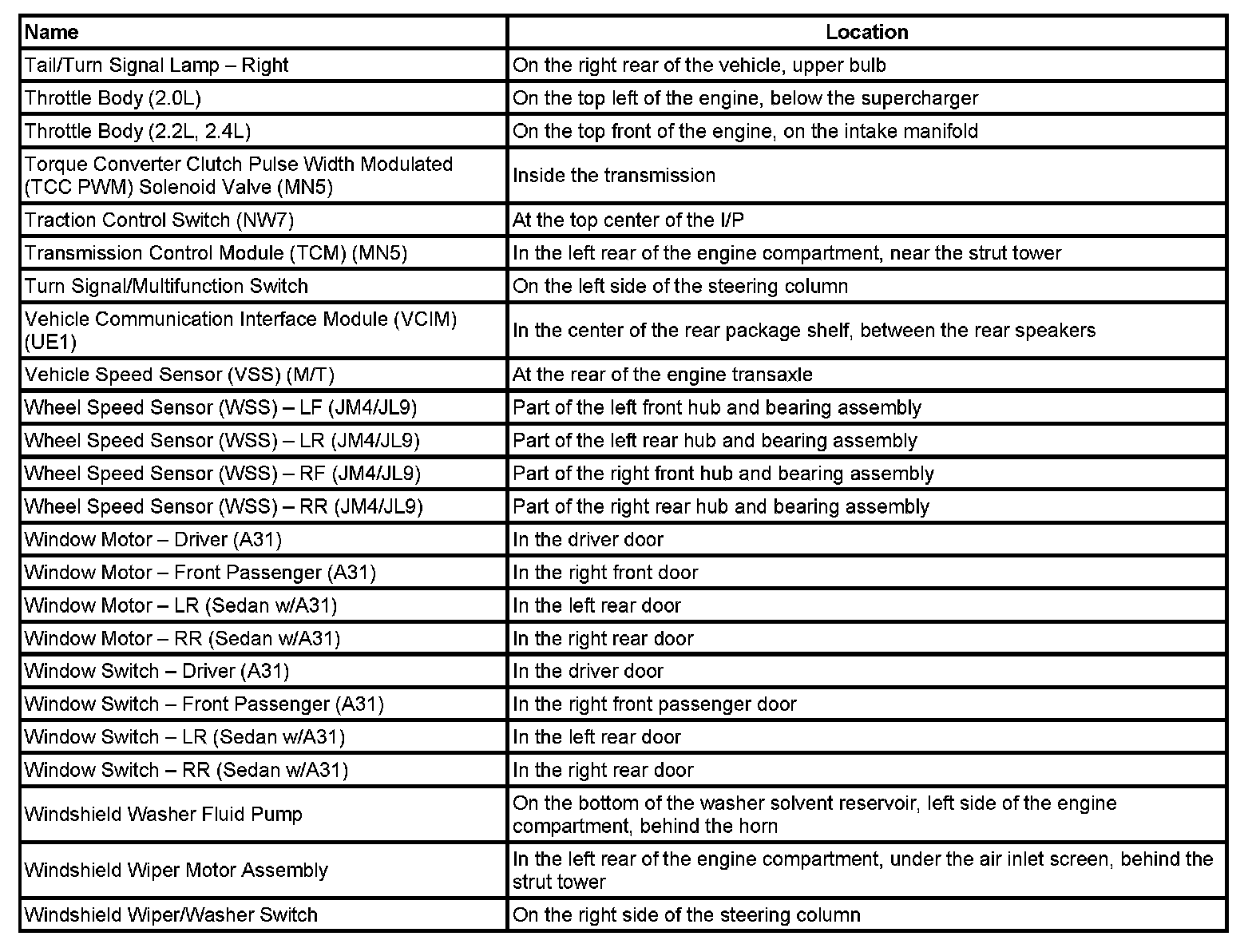

Components

1-2 - Co:




Co - Ha:




He - Ou:




Pa - Ta:




Ta - Wi:
