Saturn
>>
2004
>>
L Series L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

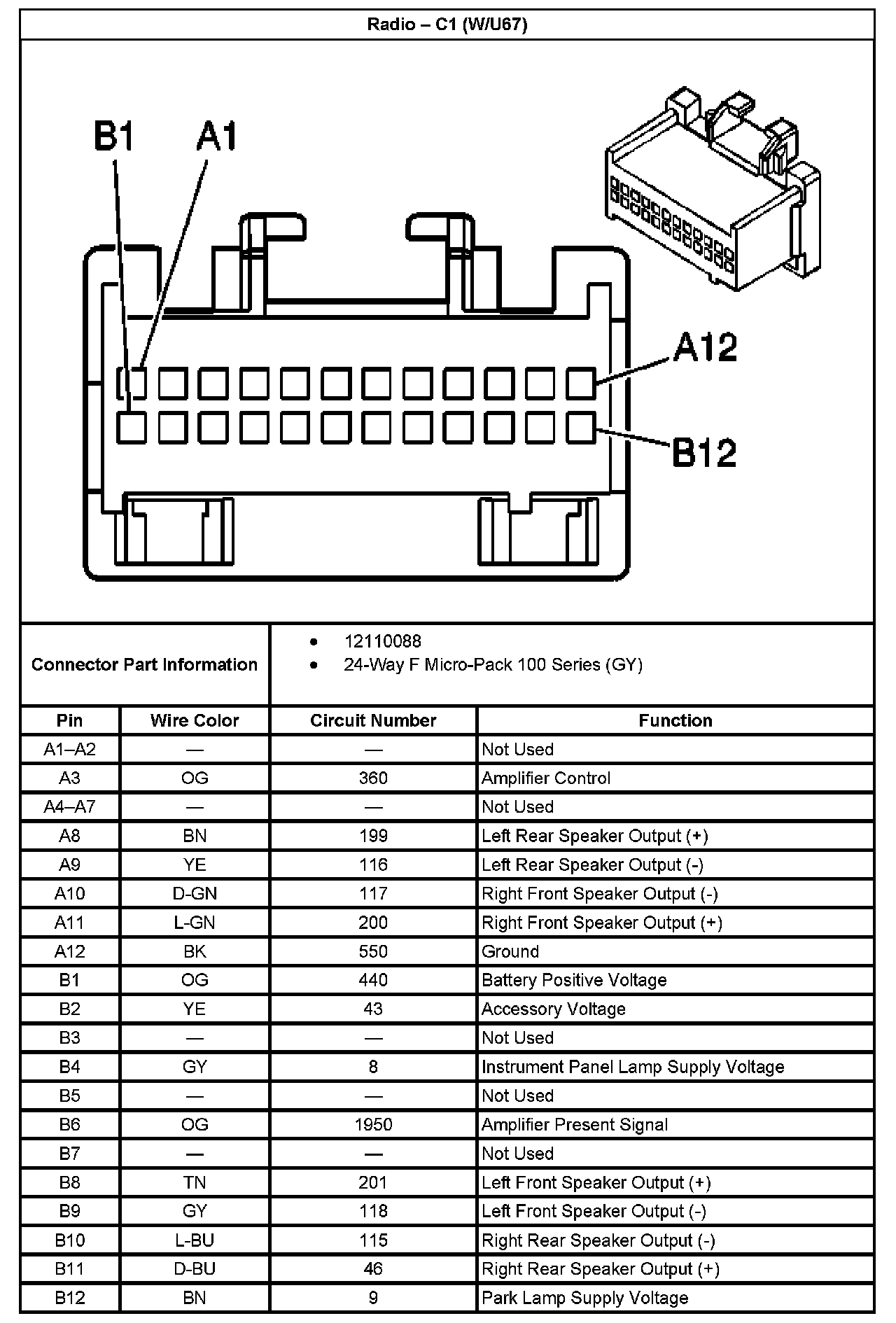

Radio - C1 (With RPO Code U67):

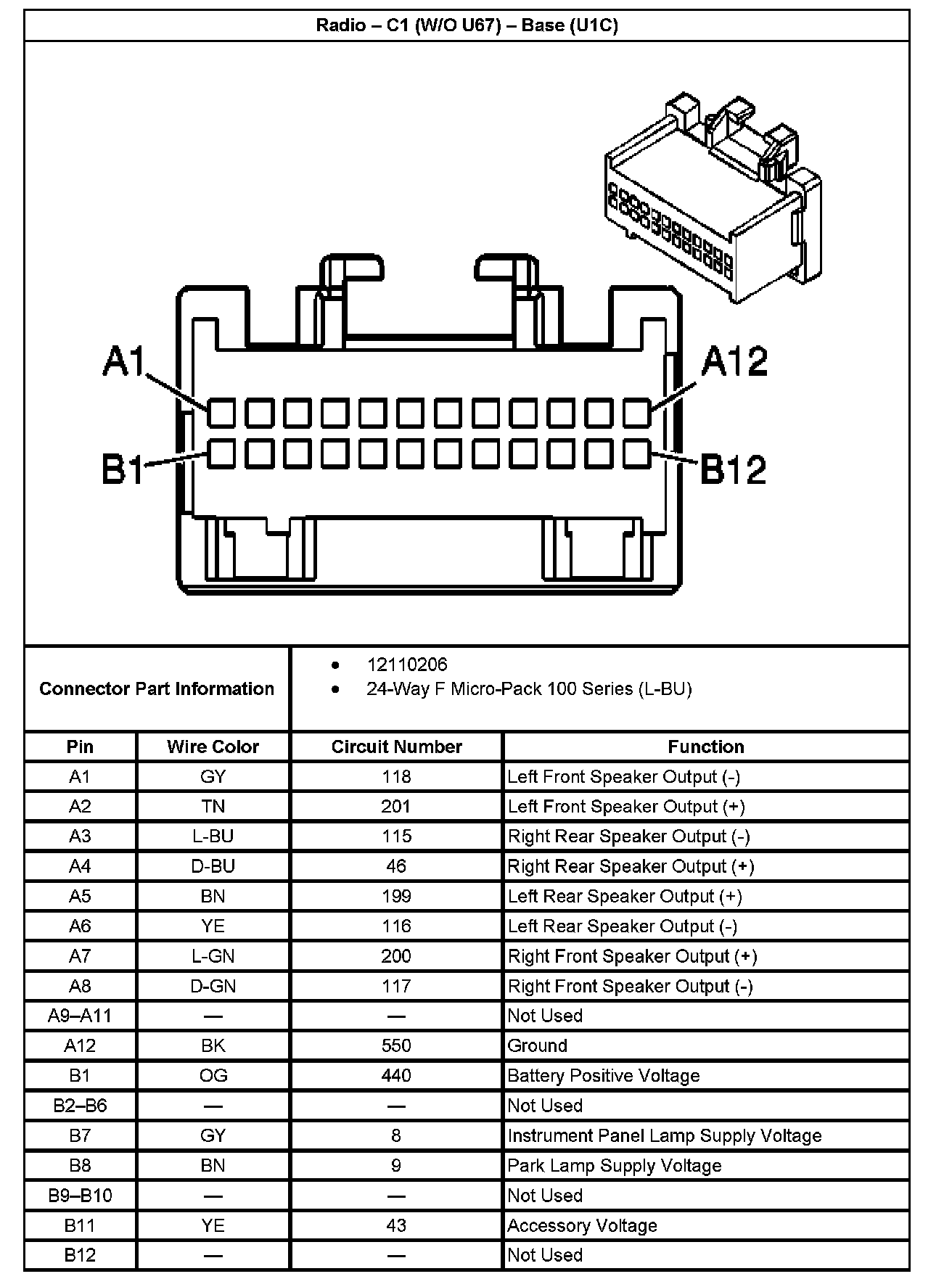

Radio - C1 (WithOut RPO Code U67) - Base (U1C):
Radio - C2 (With RPO Code U67):
