Automatic Transmission/Transaxle: Locations

Component Location

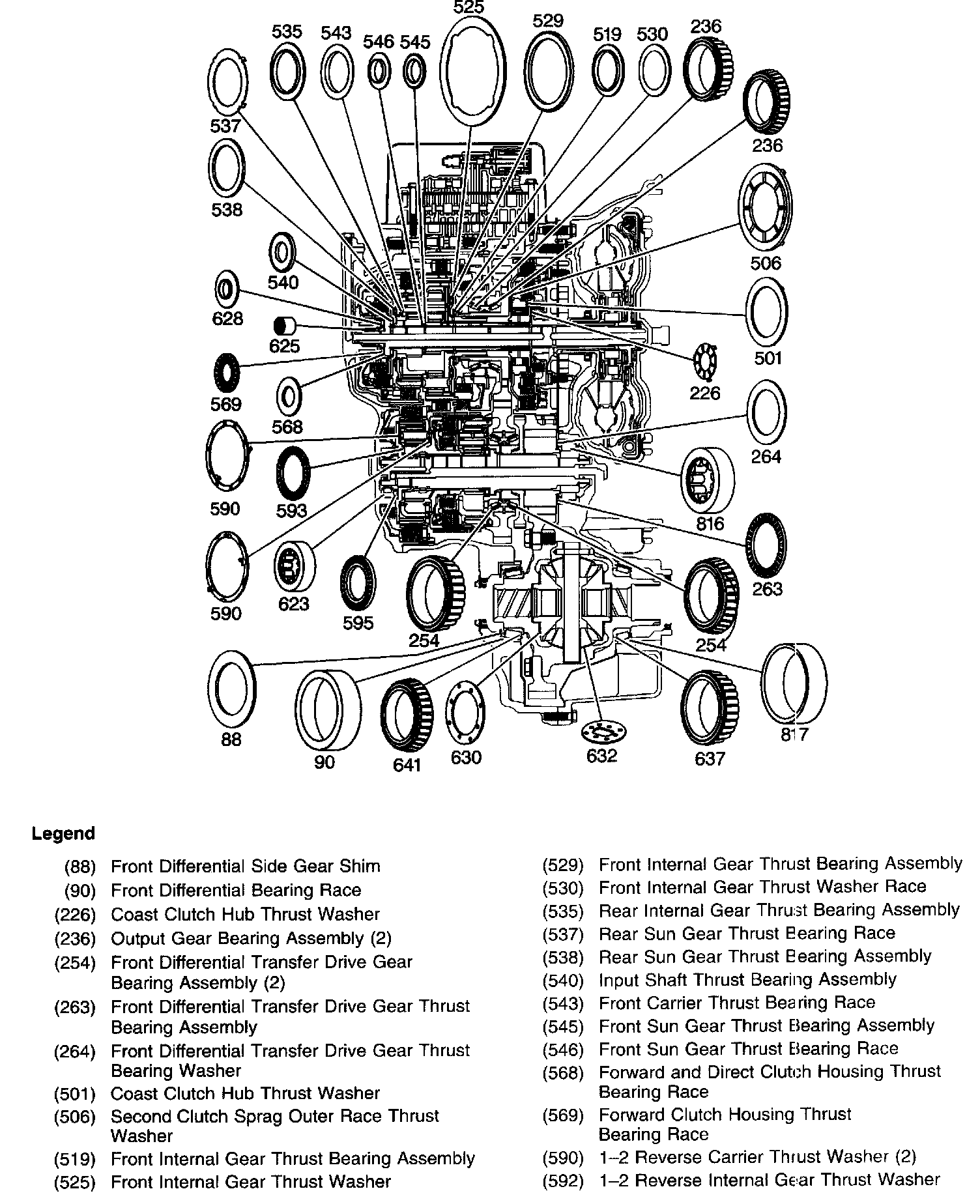

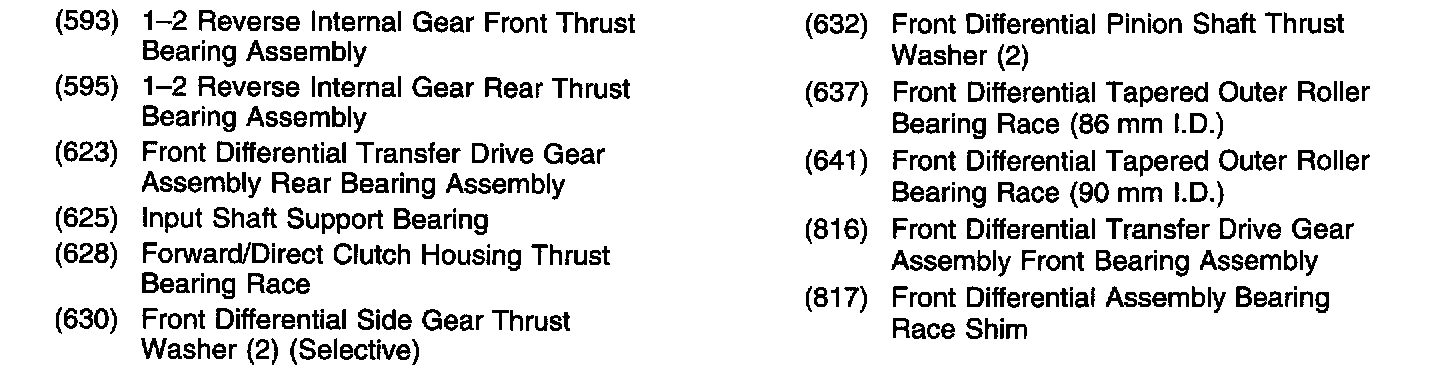

Bearing, Race and Thrust Washer Locations

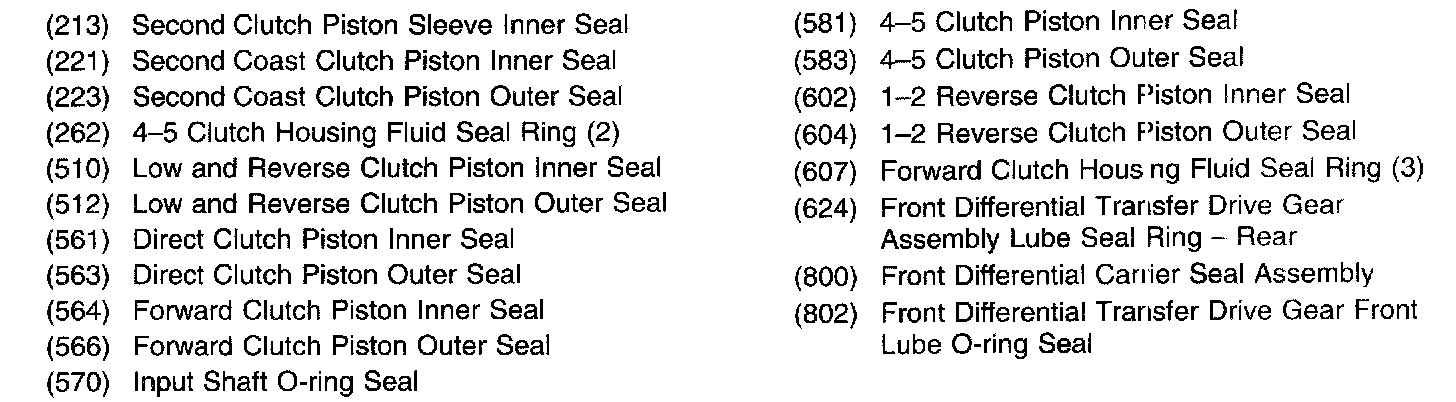

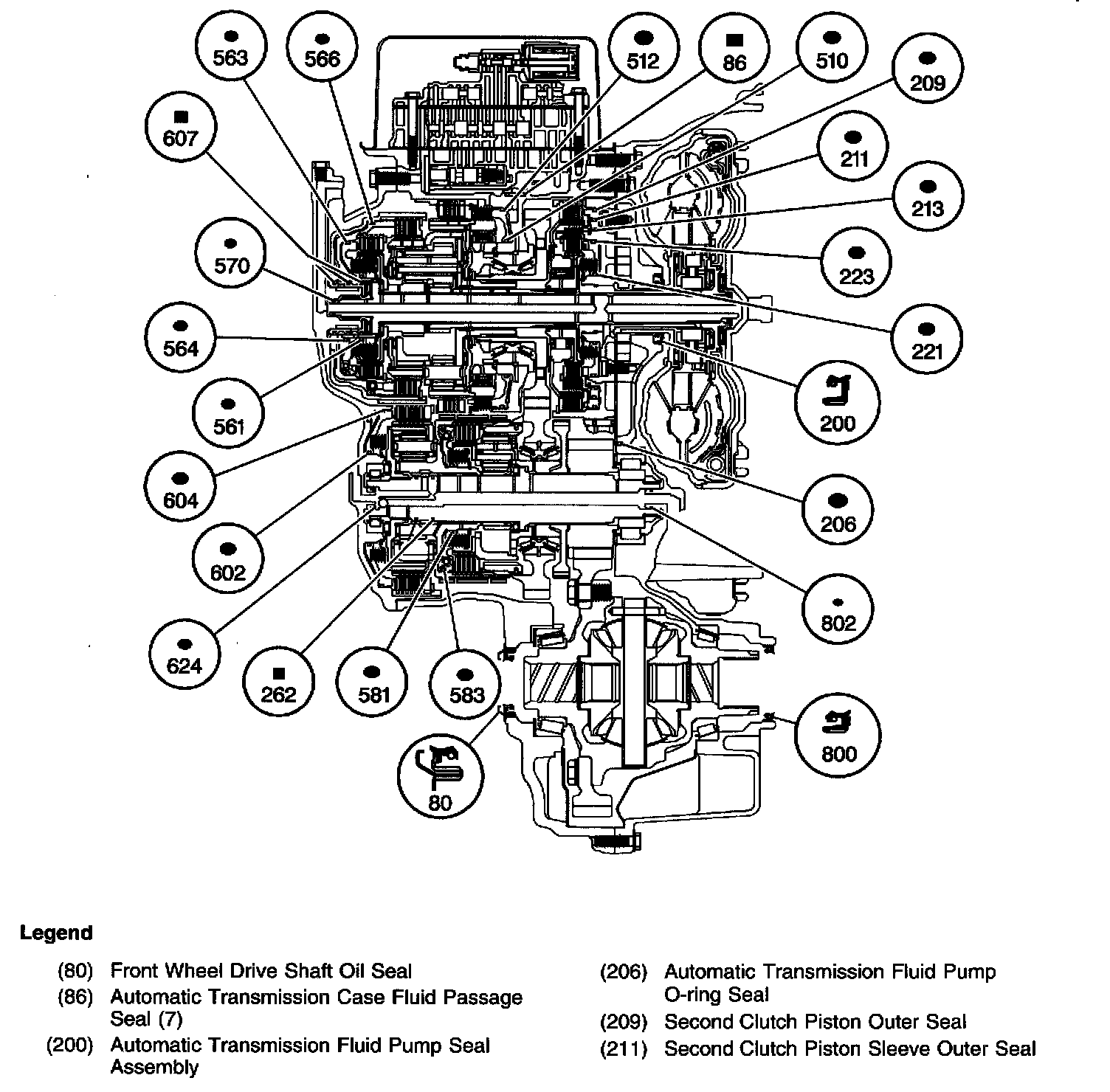

Seal Locations
