Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Ratio VS Speed
Ratio VS Speed
Ratio vs Speed

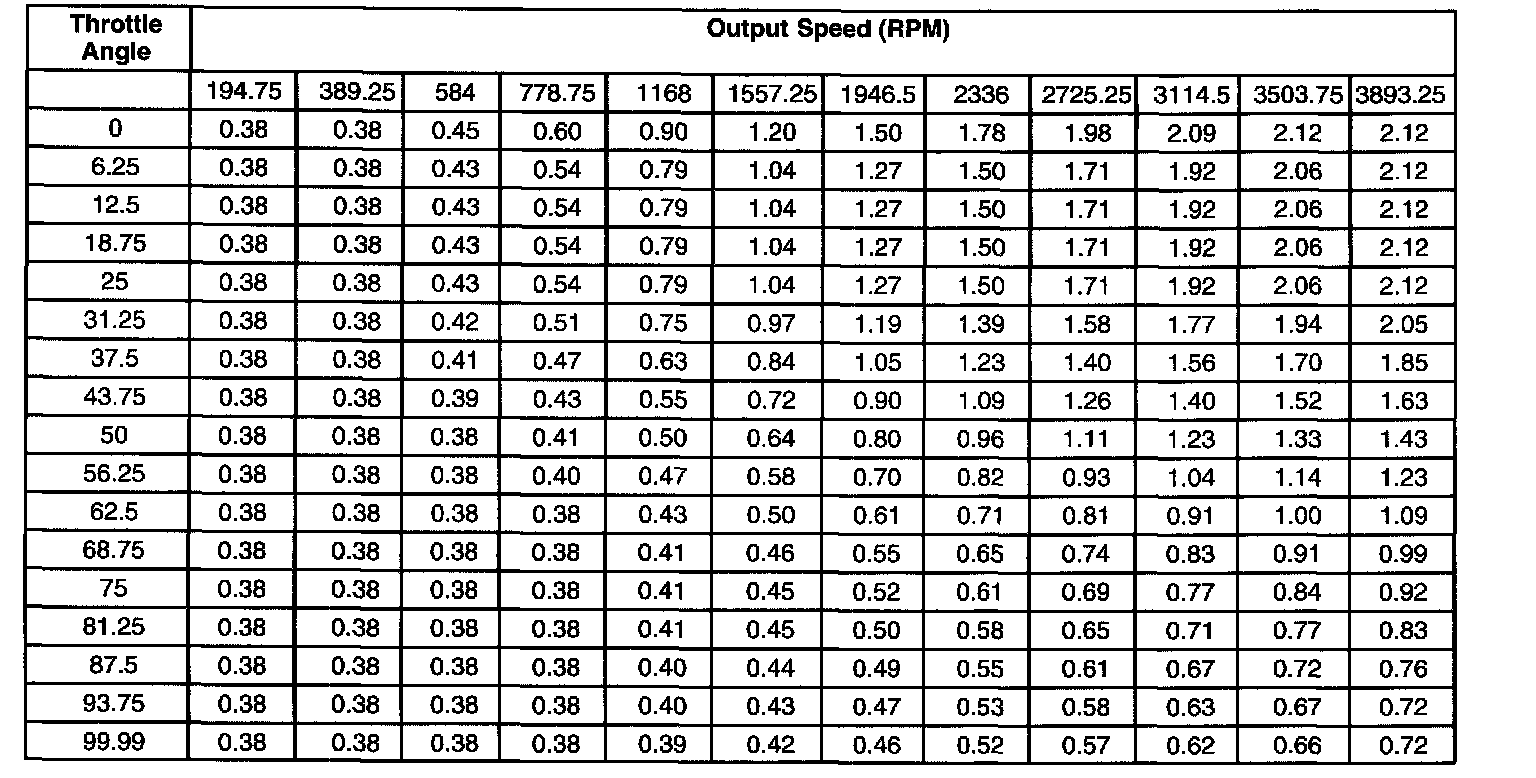

Ratio from Stop

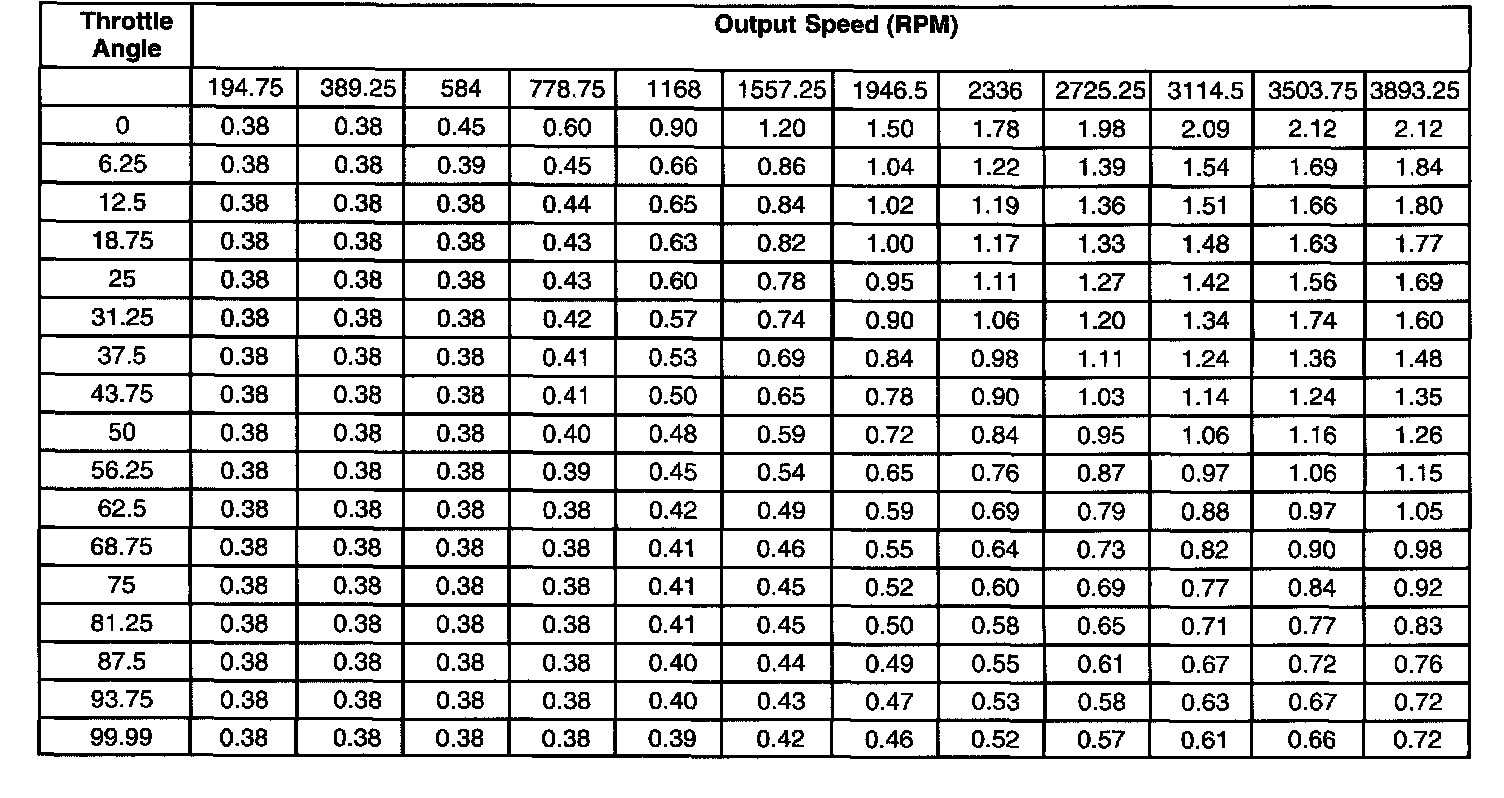

Ratio Steady State
