Control Module, A/T

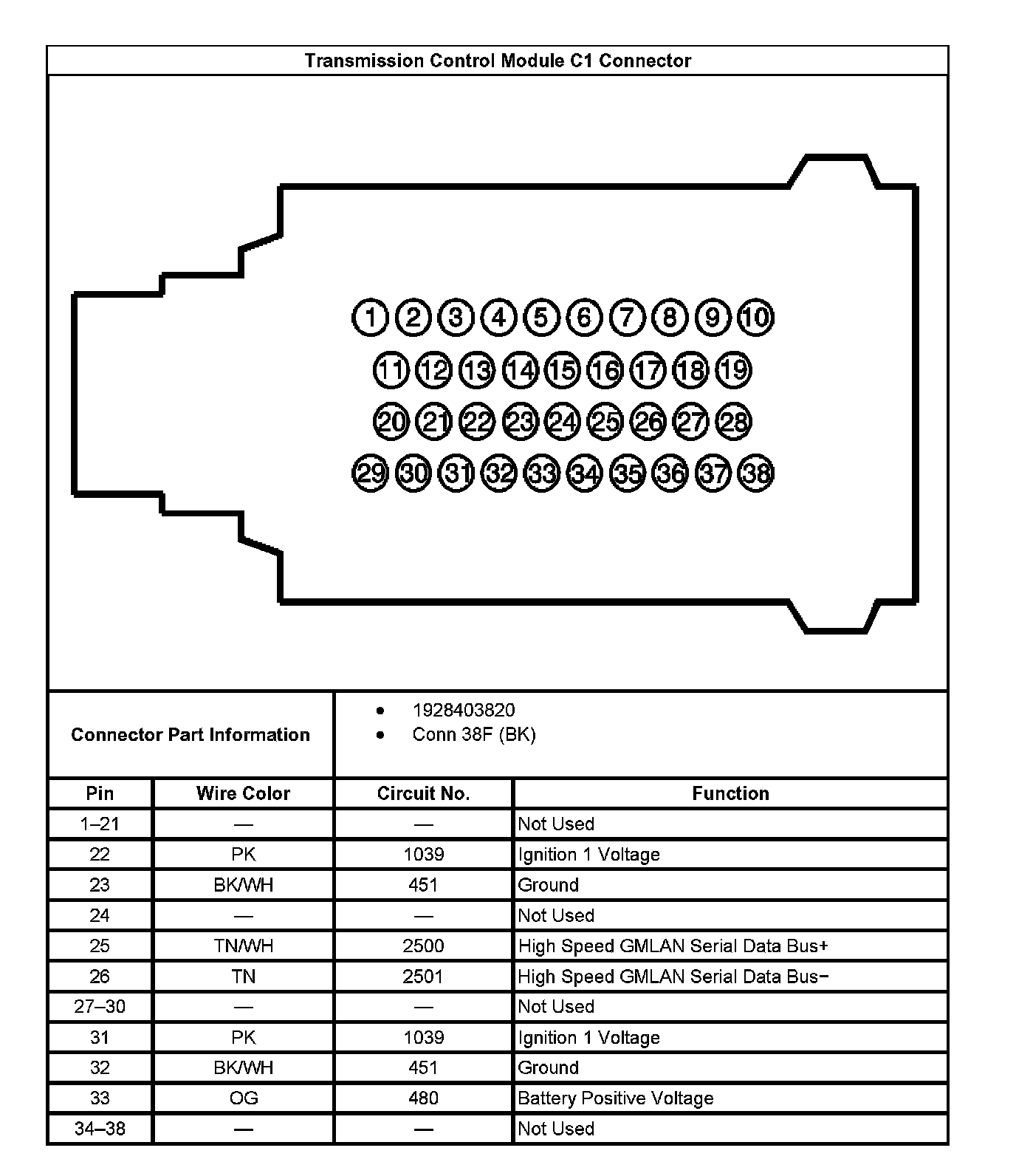

Transmission Control Module C1 Connector

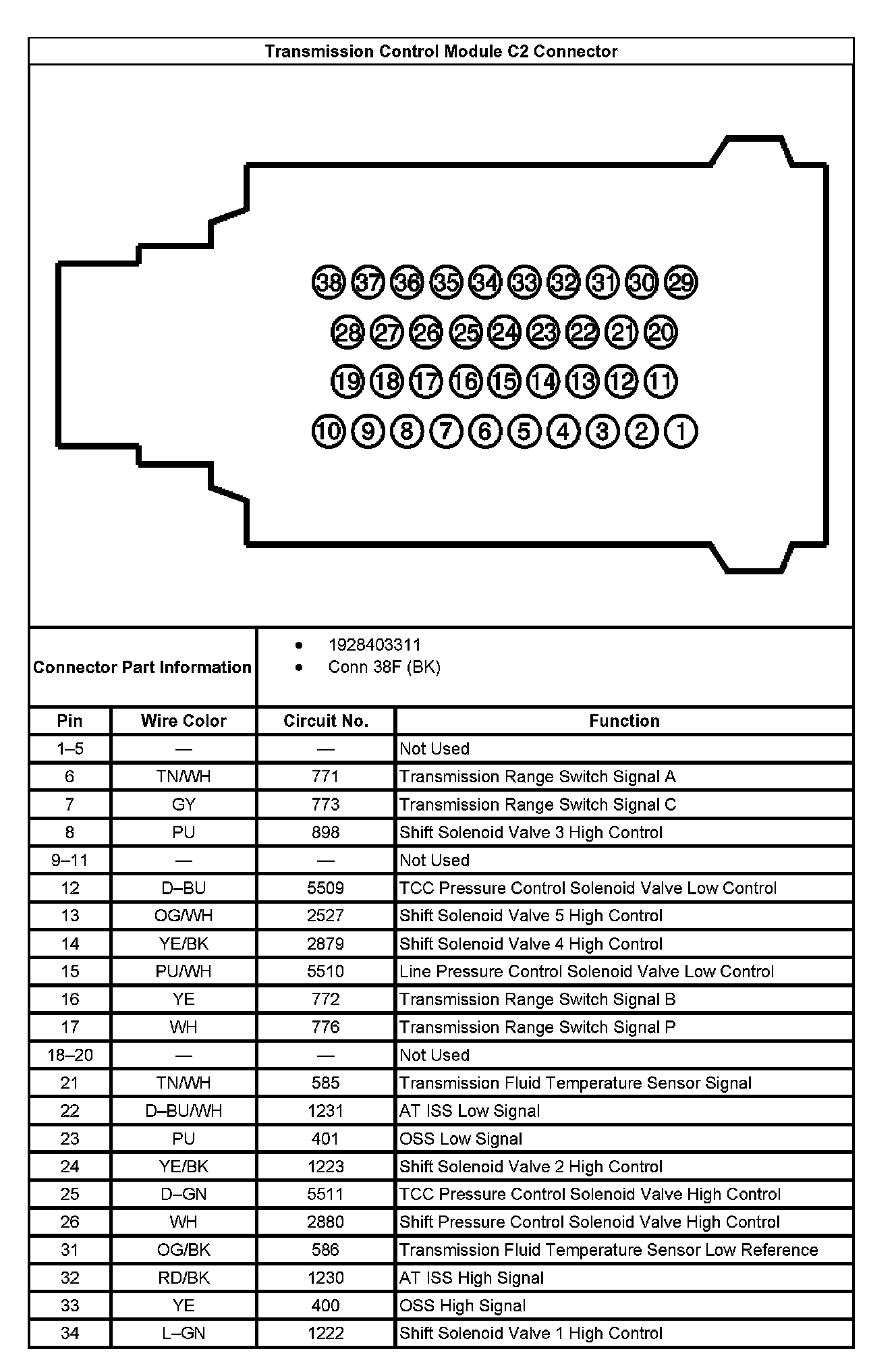

Transmission Control Module C2 Connector

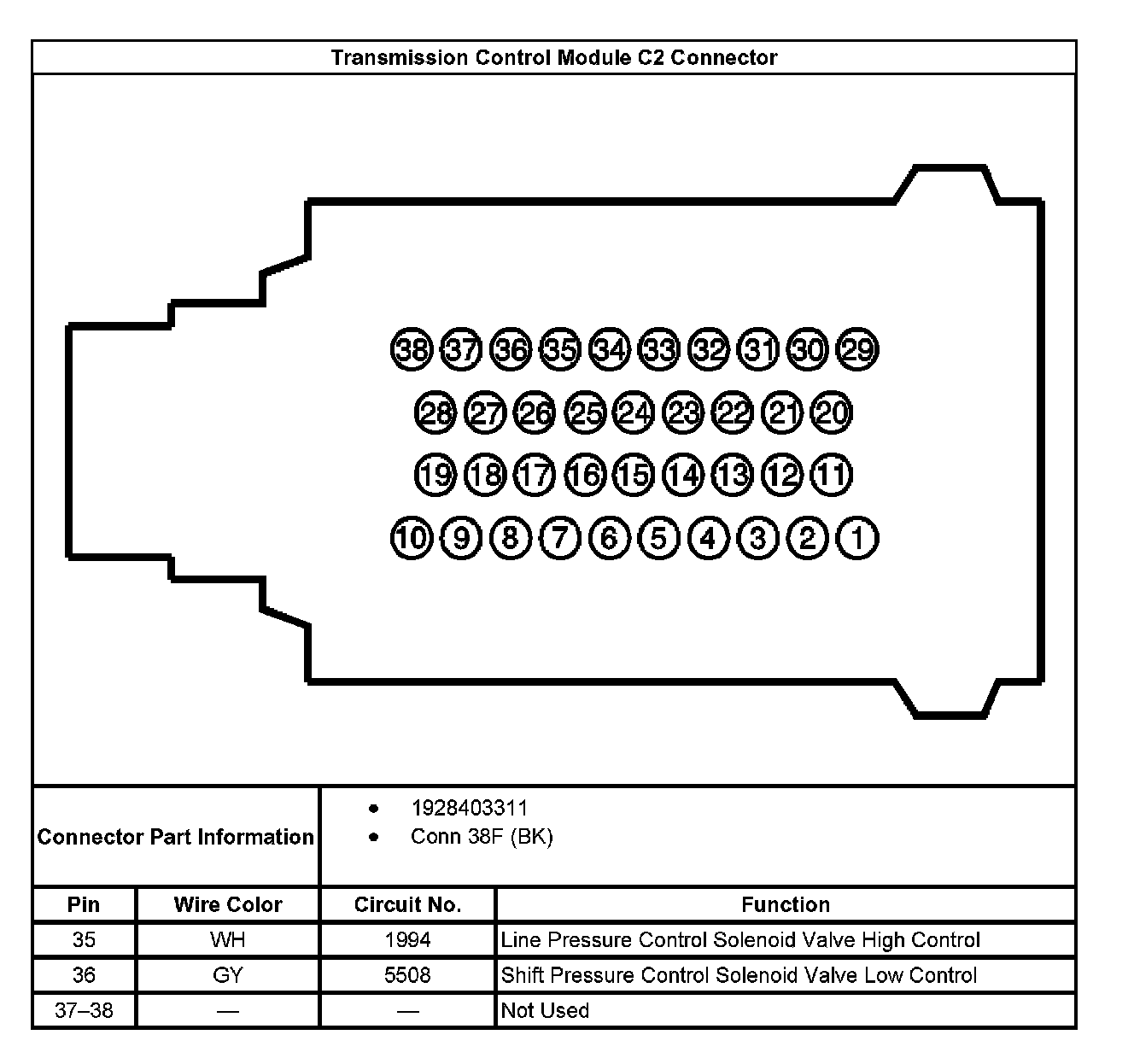

Transmission Control Module C2 Connector
