Starting and Charging: Locations

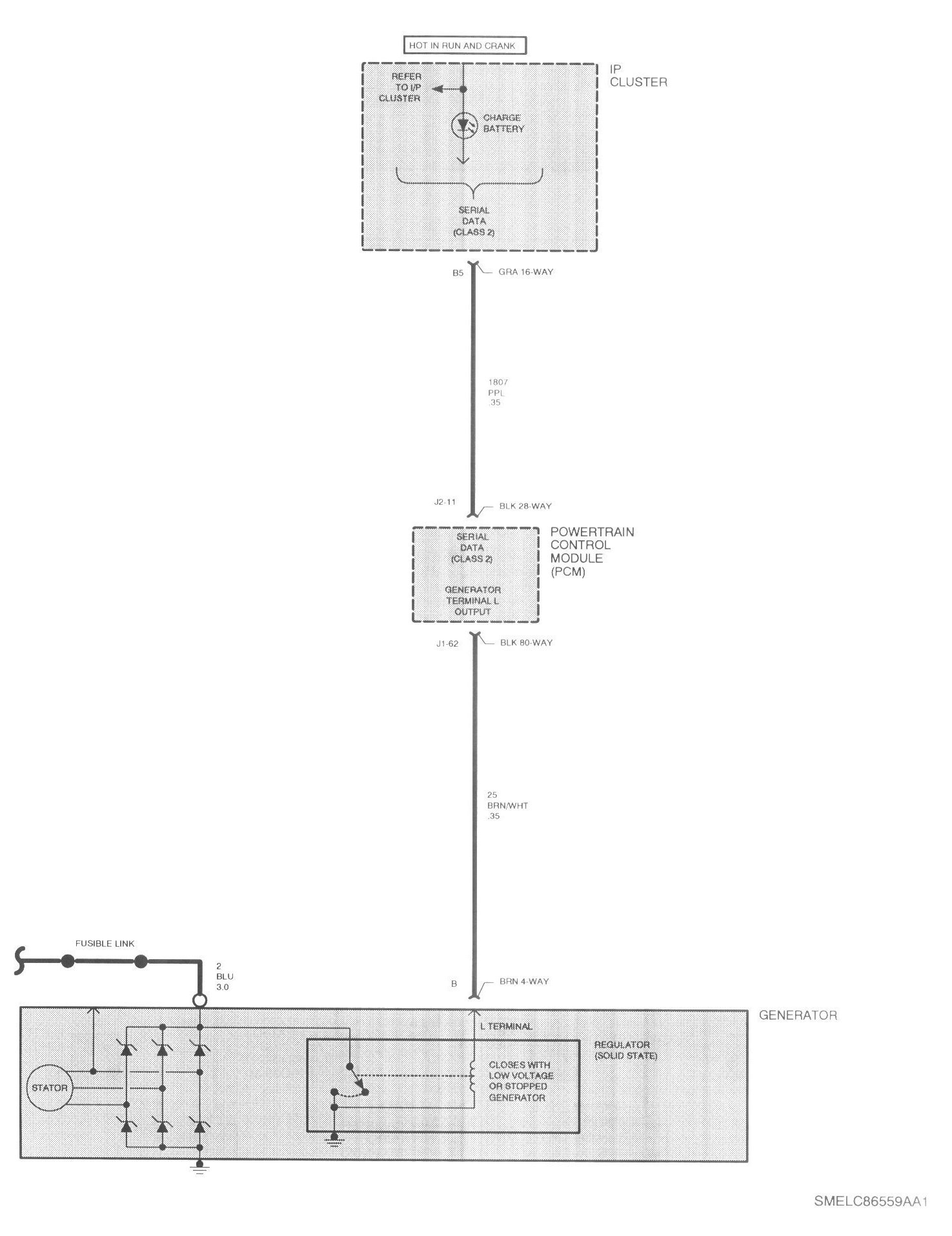

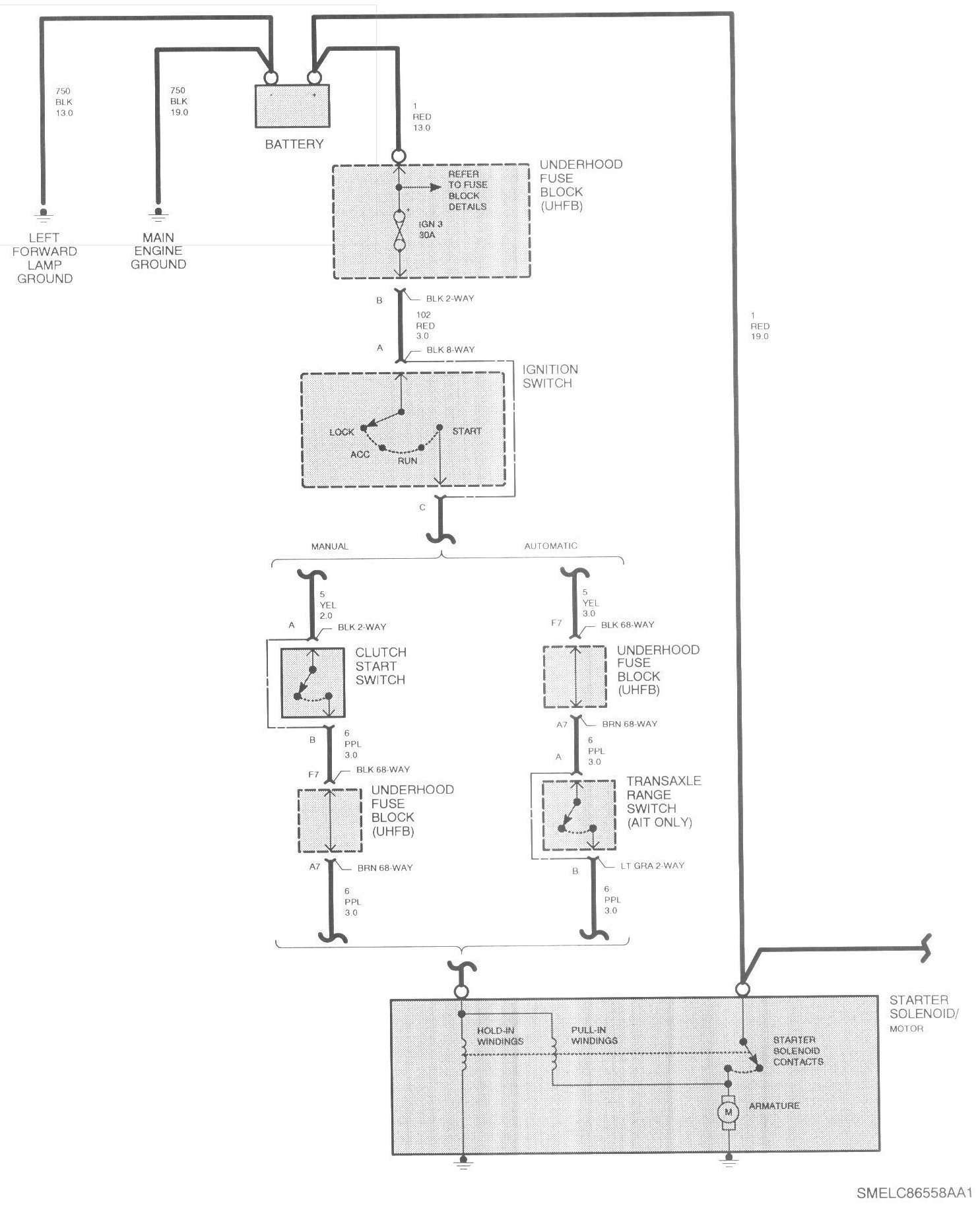

Starting And Charging Schematics:









The wiring between the starter assembly and generator contains a fusible link.
