Case & Internal Components

Case & Internal Components - Component Locations

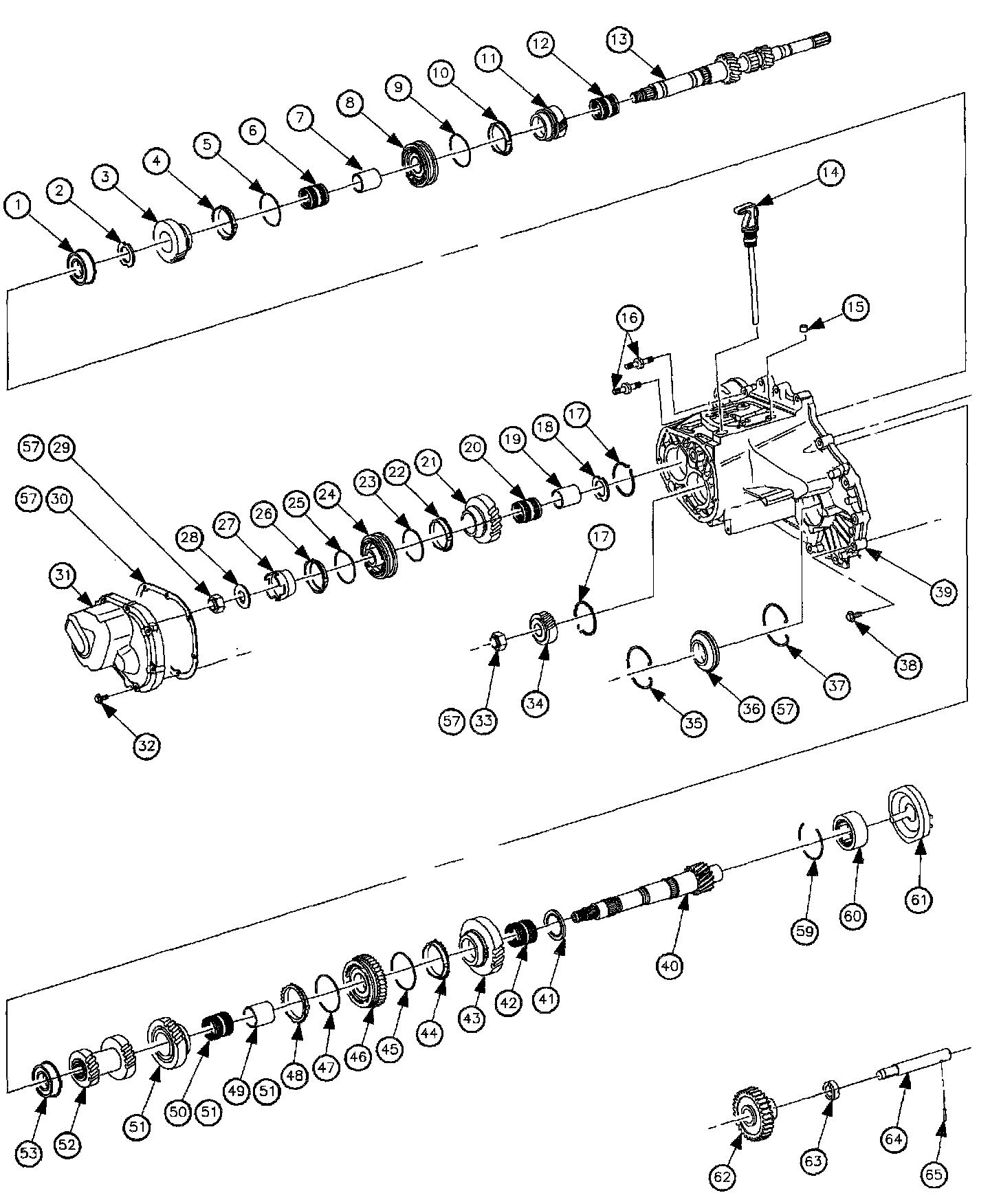

Part 1 of 2

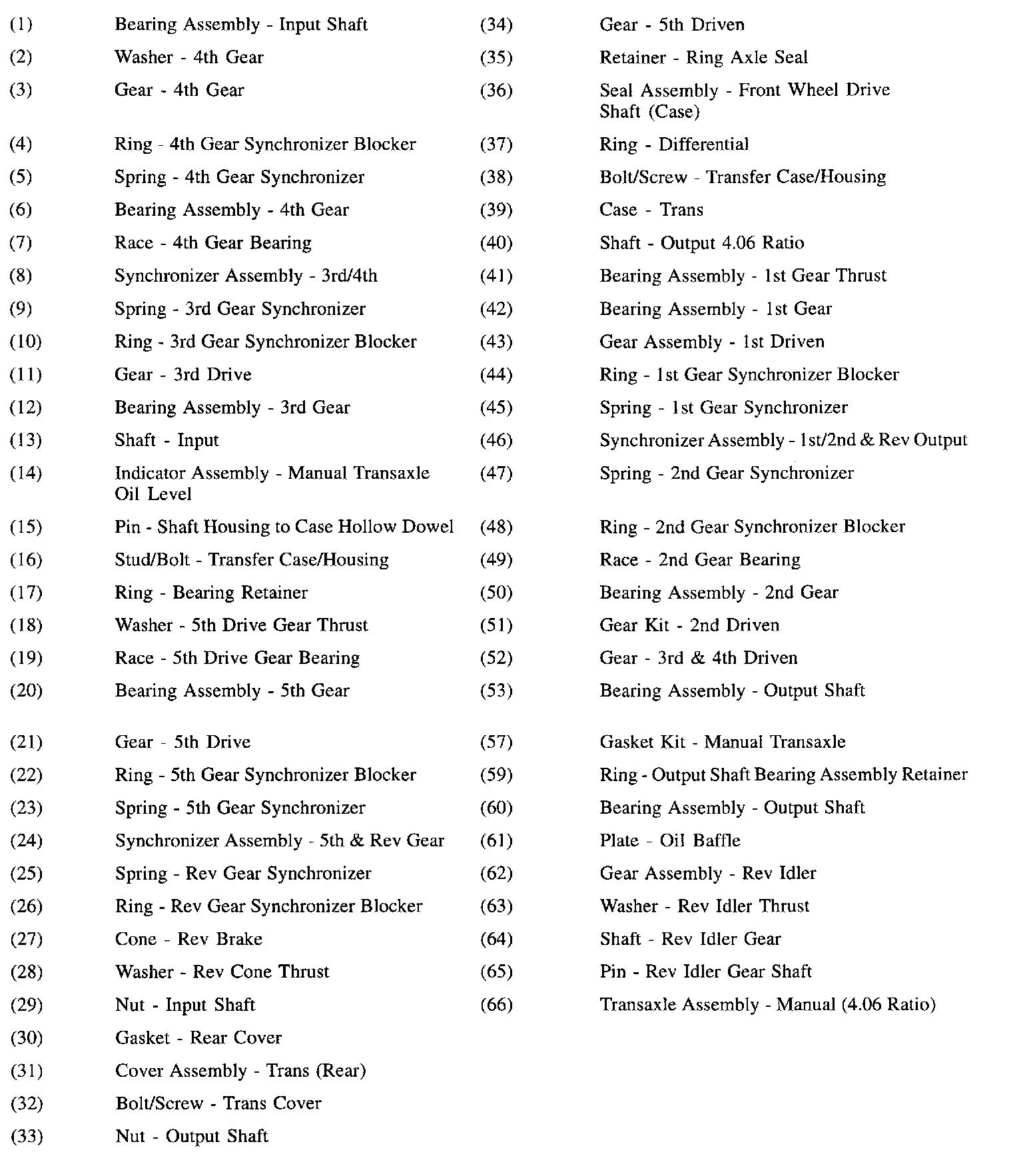

Part 2 of 2
