Home >> Saturn >> 2002 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Power Mirror Connector Face Views

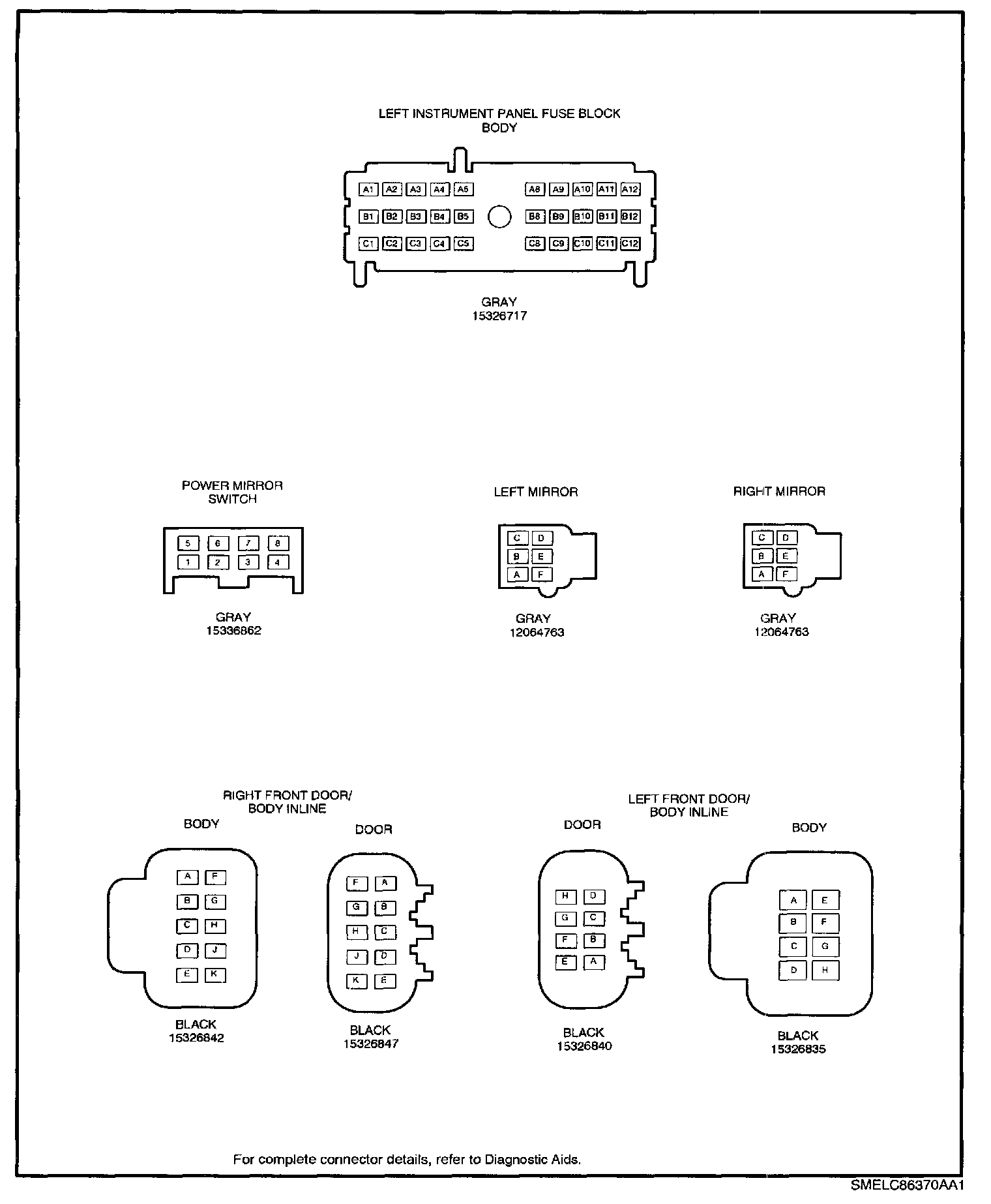

Power Mirror Connector Face Views

Power Mirror Connector Face Views:
