Headliner
Headliner

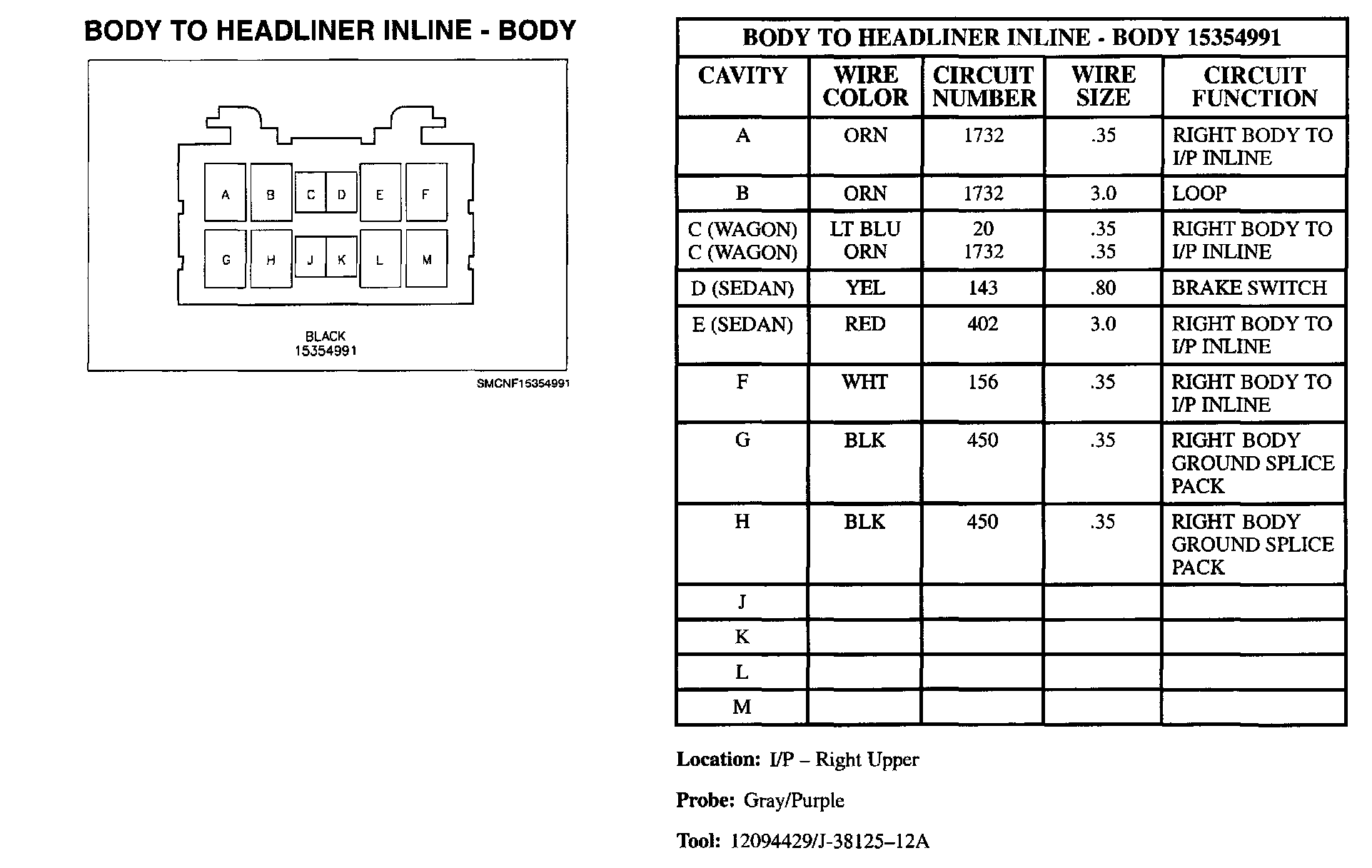

Body To Headliner Inline - Body:

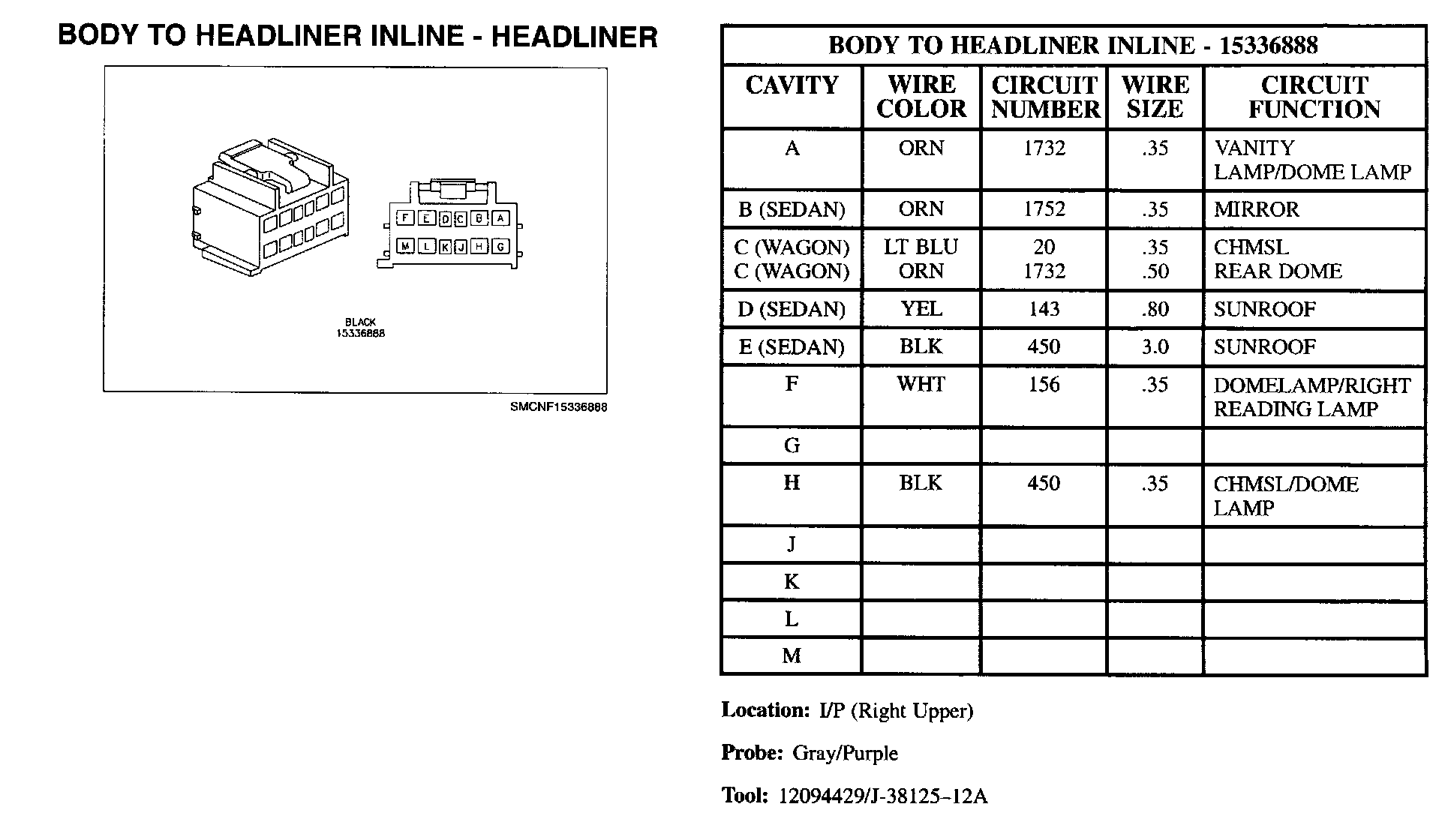

Body To Headliner Inline - Headliner:

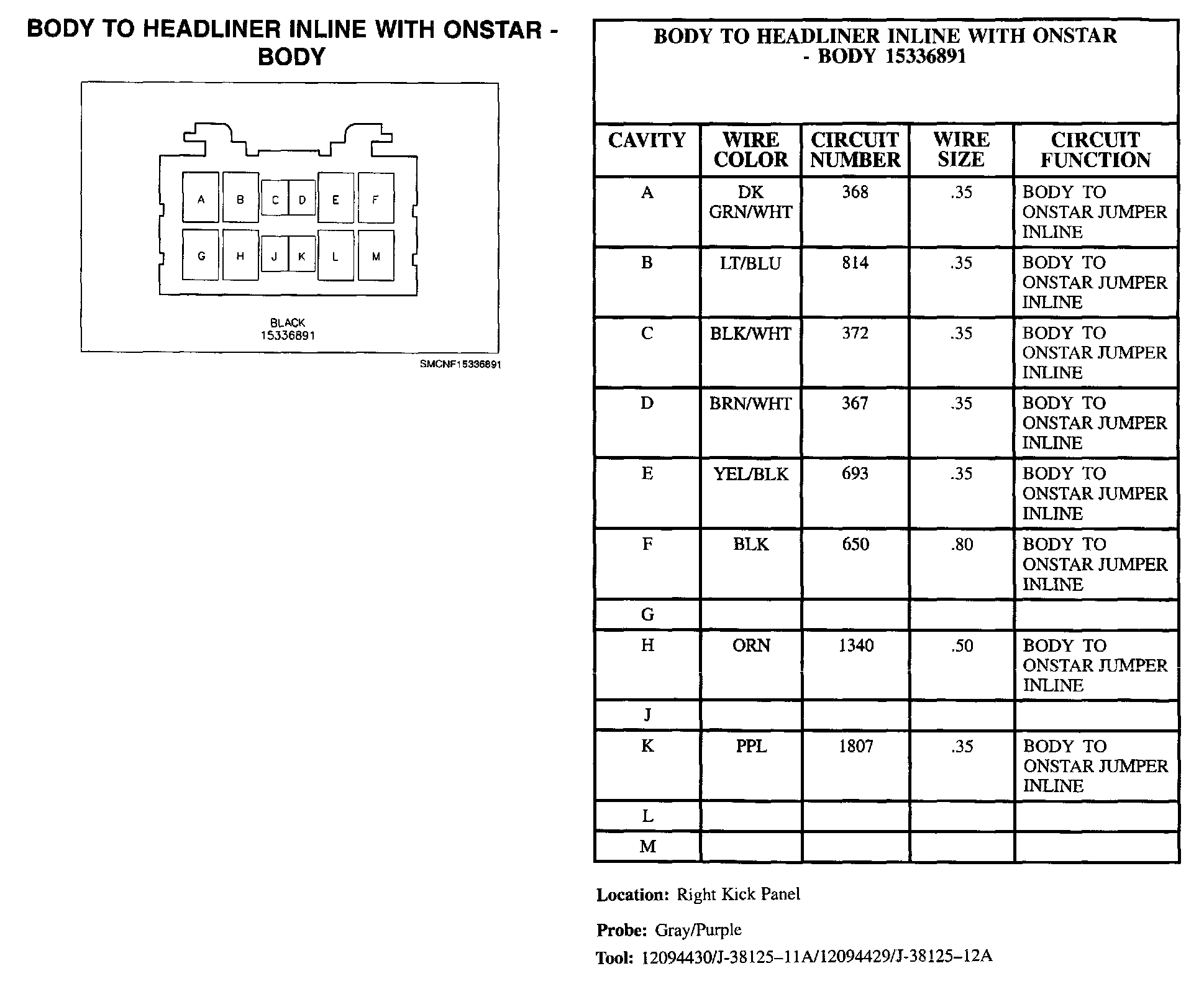

Body To Headliner Inline With Onstar - Body:

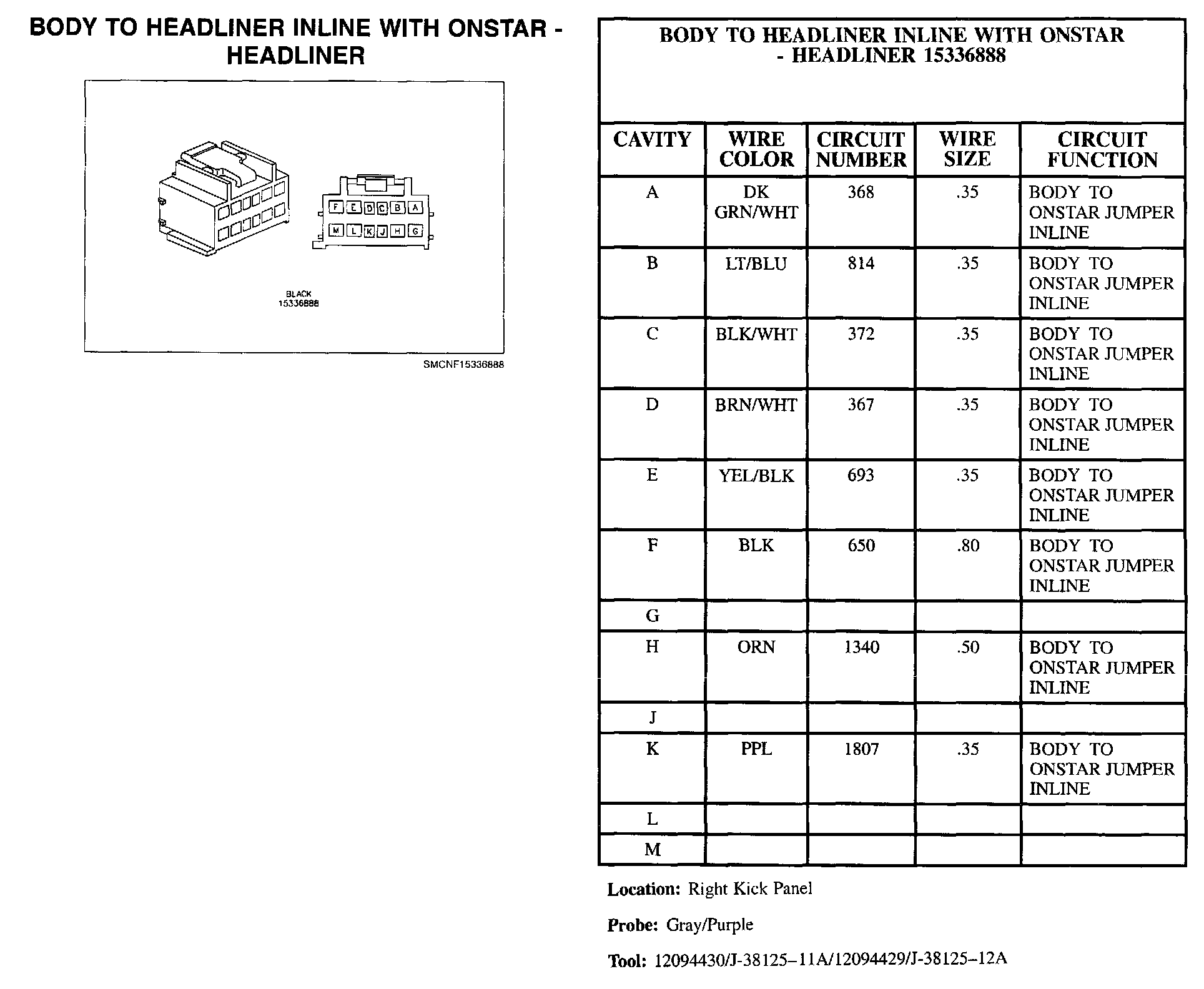

Body To Headliner Inline With Onstar - Headliner:
