Air Bag Systems
>>
Air Bag Control Module
Air Bag Control Module

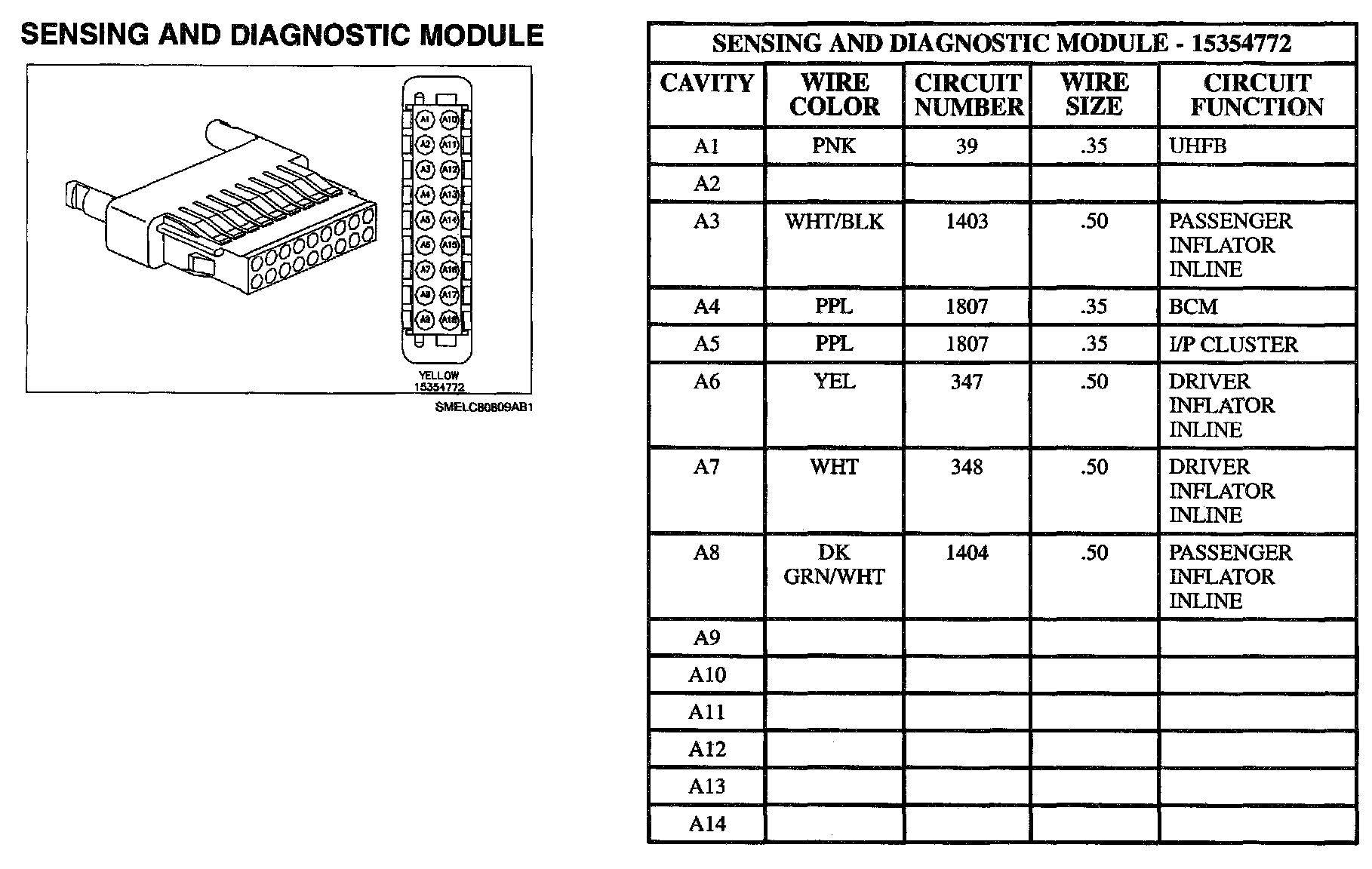

Sensing And Diagnostic Module (Part 1 Of 2):
Sensing And Diagnostic Module (Part 2 Of 2):
