Chart 20

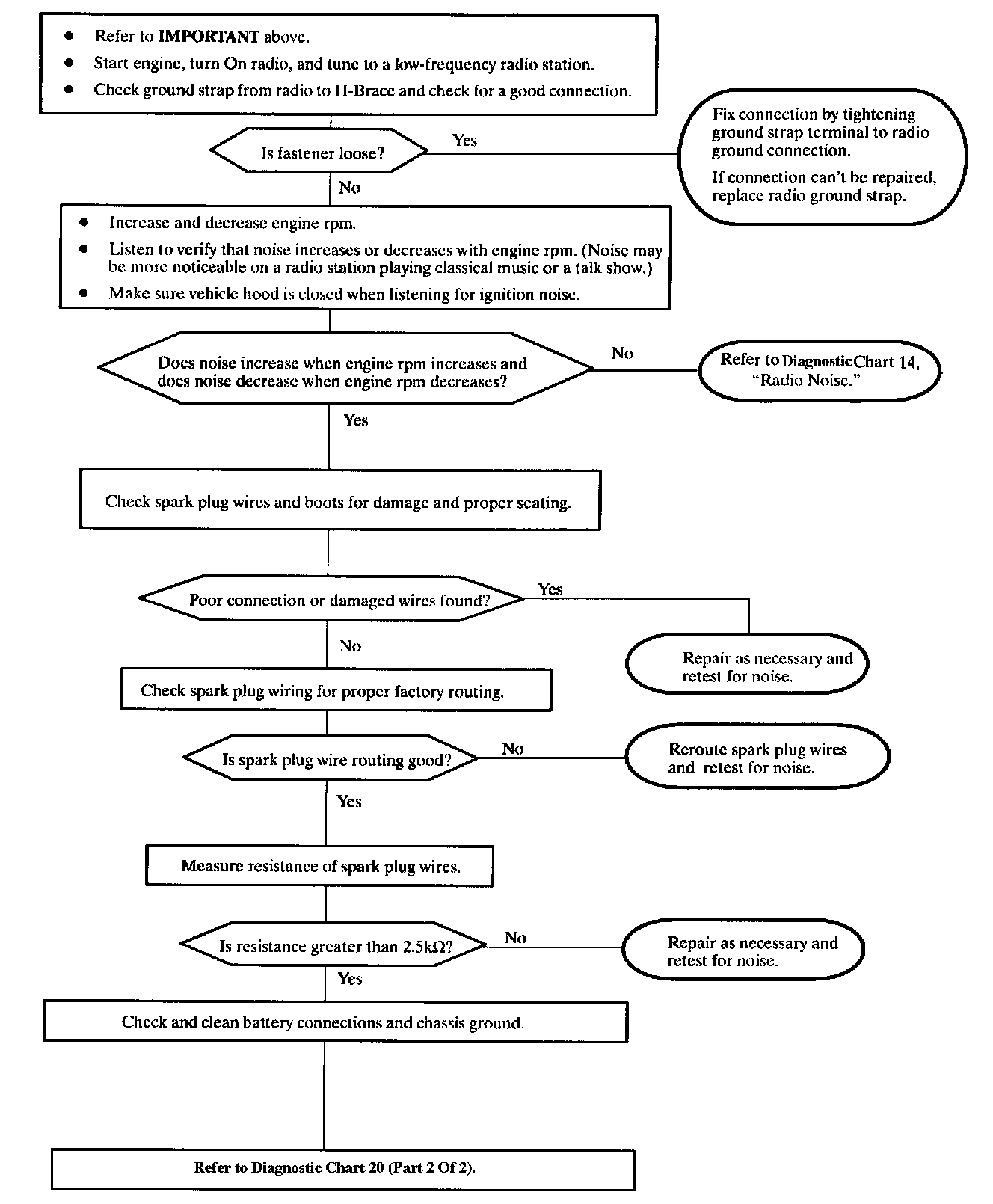

Diagnostic Chart 20 (Part 1 Of 2):

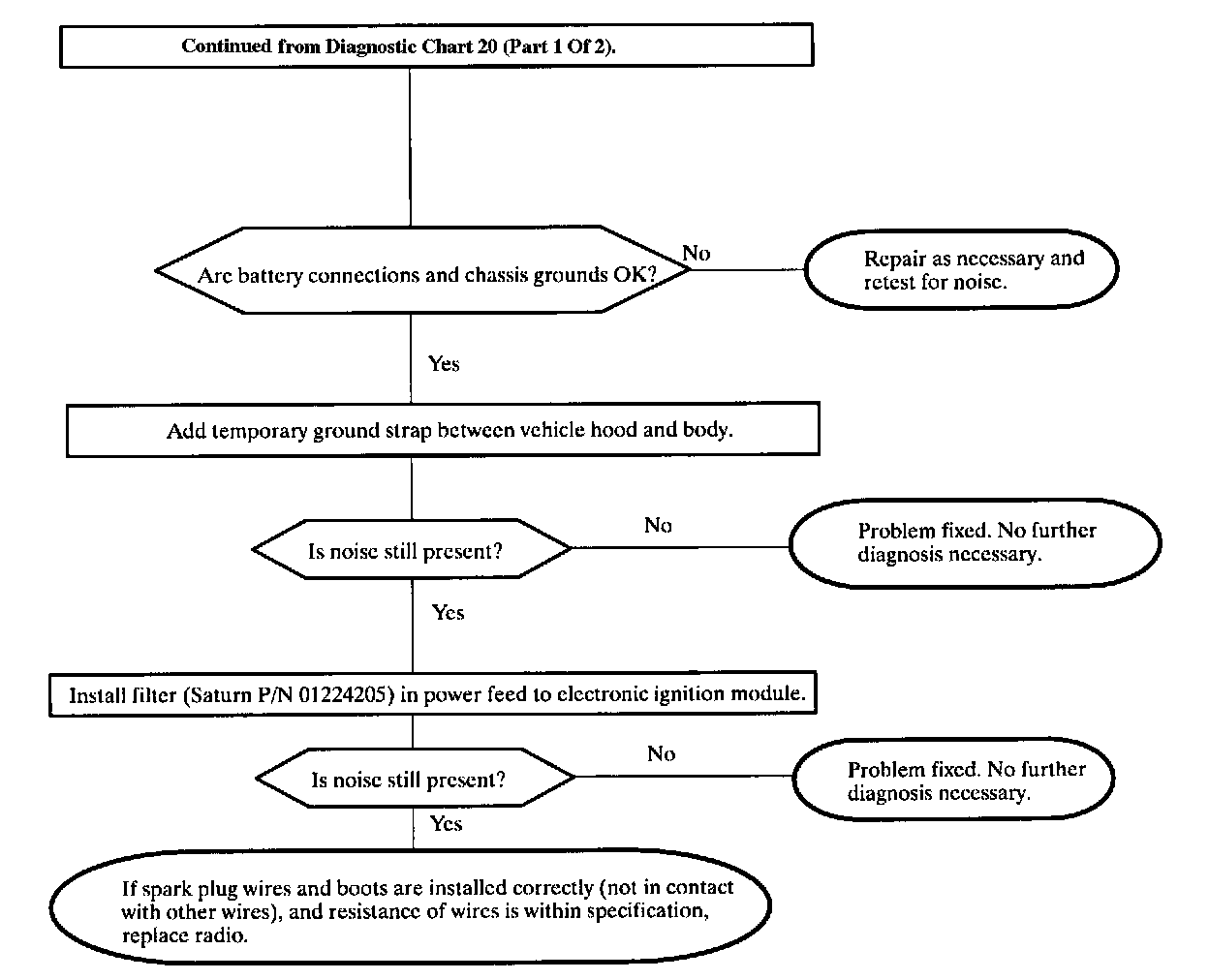

Diagnostic Chart 20 (Part 2 Of 2):

IMPORTANT: Only perform this chart after checking antenna system for proper operation and grounding (Refer to Chart 18, "Radio Noise Entering Through Antenna System [frontway Noise]"). Chart 18
