Home >> Saturn >> 1996 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Locations >> Instrument Panel Junction Block (IPJB) >> View

View

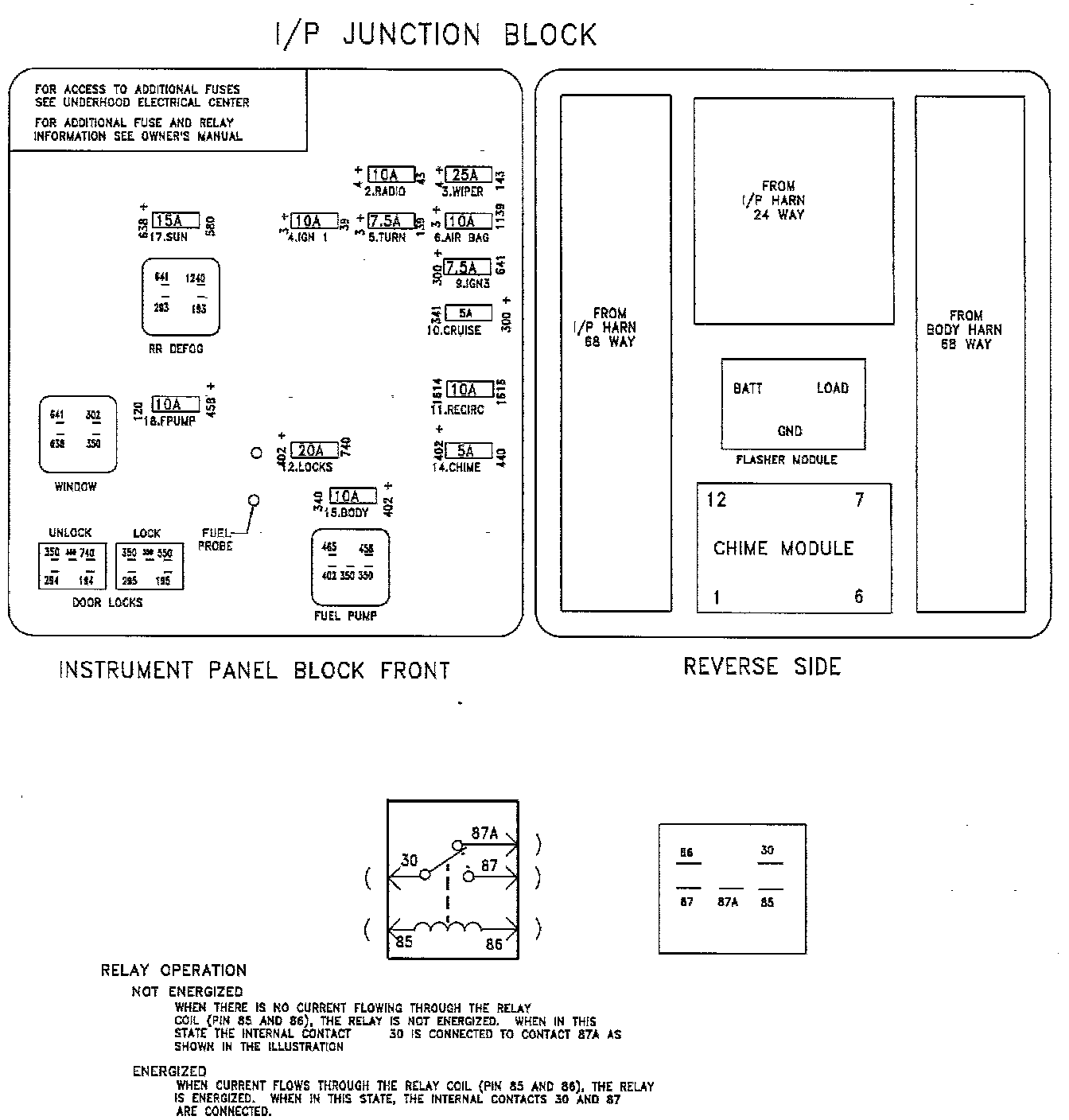

I/P Junction Block:






Instrument Panel Junction Block (IPJB).
