Powertrain/Transmission Control Module (PCM/TCM)
Powertrain/Transmission Control Module (PCM/TCM)

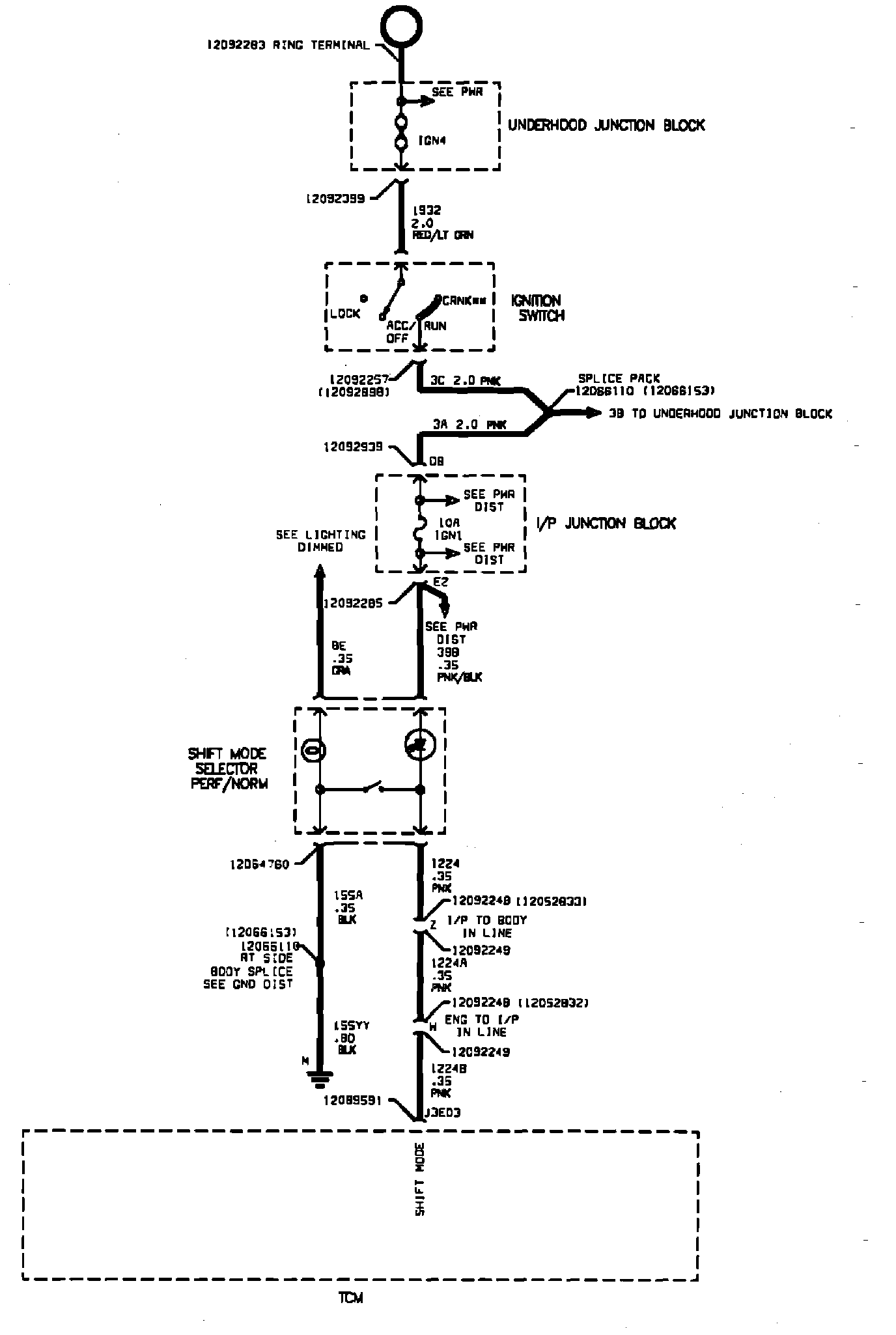

PCM (ECM):

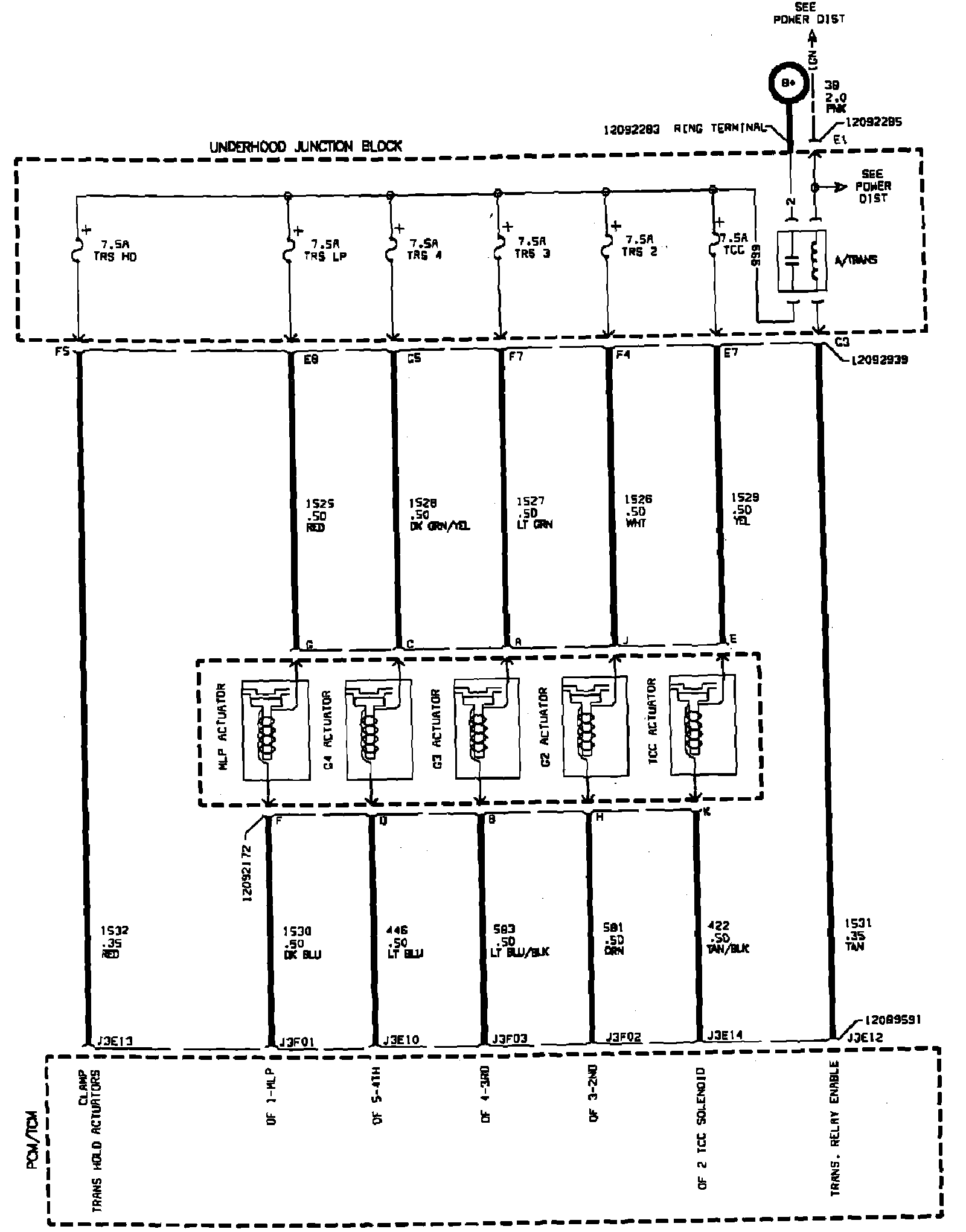

PCM (ECM):

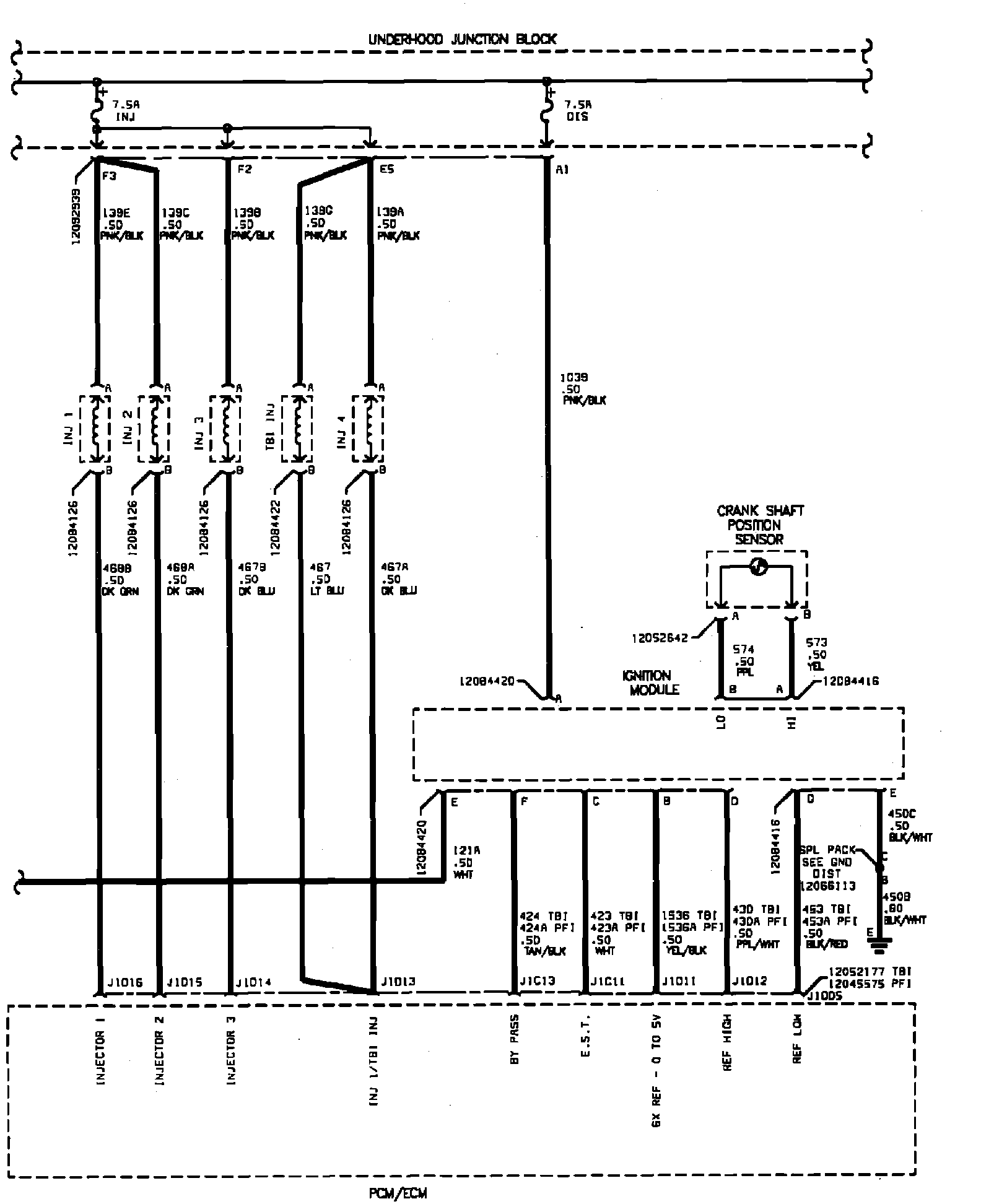

PCM (ECM):

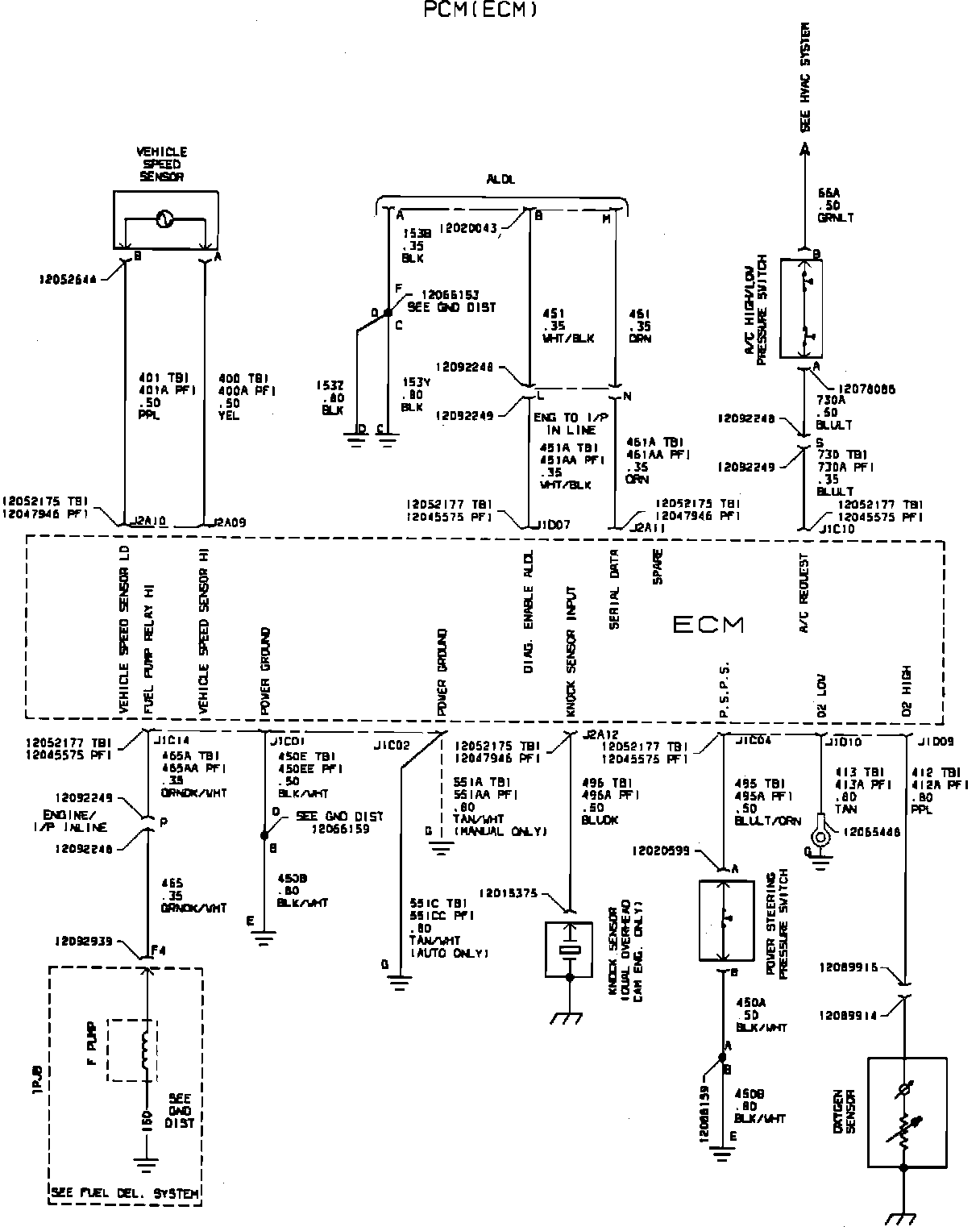

PCM (ECM):

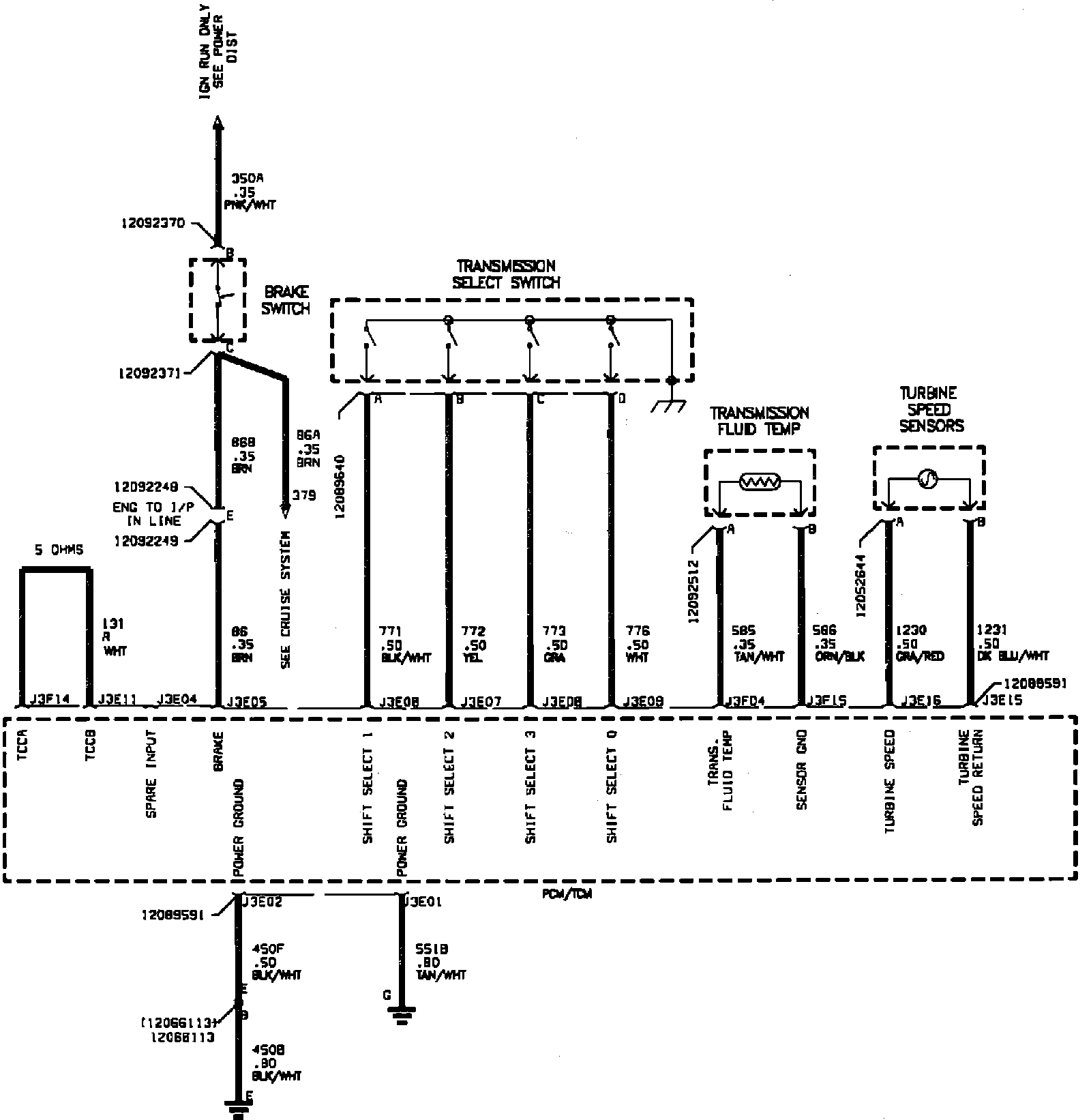

PCM (ECM):

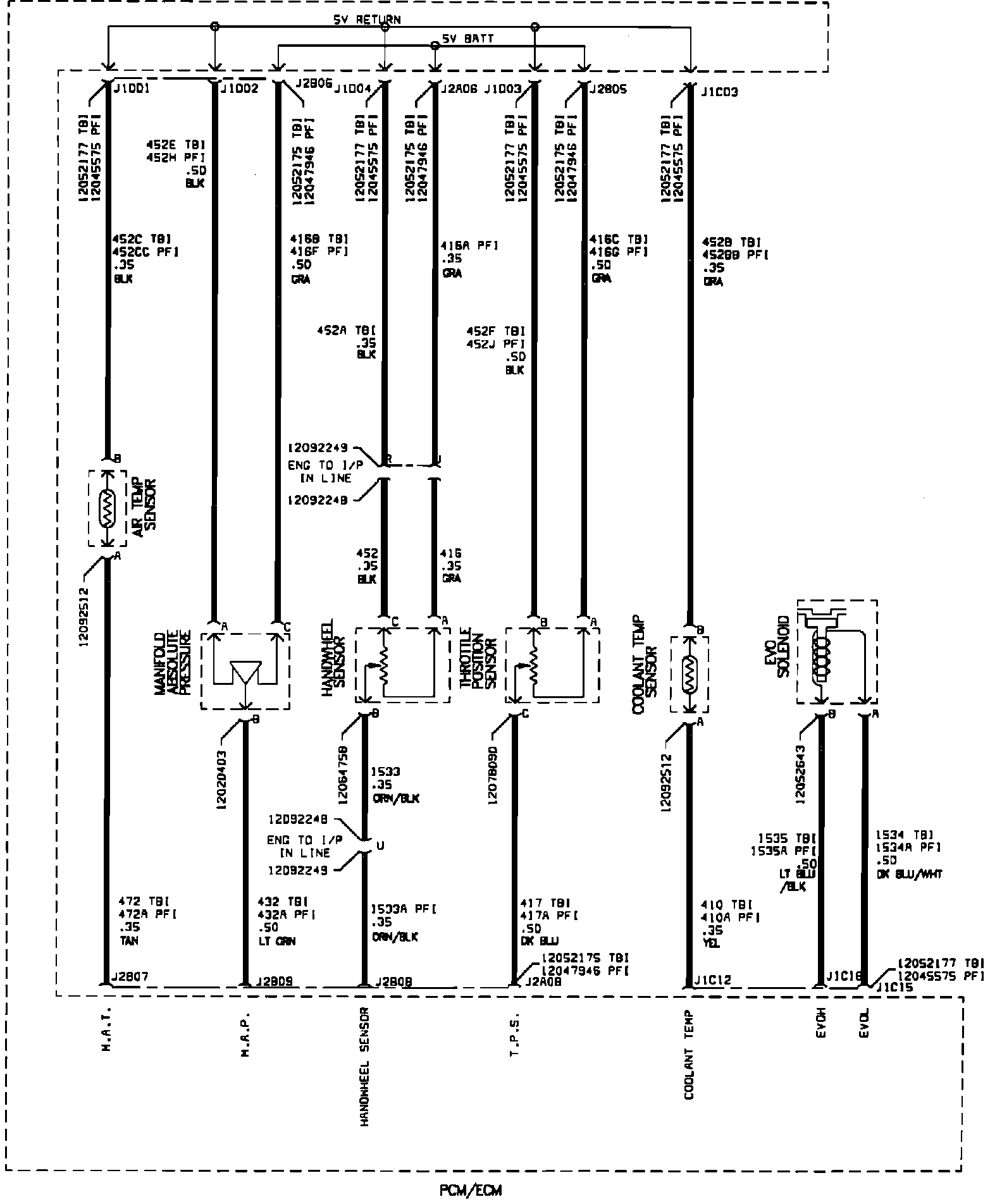

PCM (ECM):

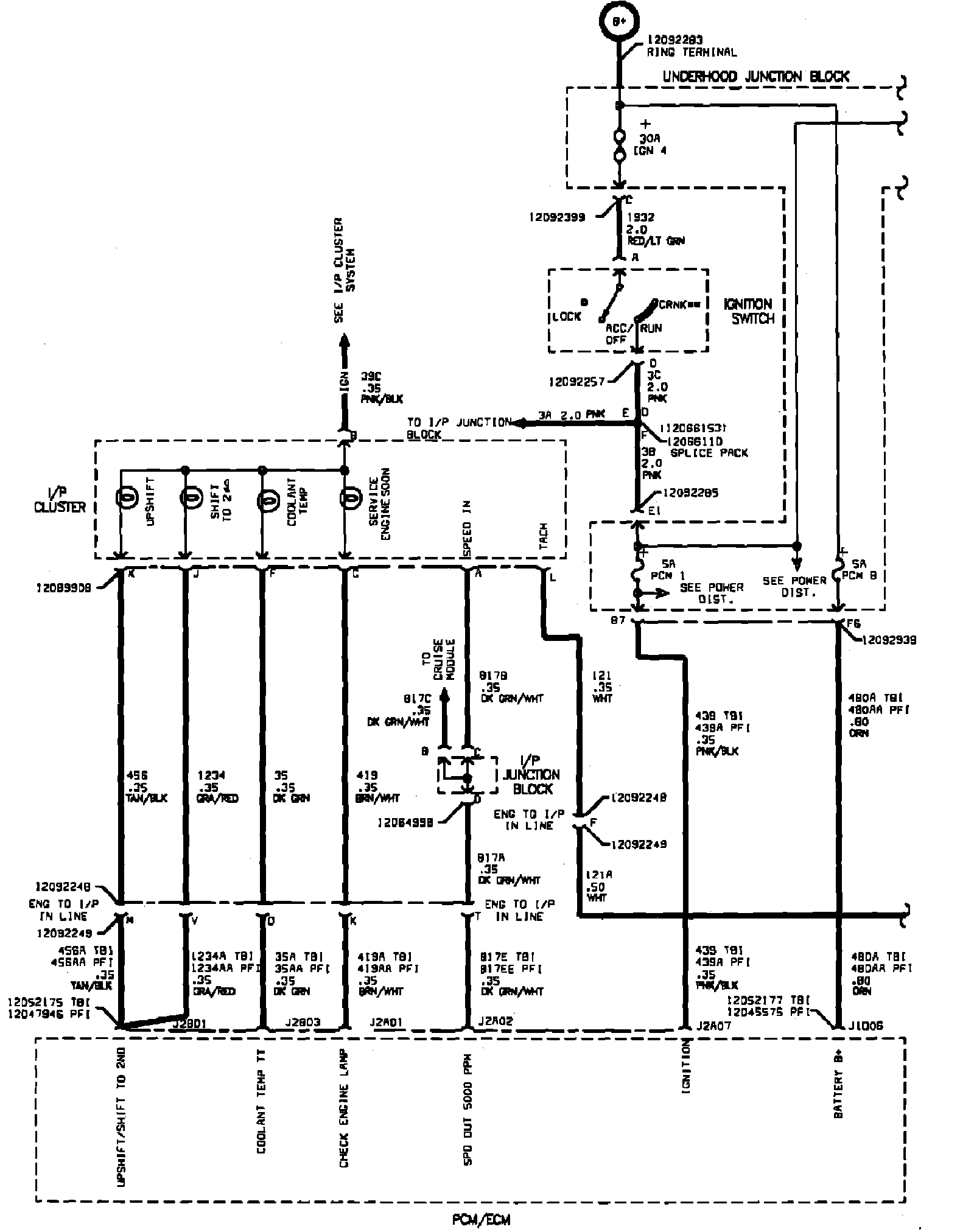

PCM (ECM):

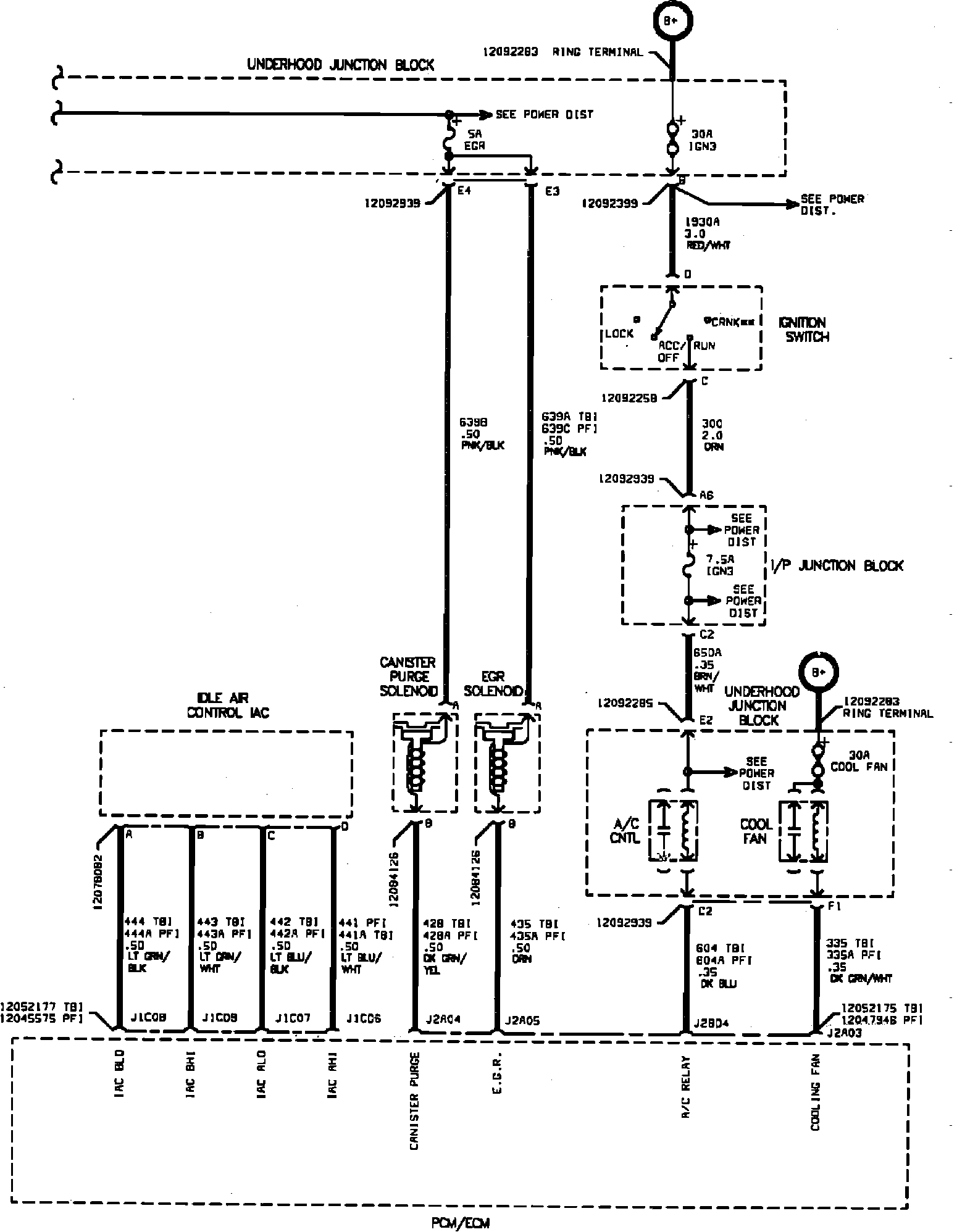

PCM (ECM):
