Home >> Saturn >> 1991 >> SC L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> DIS Module

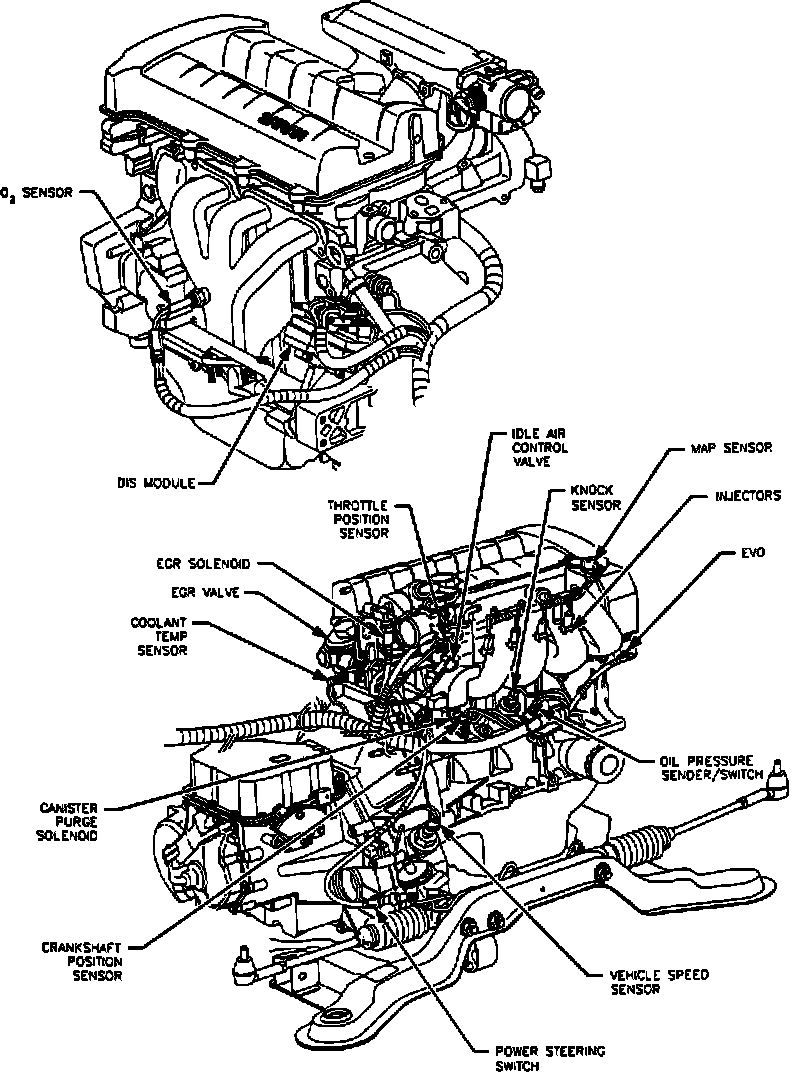

DIS Module

Engine Sensors.:




Center Front Of Engine

Applicable to: DOHC
