Control Module: Diagrams




Component Connector End Views

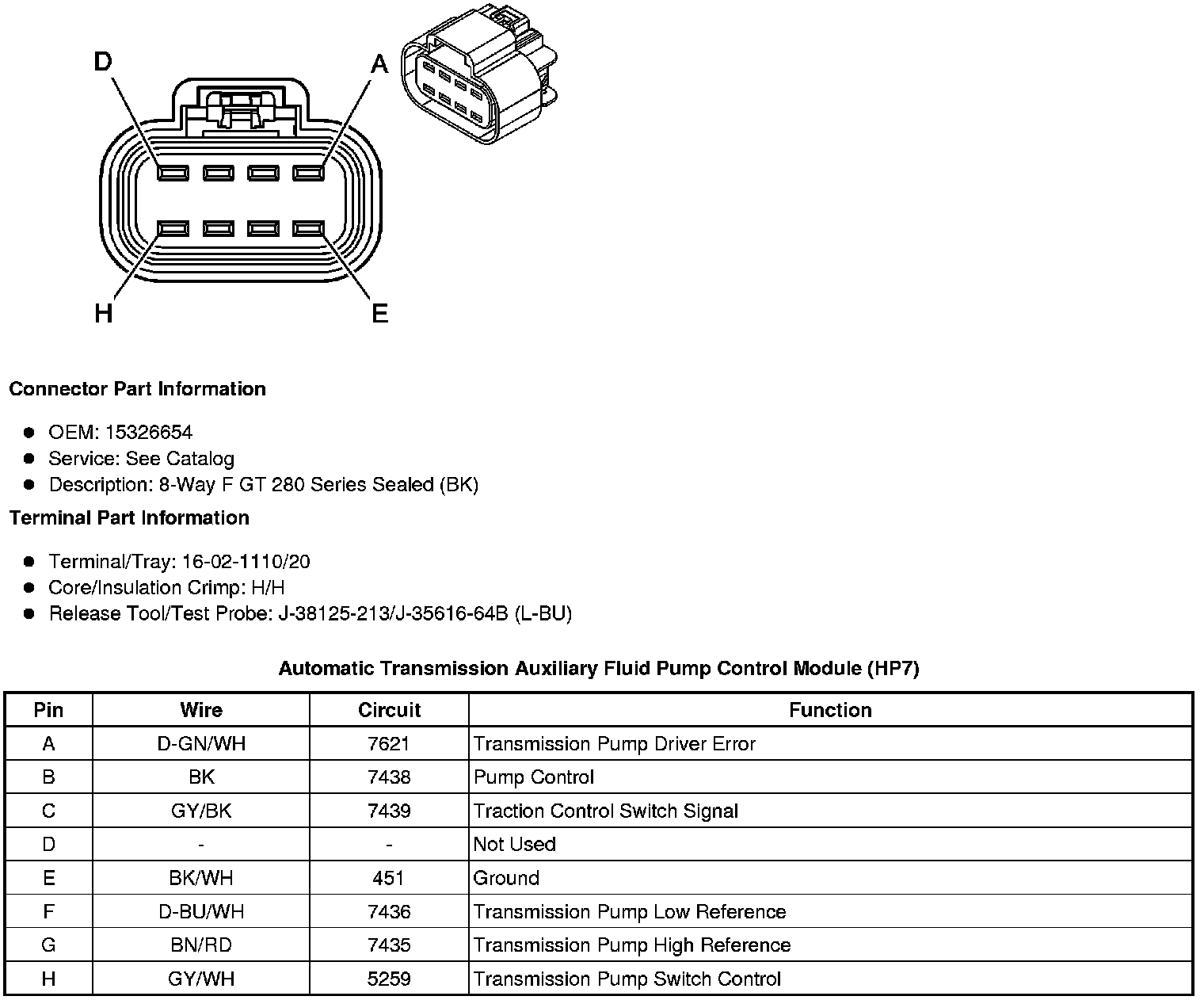

Automatic Transmission Auxiliary Fluid Pump Control Module (HP7)

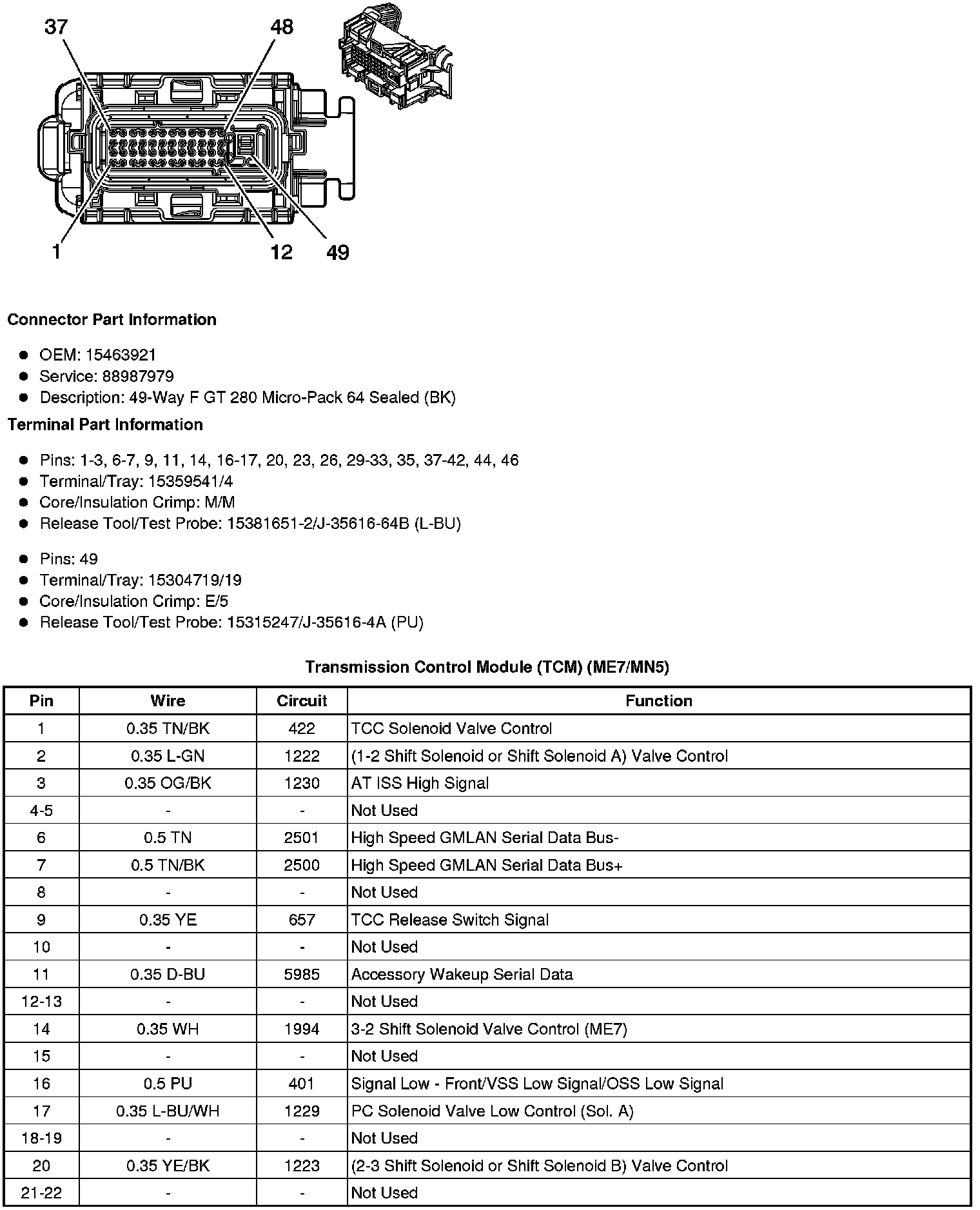

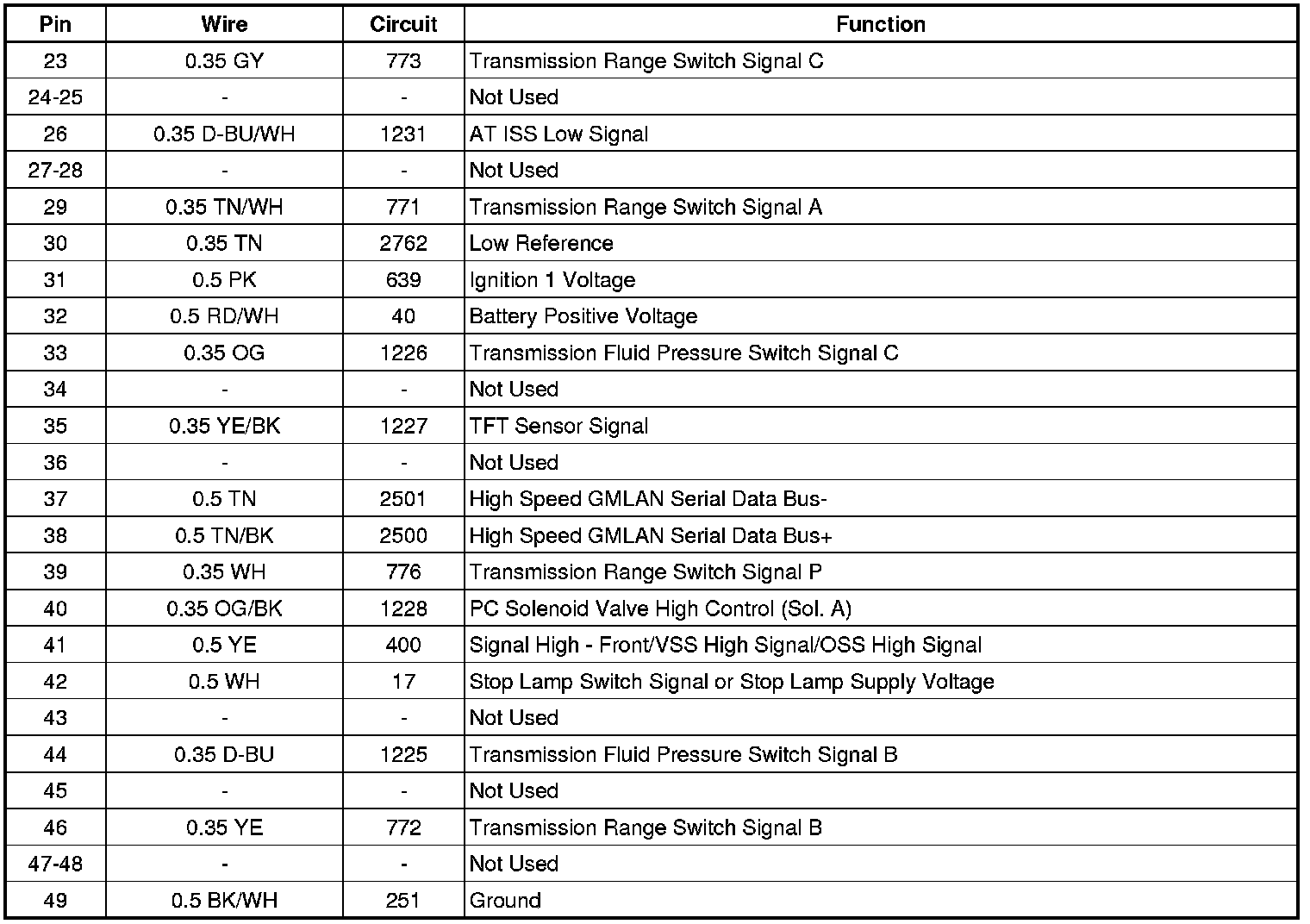

Transmission Control Module (TCM) (ME7/MN5)
