Battery Current Sensor: Diagrams




Component Connector End Views

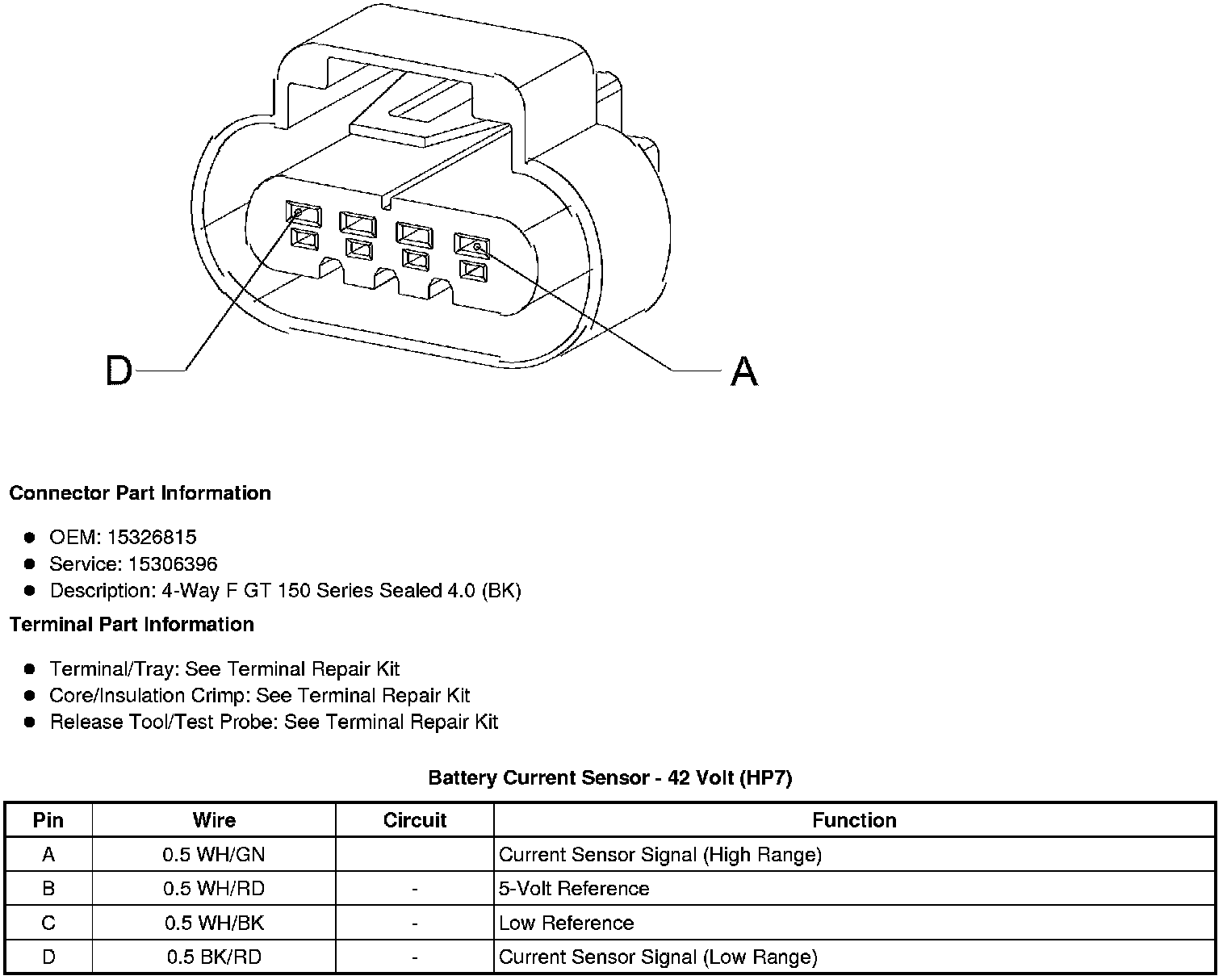

Battery Current Sensor - 42 Volt (HP7)

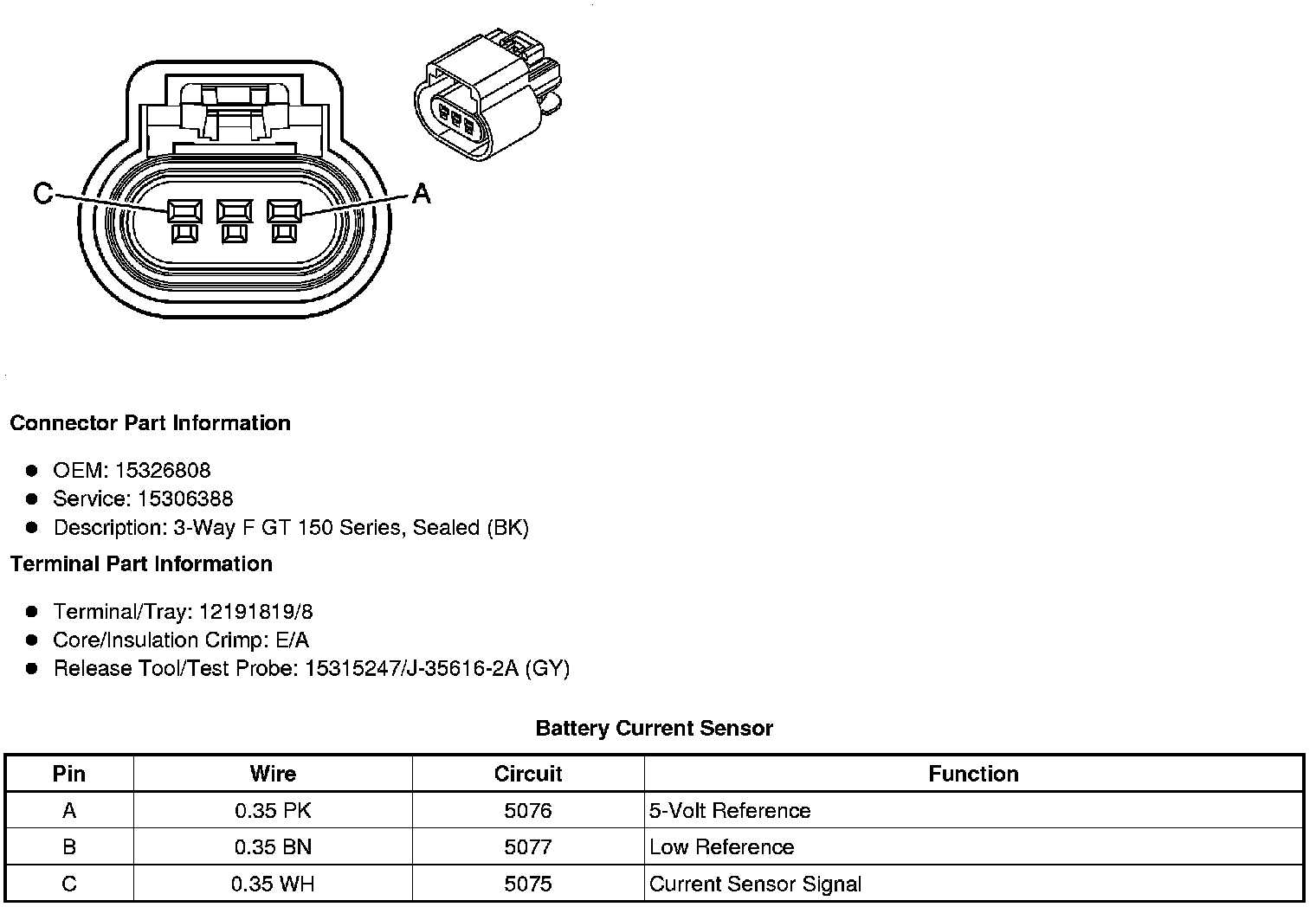

Battery Current Sensor
