Home >> Saturn Truck >> 2005 >> VUE AWD L4-2.2L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> 5AT

5AT

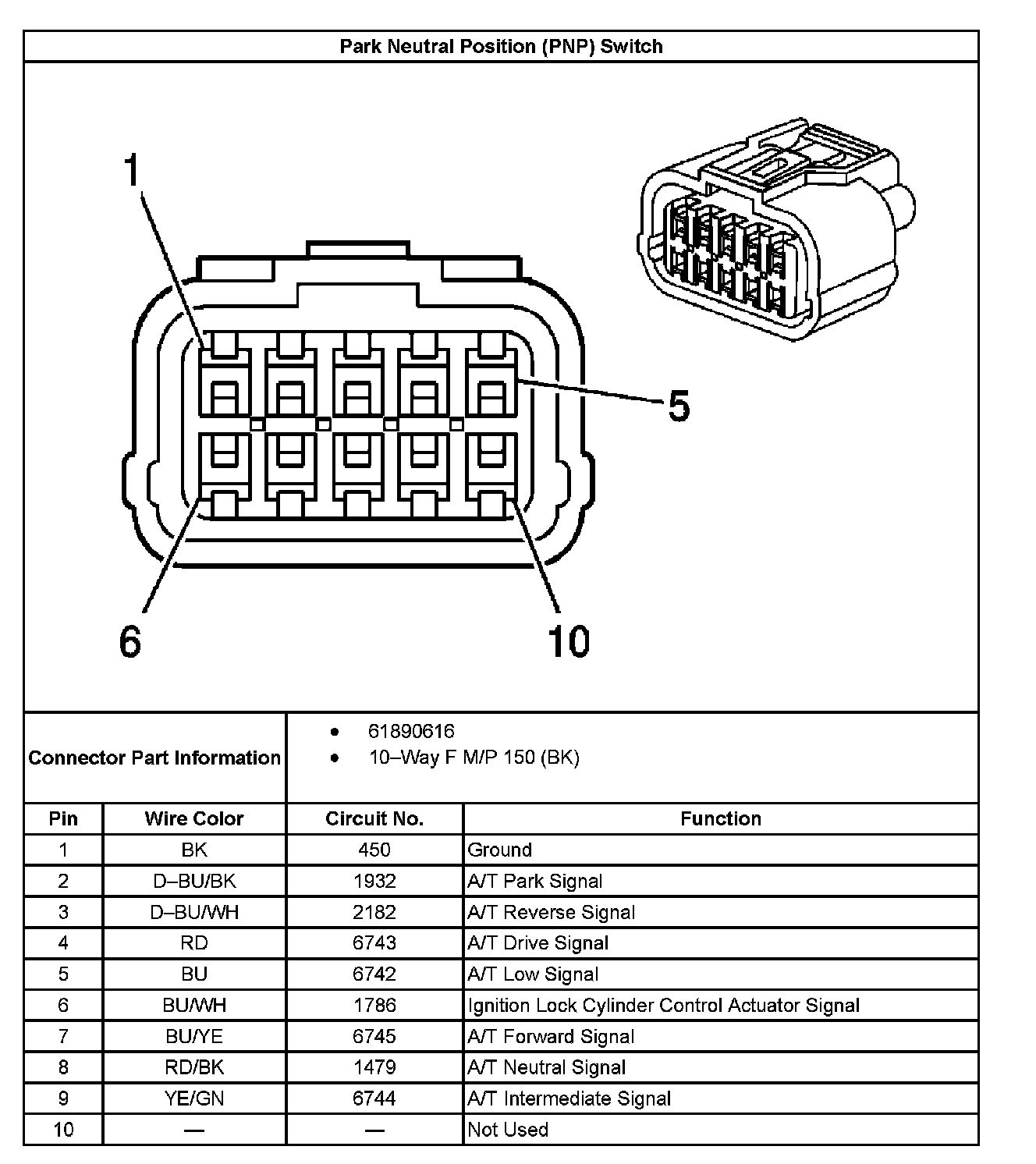

Park Neutral Position (PNP) Switch 1:




Park Neutral Position (PNP) Switch 2:
