Electronic Brake Control Module
Electronic Brake Control Module

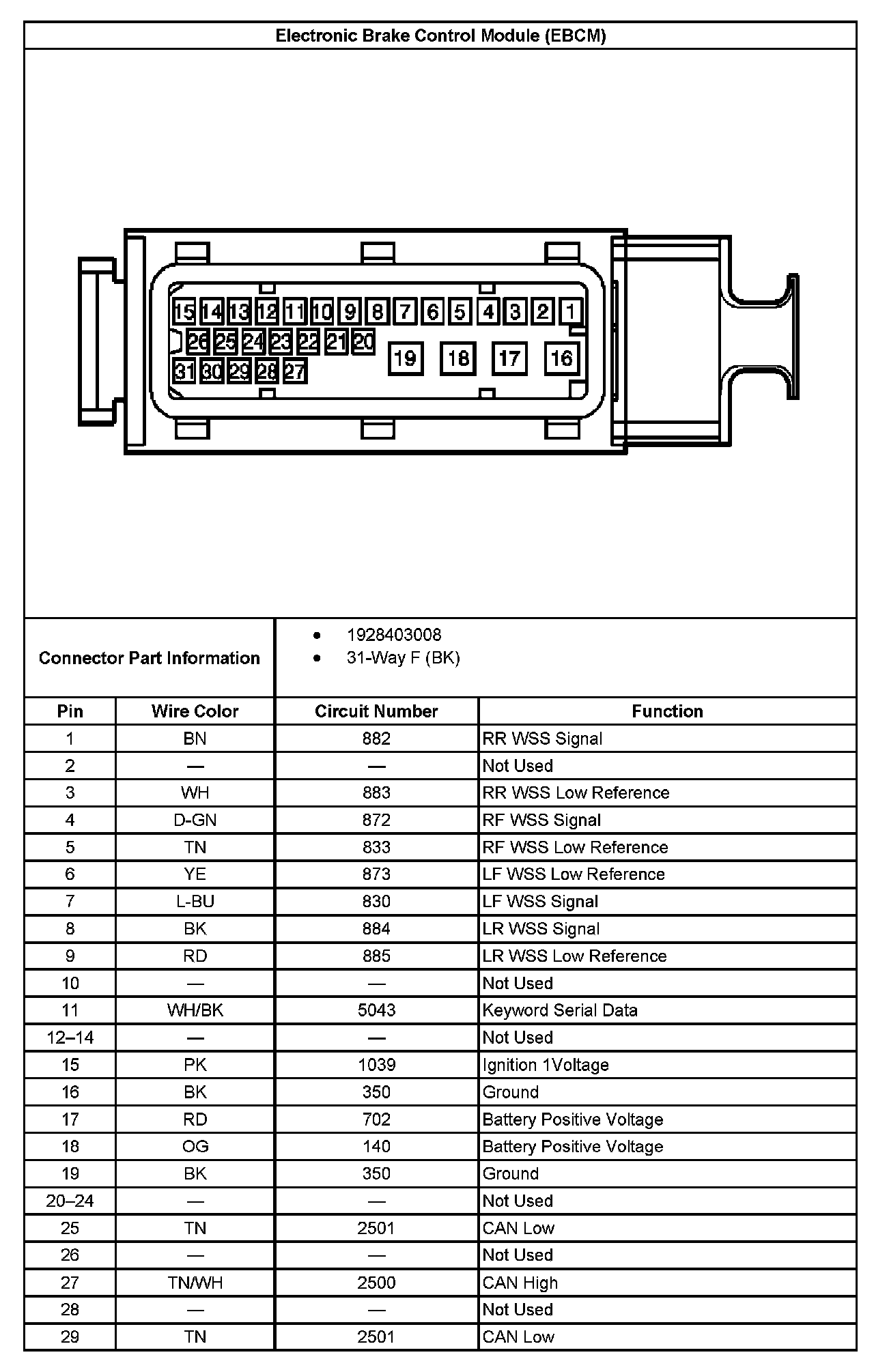

Electronic Brake Control Module (EBCM) 31-Way (BK) Part 1:
Electronic Brake Control Module (EBCM) 31-Way (BK) Part 2:
