Connector Views
AUTOMATIC TRANSMISSION INLINE HARNESS CONNECTOR

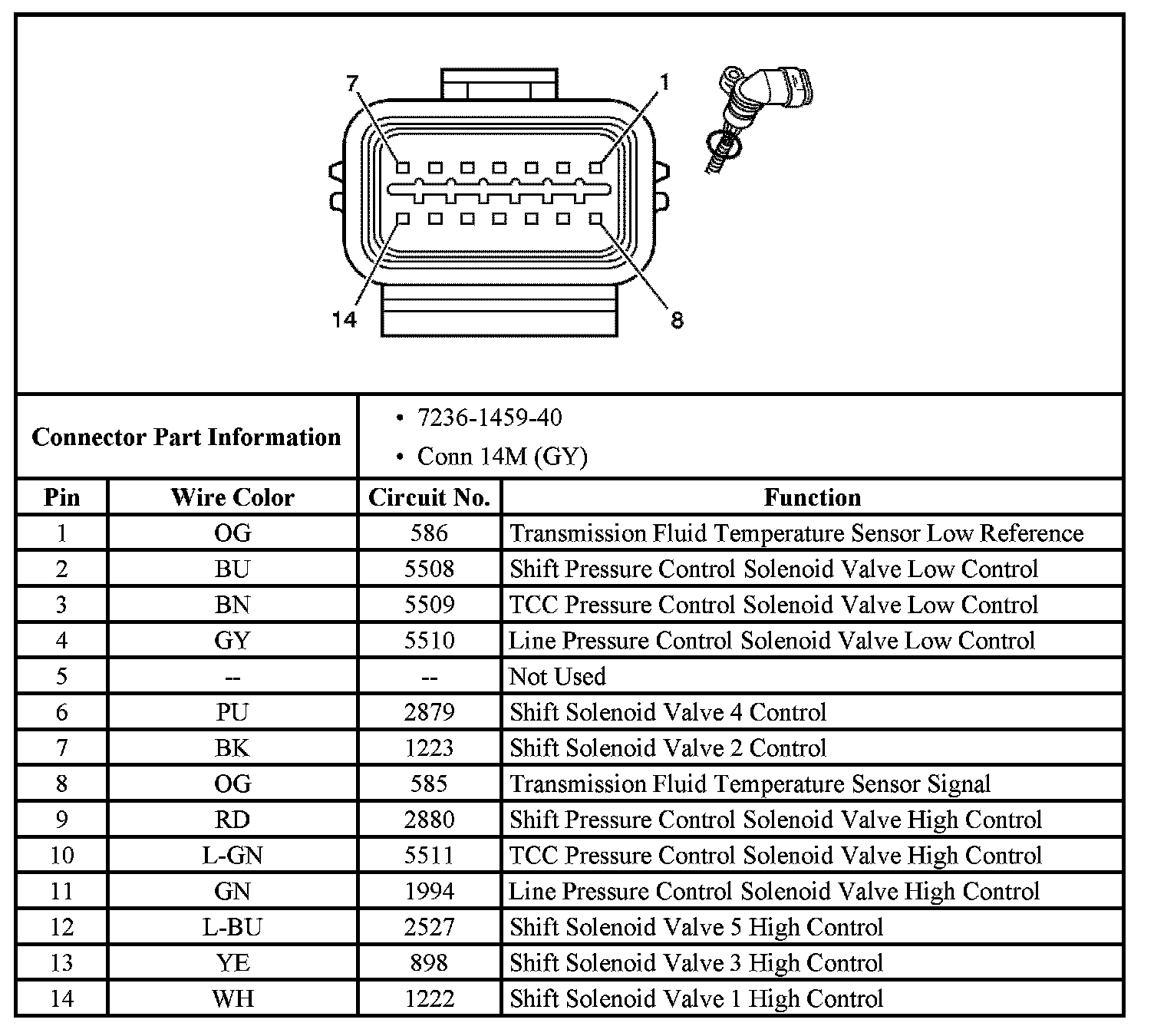

Transmission Side

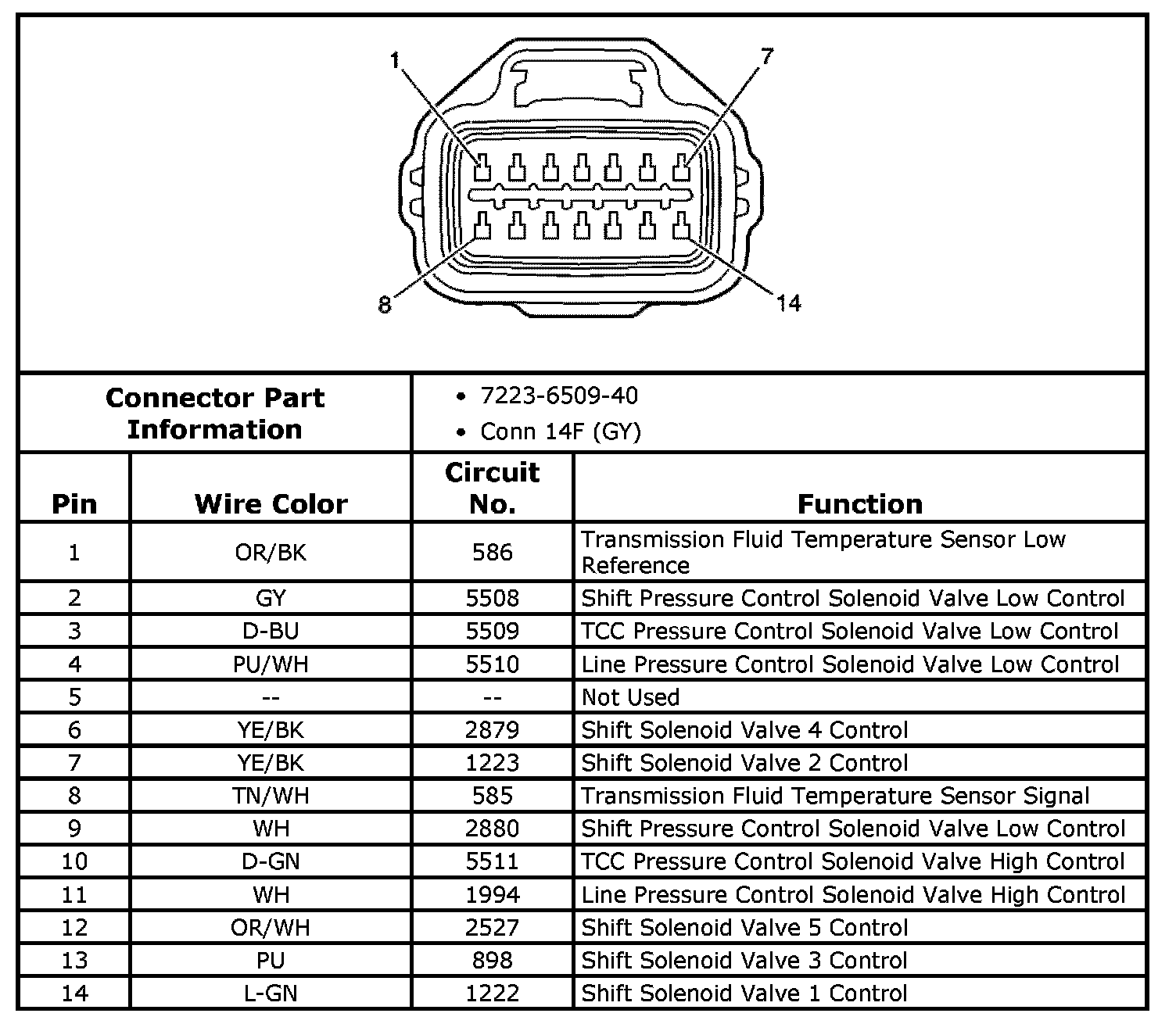

Wiring Harness Side
