Home >> Saturn Truck >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams

Control Assembly: Diagrams

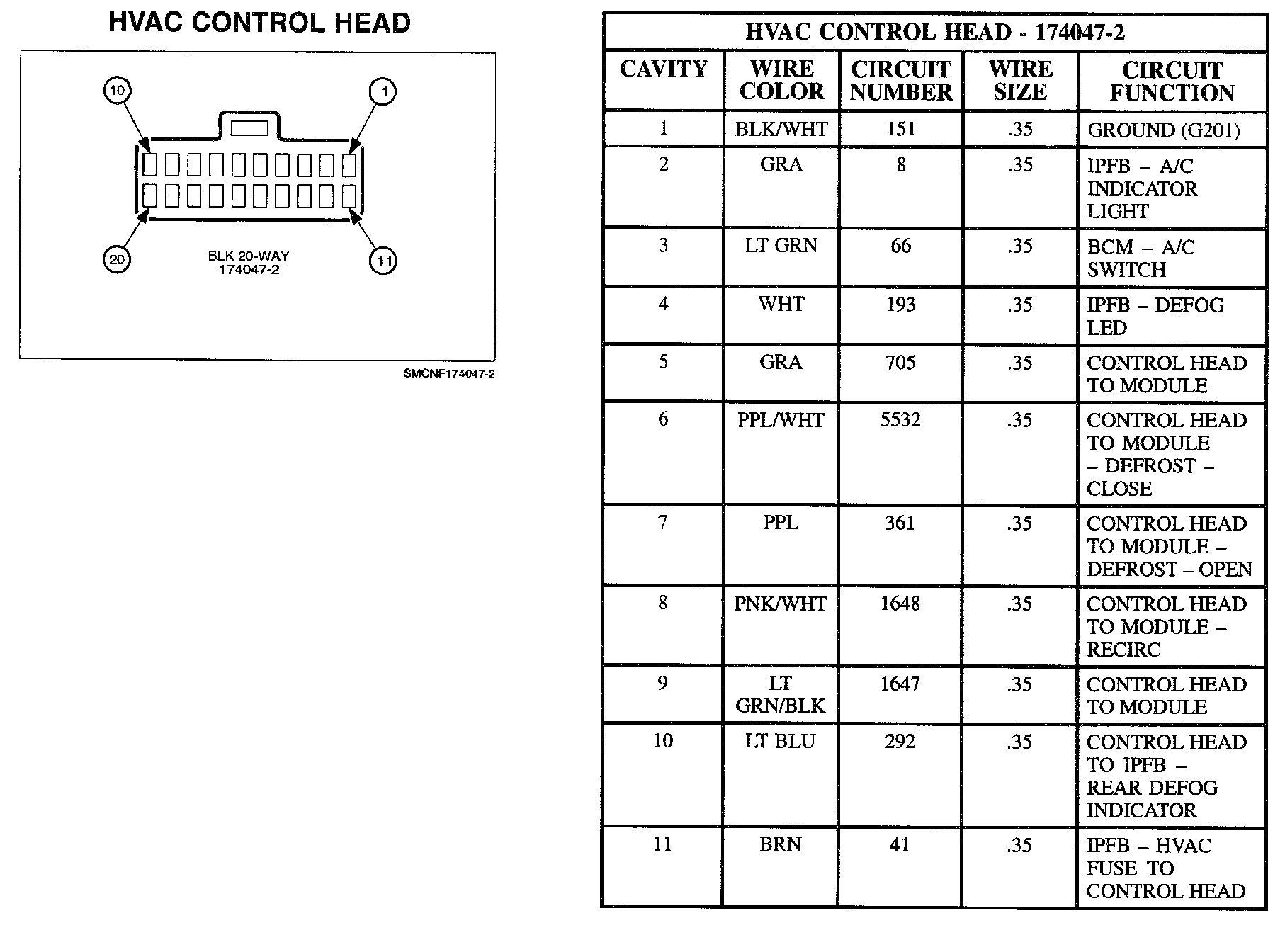

HVAC Control Head Part 1:

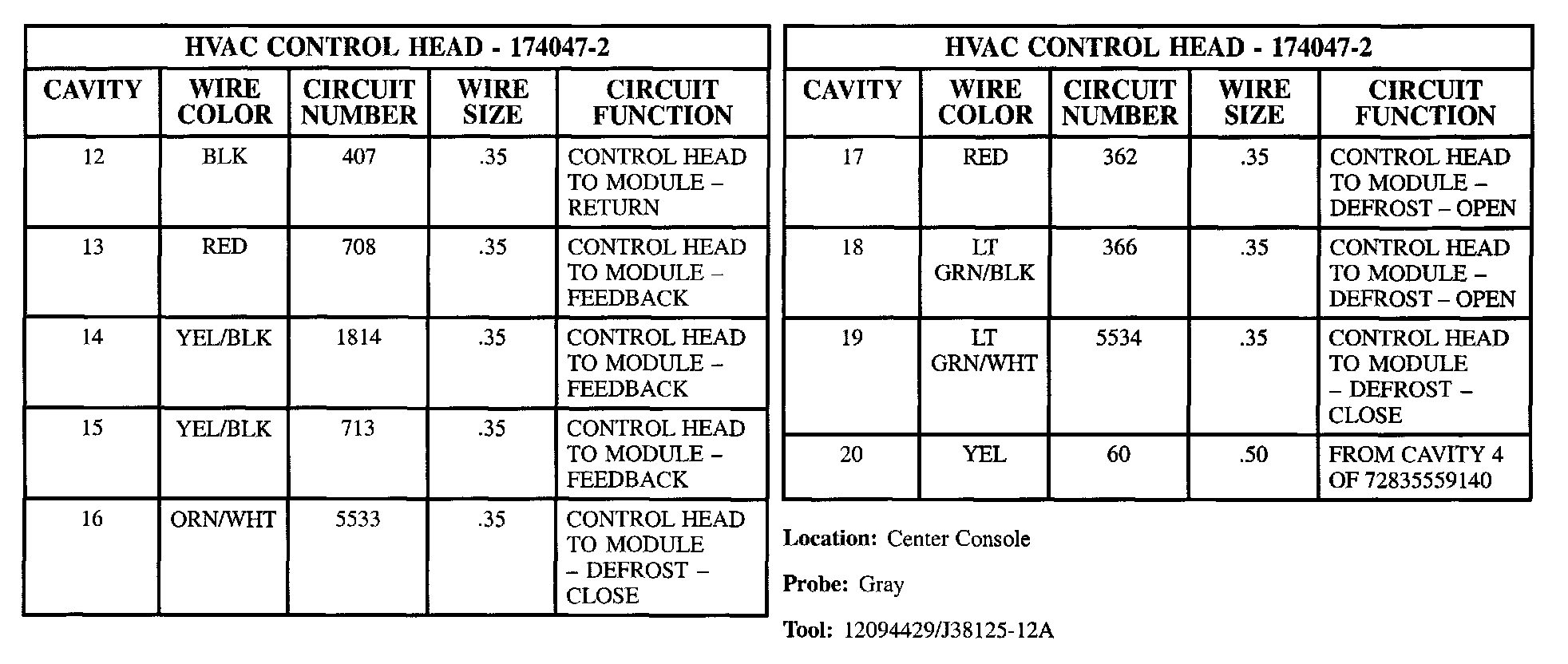

HVAC Control Head Part 2:

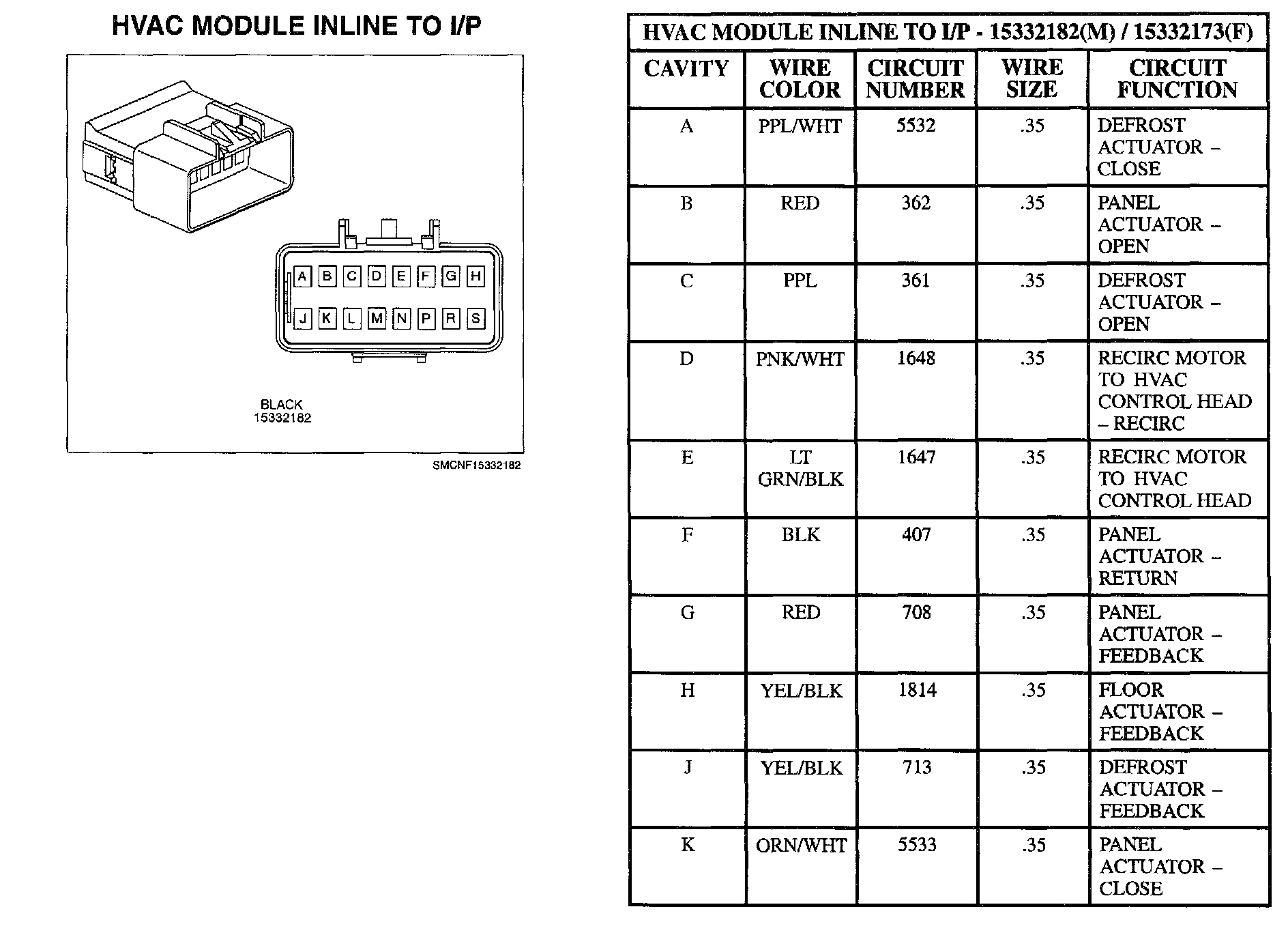

HVAC Module Inline To I/P Part 1:

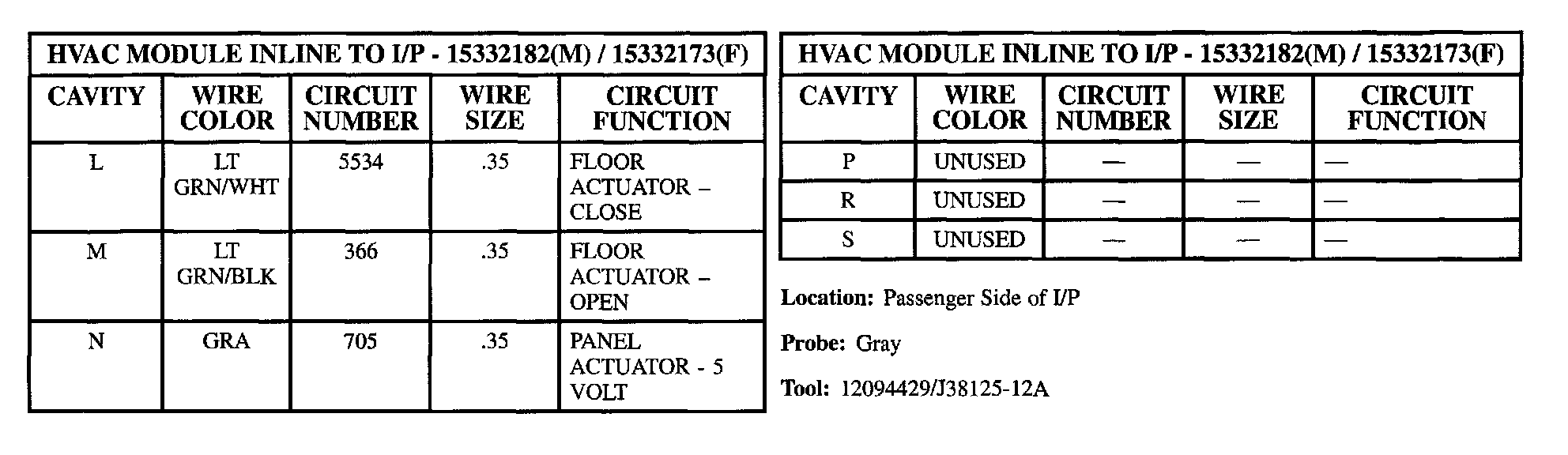

HVAC Module Inline To I/P Part 2:
