Home >> Saturn Truck >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Front Control Valve Body Assembly

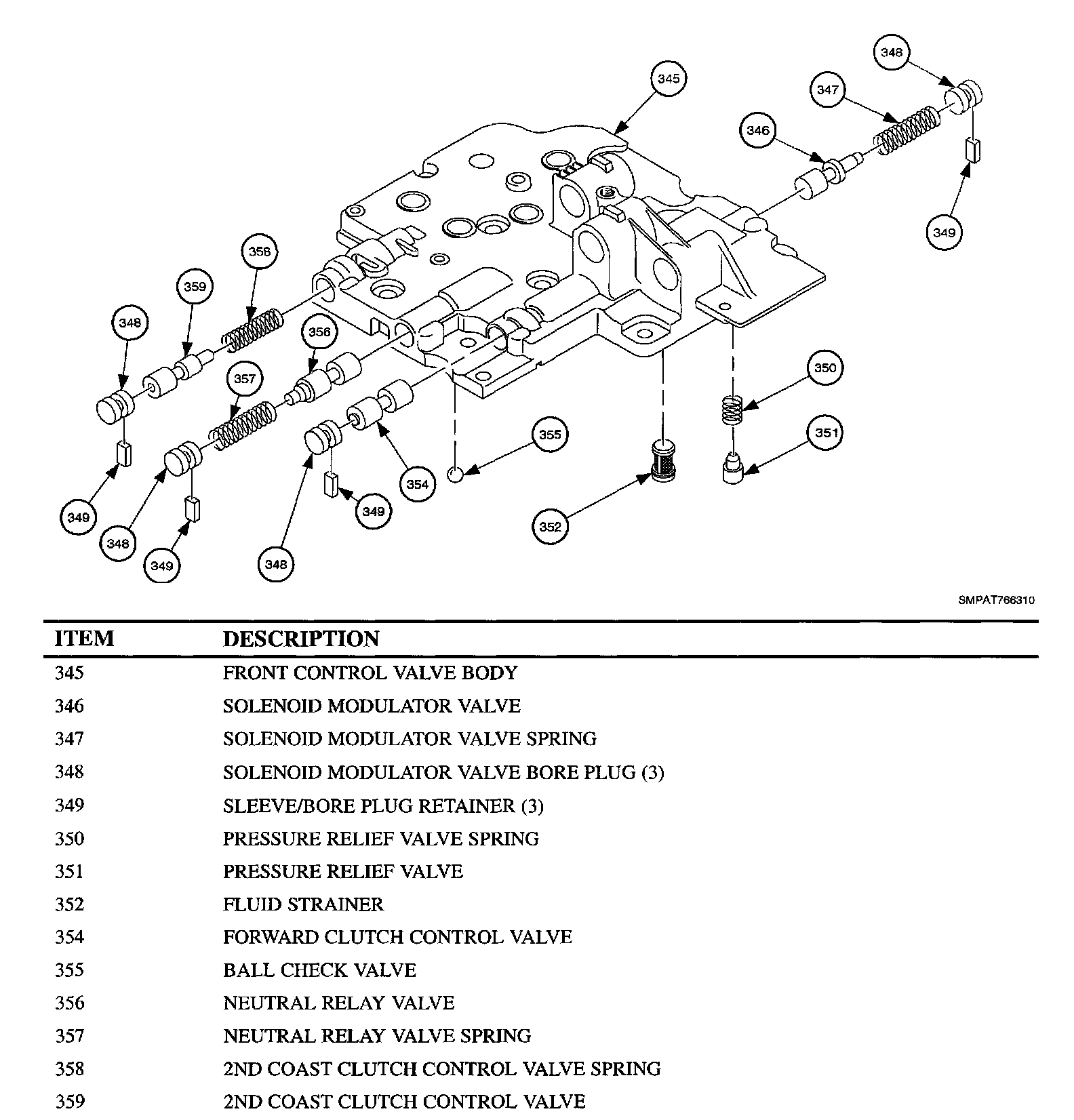

Front Control Valve Body Assembly
