Home >> Saturn Truck >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windows >> Power Window Switch >> Window Switch

Window Switch

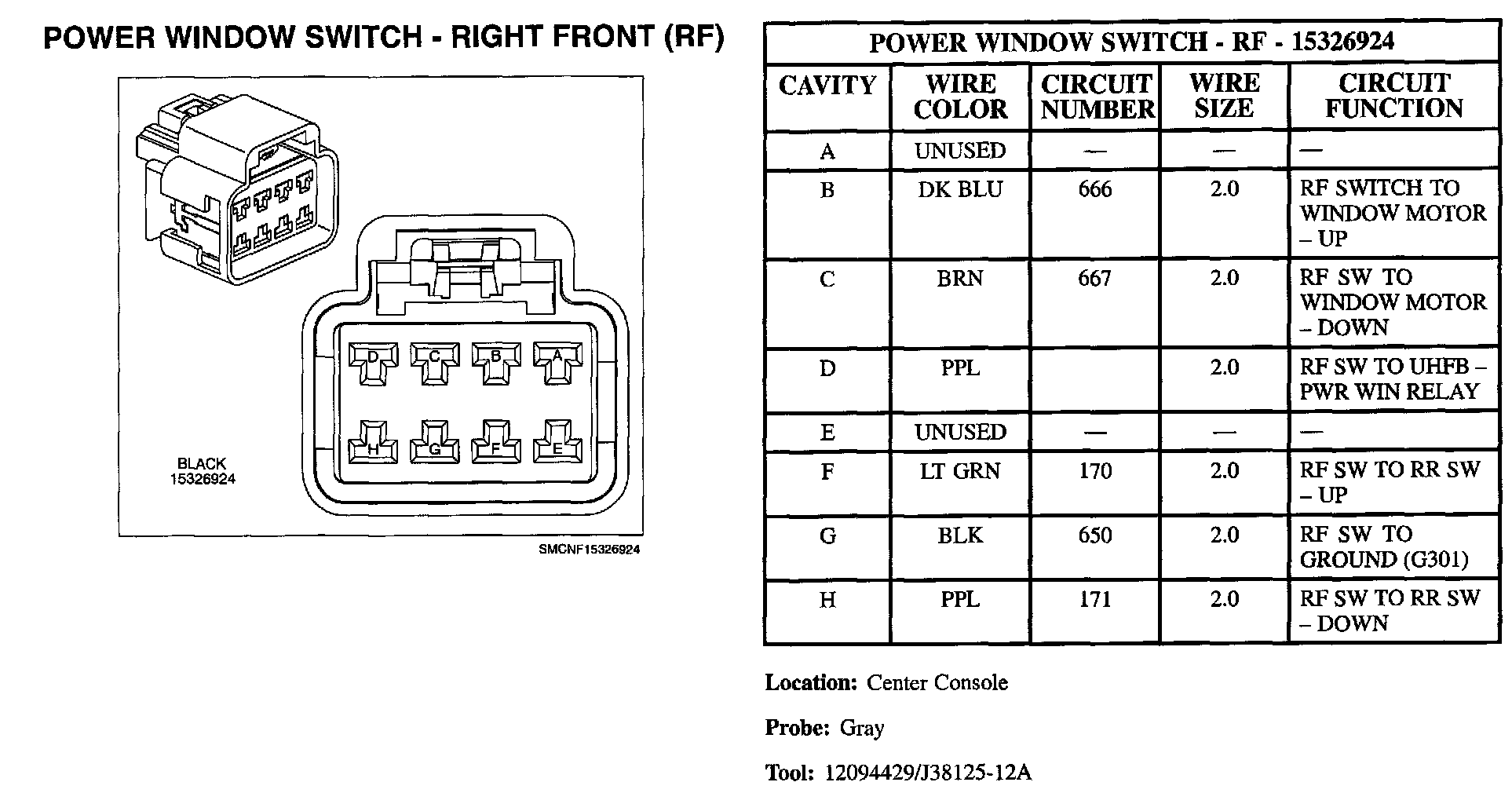

Power Window Switch - Right Front (RF):

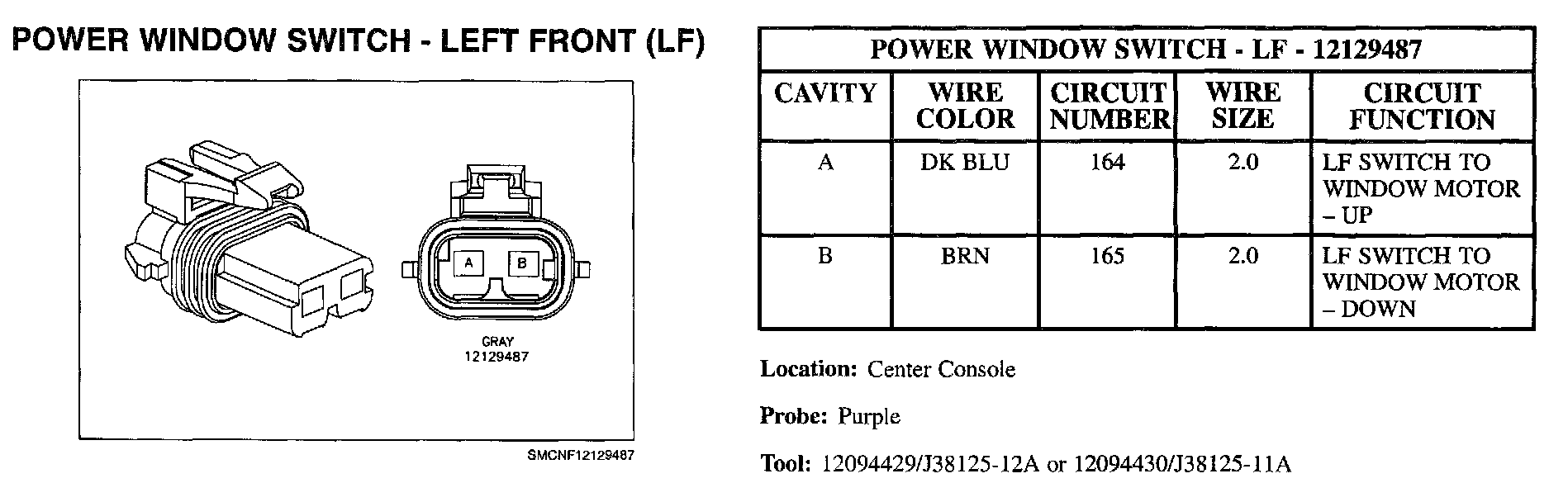

Power Window Switch - Left Front (LF):

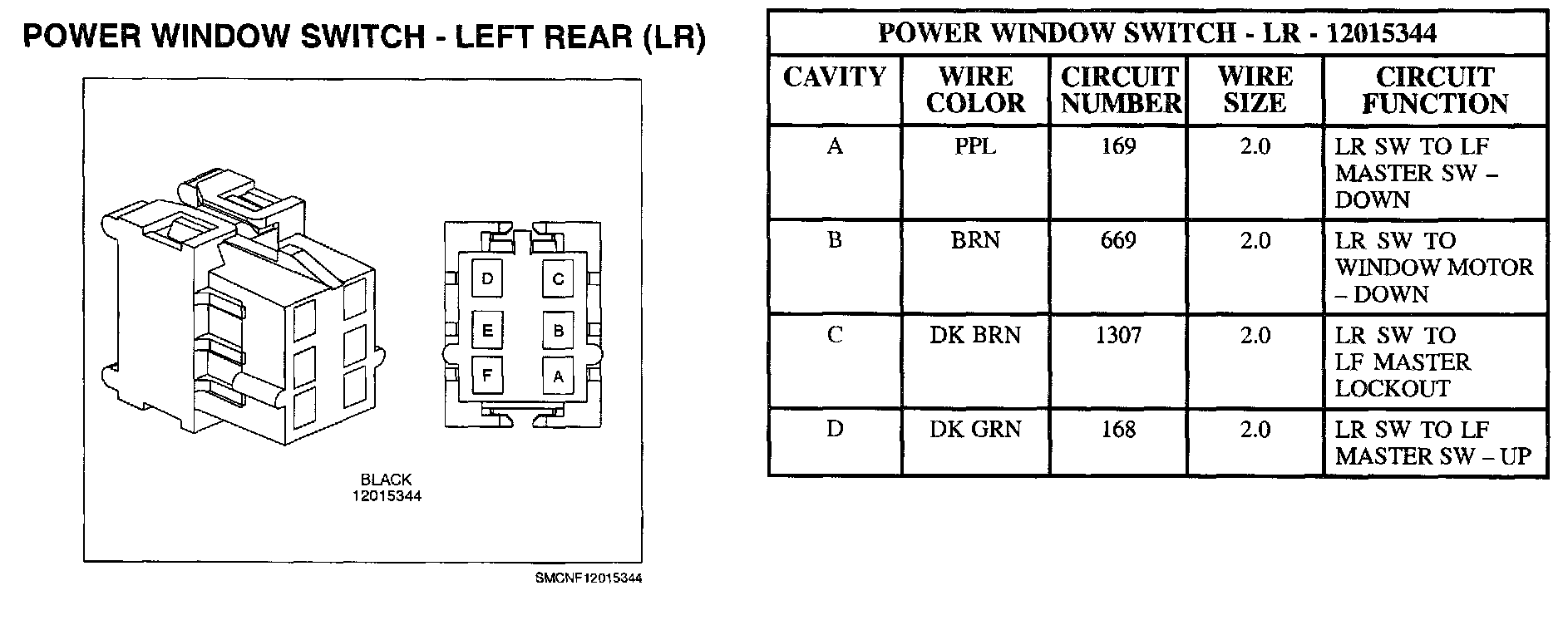

Power Window Switch - Left Rear (LR) Part 1:




Power Window Switch - Left Rear (LR) Part 2:

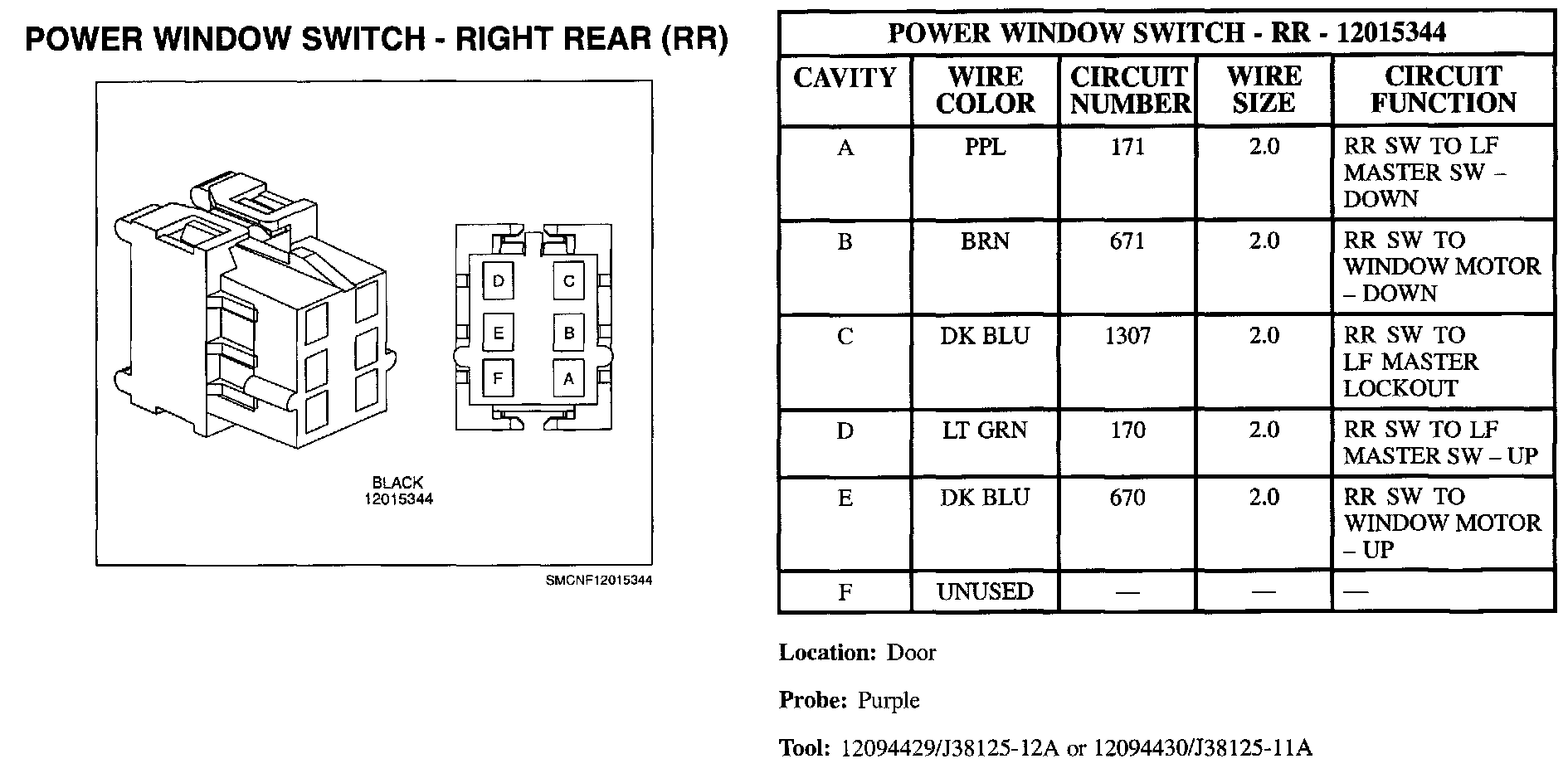

Power Window Switch - Right Rear (RR):
