Home >> Saturn Truck >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Continuously Variable Transmission/Transaxle, CVT >> Control Module, CVT

Control Module, CVT



Transmission Control Module Harness 64-Way Connector

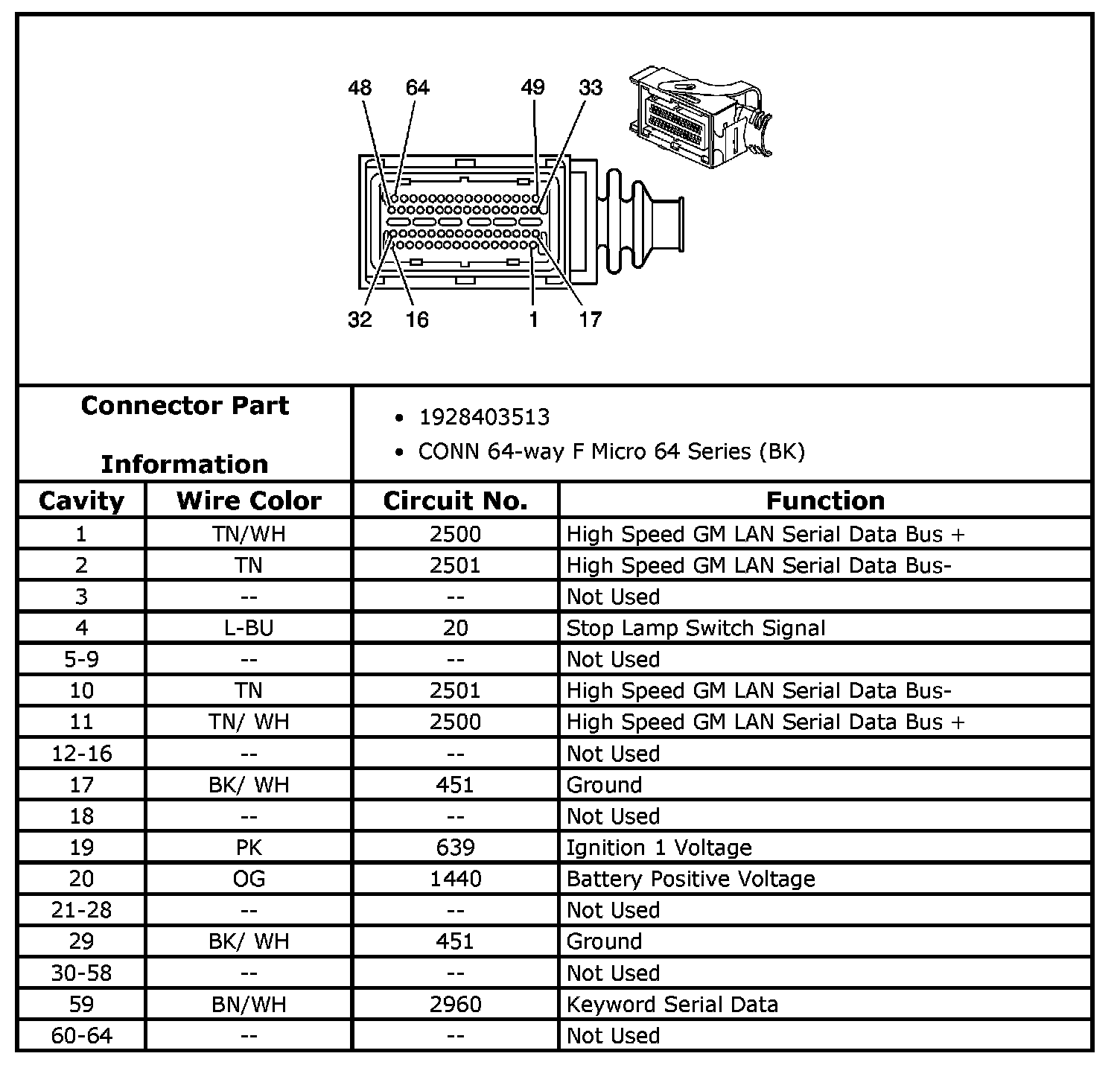

C1 Connector

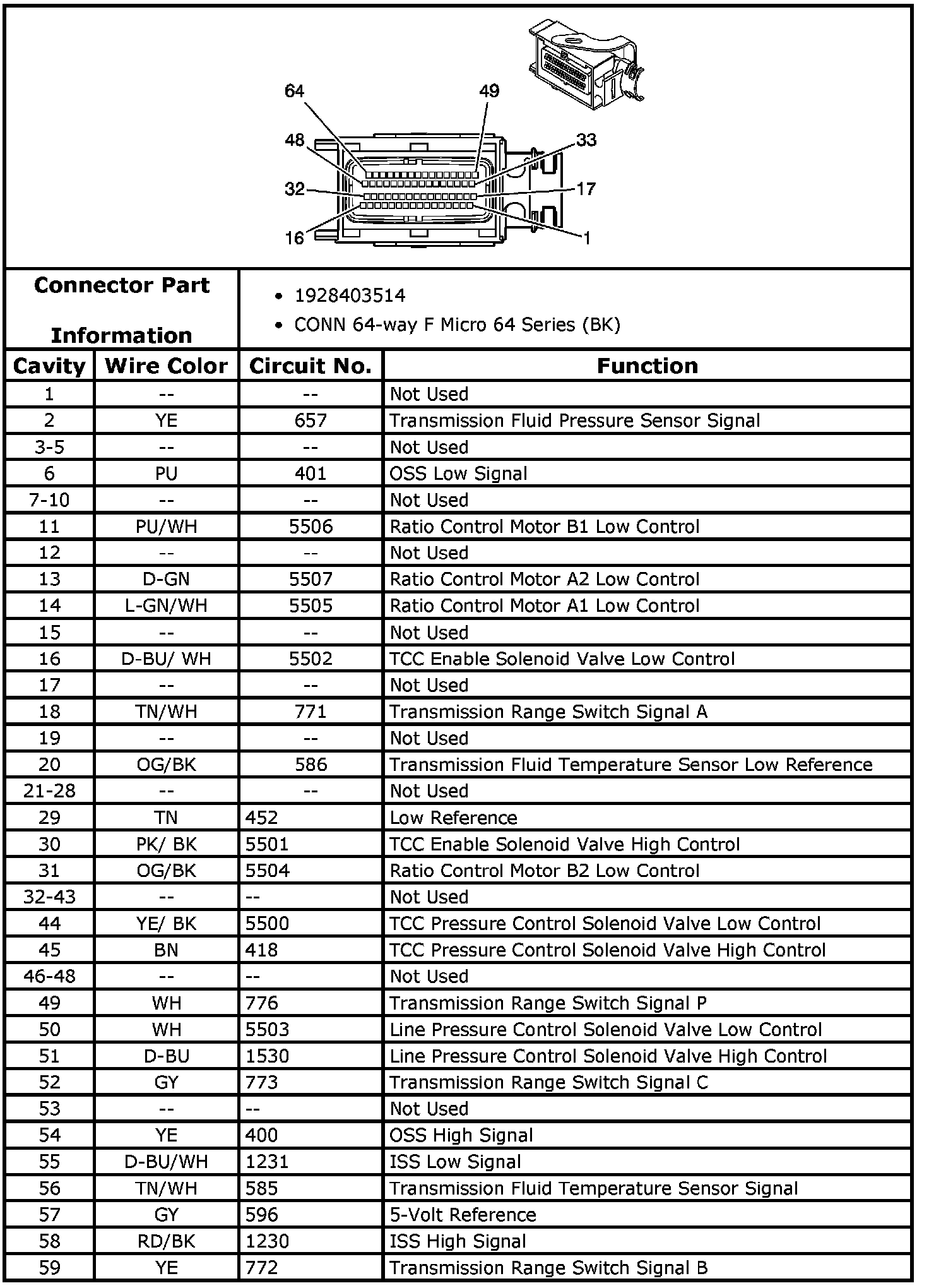

C2 Connector
