Home
>>
Saab
>>
2011
>>
9-4X XWD V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Specifications
>>
Release Systems Schematics
Release Systems Schematics
Release Systems Schematics

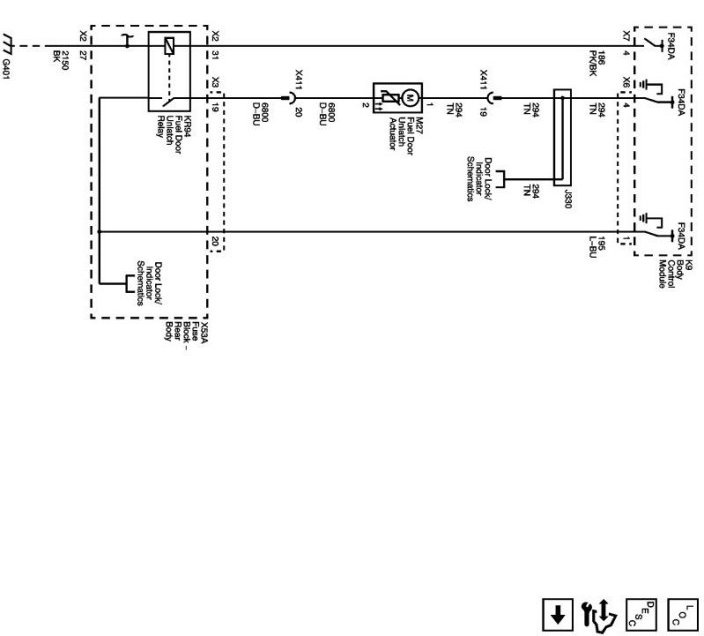

Fuel Door

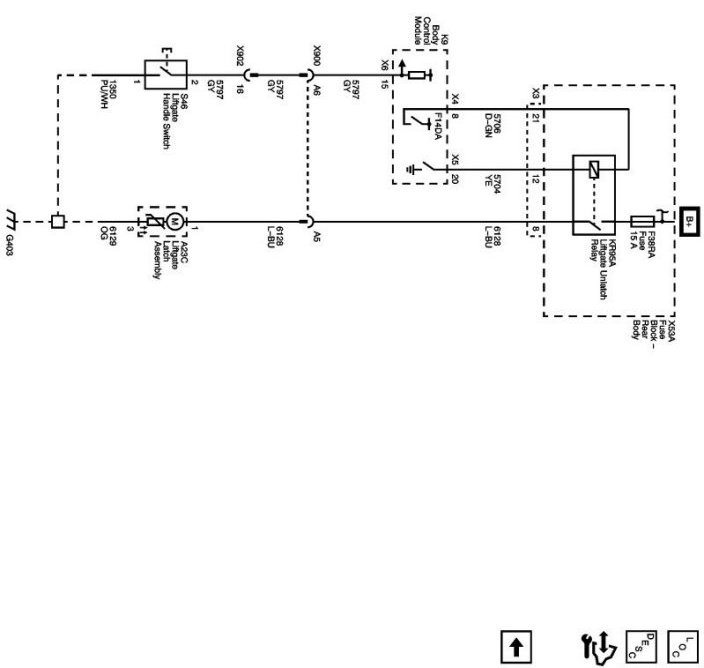

Liftgate (without TB5)
