Tech 2 Menu Structure, Read Values, Activate, Adjust, Program

Tech 2 menu structure

Diagnostic Trouble Codes (DTC)

Read Values / Activate

Adjustment

Programming

Snapshot

System Information

Menu "Read Values"

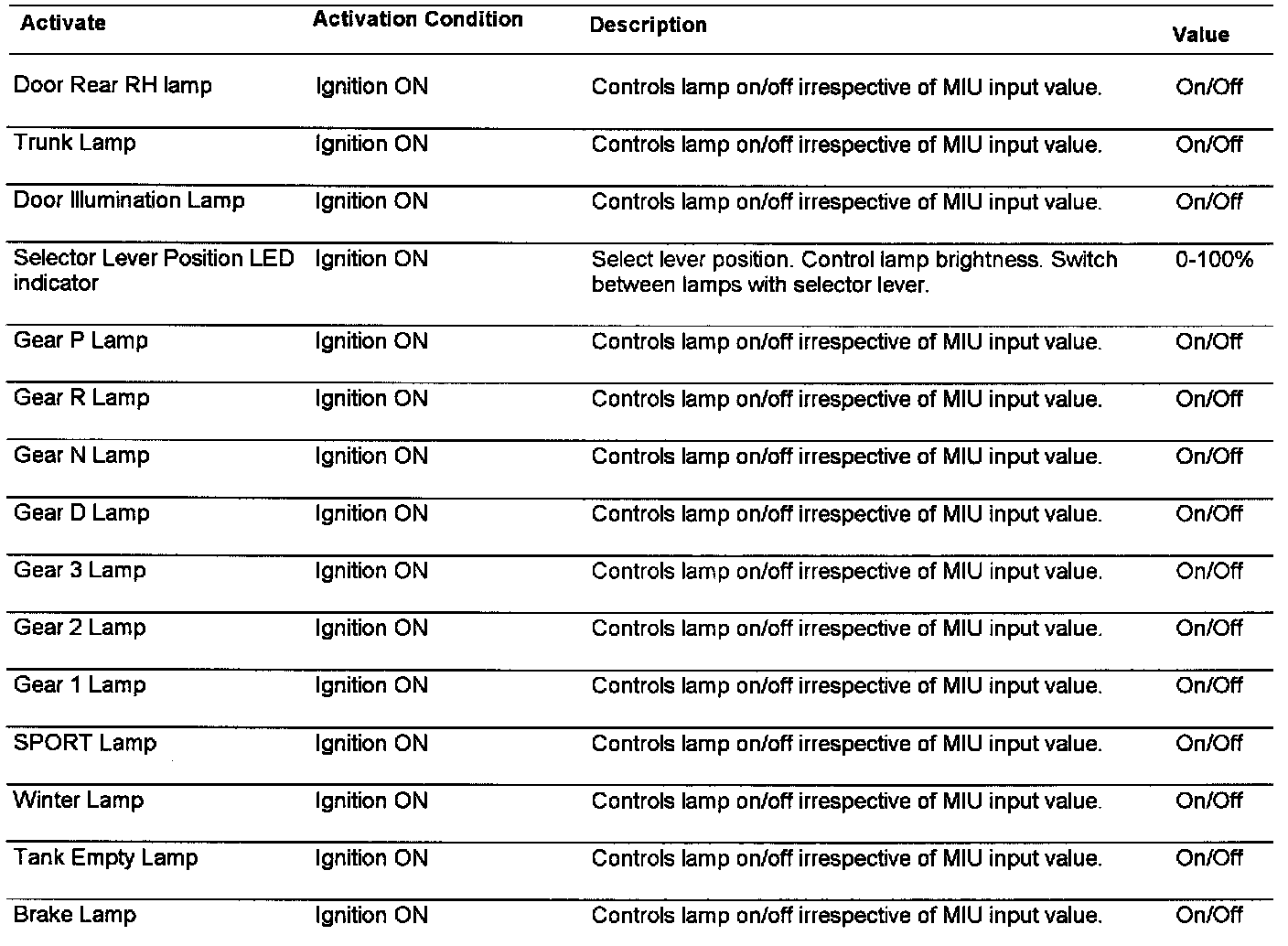

Menu "Activate"

NOTE: When a system function is activated with the diagnostic tool, the control module executes a command that is not functionally normal.In activating mode, the diagnostic tool controls the control module, for which reason the activation command should be used with care. An activated function is always reset after exiting activation mode and another selection is made in the diagnostic tool's menu.









Menu "System information"

Text Function
Part no. Displays SAAB's control module part no.
Control module number Shows the control module version.
Software number Shows the control module software version.
Programming date Shows the date when the MIU was EOL-programmed

Menu "Adjustment"

Diagnostic tool Function
Speedometer Service and Repair
Fuel Gauge Adjusting the Fuel Gauge/Sensor
LED offset [1][2]Procedures
Fuel Consumption Factor [1][2]Procedures
Coolant Temperature Gauge [1][2]Procedures
Coolant Temperature Night Panel [1][2]Procedures
Vehicle Speed Night Panel Service and Repair
Engine RPM Night Panel Adjustments

Menu "Programming"

Diagnostic tool Function
Speedometer Service and Repair
