Home >> Saab >> 1995 >> 900 SE Convertible V6-2498cc 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module

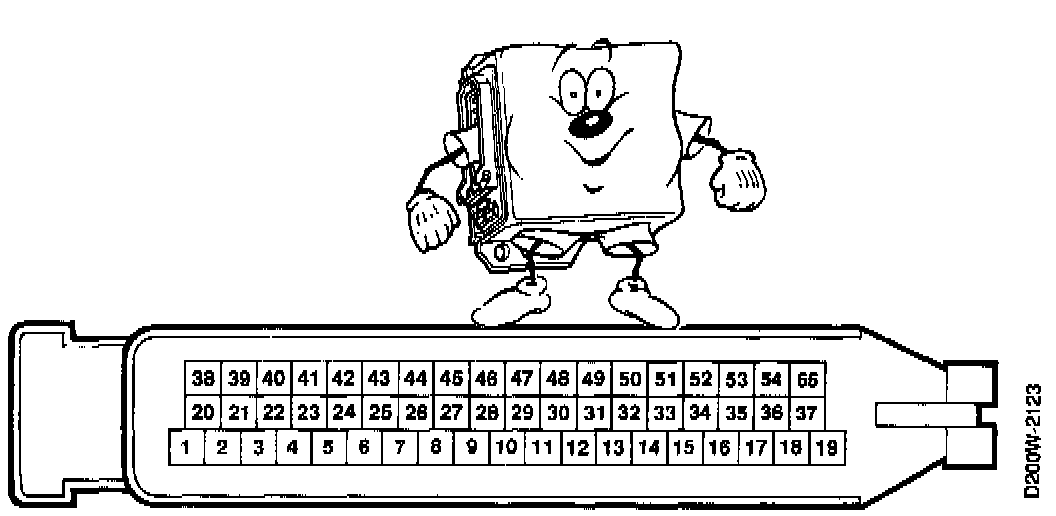

Engine Control Module

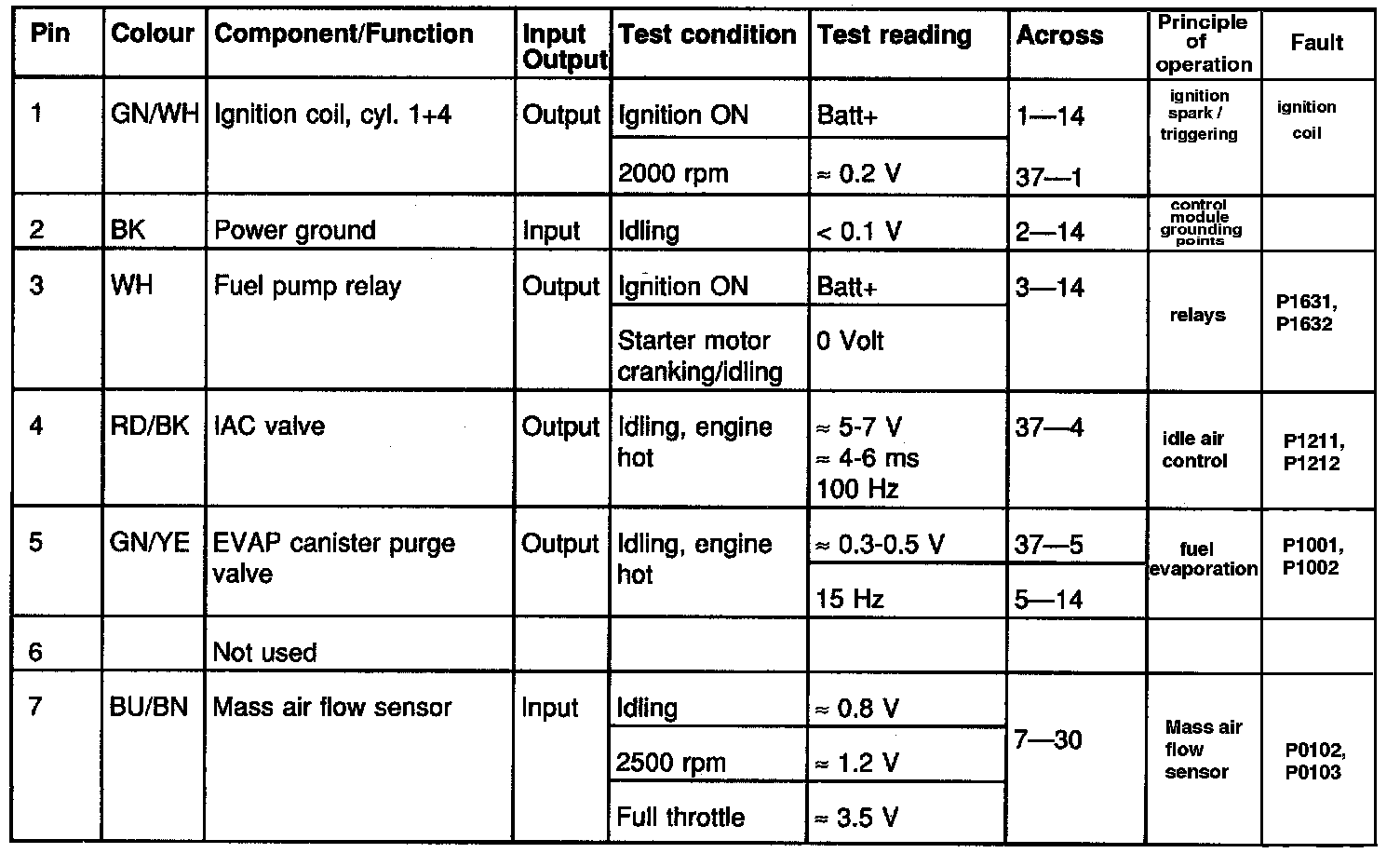

Chart 1 of 4, Pins 1-7

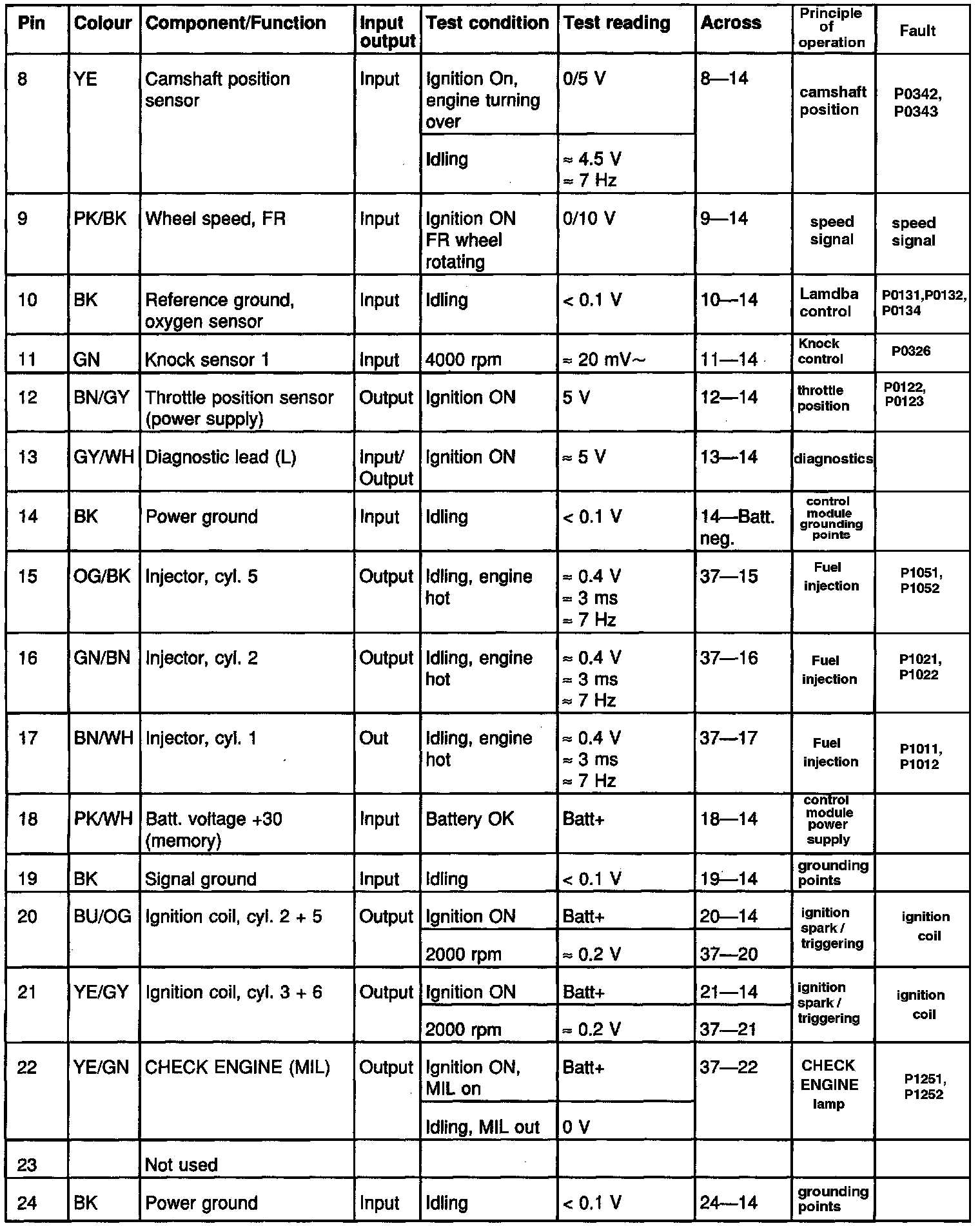

Chart 2 of 4, Pins 8-24

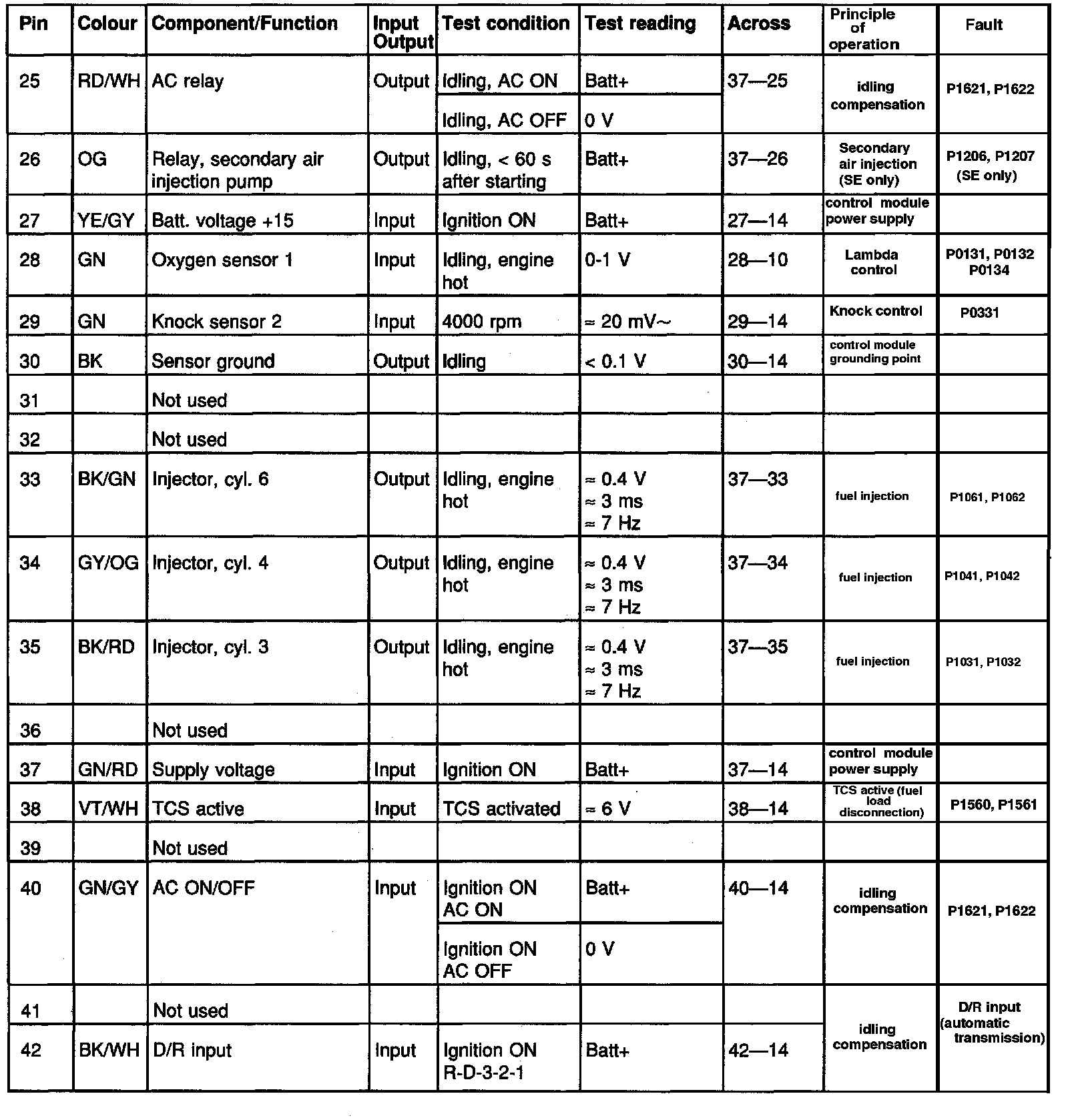

Chart 3 of 4, Pins 25-42

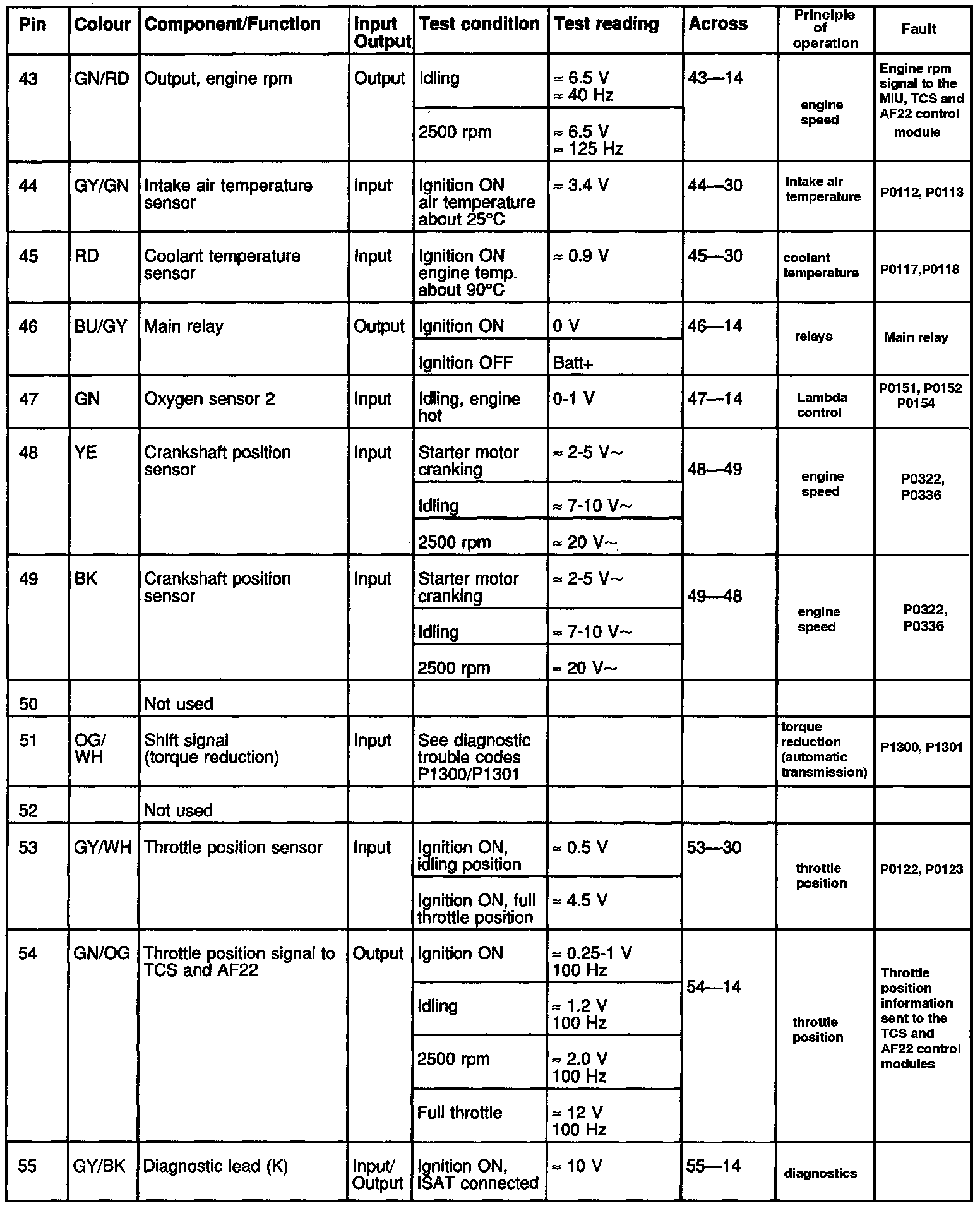

Chart 4 of 4, Pins 43-55
