Home >> Saab >> 1992 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> General Tightening Specifications

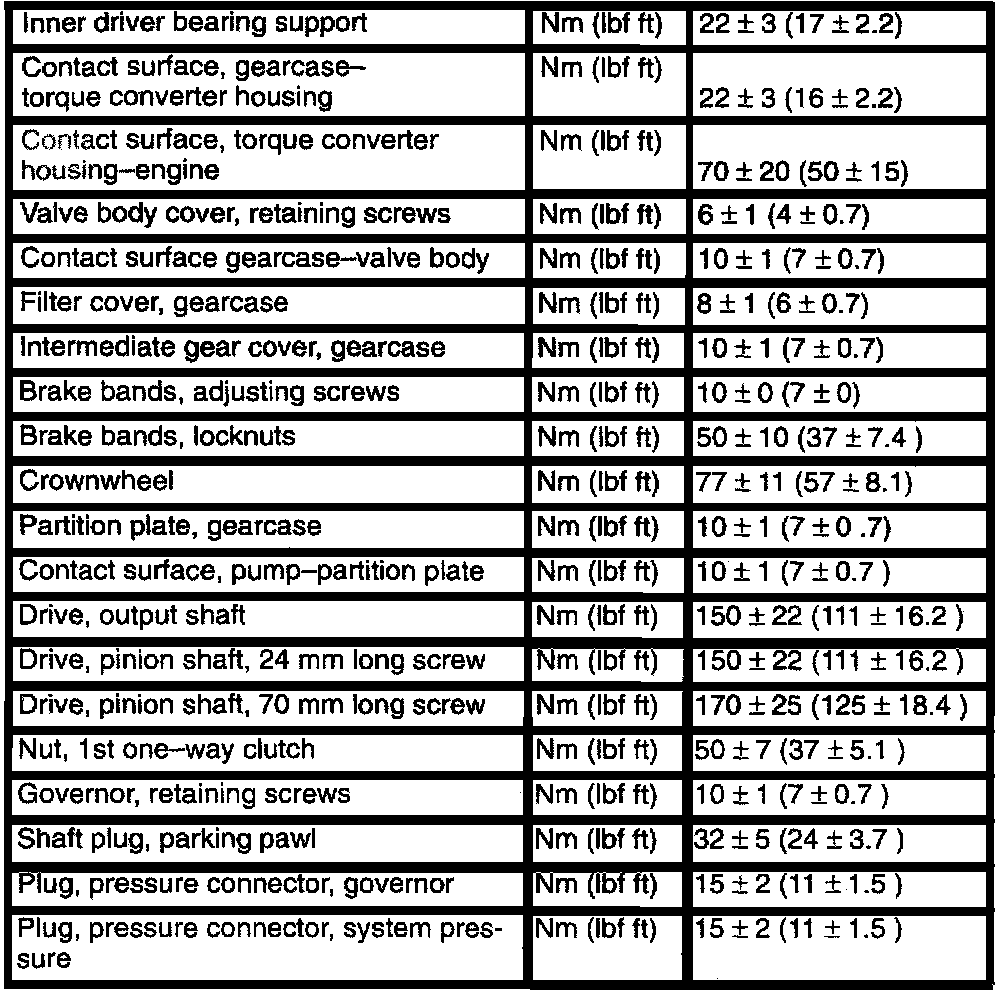

General Tightening Specifications

ZF 4HP18 4-spd A/T Tightening Torques:
