Home >> Saab >> 1992 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> A-9 Component, Connector and Ground Locations >> Components >> Power Windows

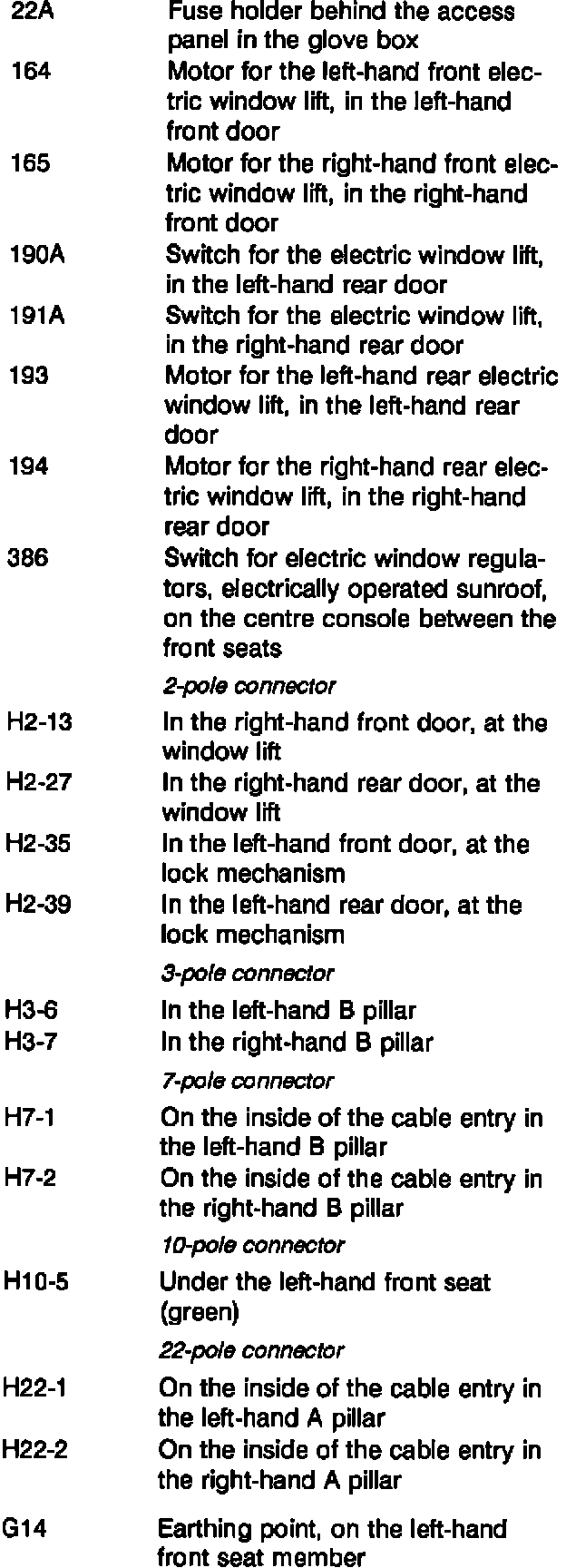

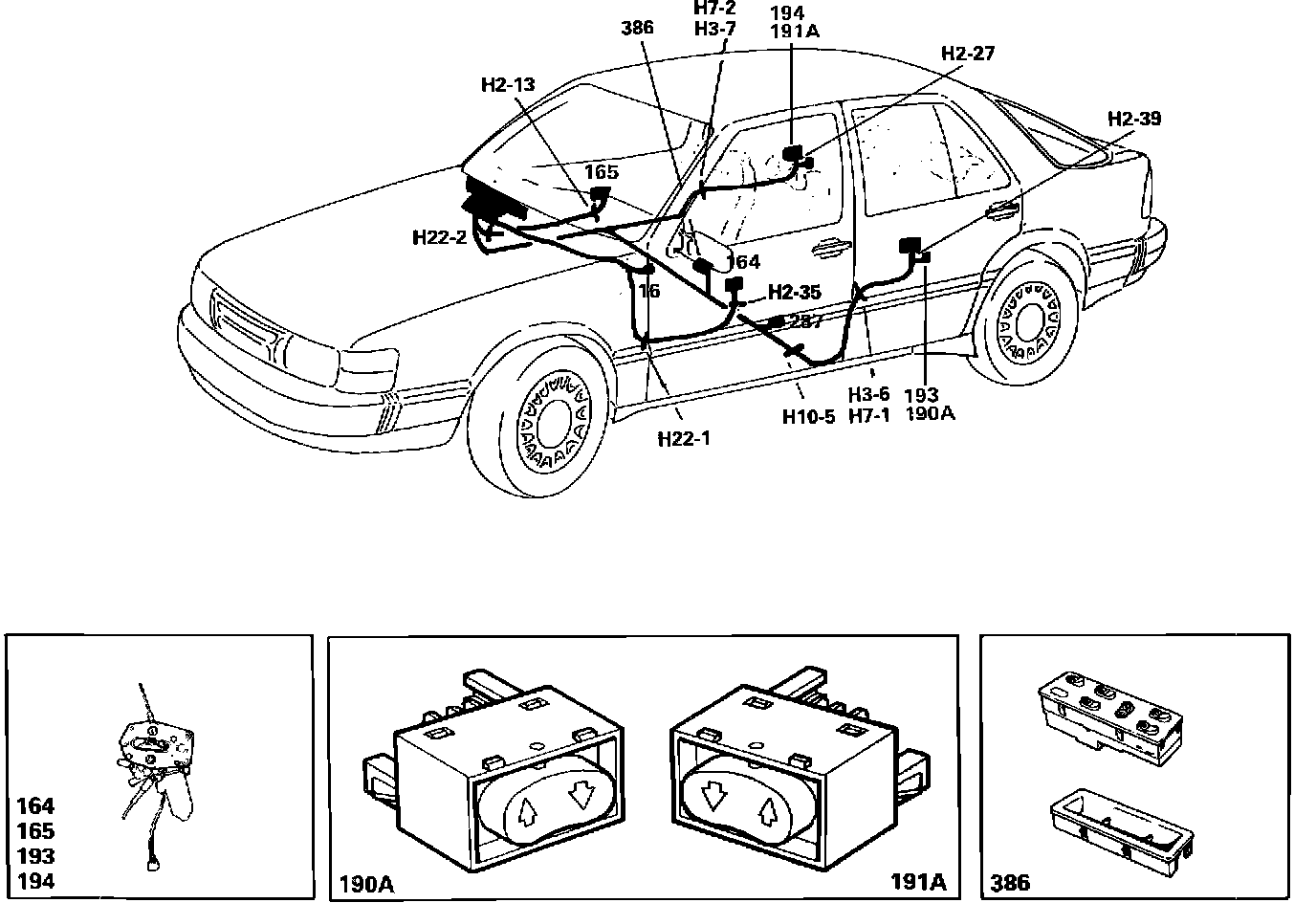

Power Windows

Power Windows:



Power Windows:
