Home >> Saab >> 1990 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Power Distribution >> Terminal +50

Terminal +50

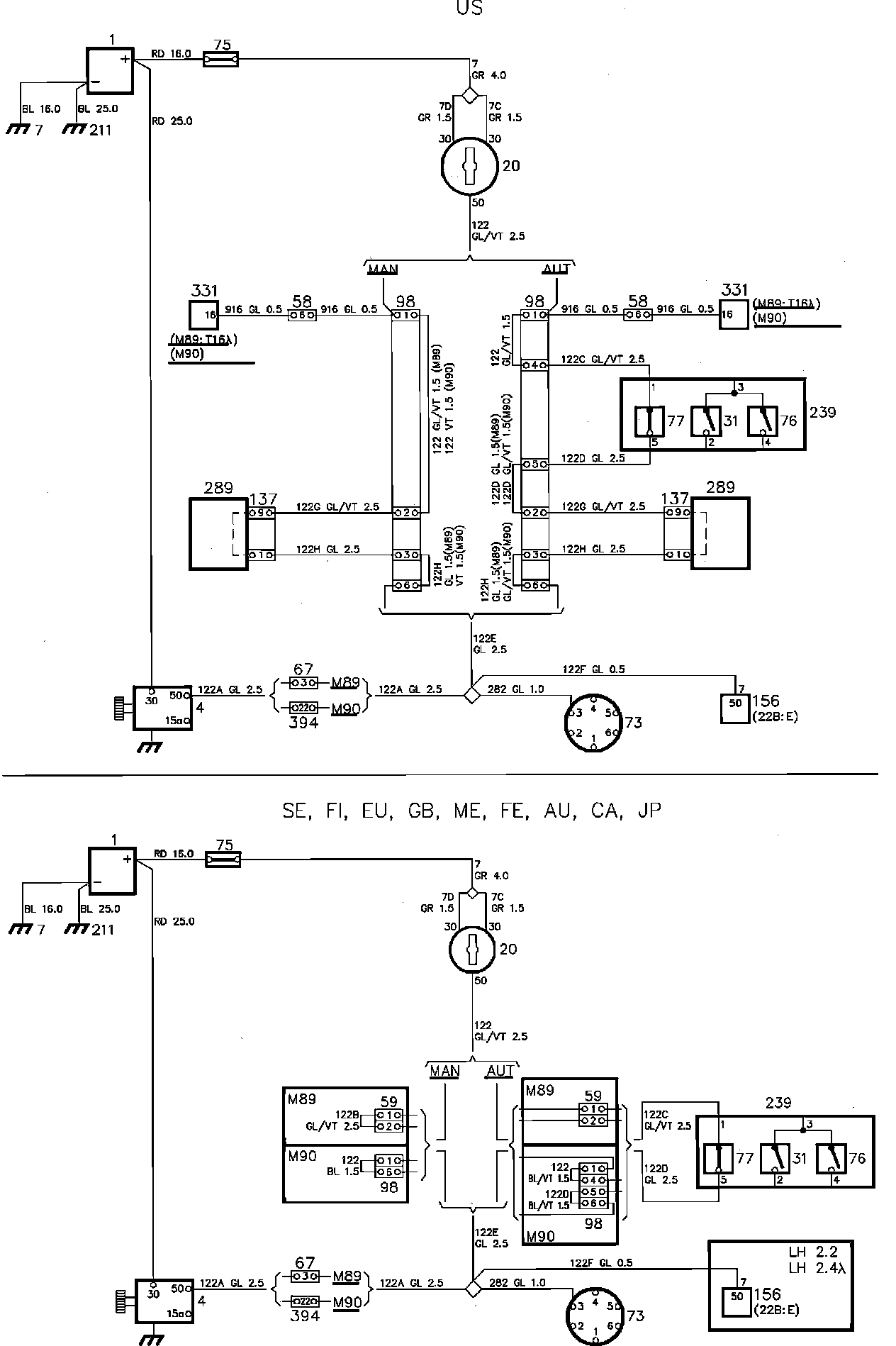

Starting System And Power Distribution +50:
