Home >> Saab >> 1988 >> 9000 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Circuit Component Identification

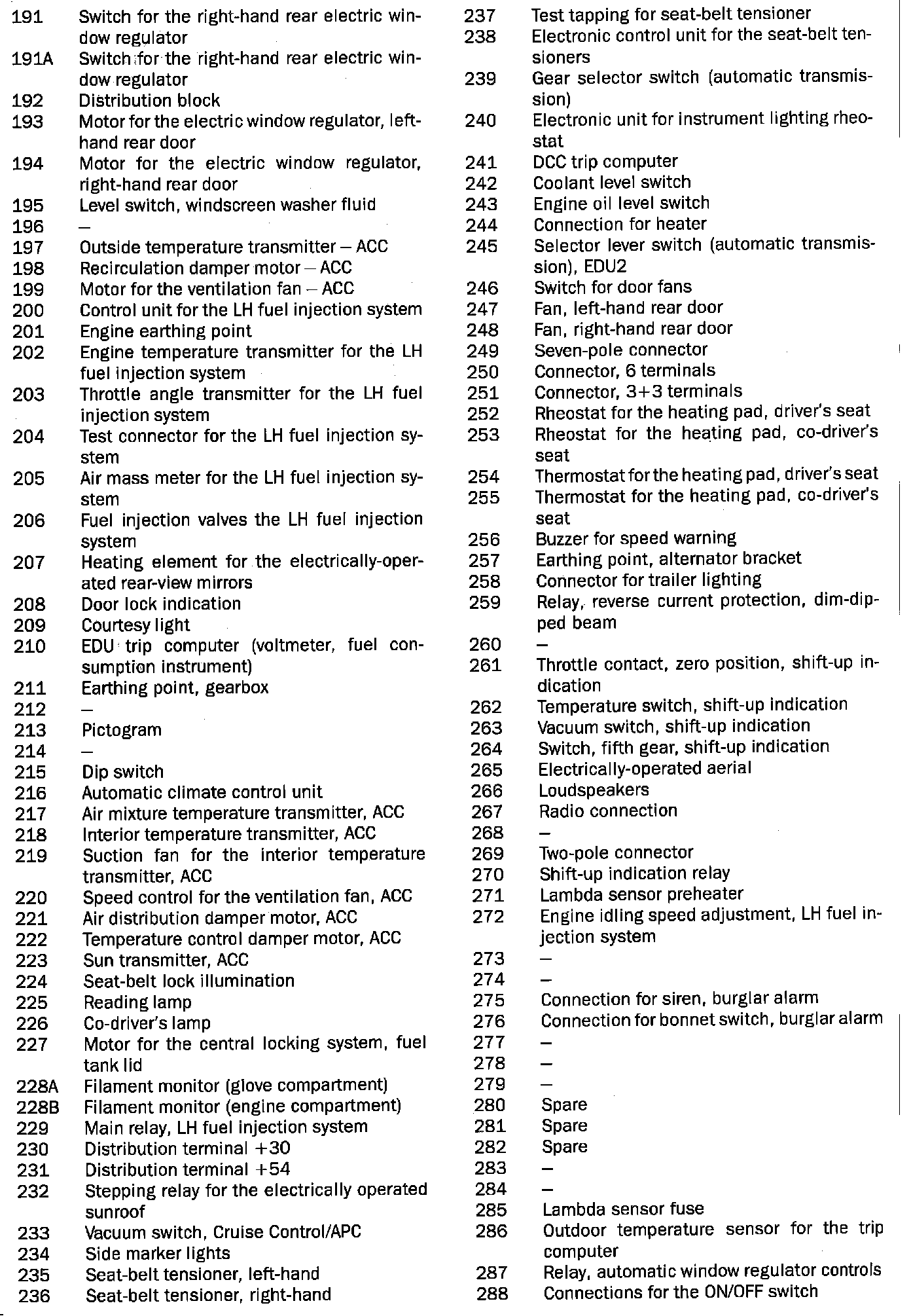

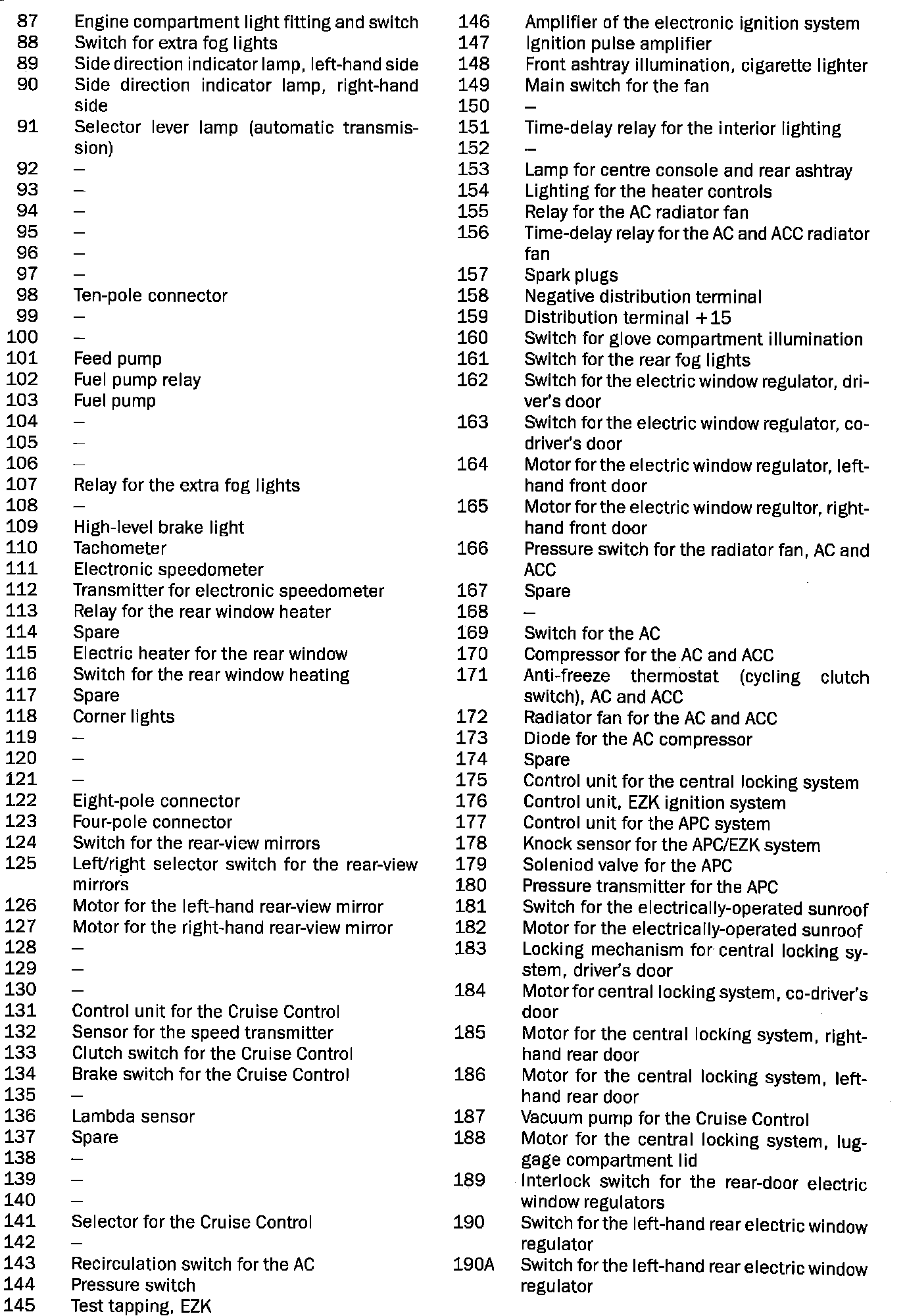

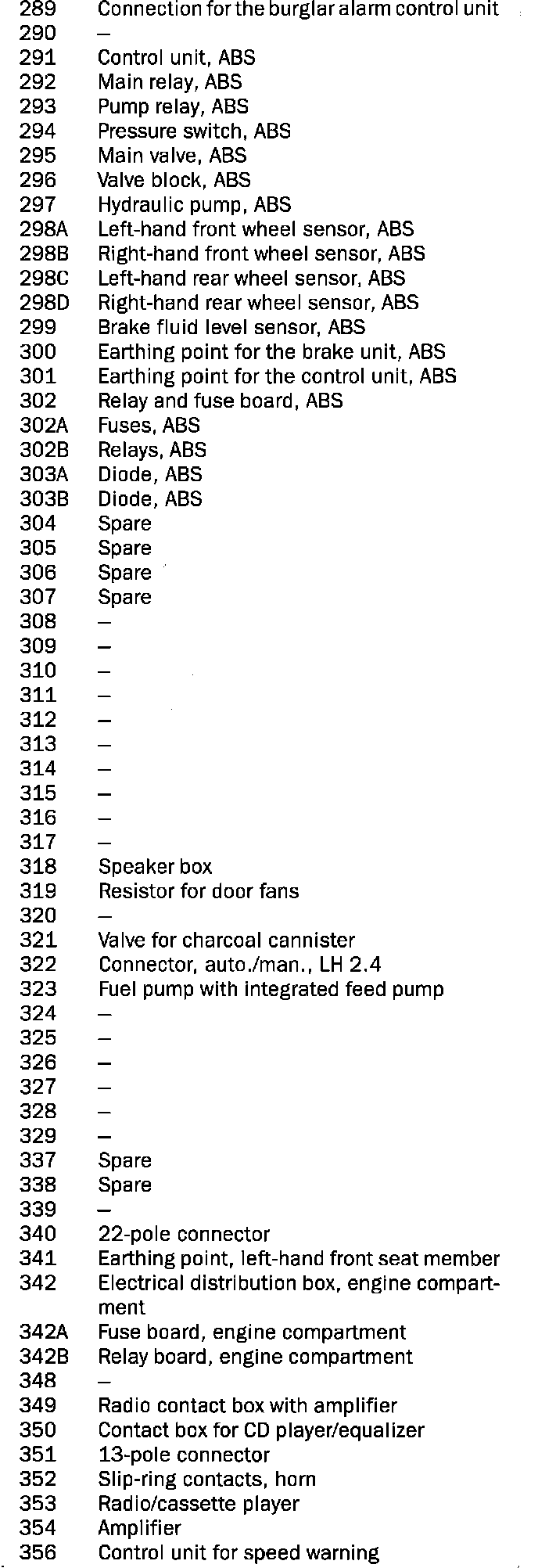

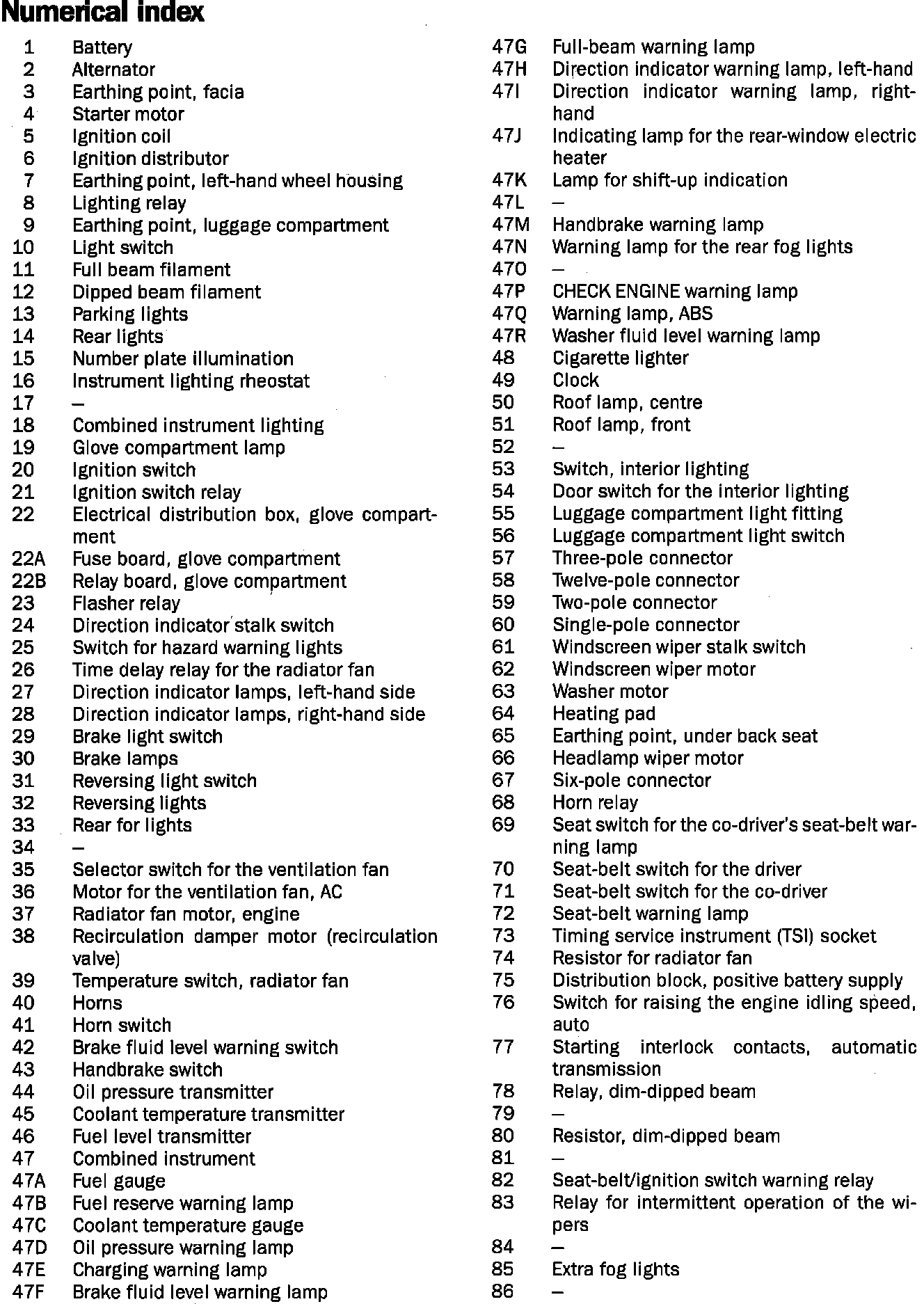

Circuit Component Identification

Circuit Component Identification:



Circuit Component Identification:



Circuit Component Identification:



Circuit Component Identification:
