Home >> Saab >> 1985 >> 900 L4-1985cc 2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Testing and Inspection

Oxygen Sensor: Testing and Inspection

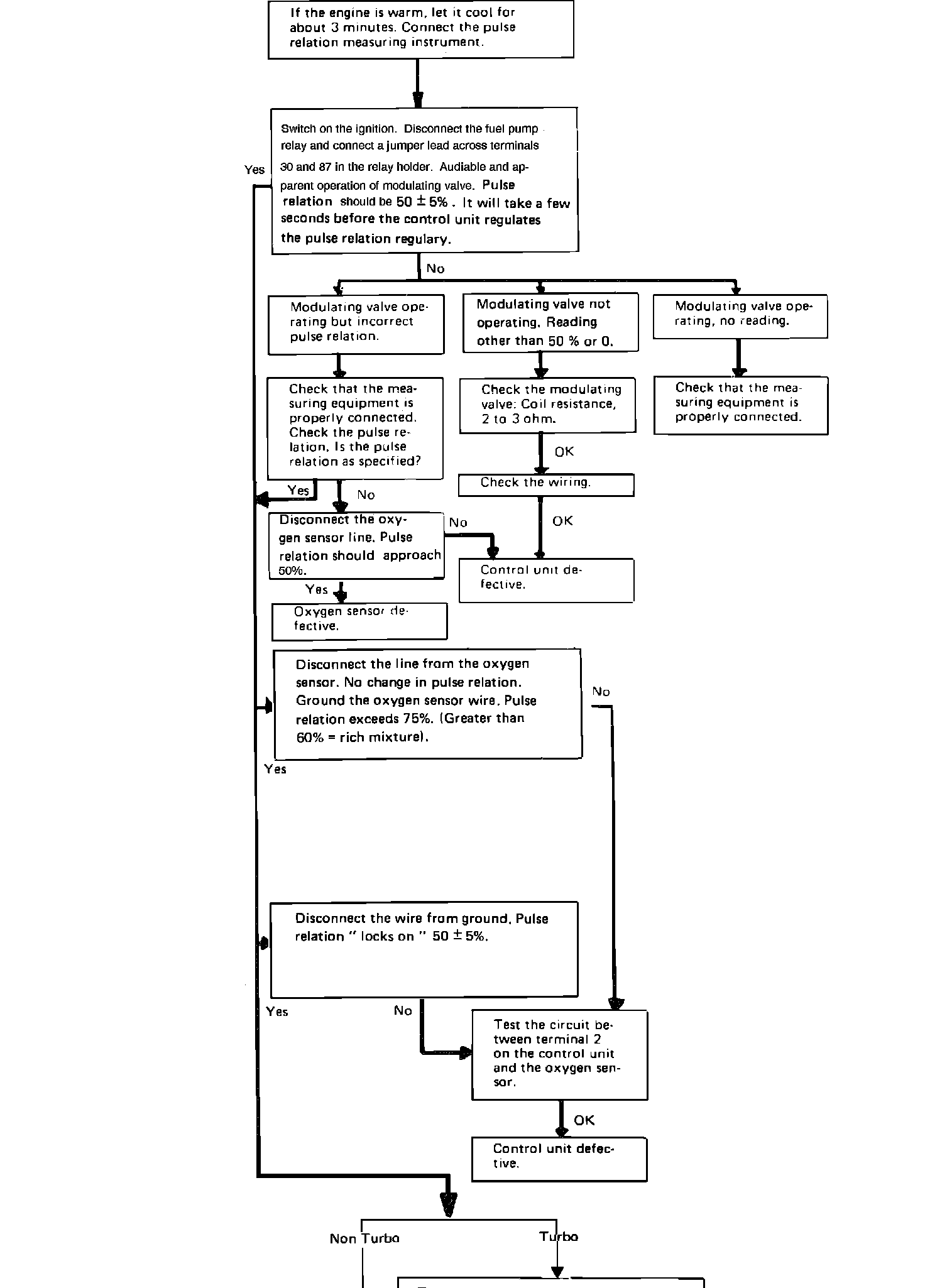

�G�Fig. 97 Lambda Sensor Fault Diagnosis Chart:
