Electronic Brake Control Module

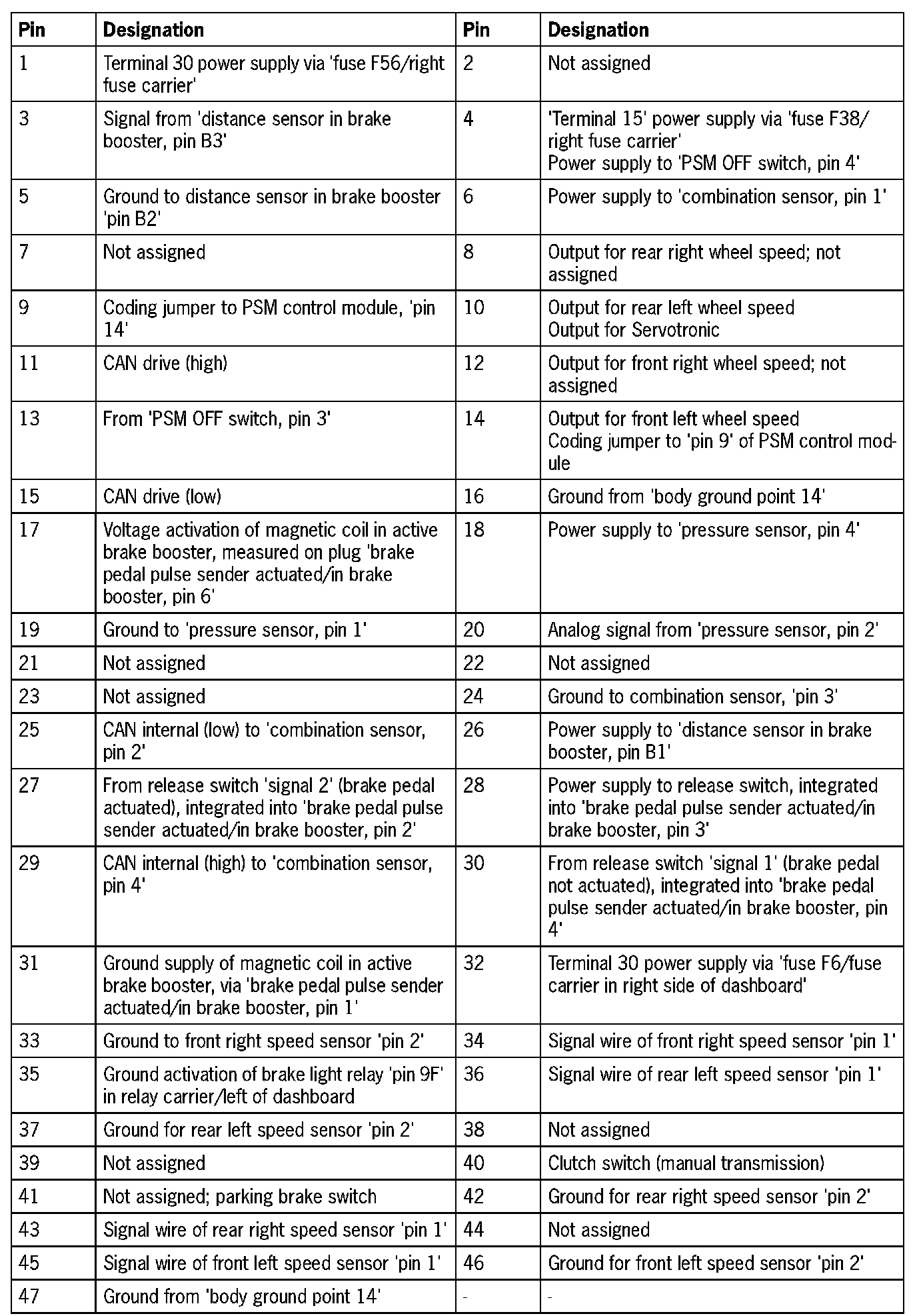

PSM 0101 Connector Assignment

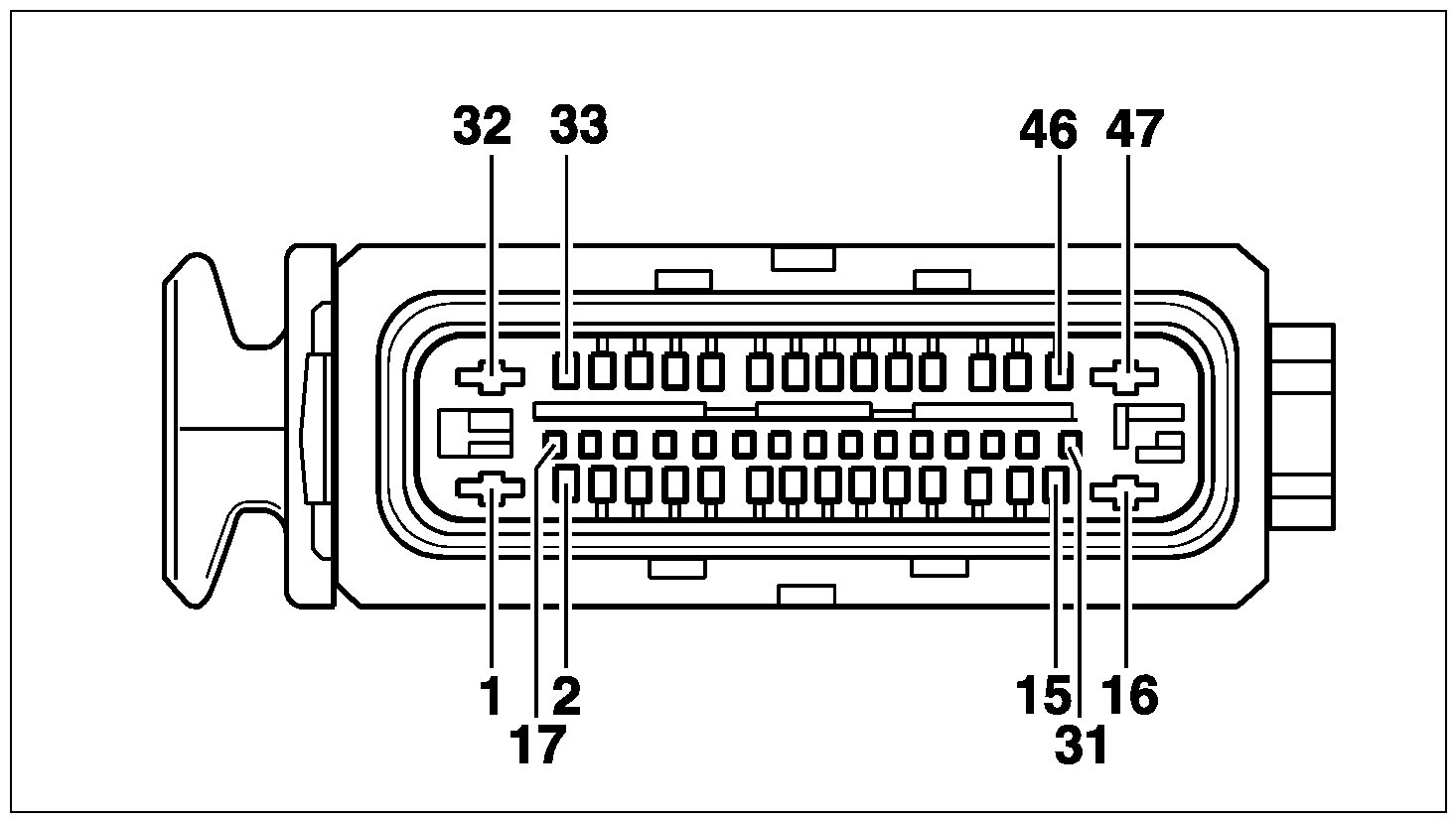

PSM Control Module plug










Ground points

- Ground point 14
- Ground point 21
- Ground point 22
- Ground point 23
