Home >> Porsche >> 2005 >> 911 Turbo S (996) F6-3.6L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

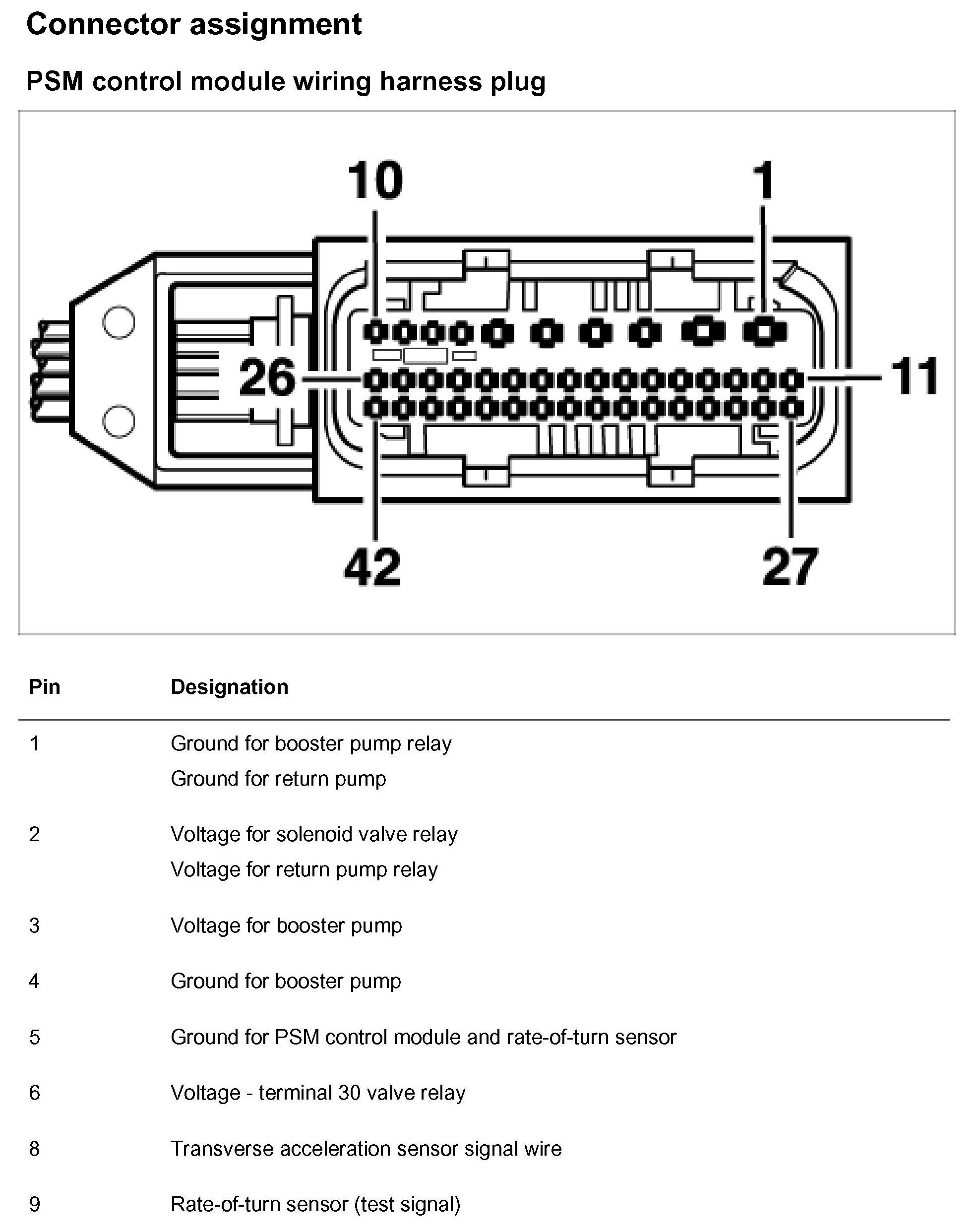

Connector Assignment (Part 1):

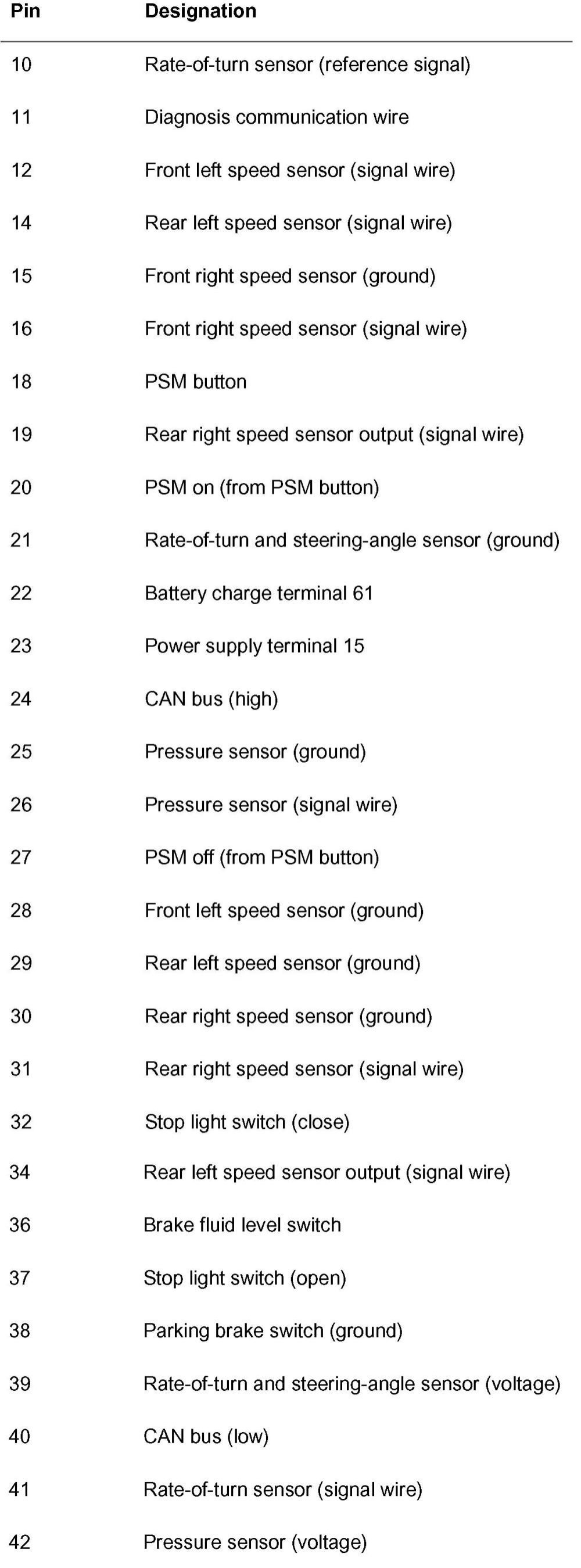

Connector Assignment (Part 2):
