MMI Connector Assignment
MMI Connector Assignment

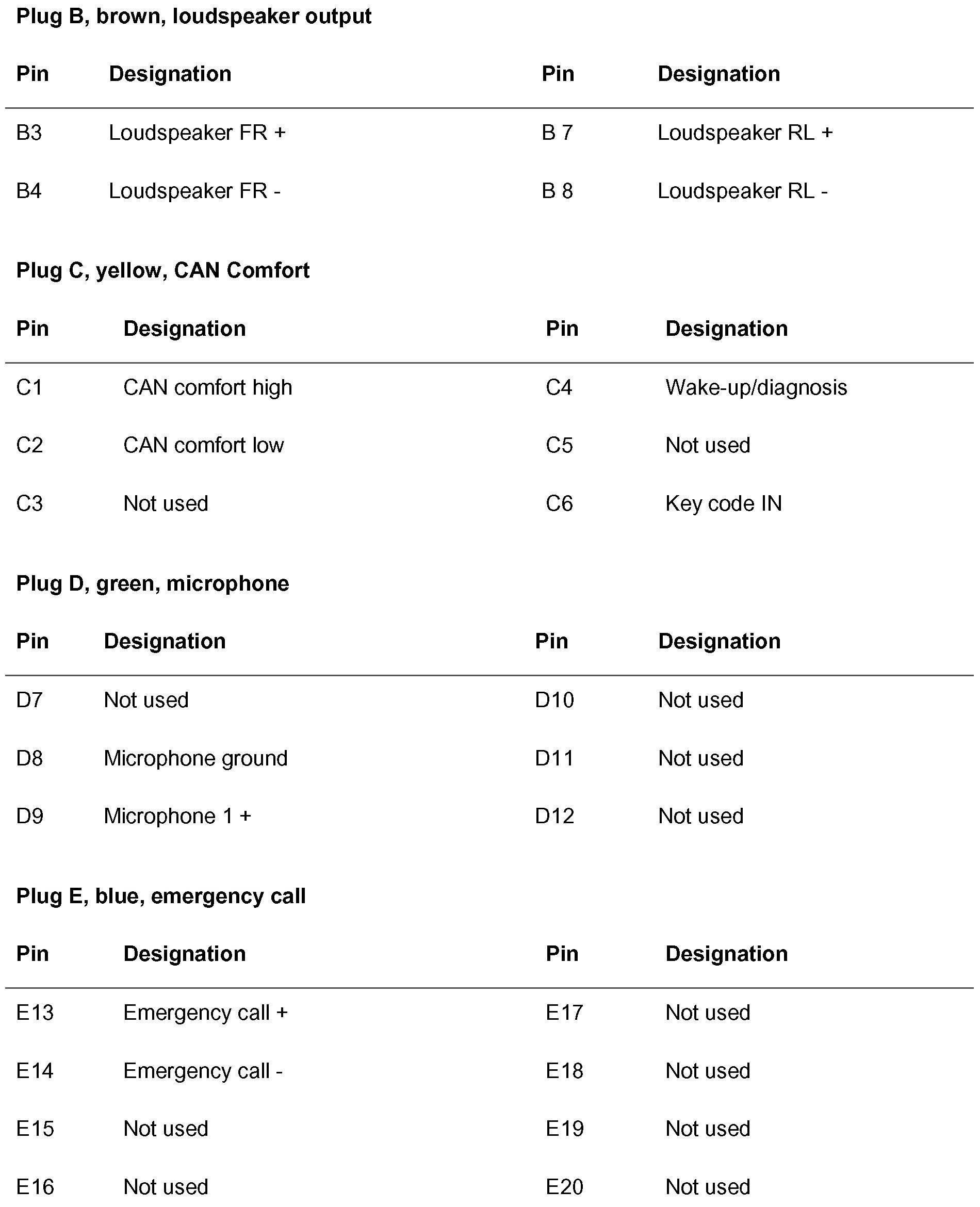

MMI Connector Assignment (Part 1):

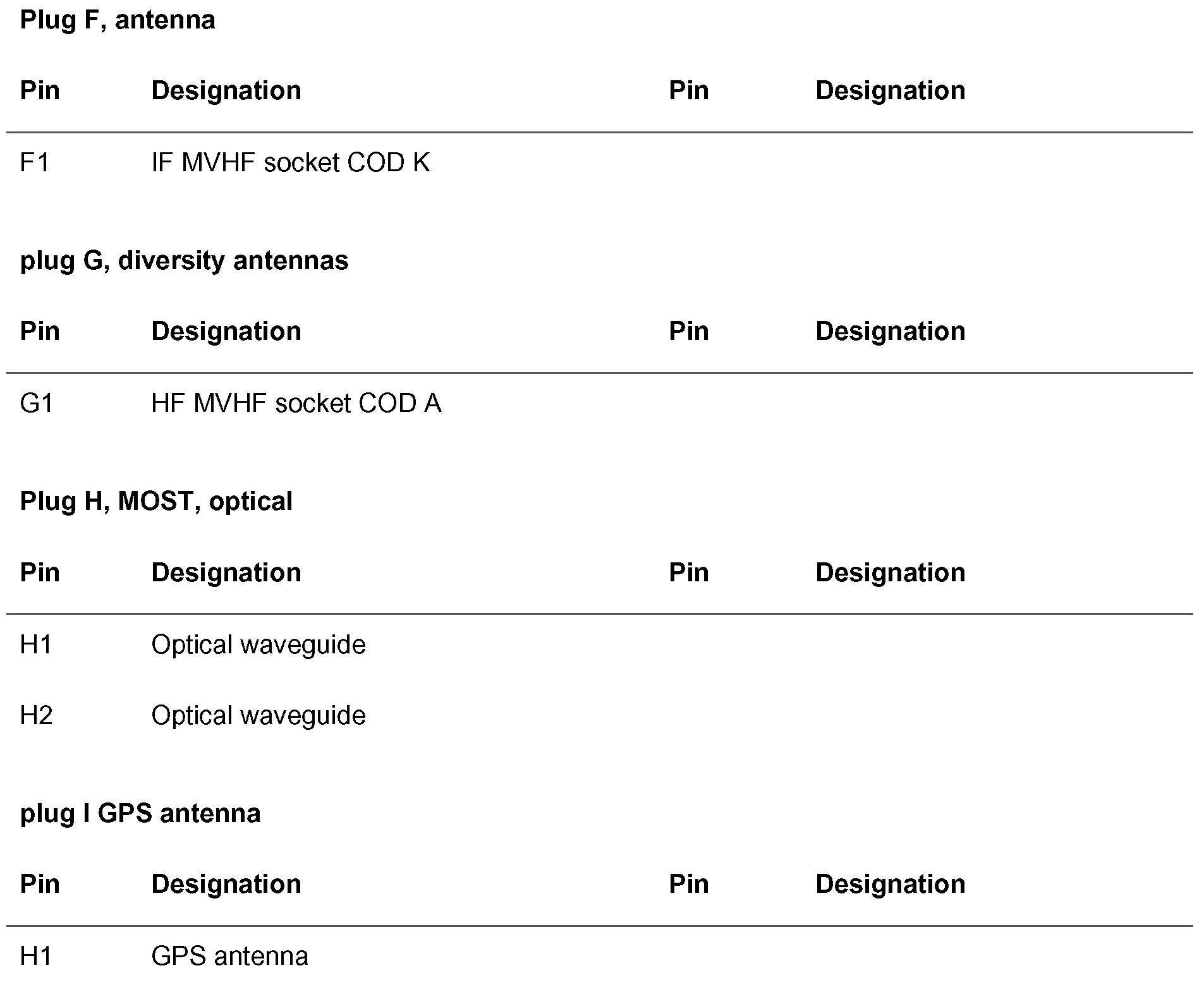

MMI Connector Assignment (Part 2):
MMI Connector Assignment (Part 3):
