Connector Assignment - Gateway

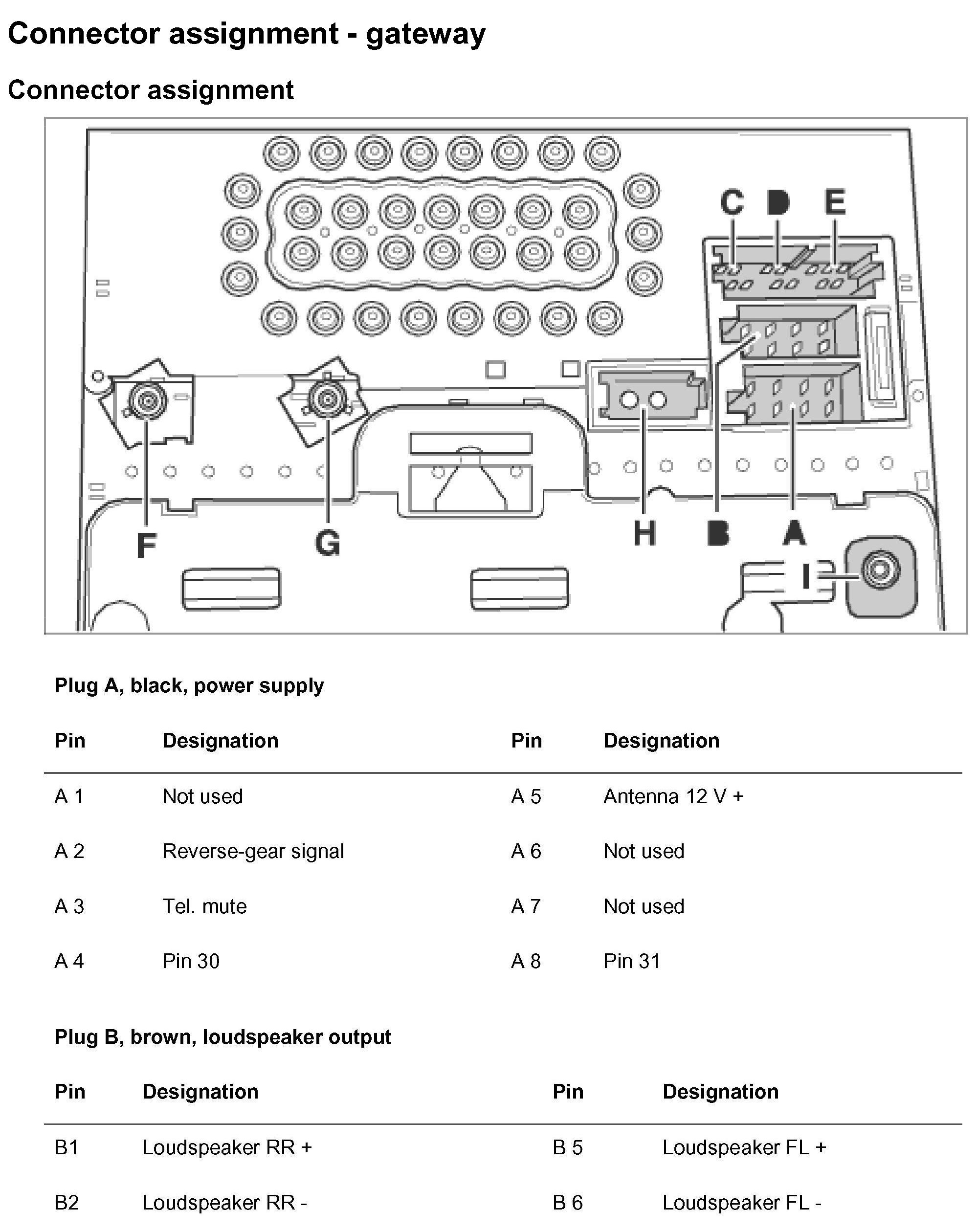

Connector Assignment - Gateway (Part 1):

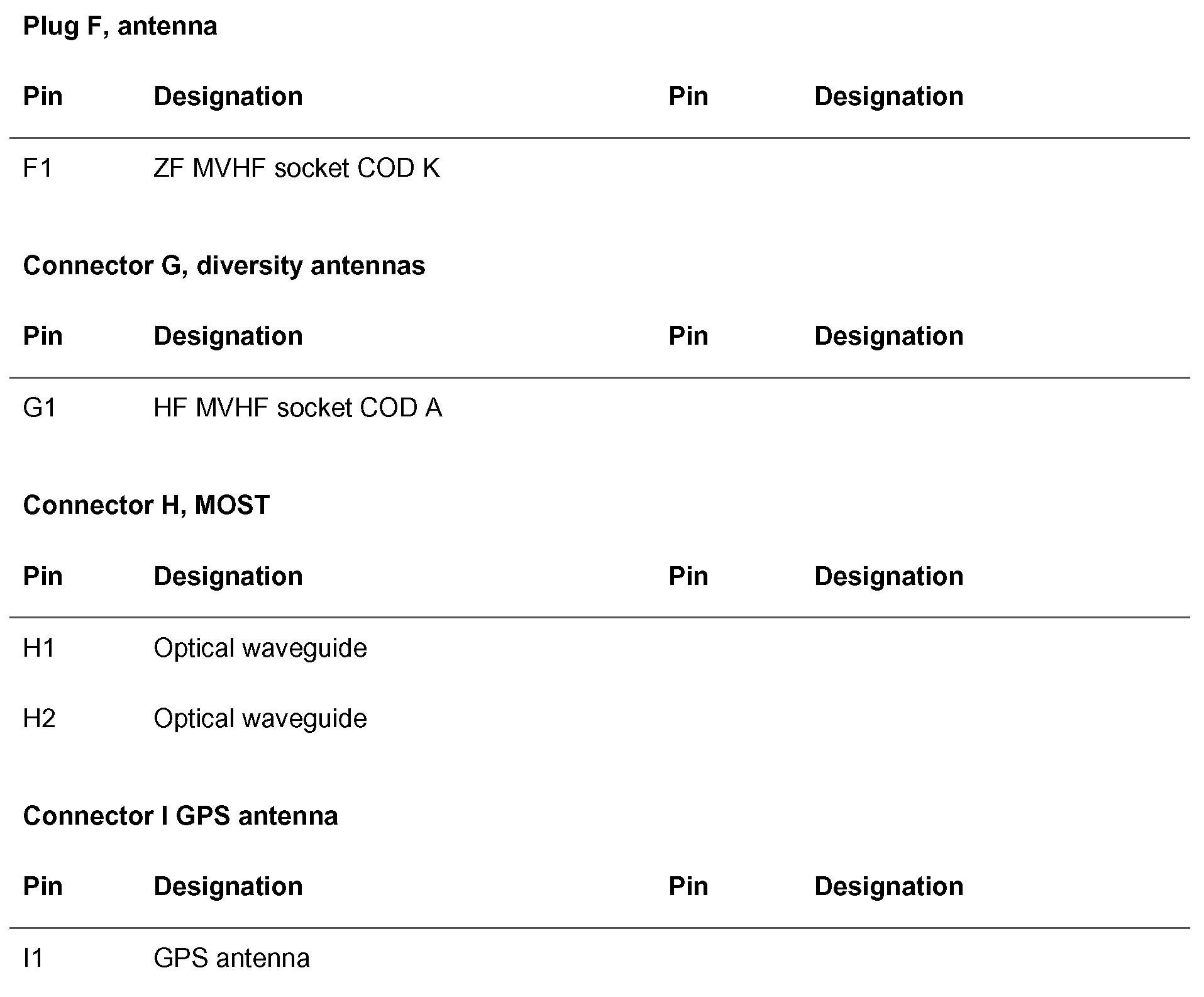

Connector Assignment - Gateway (Part 2):



Connector Assignment - Gateway (Part 3):
