CDR23 Connector Assignment
CDR23 Connector Assignment

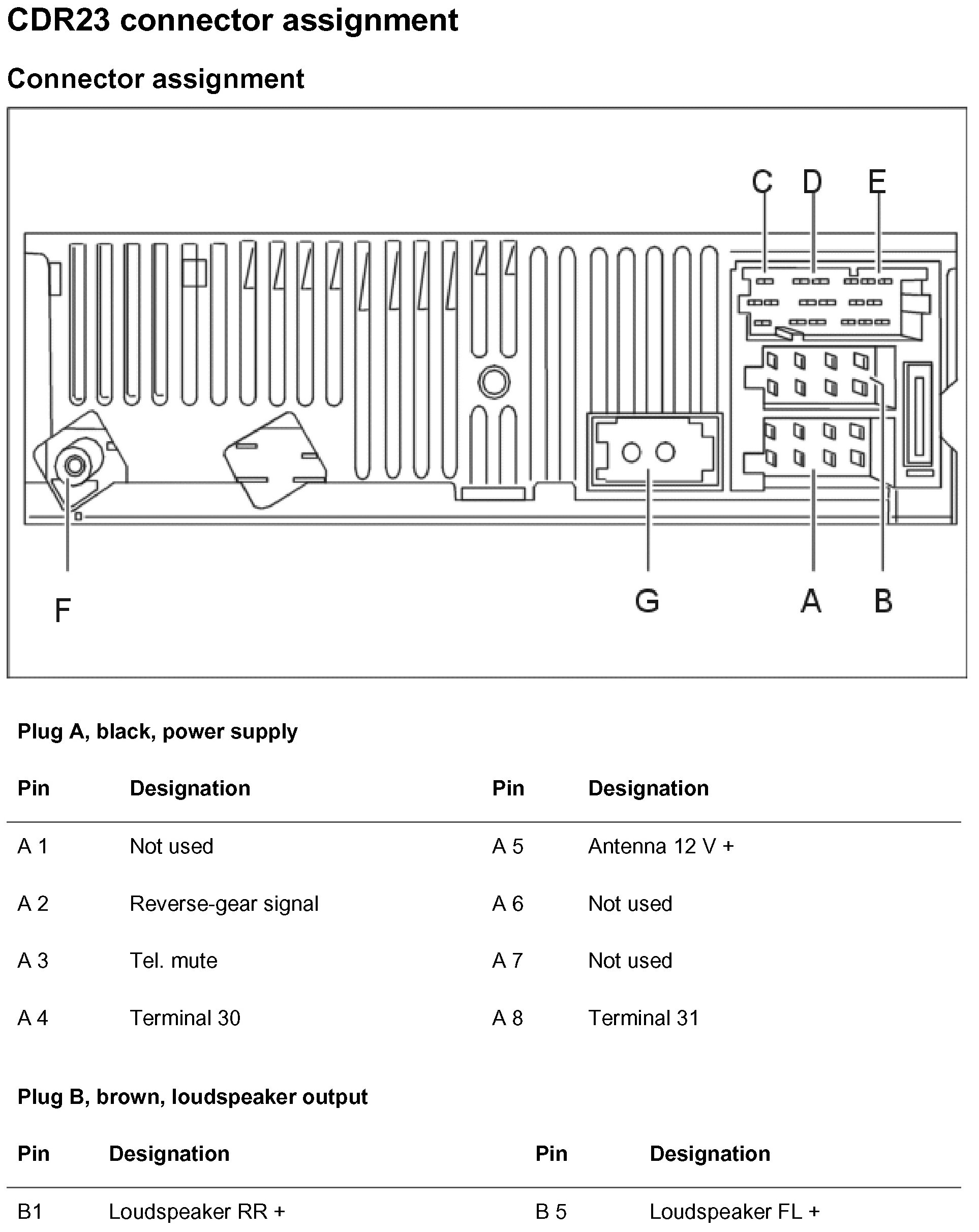

CDR23 Connector Assignment (Part 1):
CDR23 Connector Assignment (Part 2):

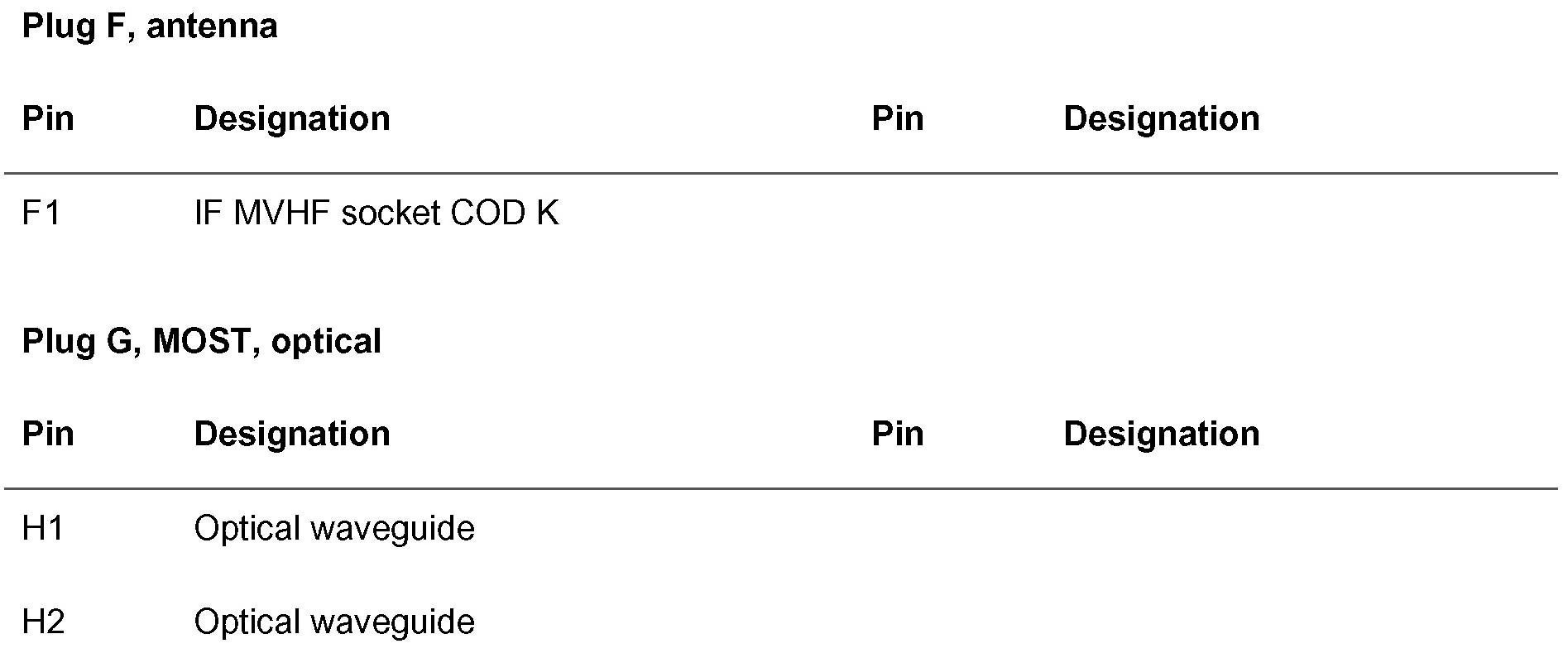

CDR23 Connector Assignment (Part 3):
