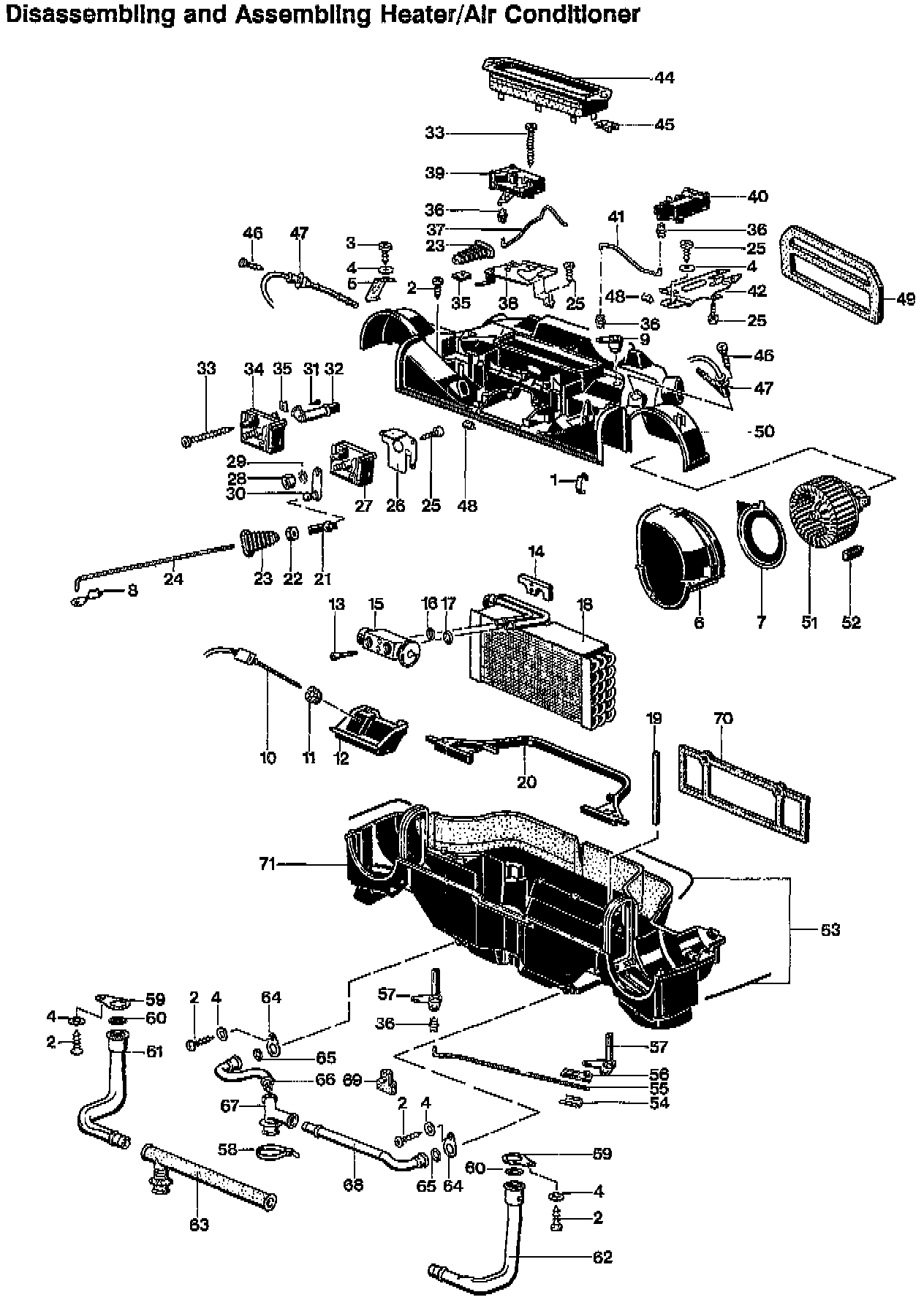

Housing Assembly HVAC





Heater/air Conditioner Assembly

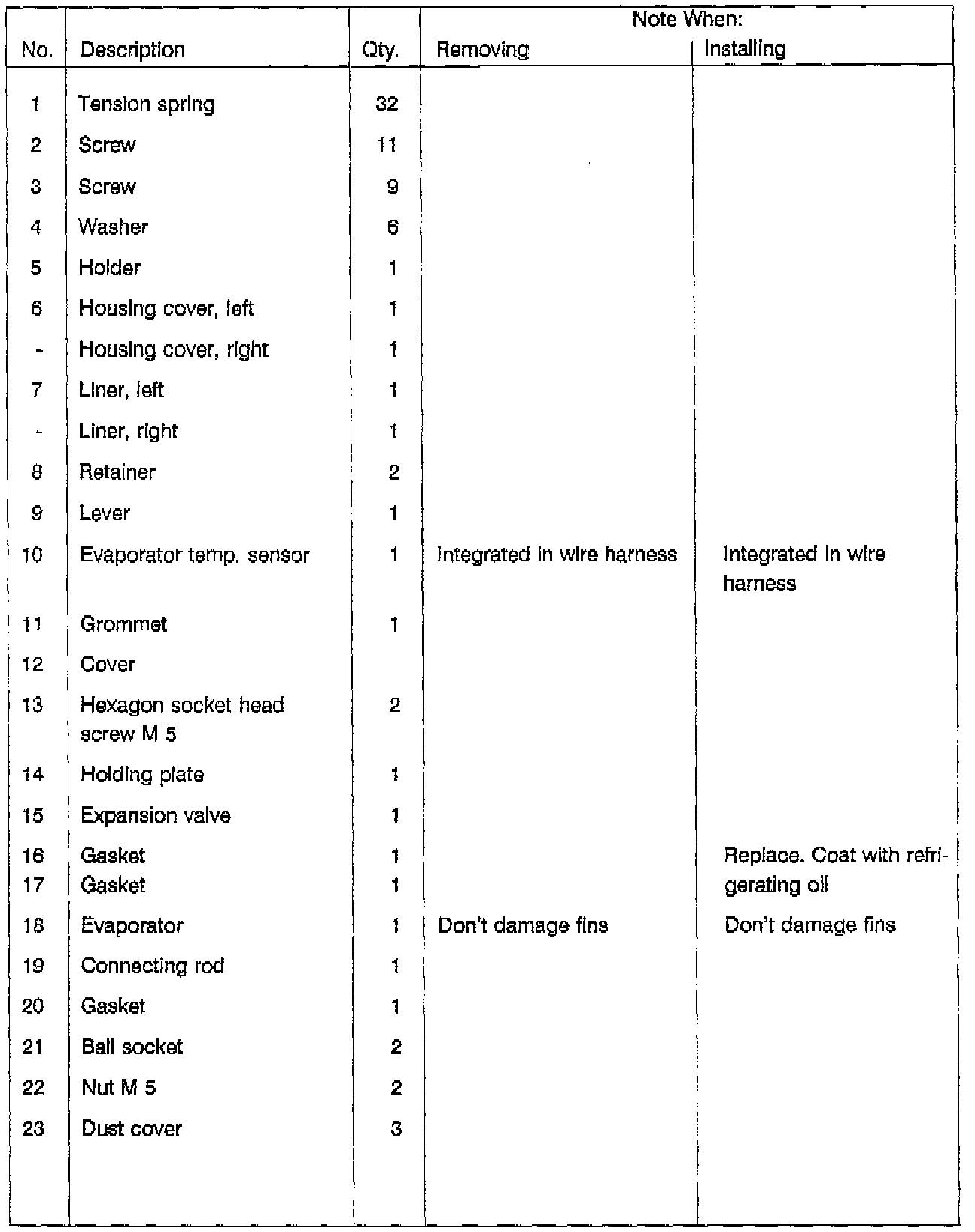

Component Key
1 through 23




Component Key
24 through 48





Component Key
49 through 71
