System Specifications



GENERAL SPECIFICATIONS

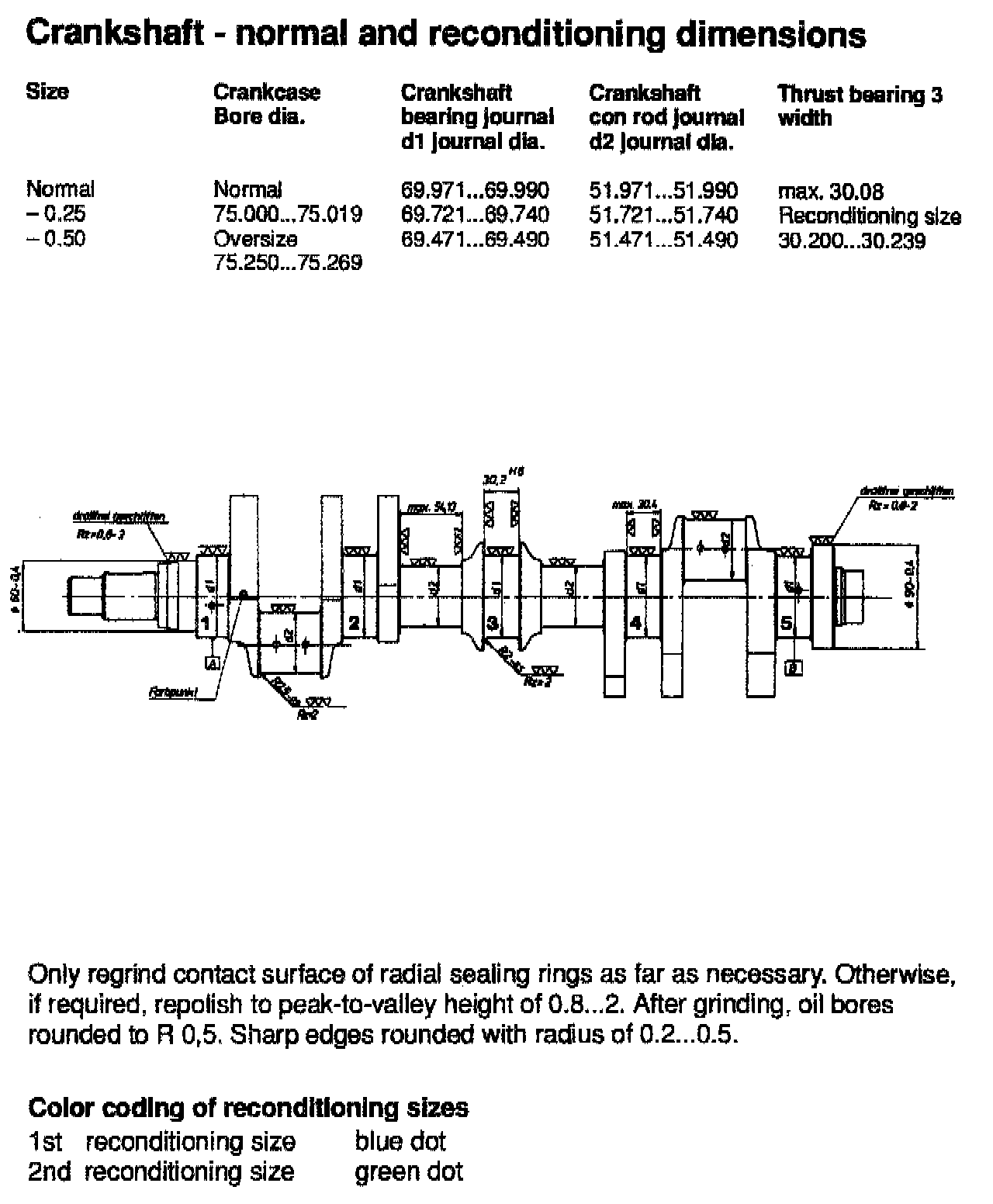

CRANKSHAFT SPECIFICATIONS

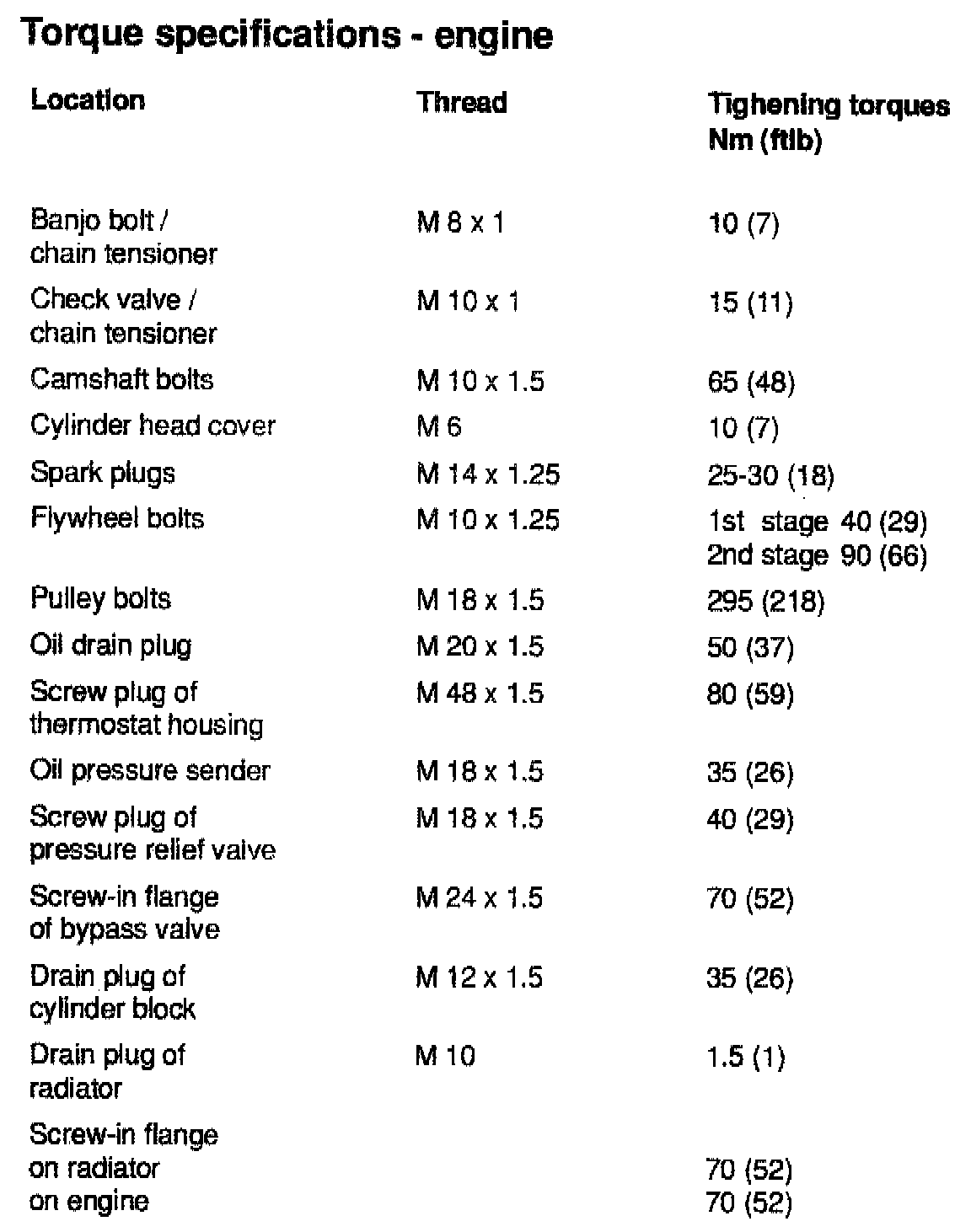

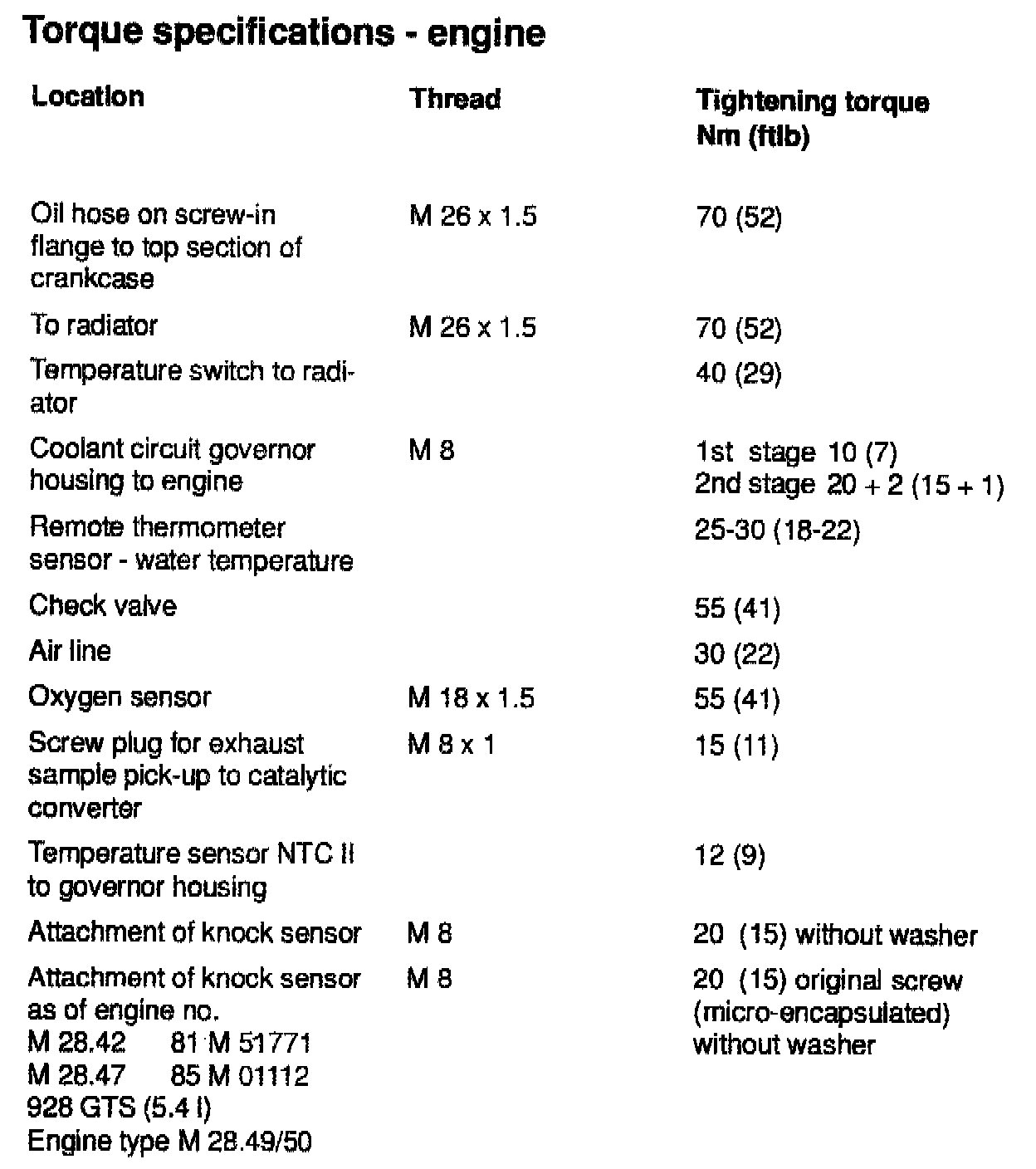

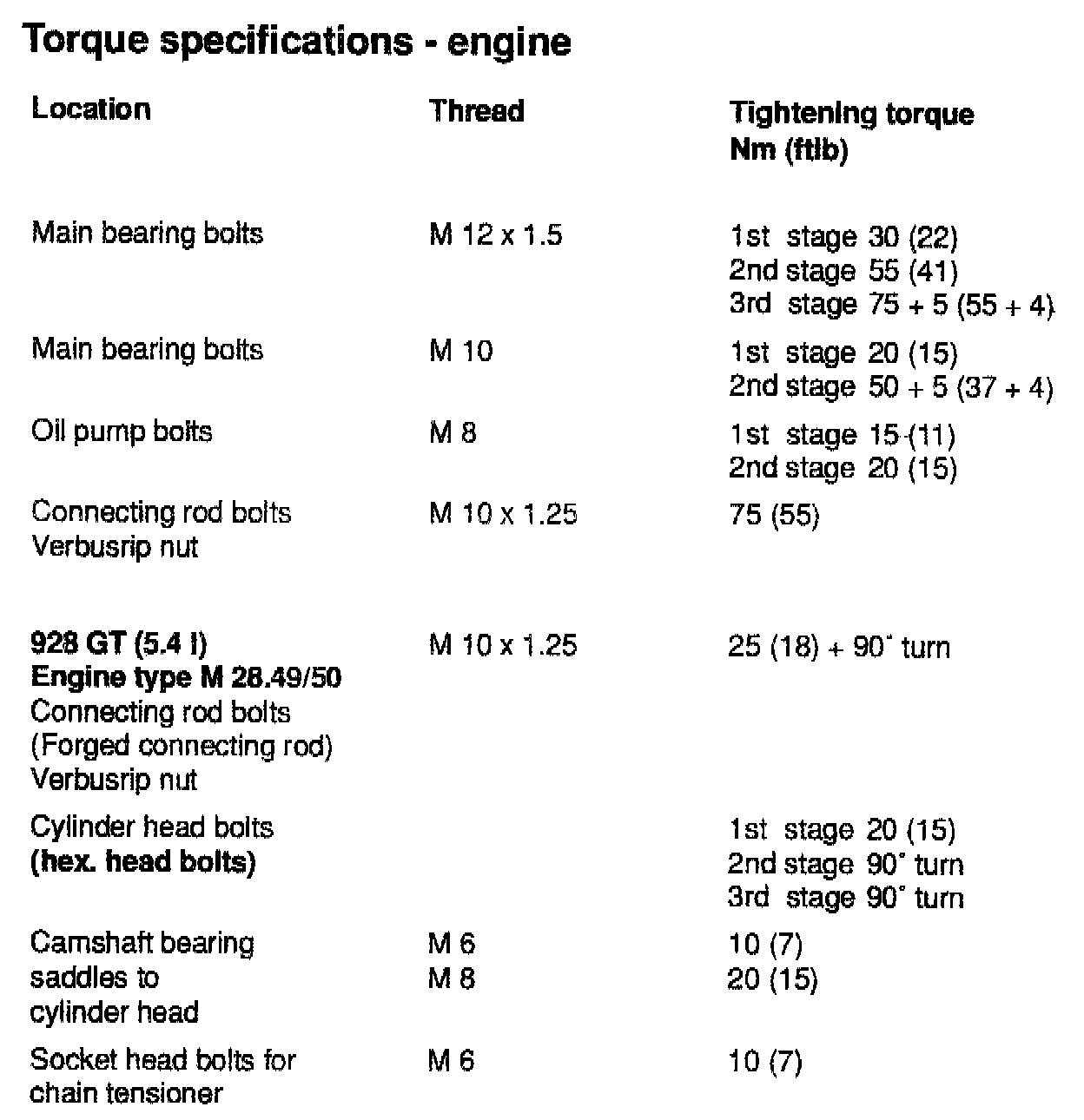

TIGHTENING SPECIFICATIONS

















TOLERANCE SPECIFICATIONS

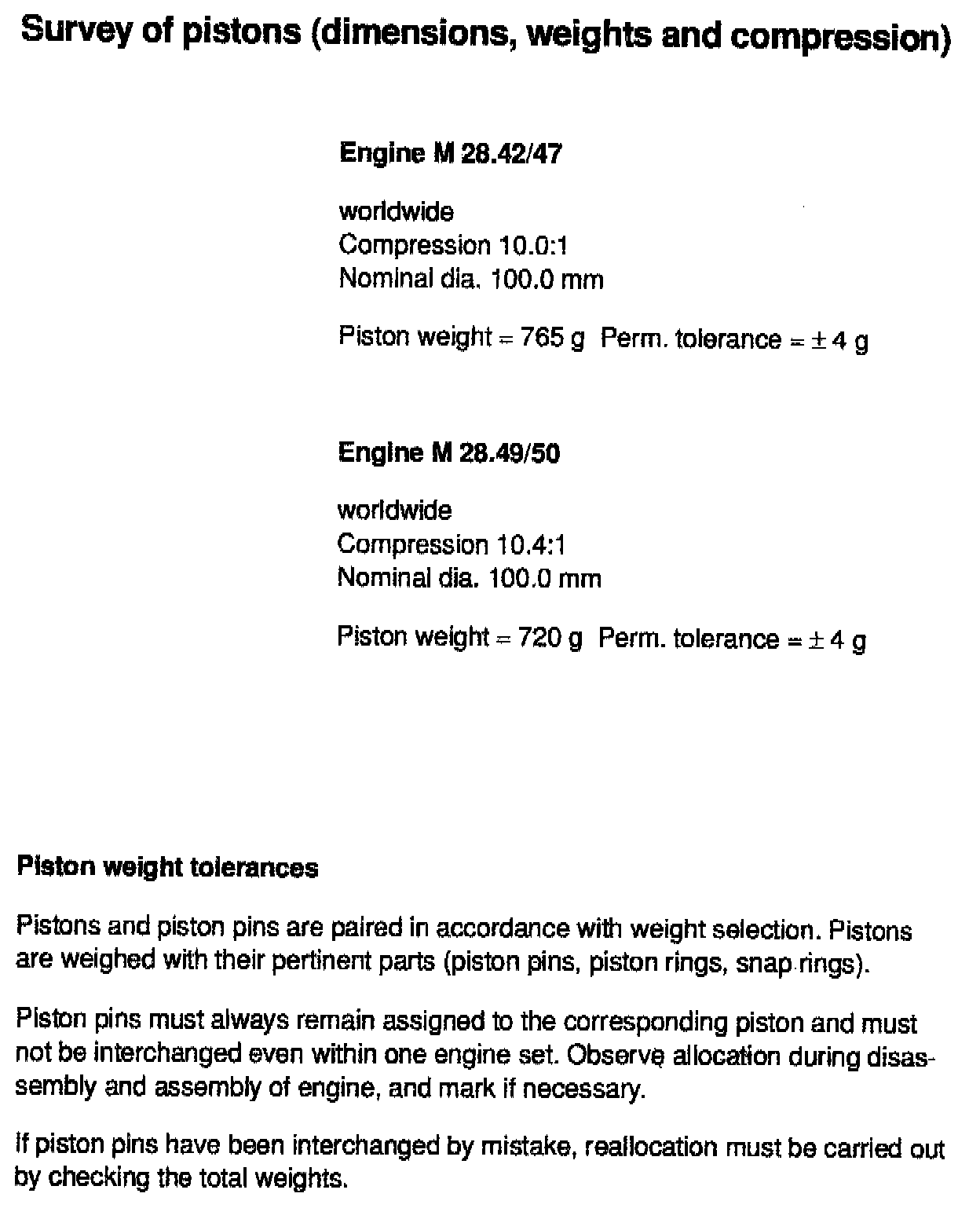

PISTON SPECIFICATIONS

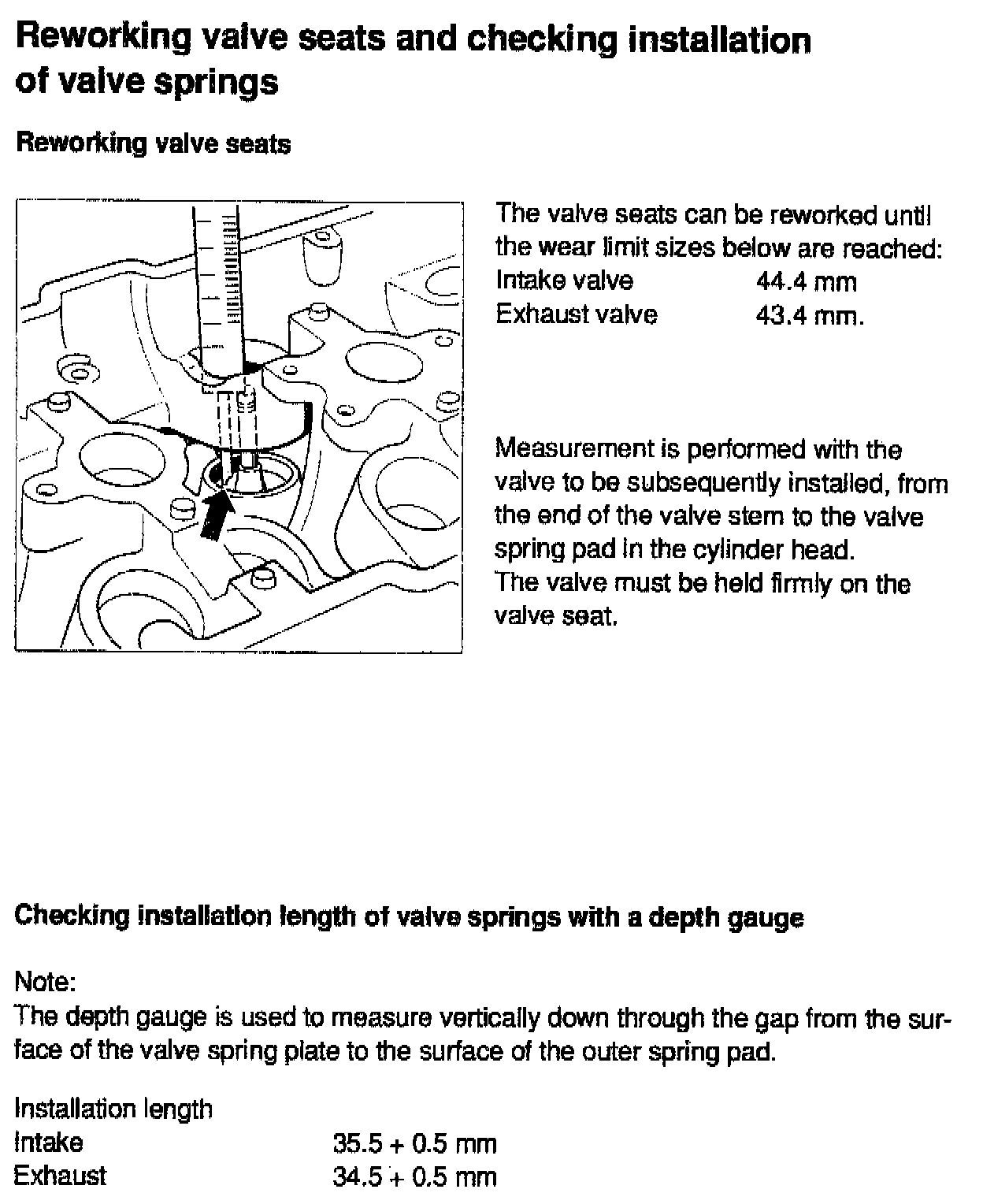

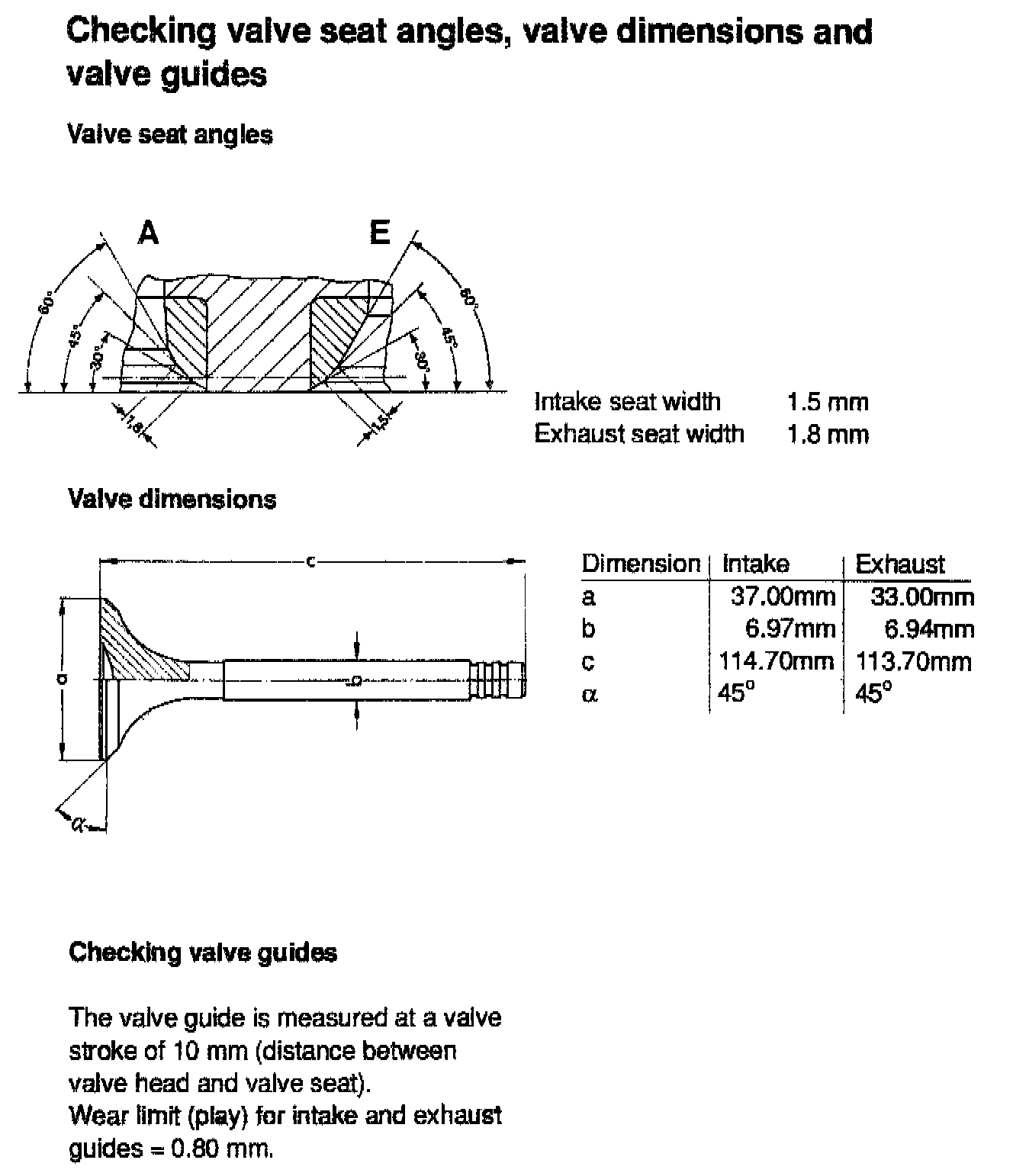

VALVE SPECIFICATIONS
