Home >> Porsche >> 1995 >> 928 GTS V8-5397cc 5.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

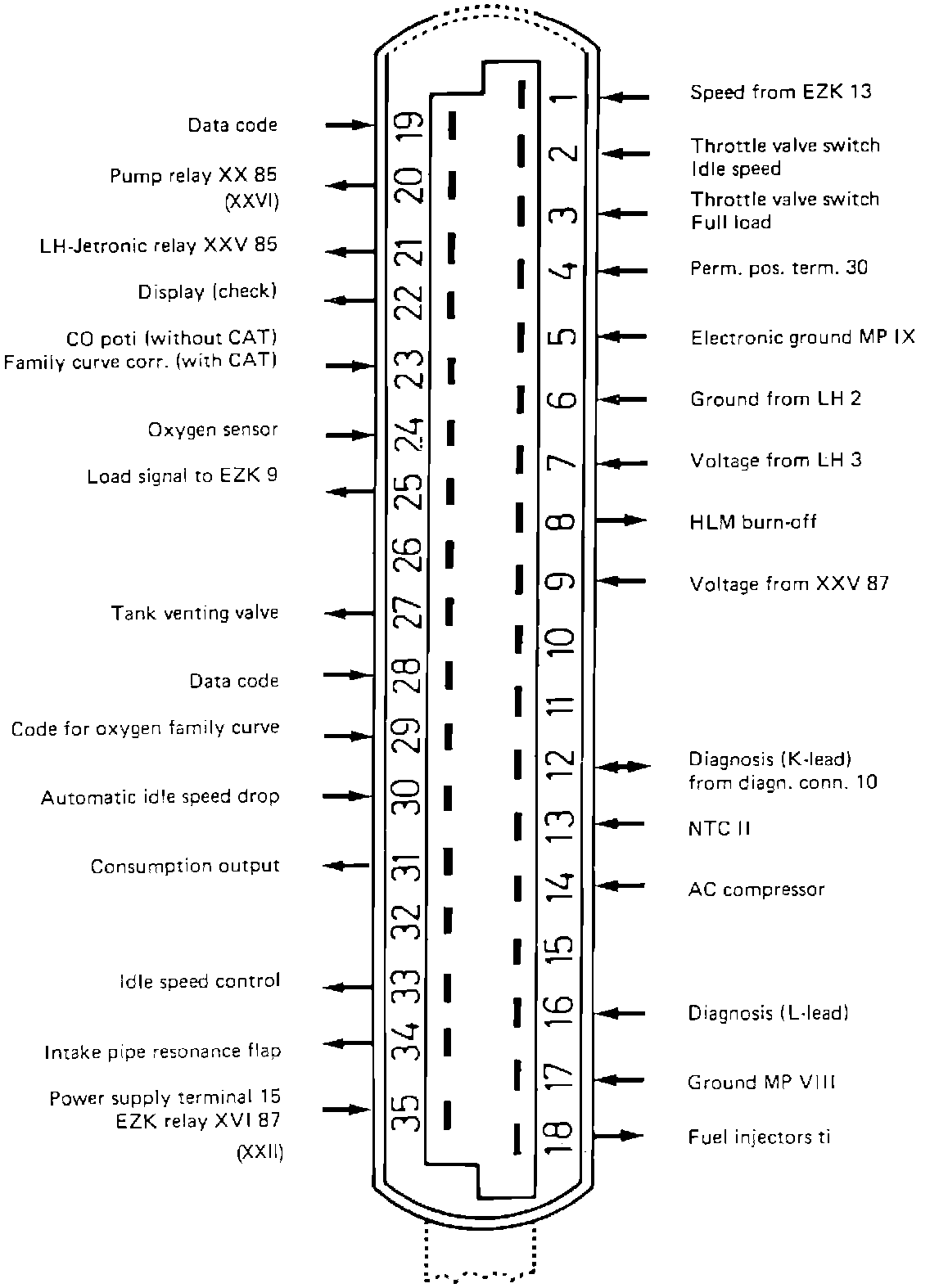

LH Control Unit Plug ID:
