System Specifications

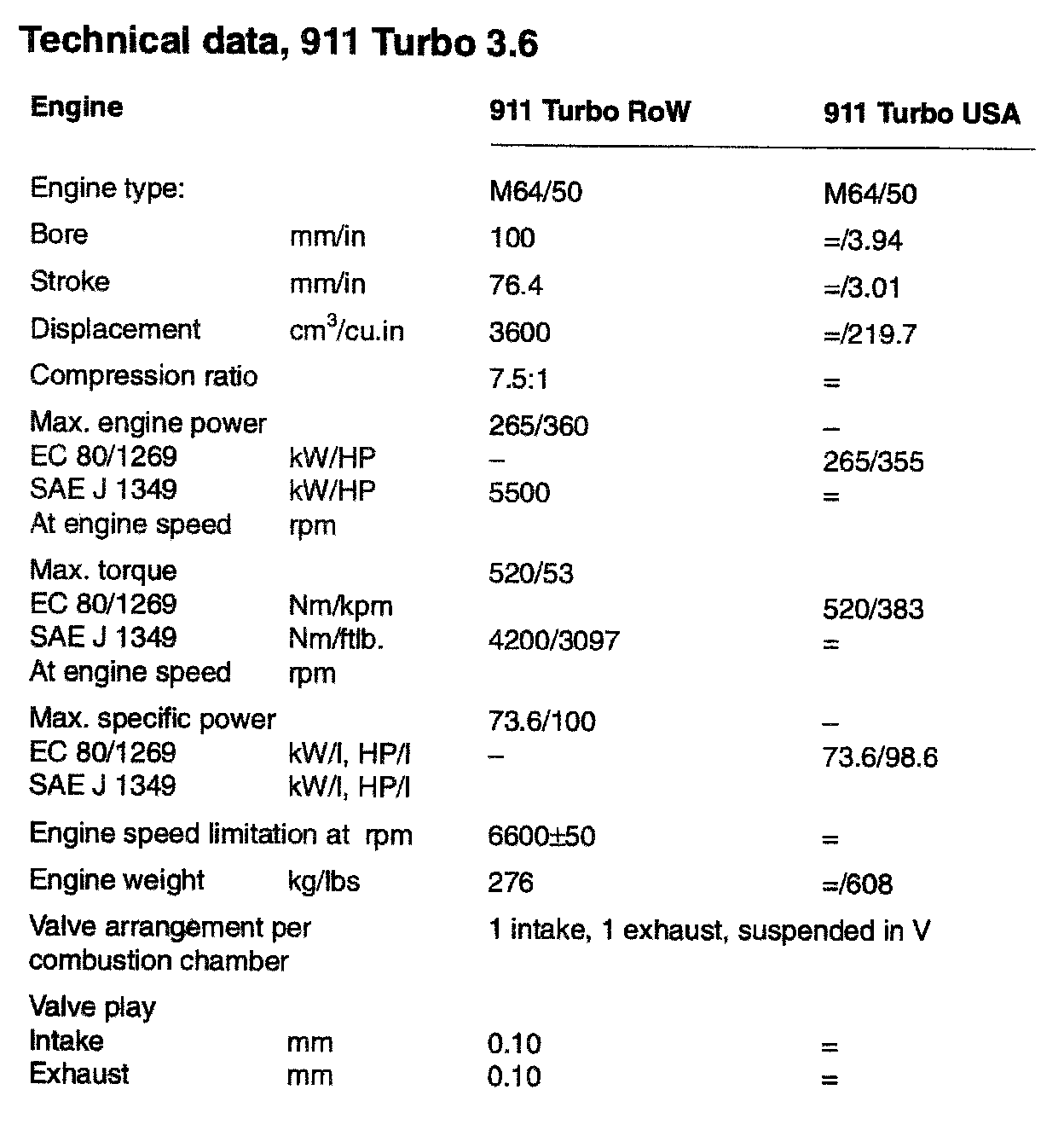

GENERAL SPECIFICATION

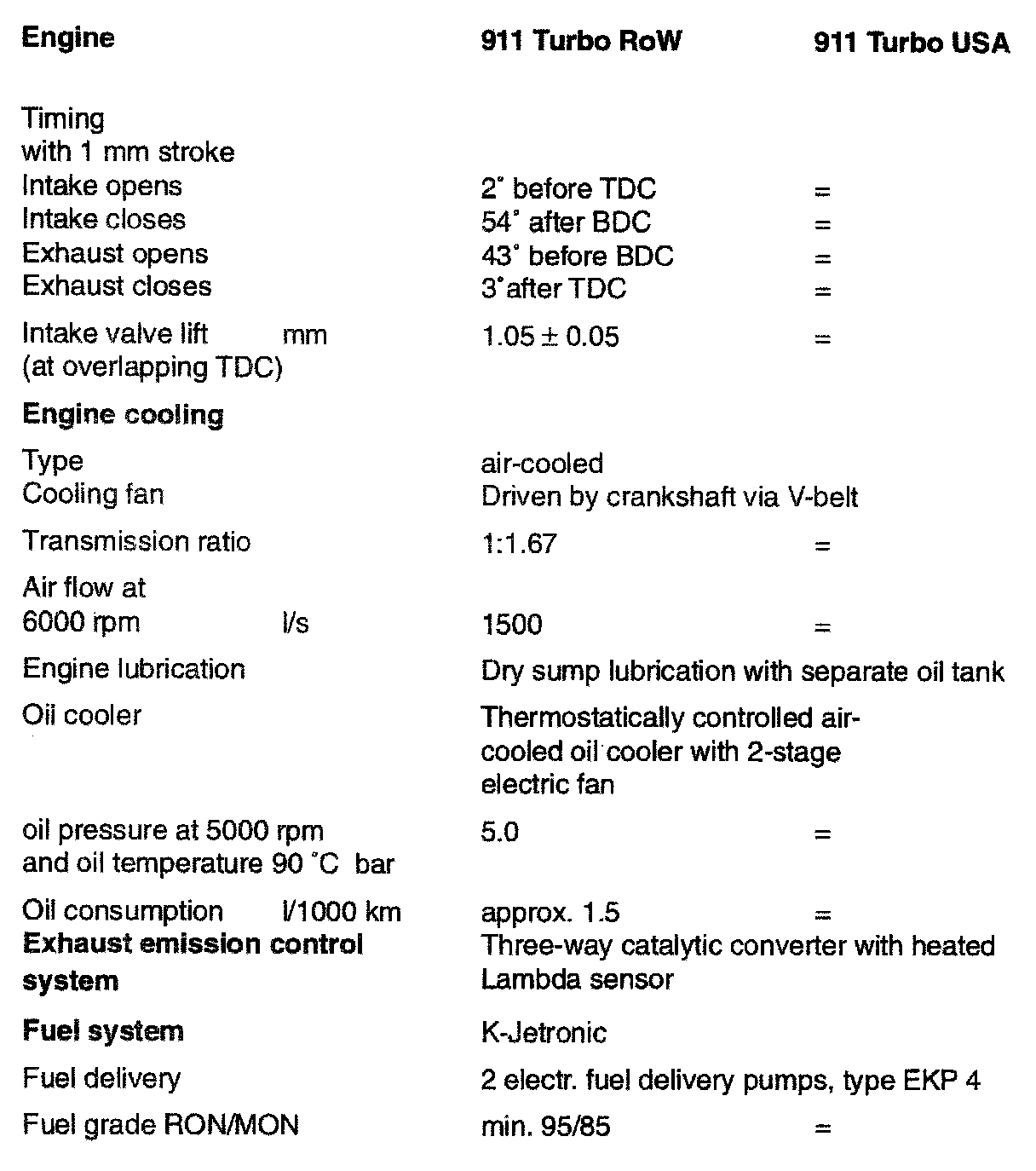

CAMSHAFT SPECIFICATION

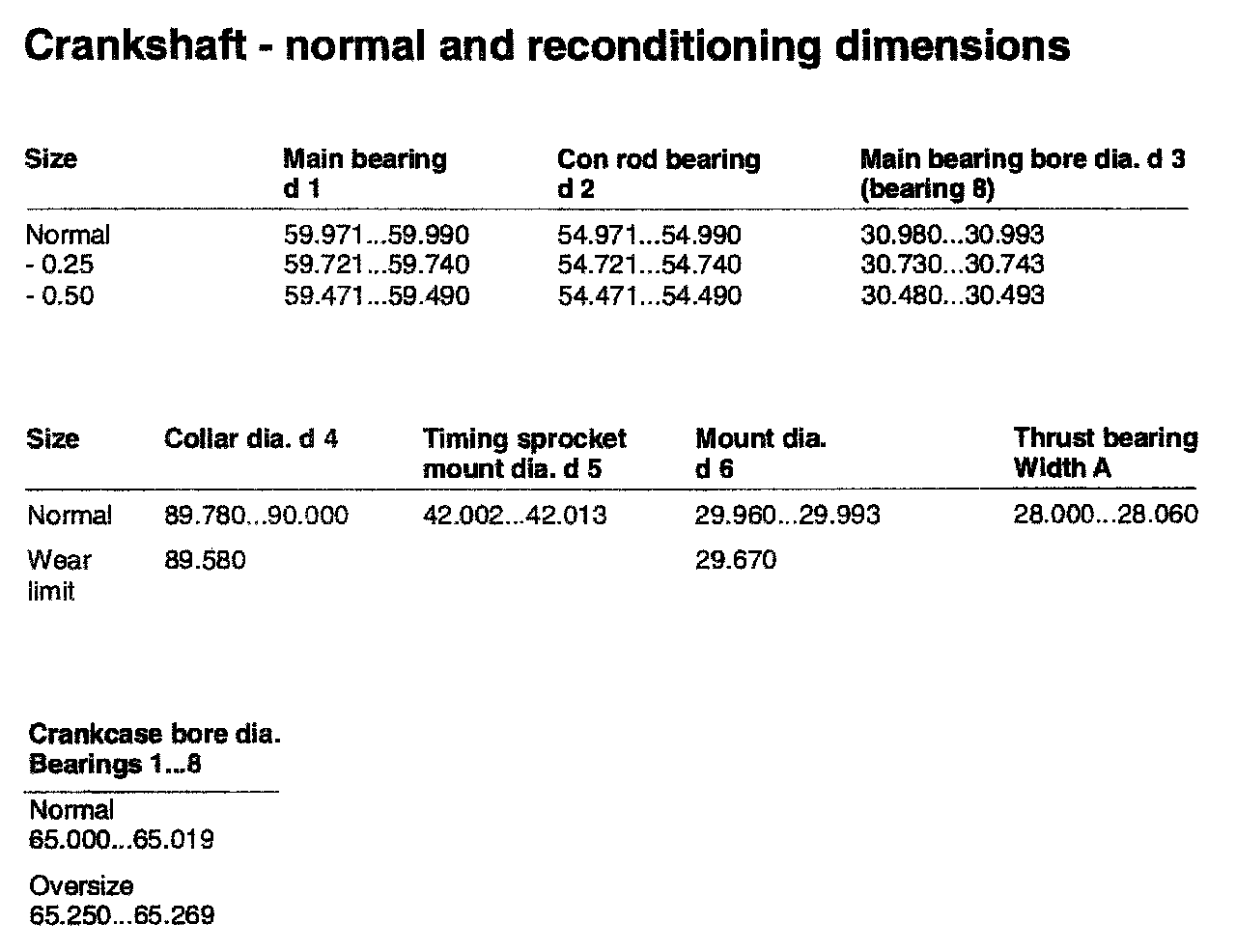

CRANKSHAFT SPECIFICATIONS

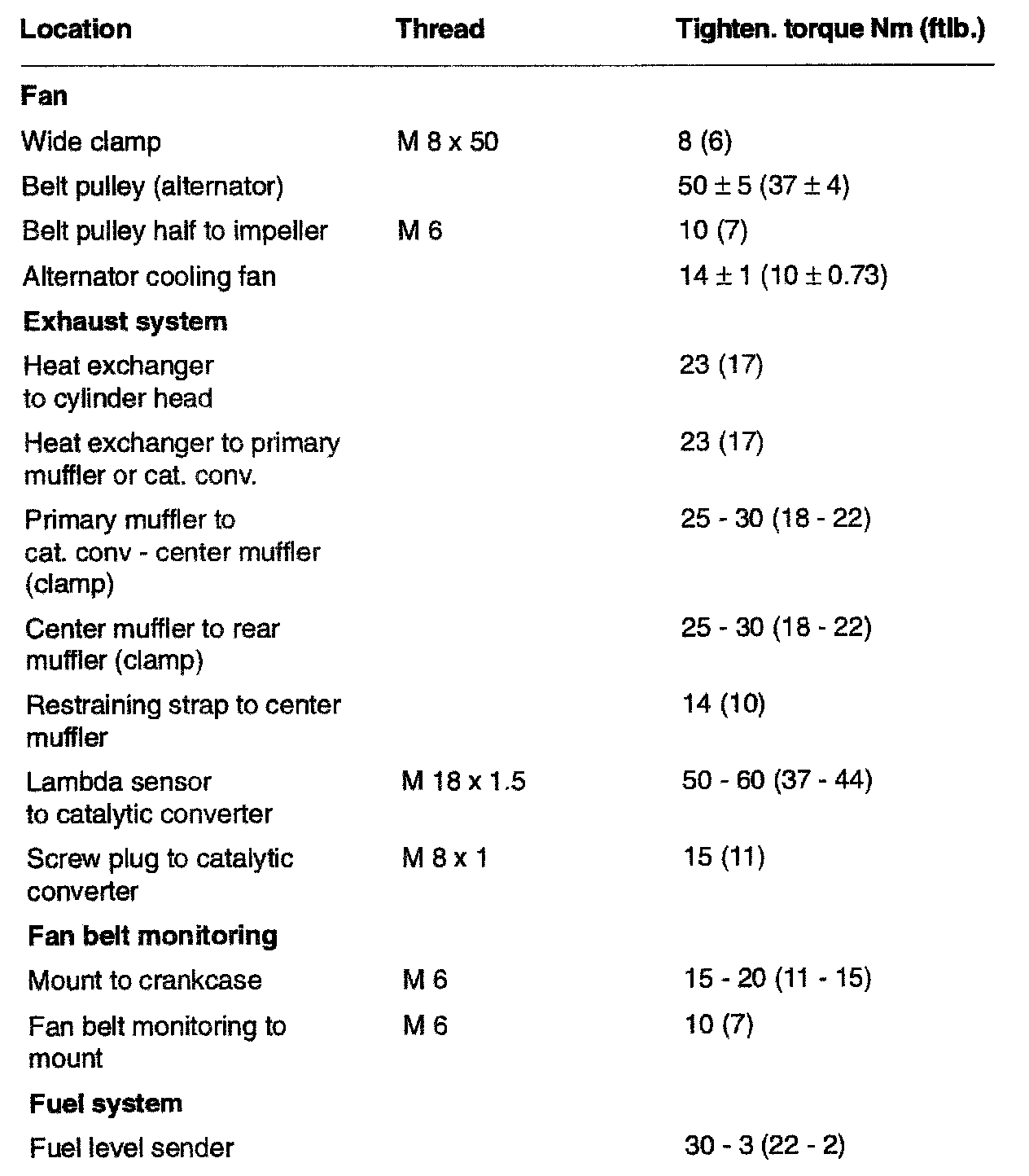

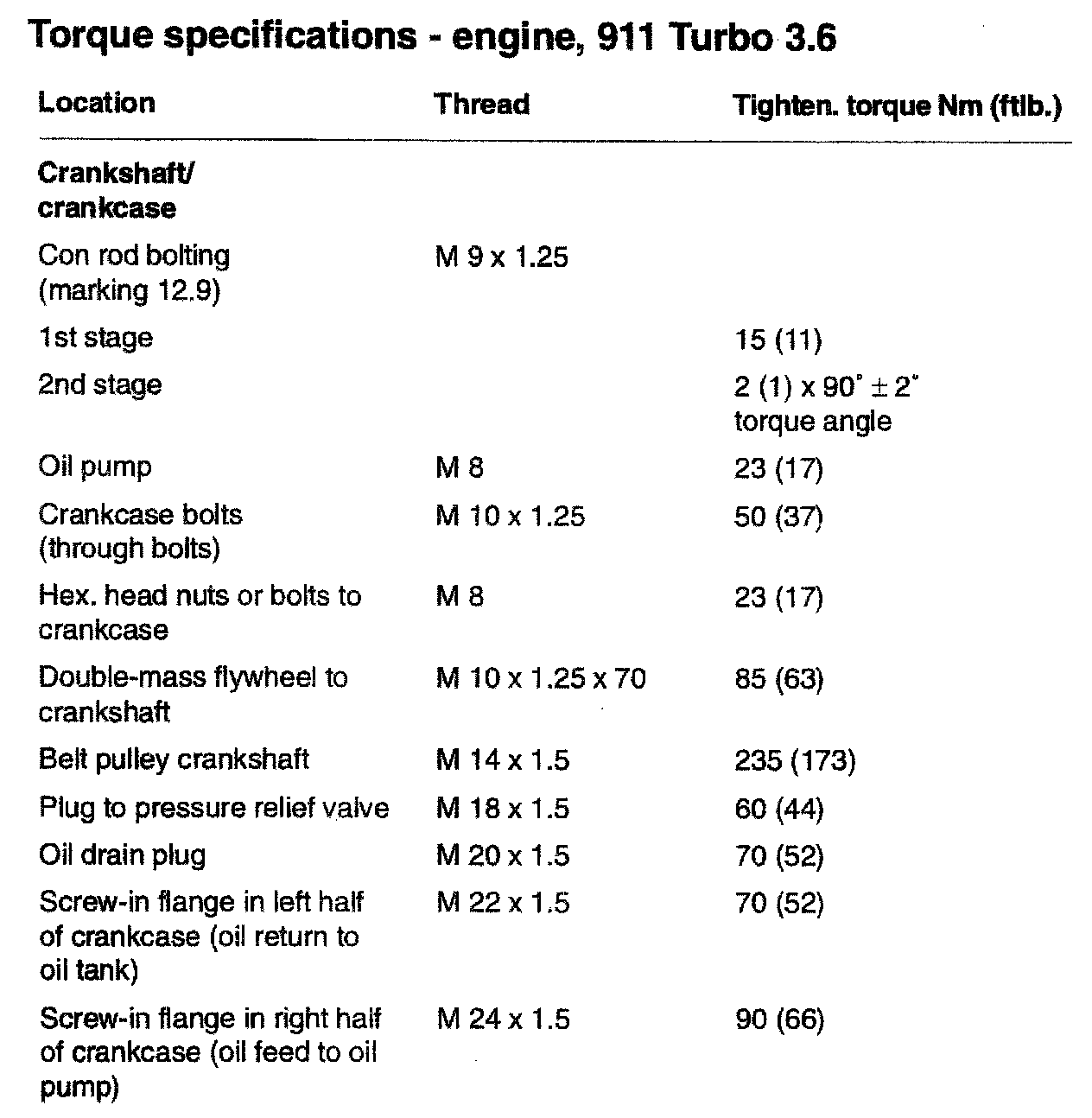

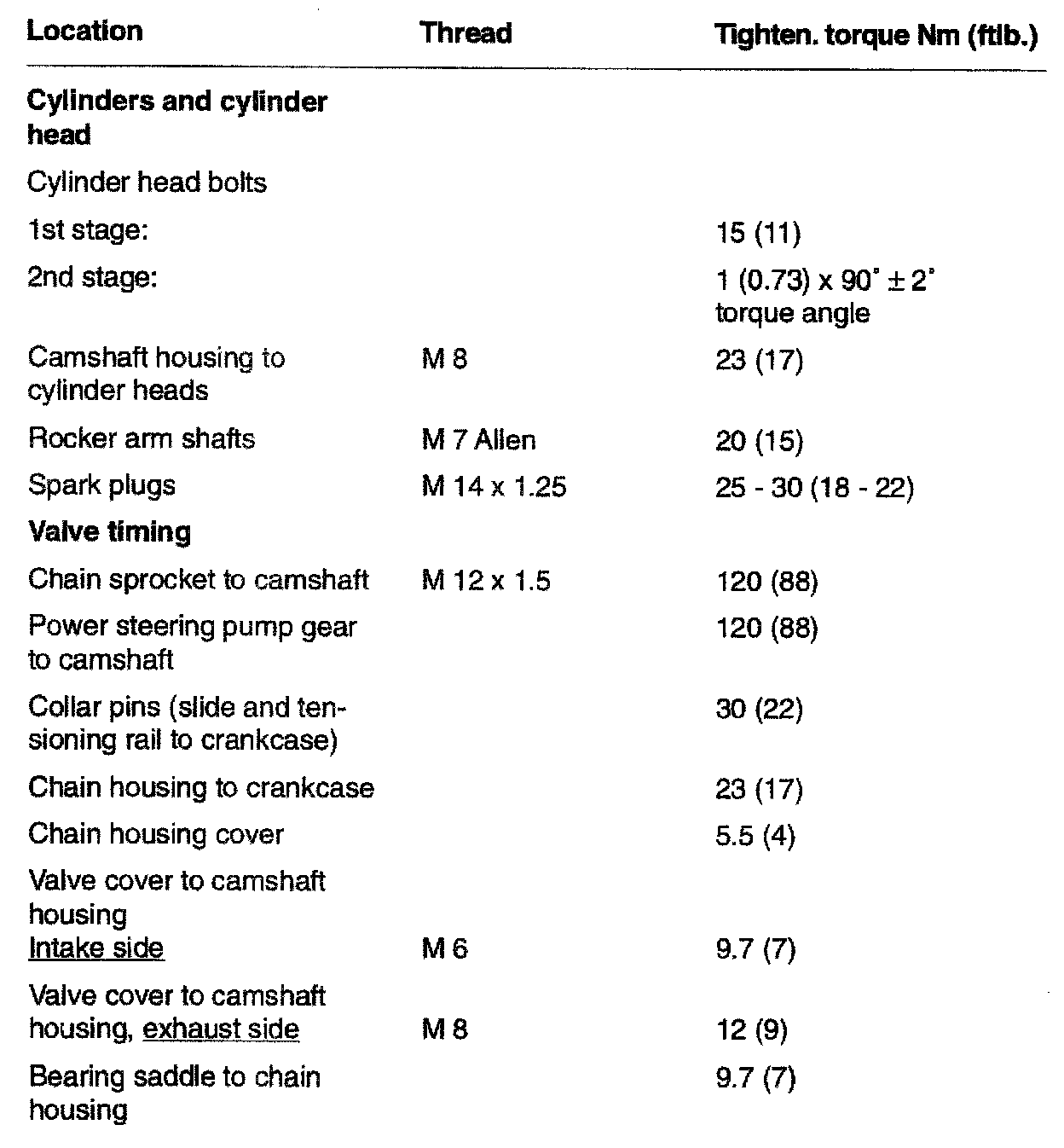

TIGHTENING SPECIFICATIONS

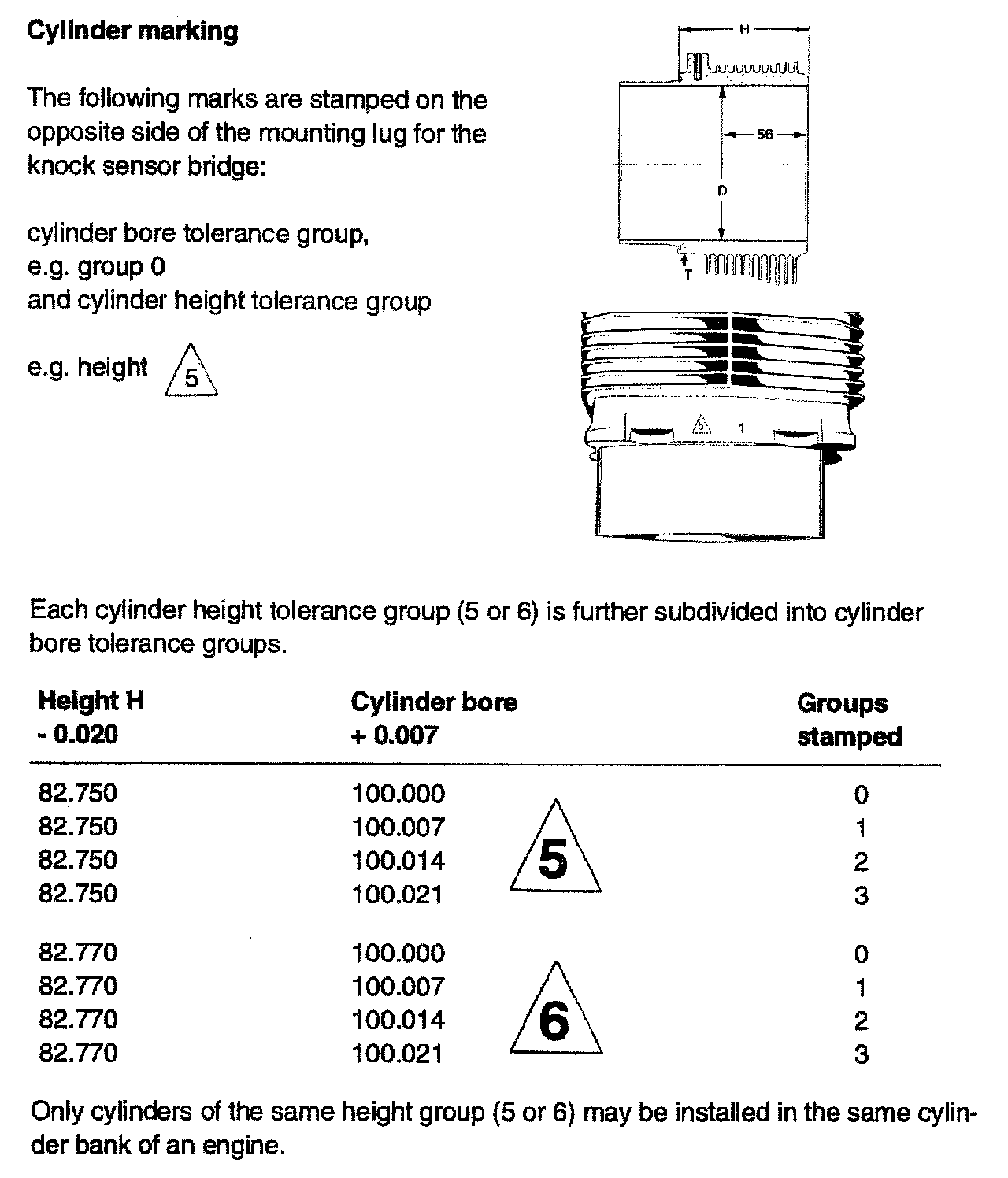

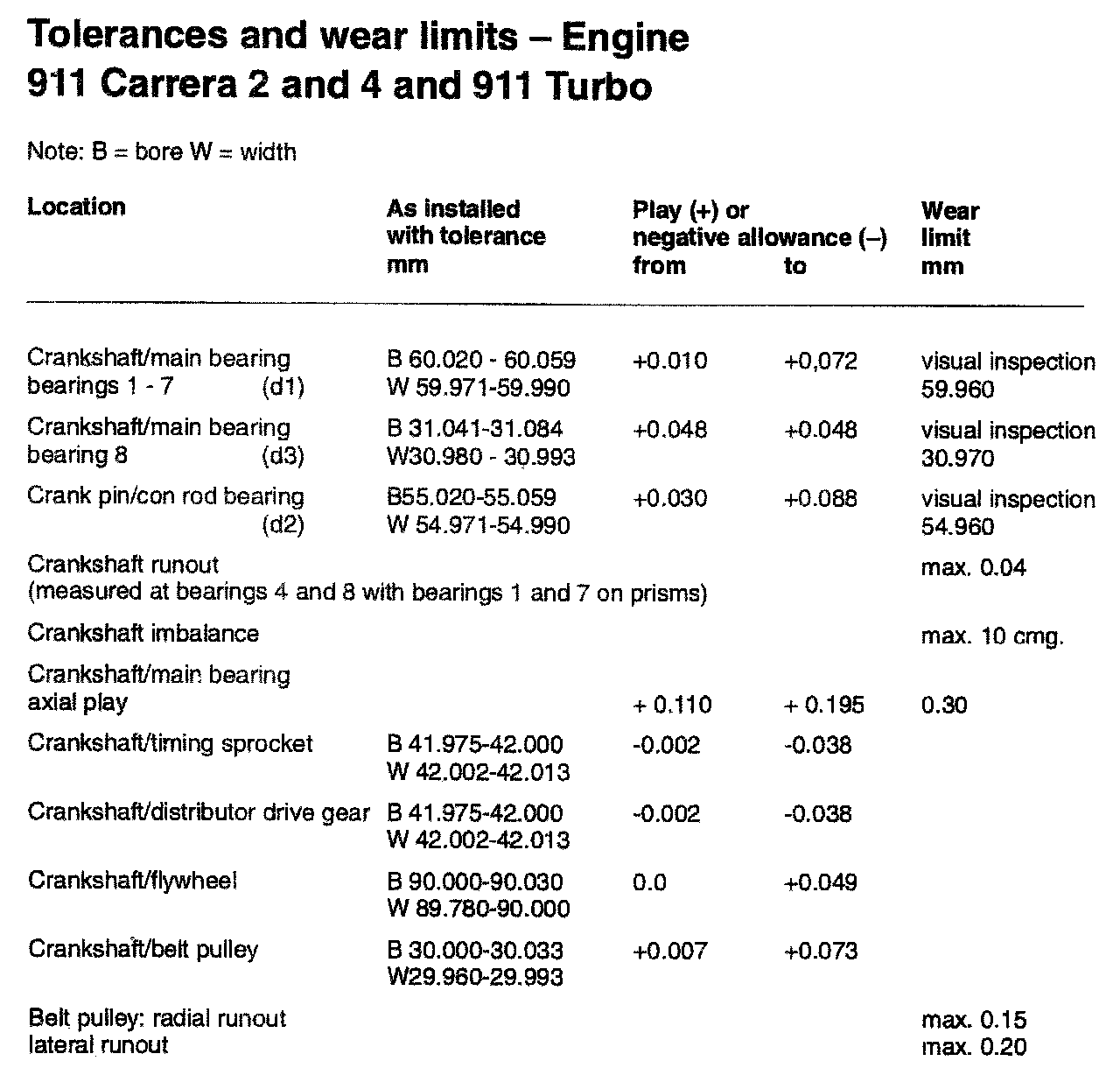

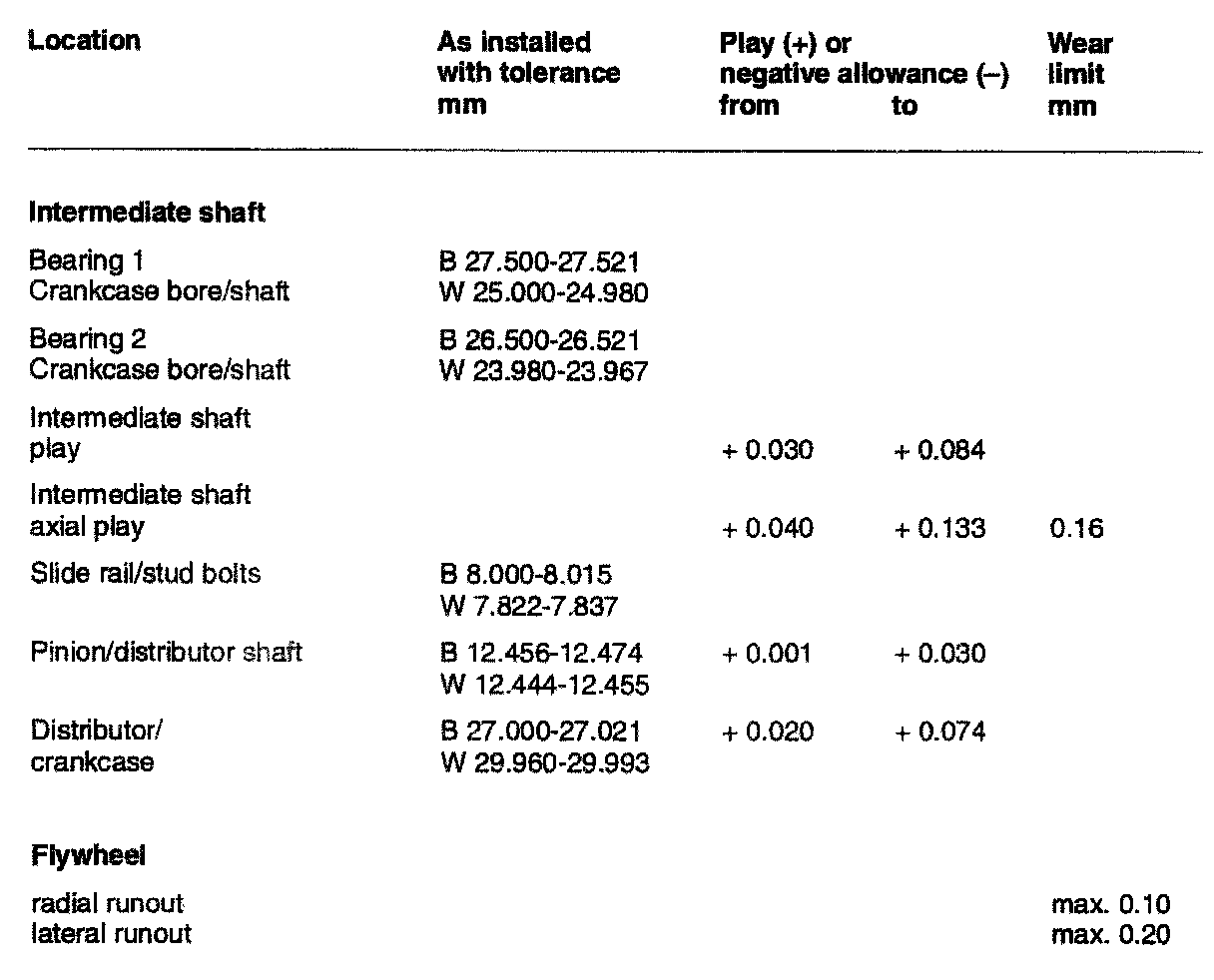

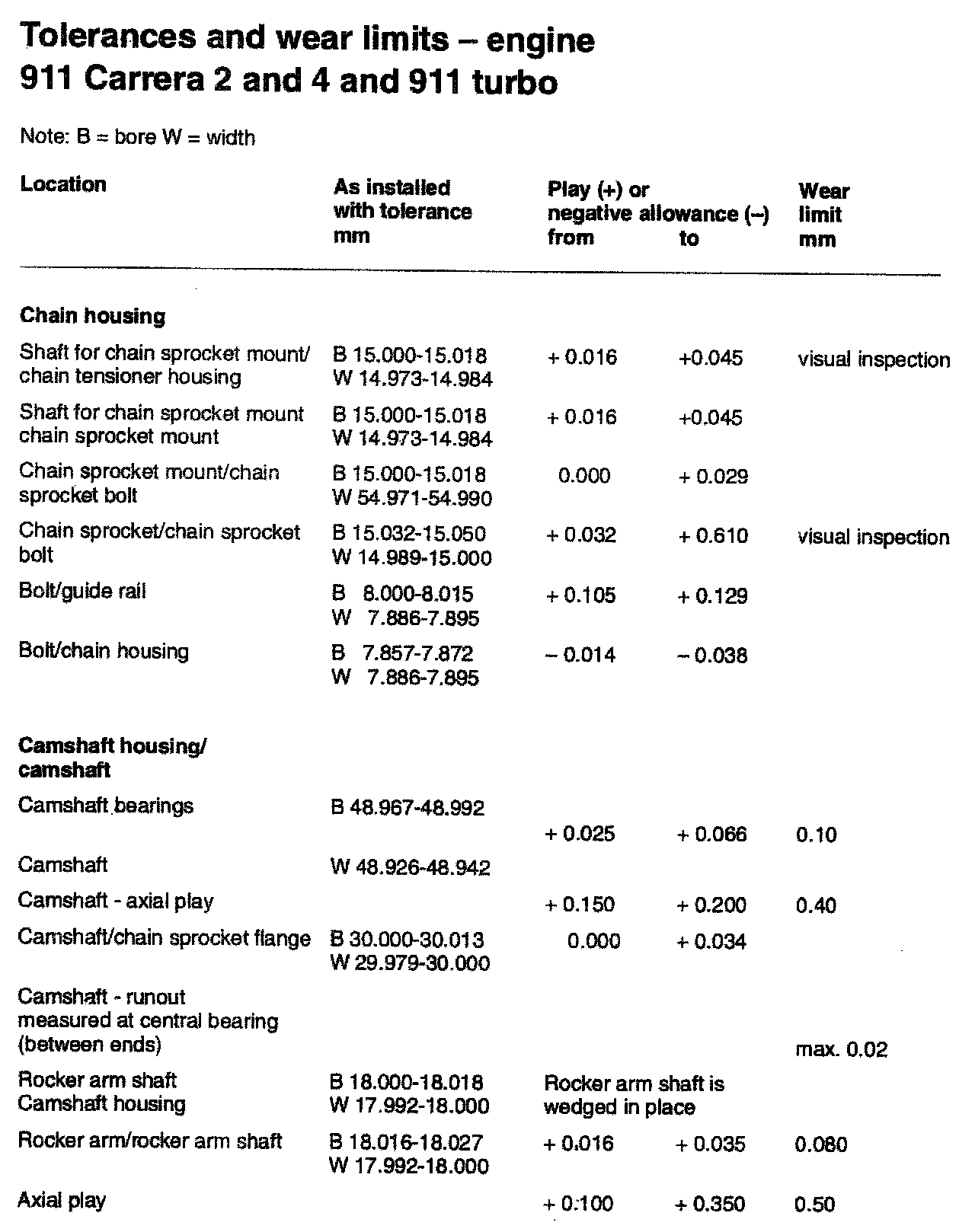

TOLERANCES AND WEAR SPECIFICATIONS

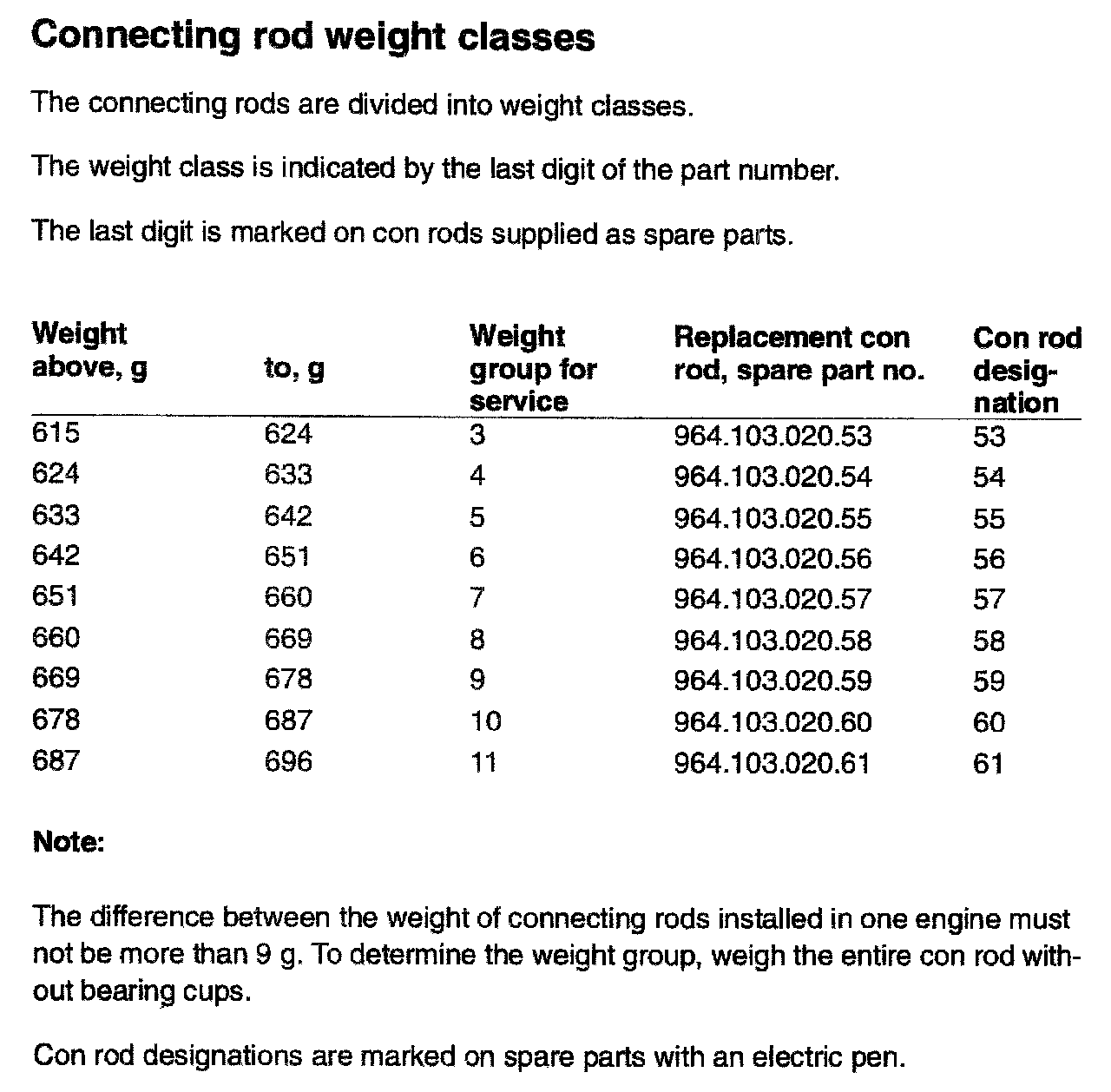

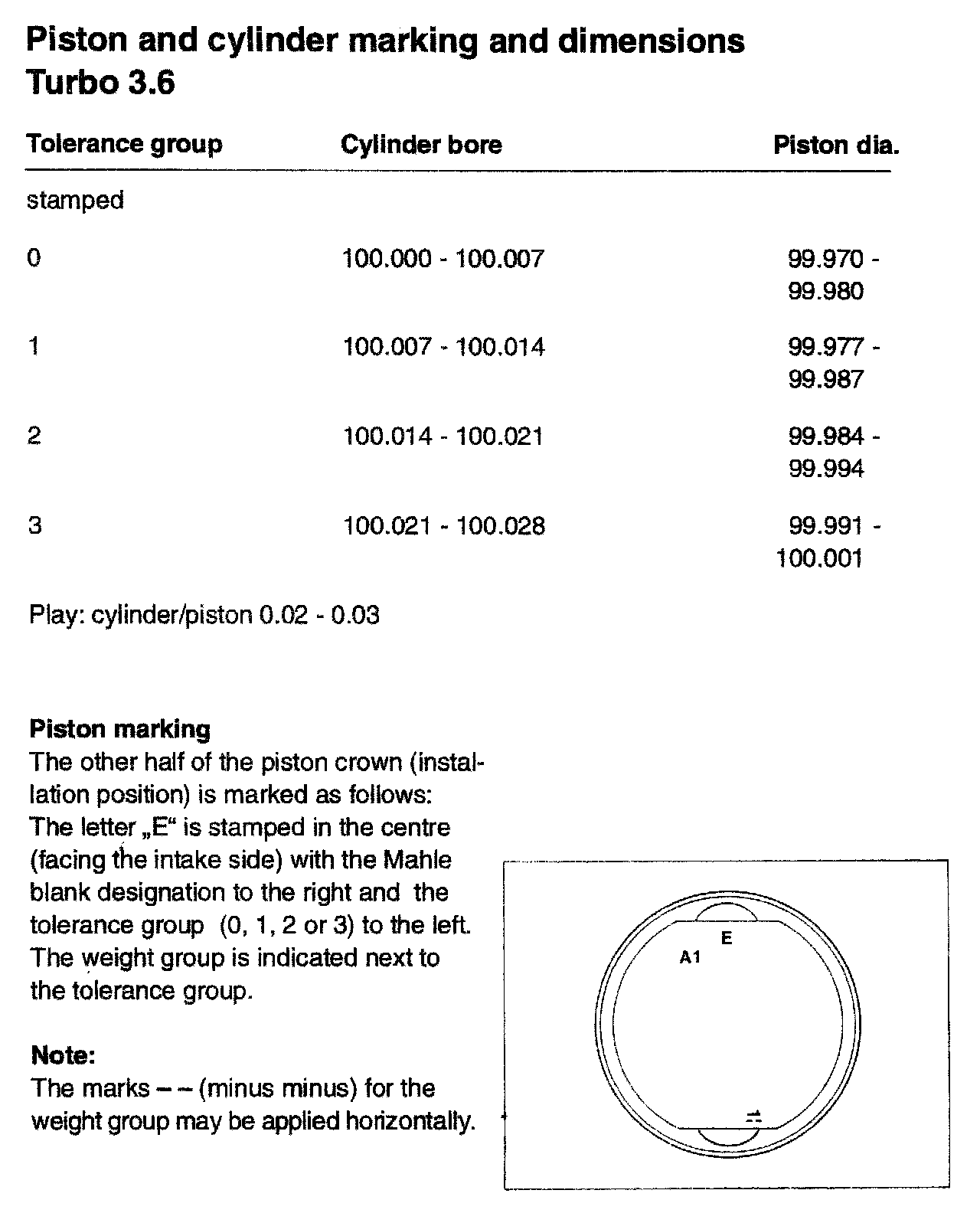

PISTON SPECIFICATIONS

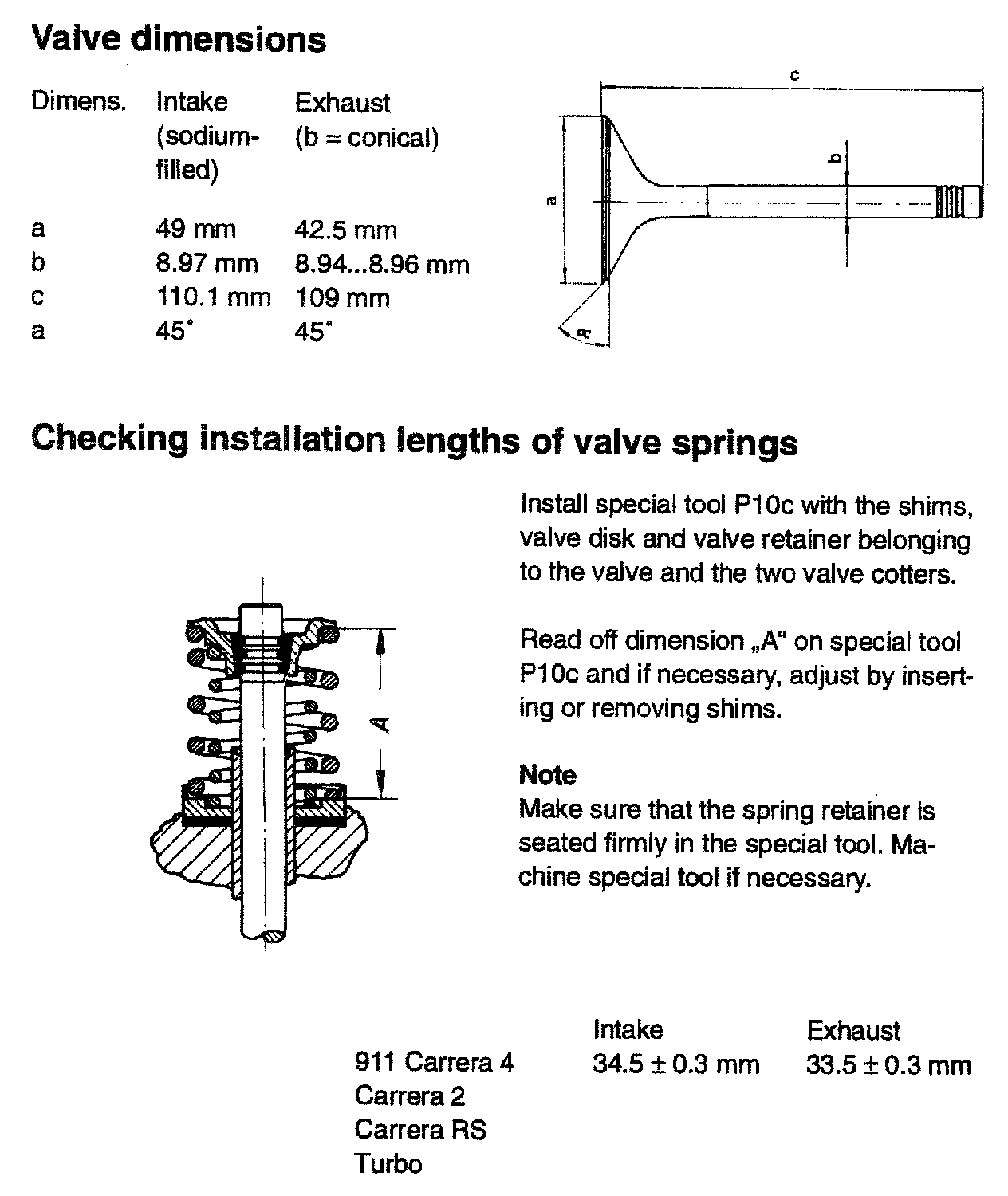

VALVE SPECIFICATIONS
