Feedback Control Module: Description and Operation

Oxygen Sensor Control Unit:

OXYGEN SENSOR CONTROL UNIT

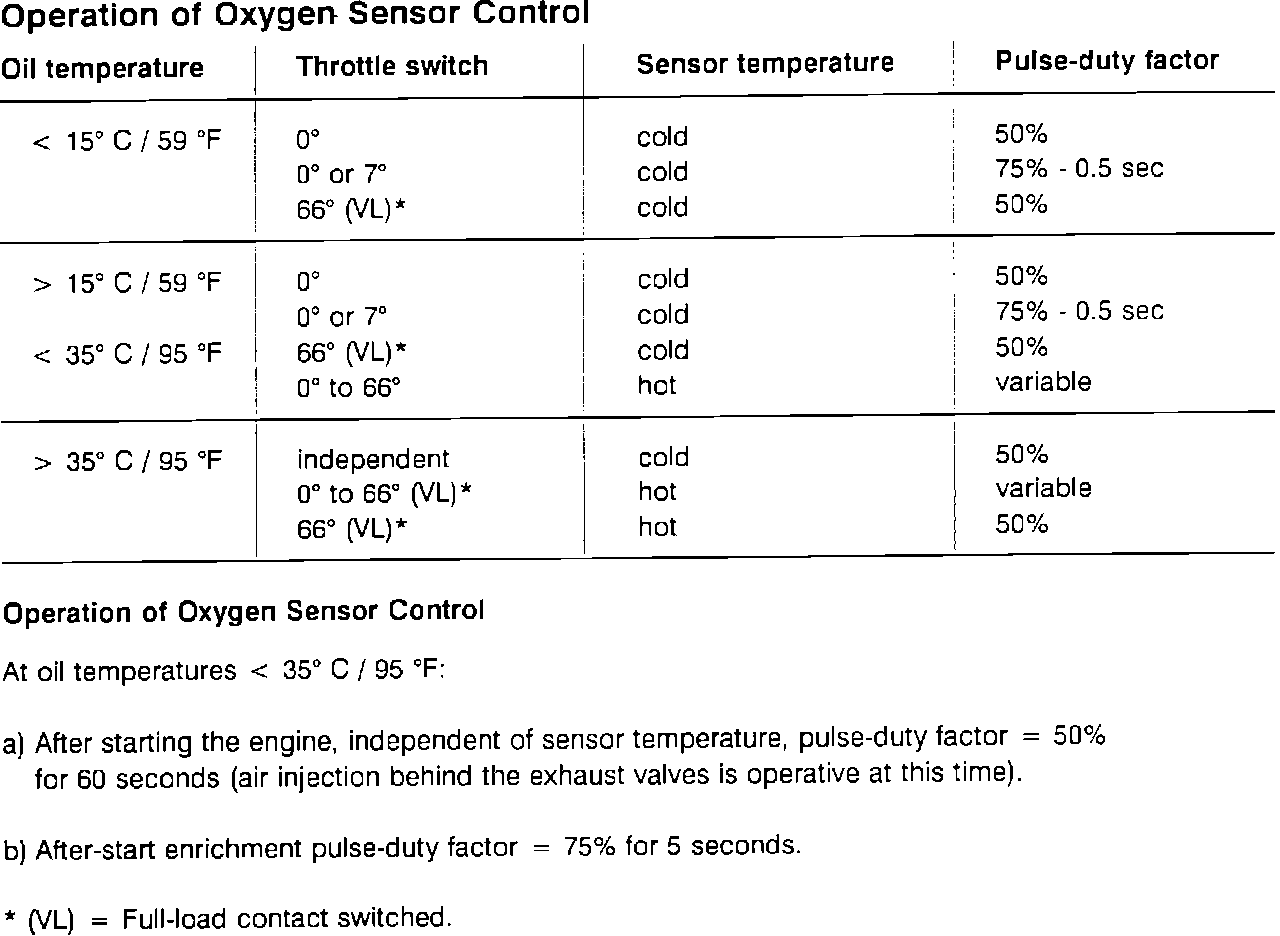

Oxygen Sensor Control:

OXYGEN SENSOR CONTROL
