System Specifications

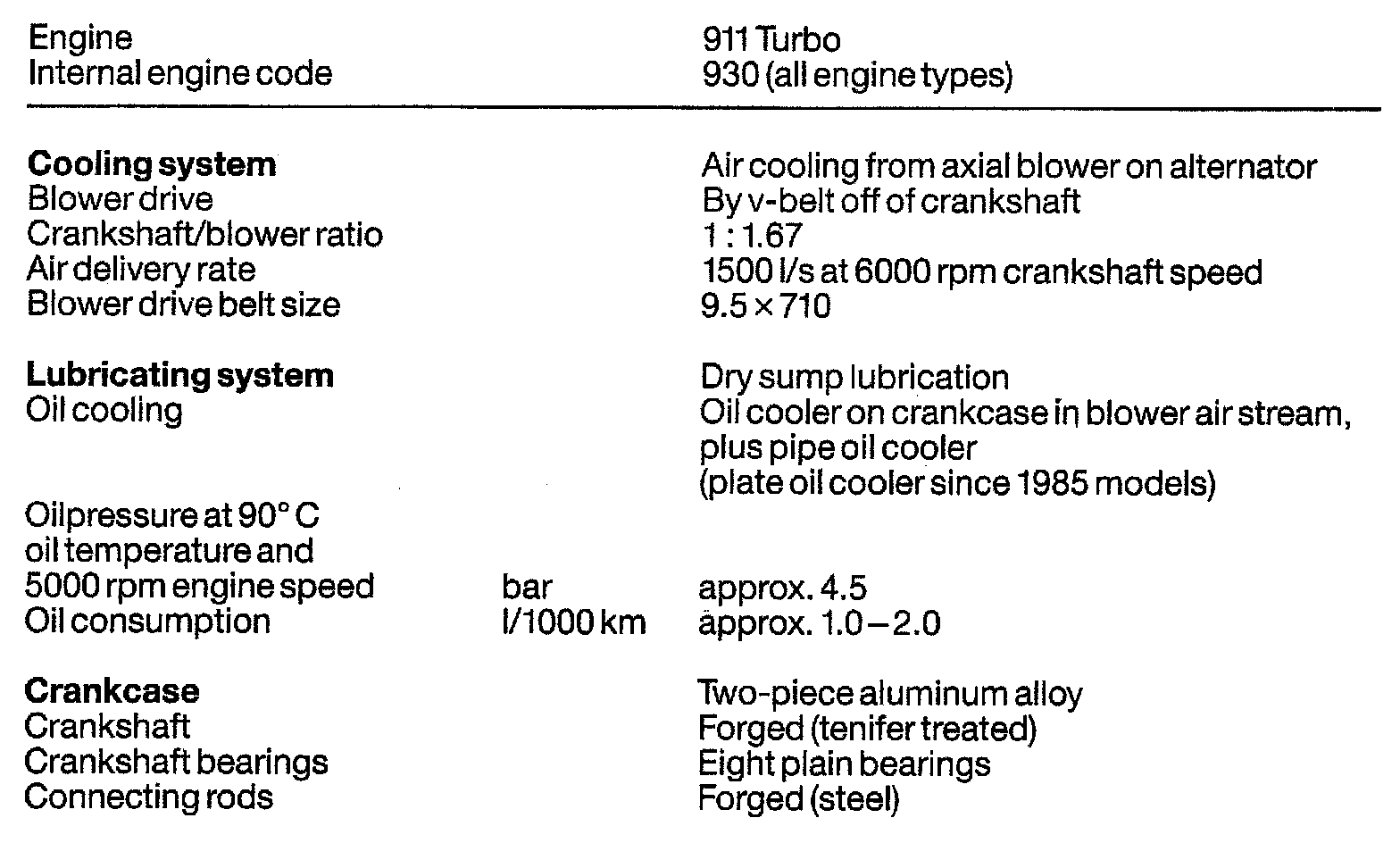

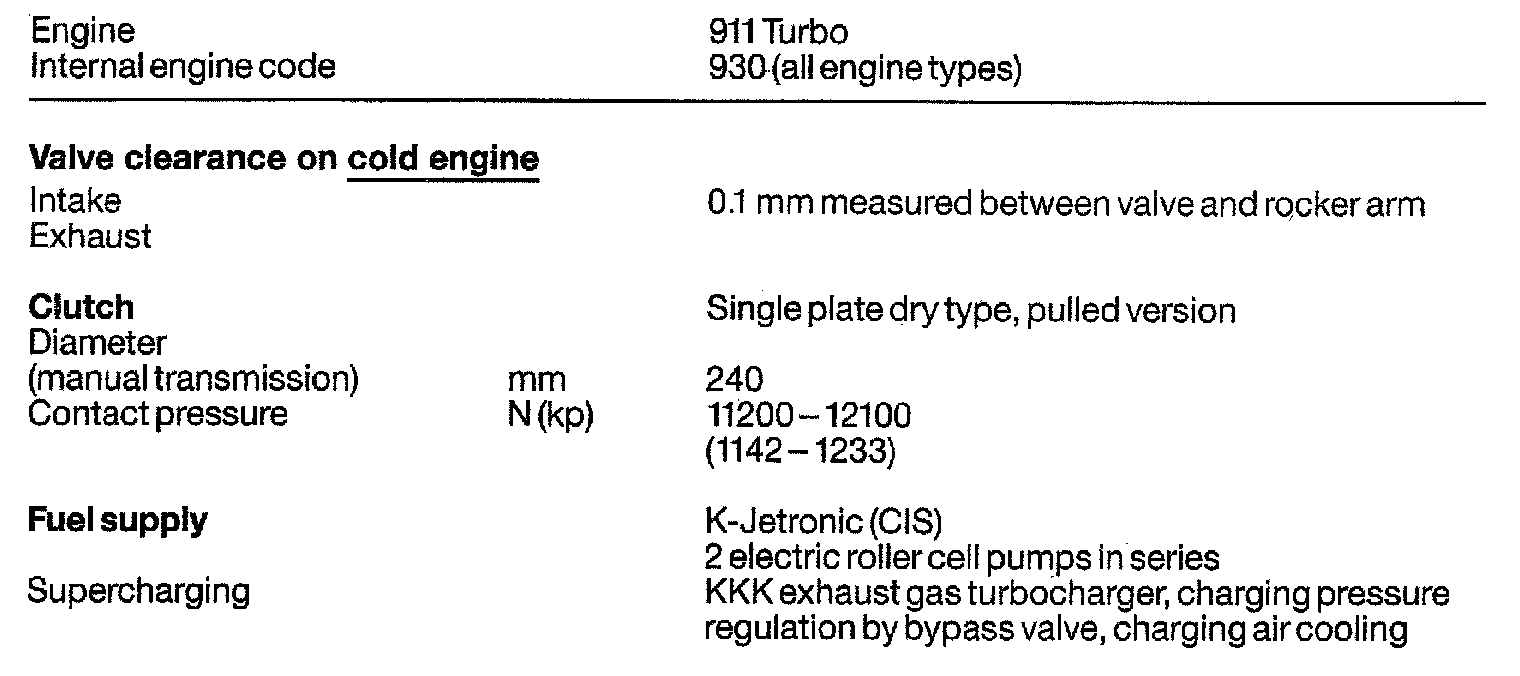

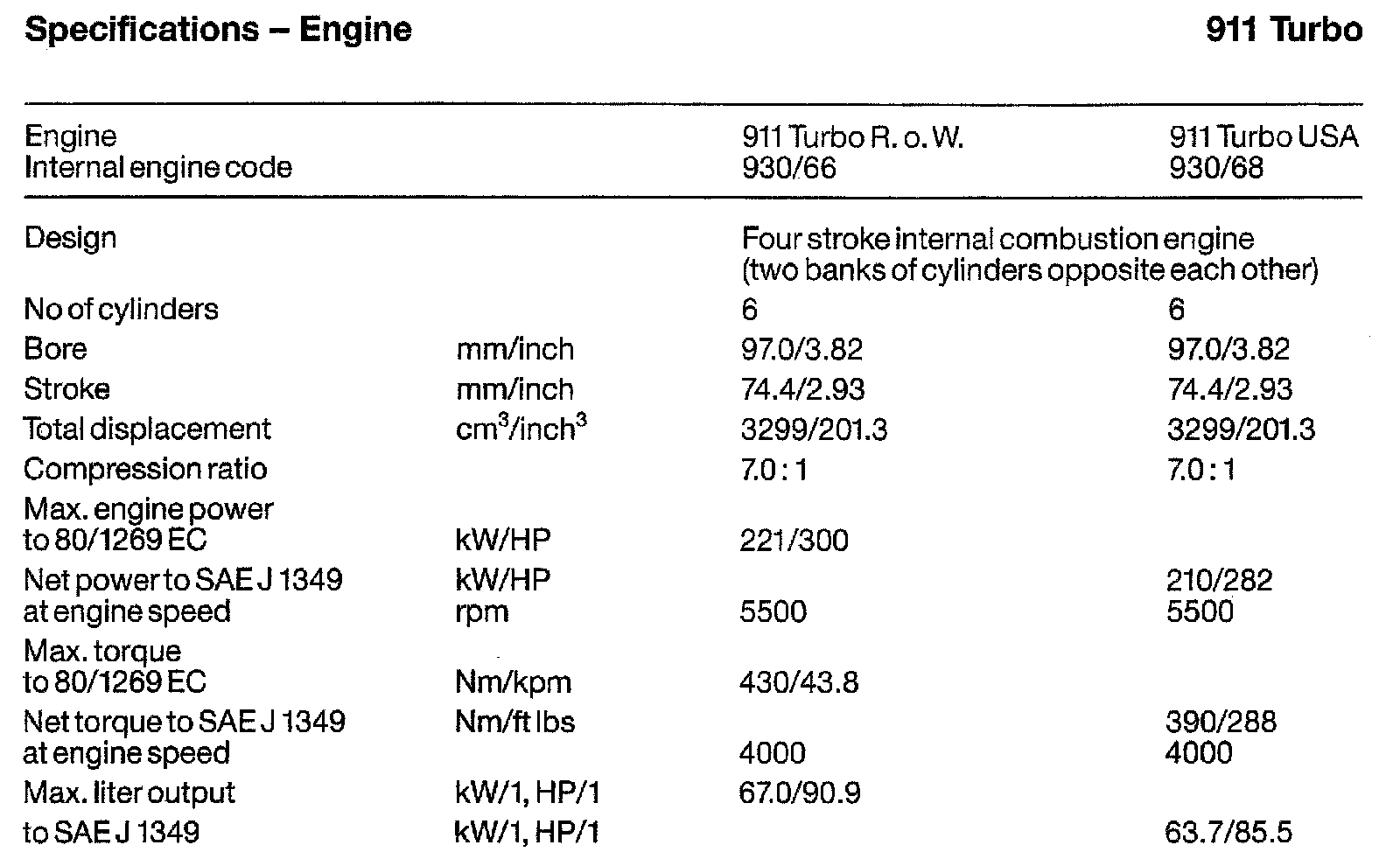

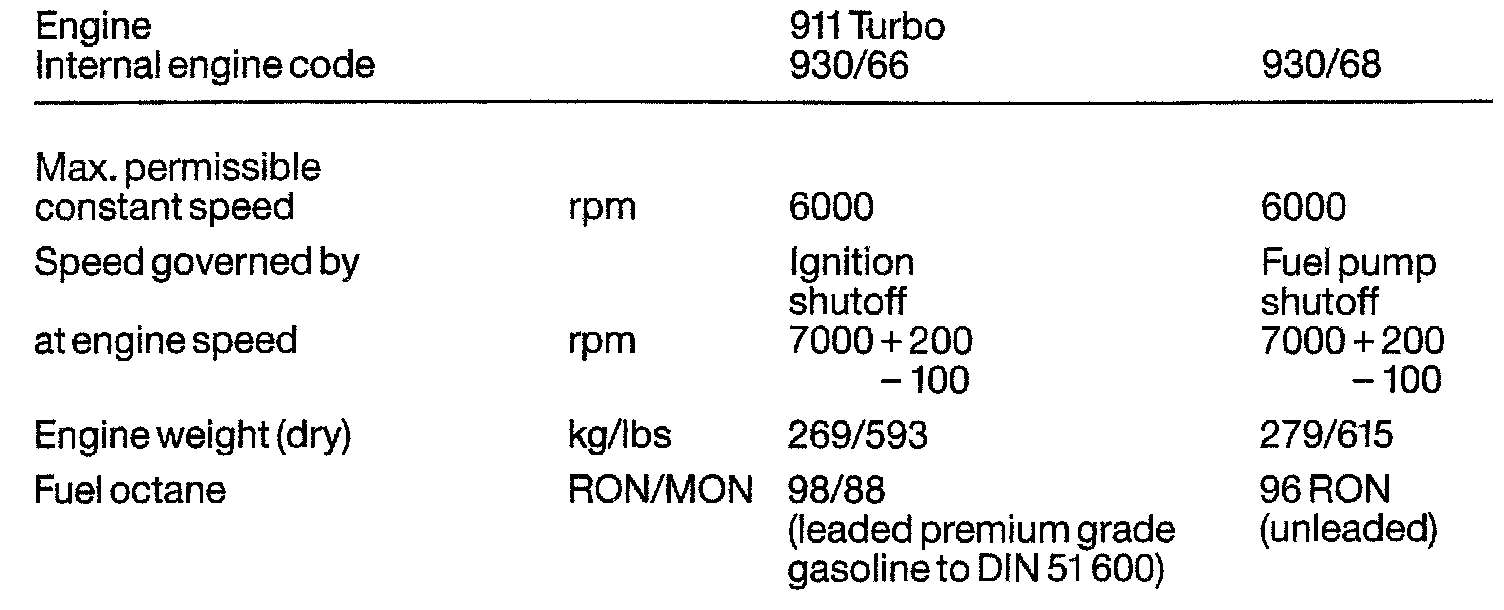

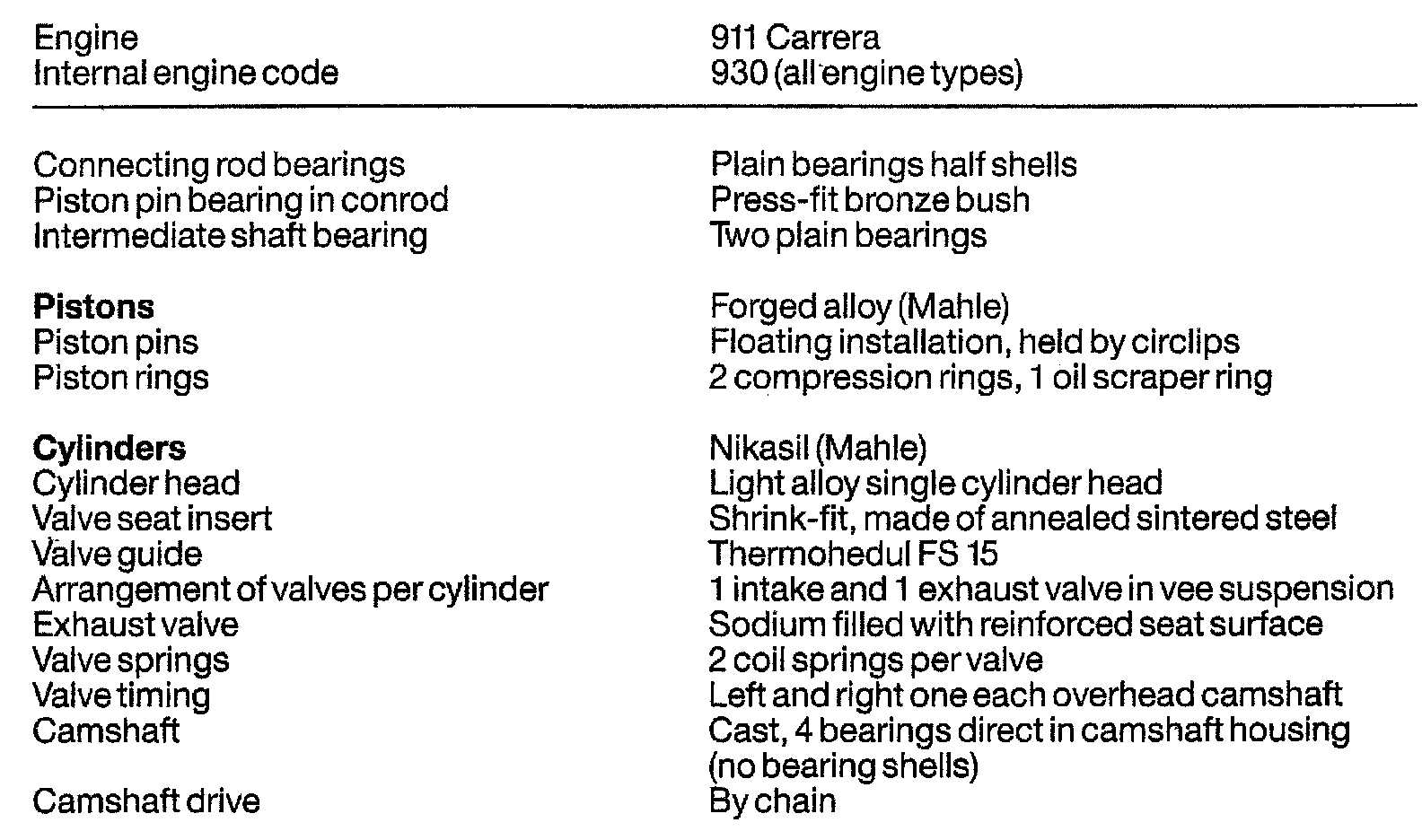

GENERAL SPECIFICATIONS





















CAMSHAFT SPECIFICATION

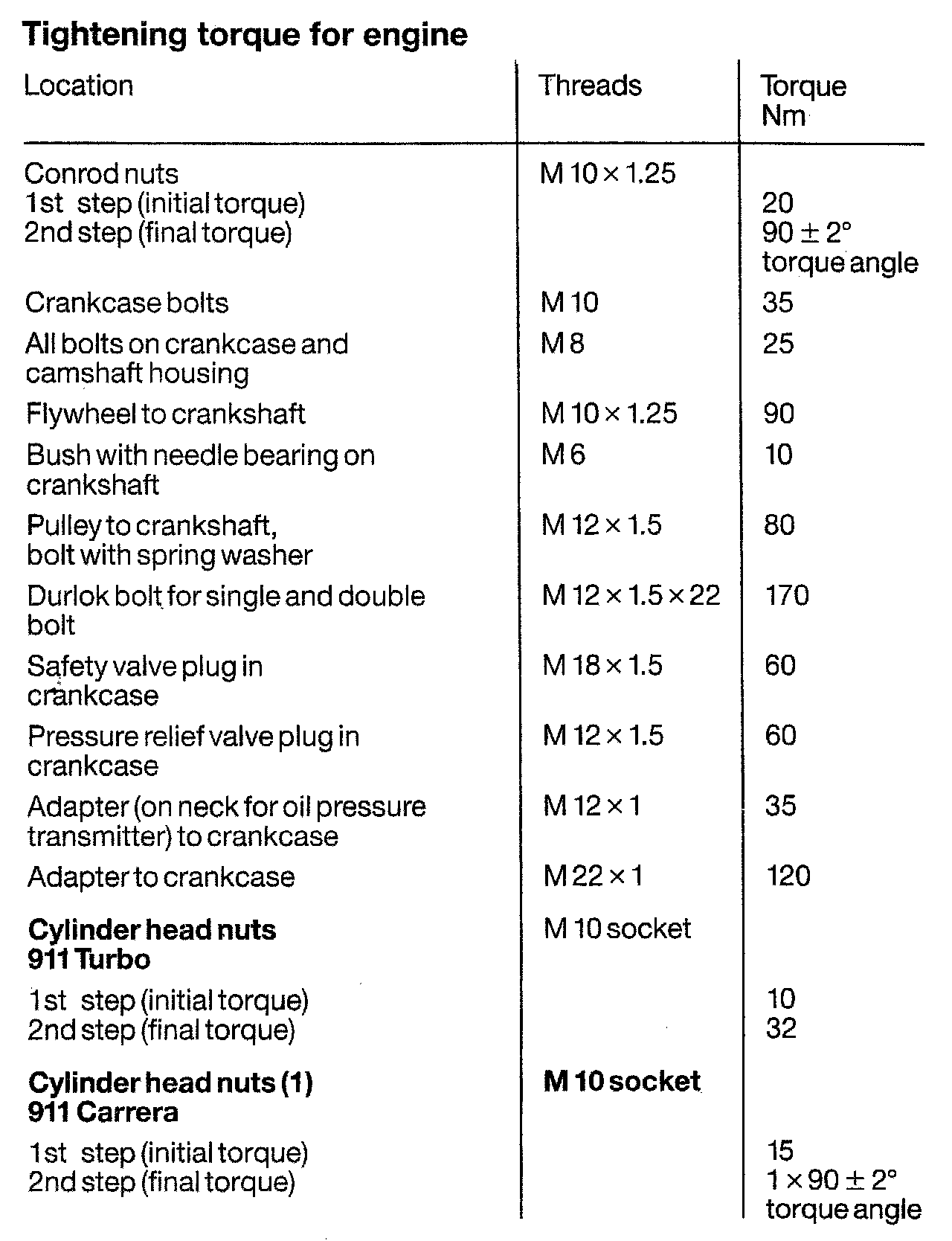

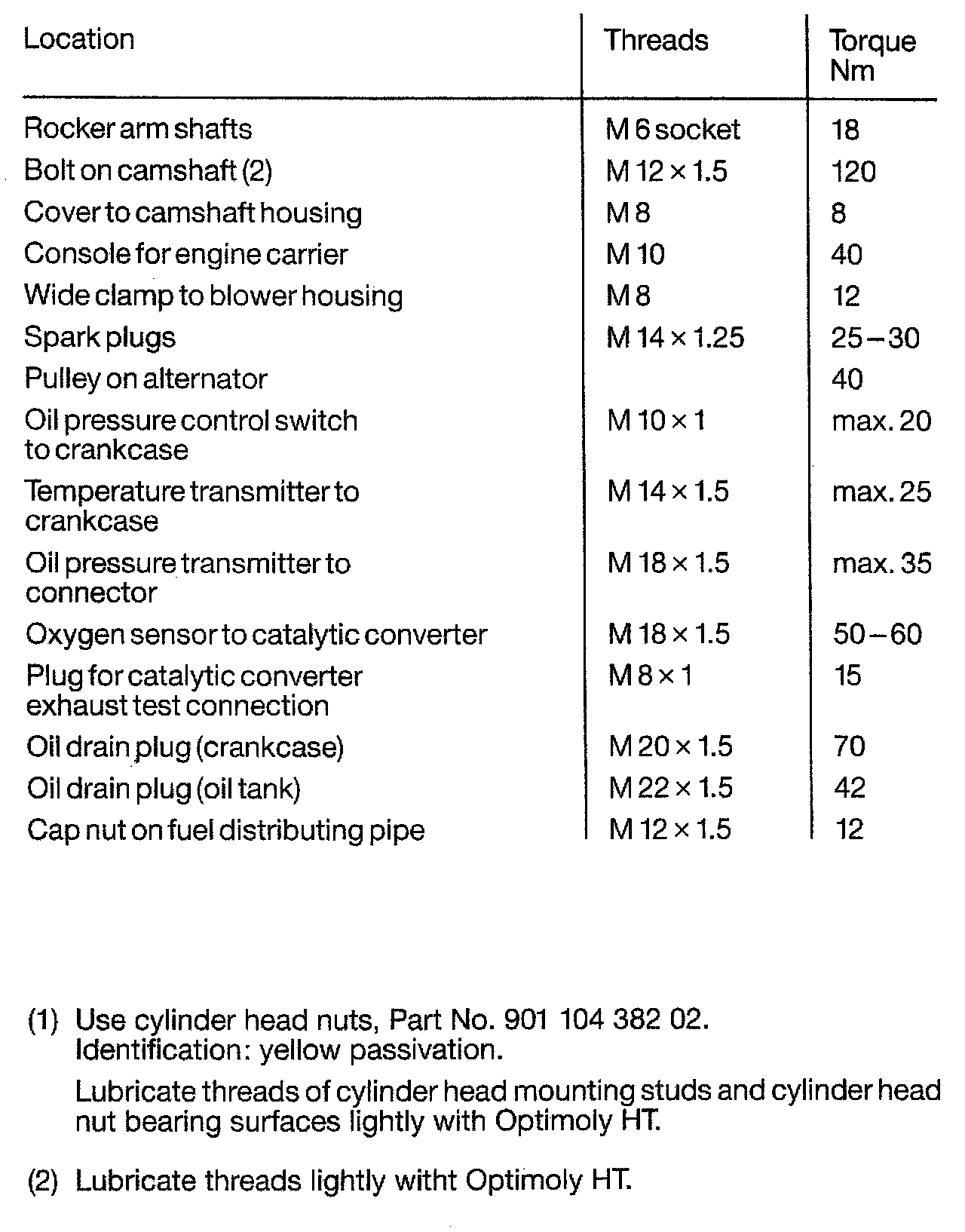

TIGHTENING SPECIFICATIONS

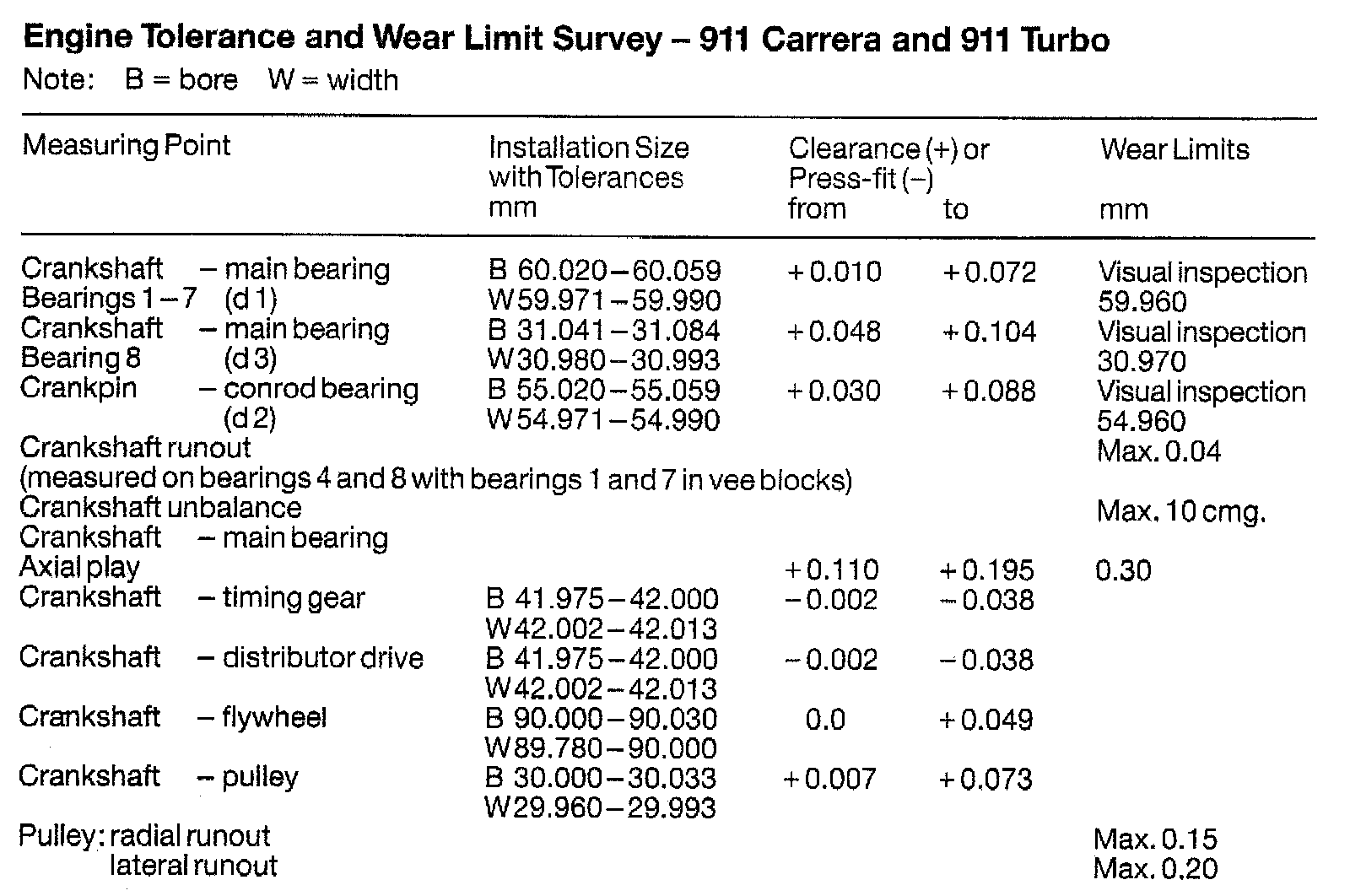

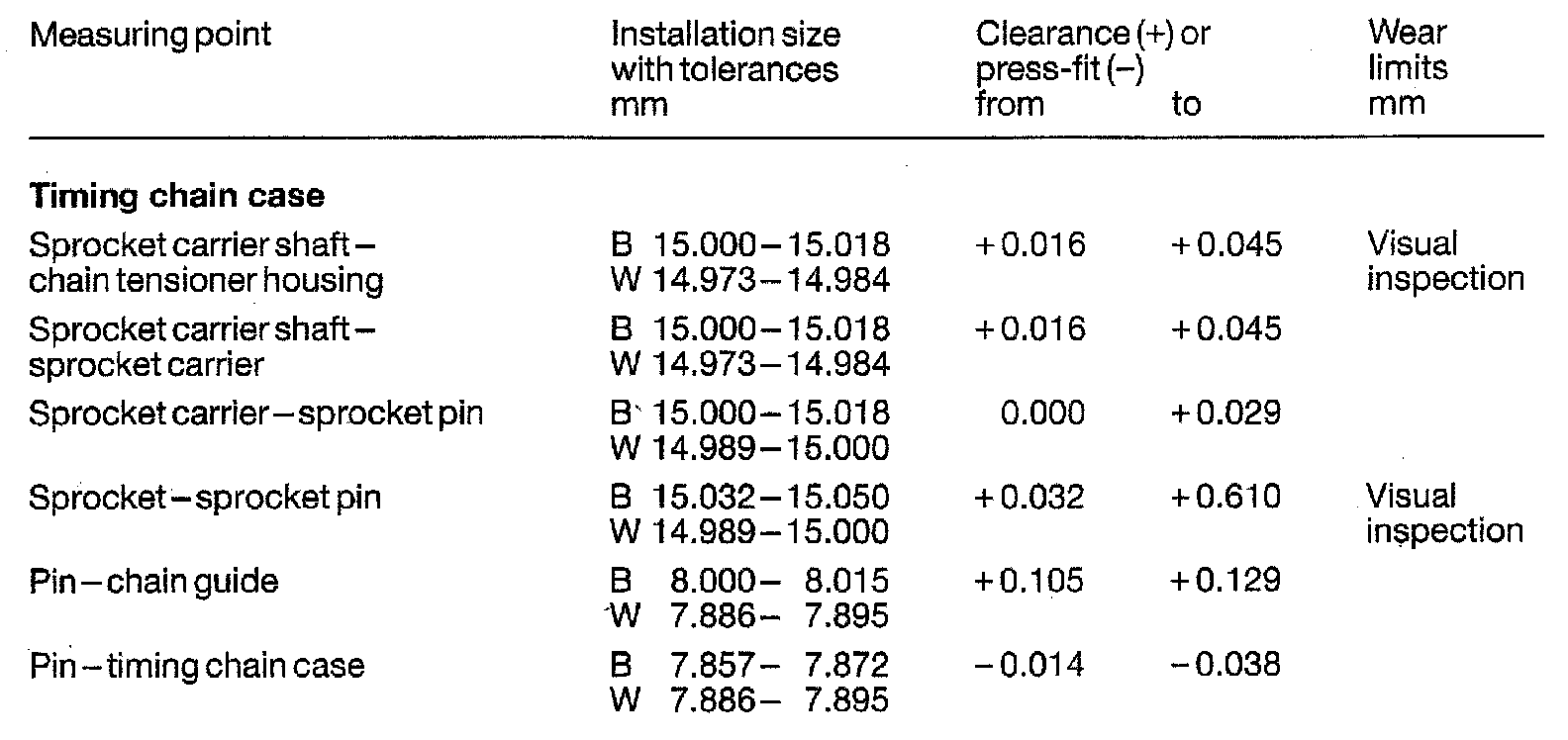

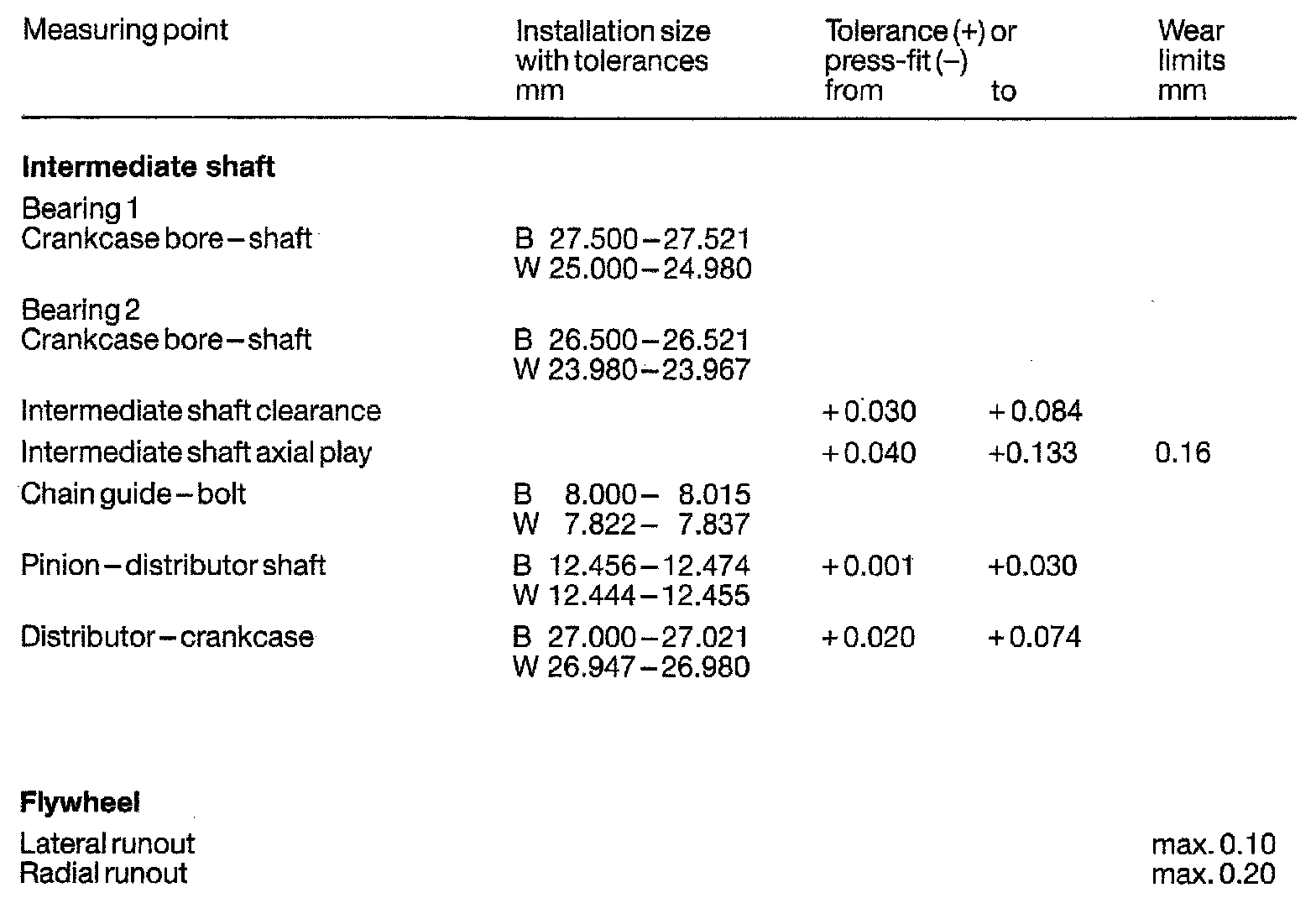

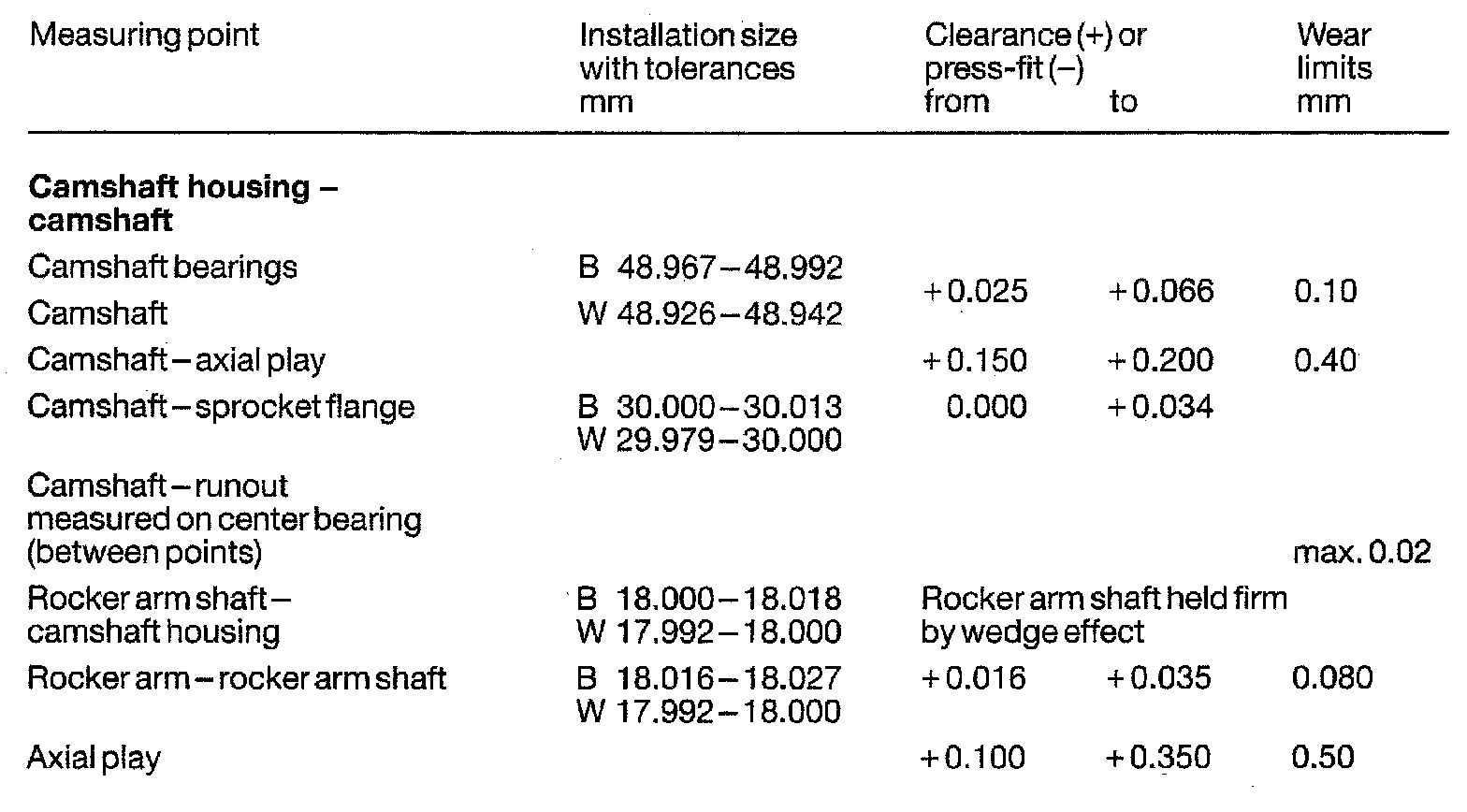

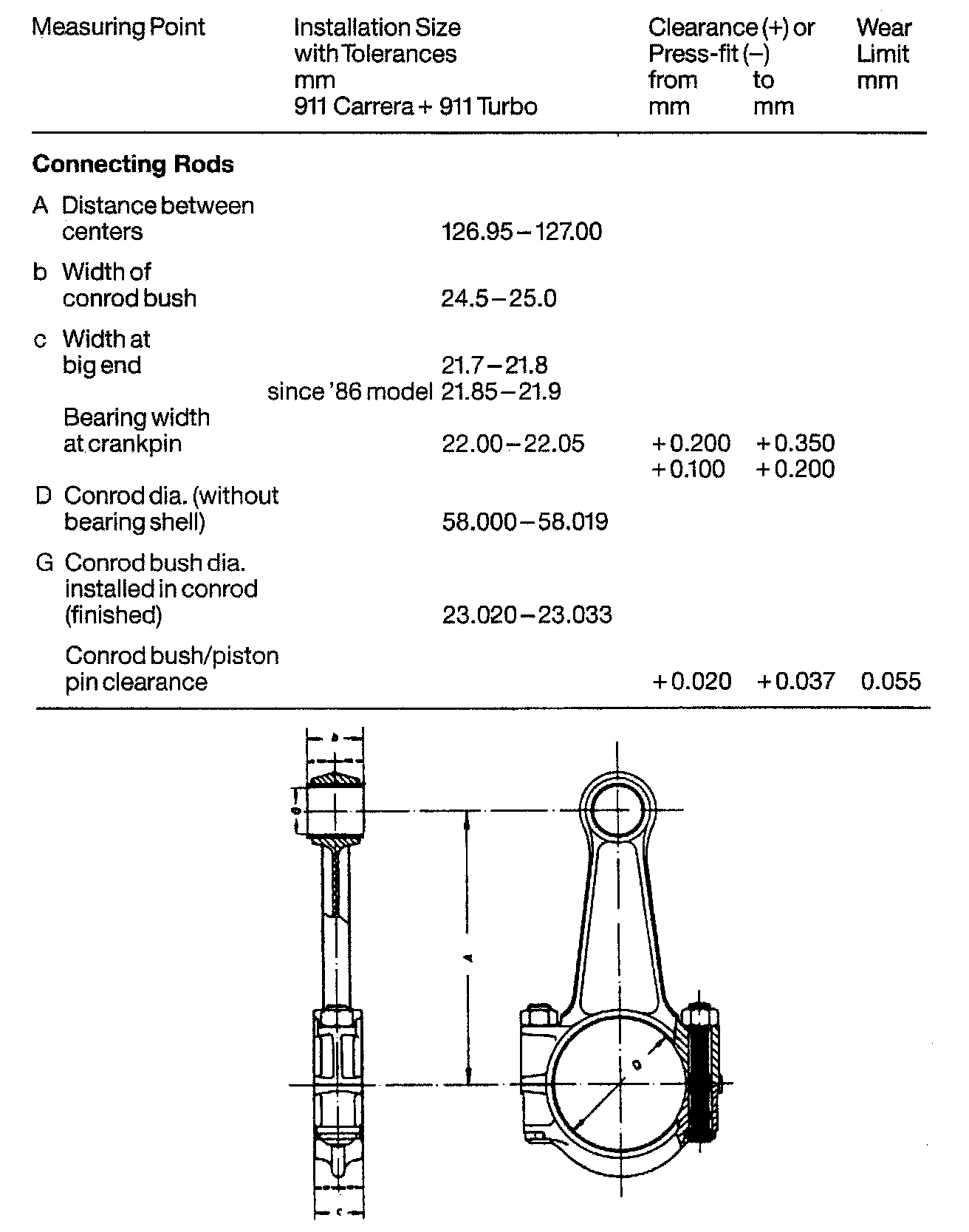

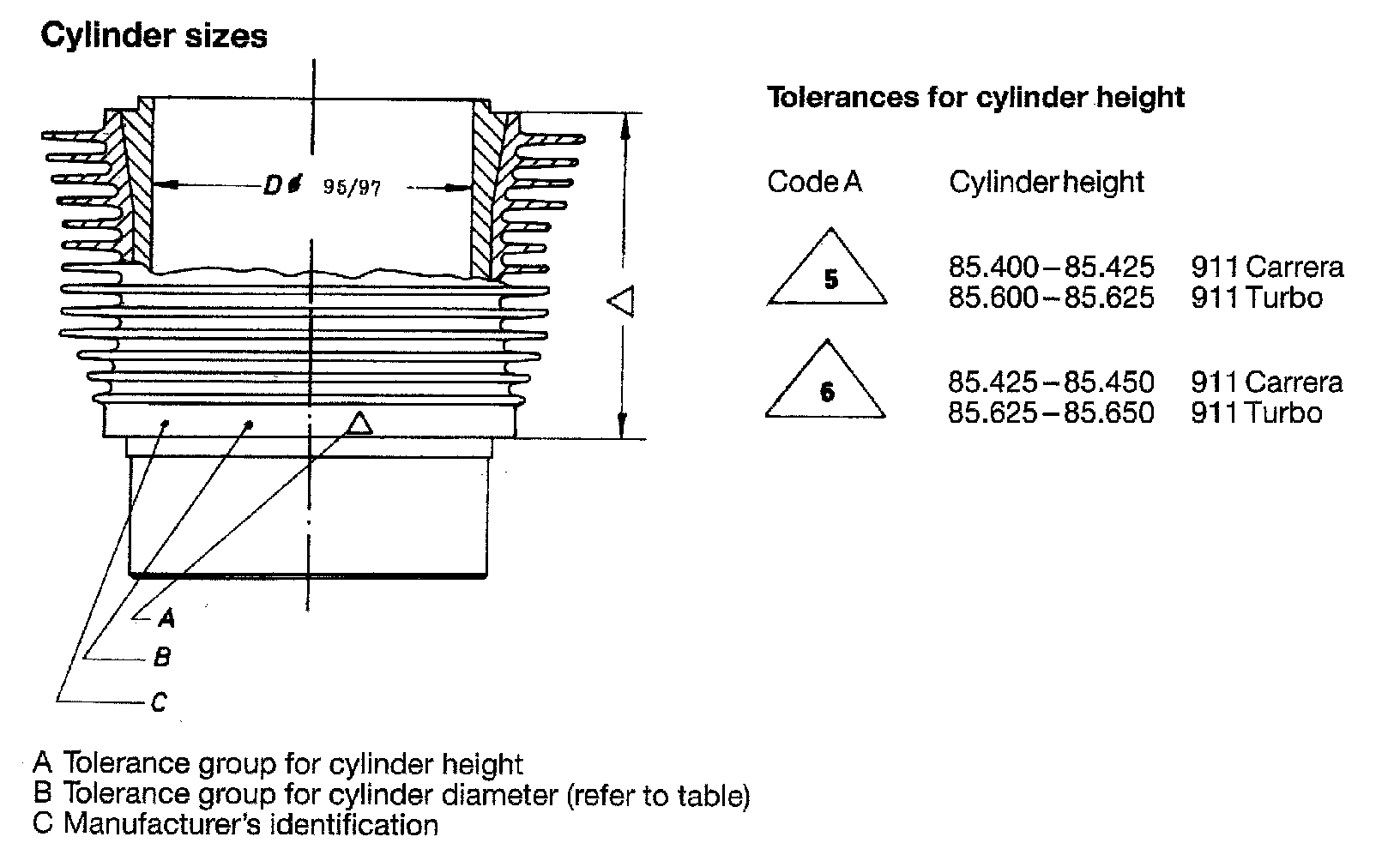

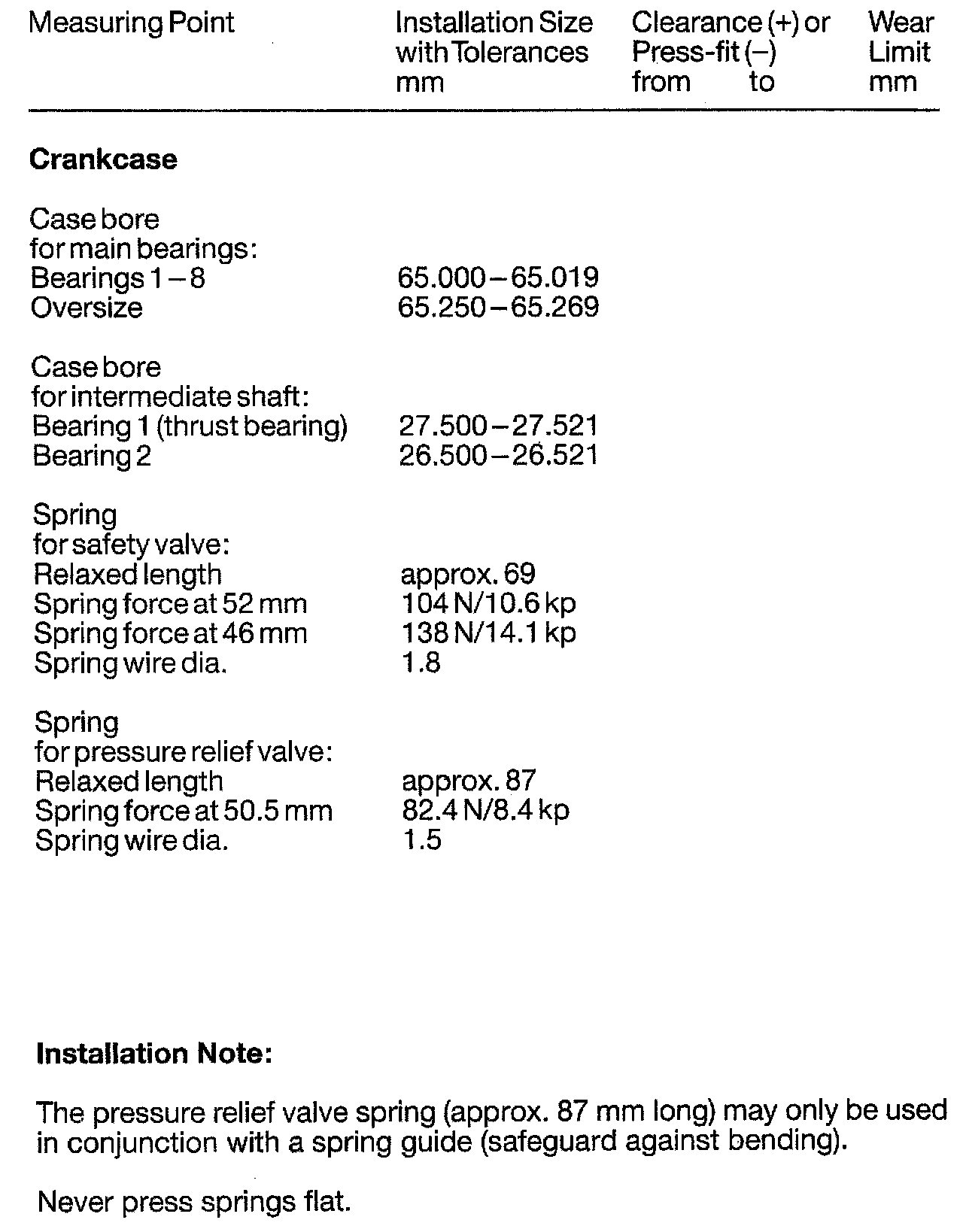

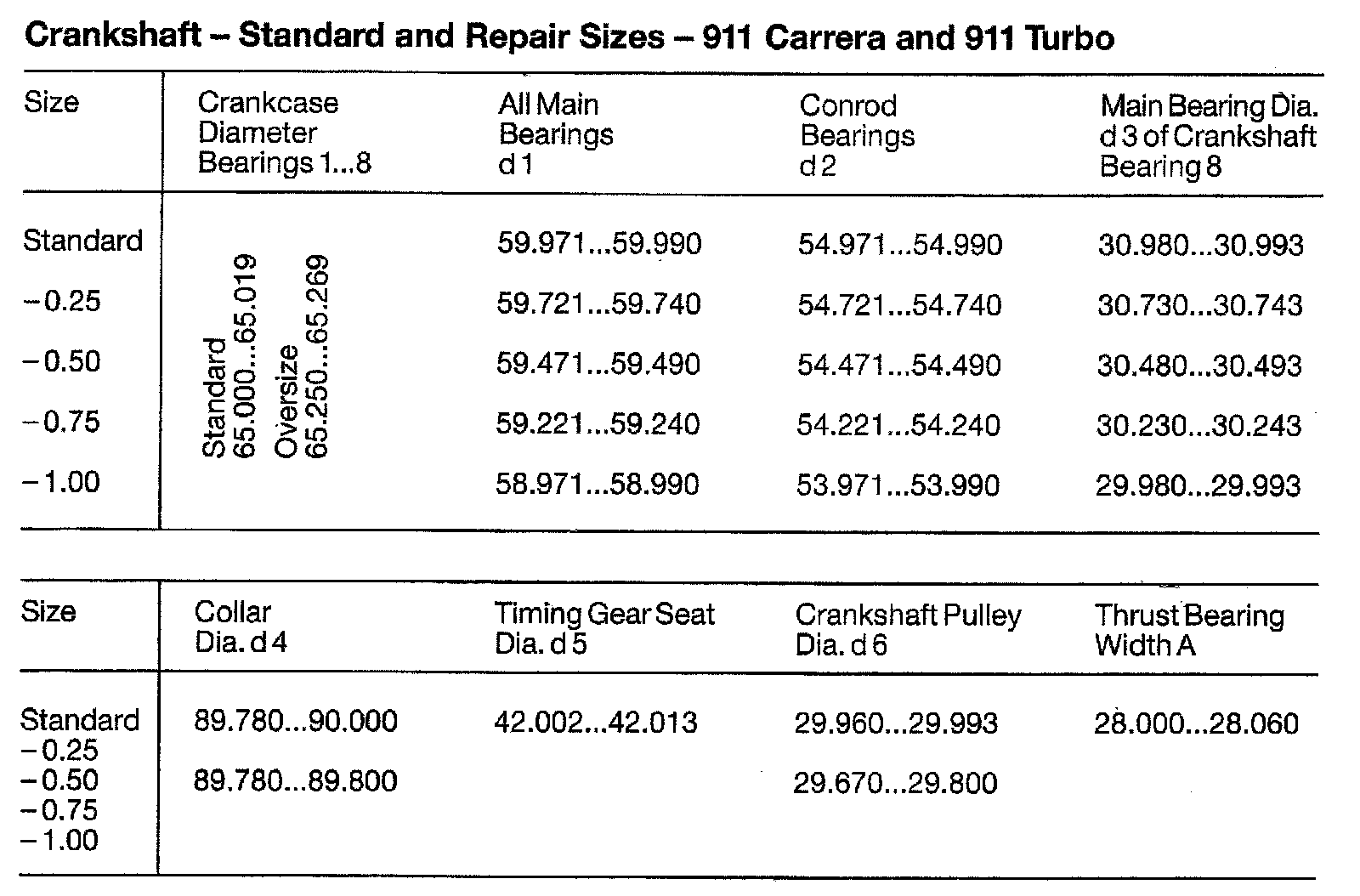

TOLERANCES AND WEAR SPECIFICATIONS

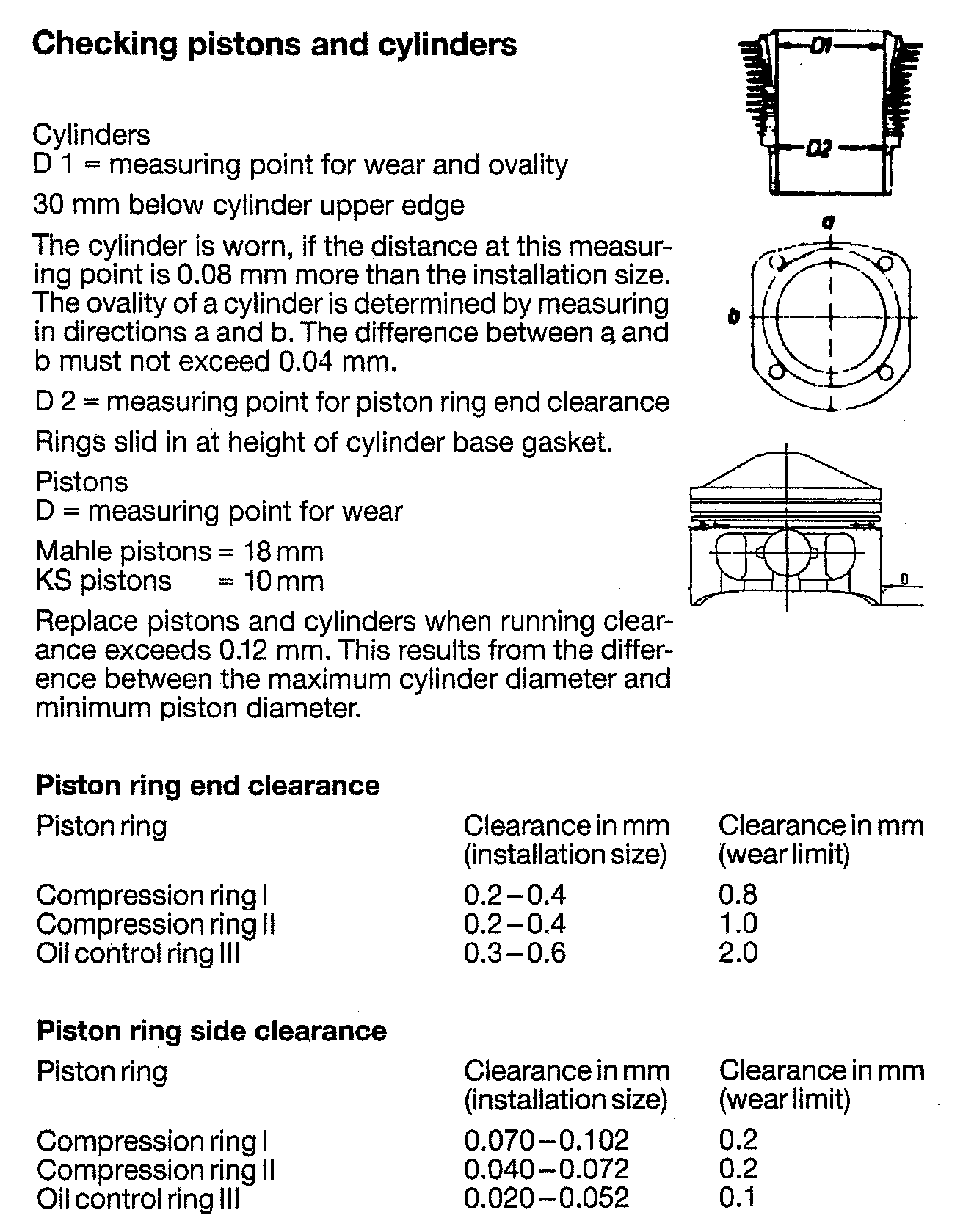

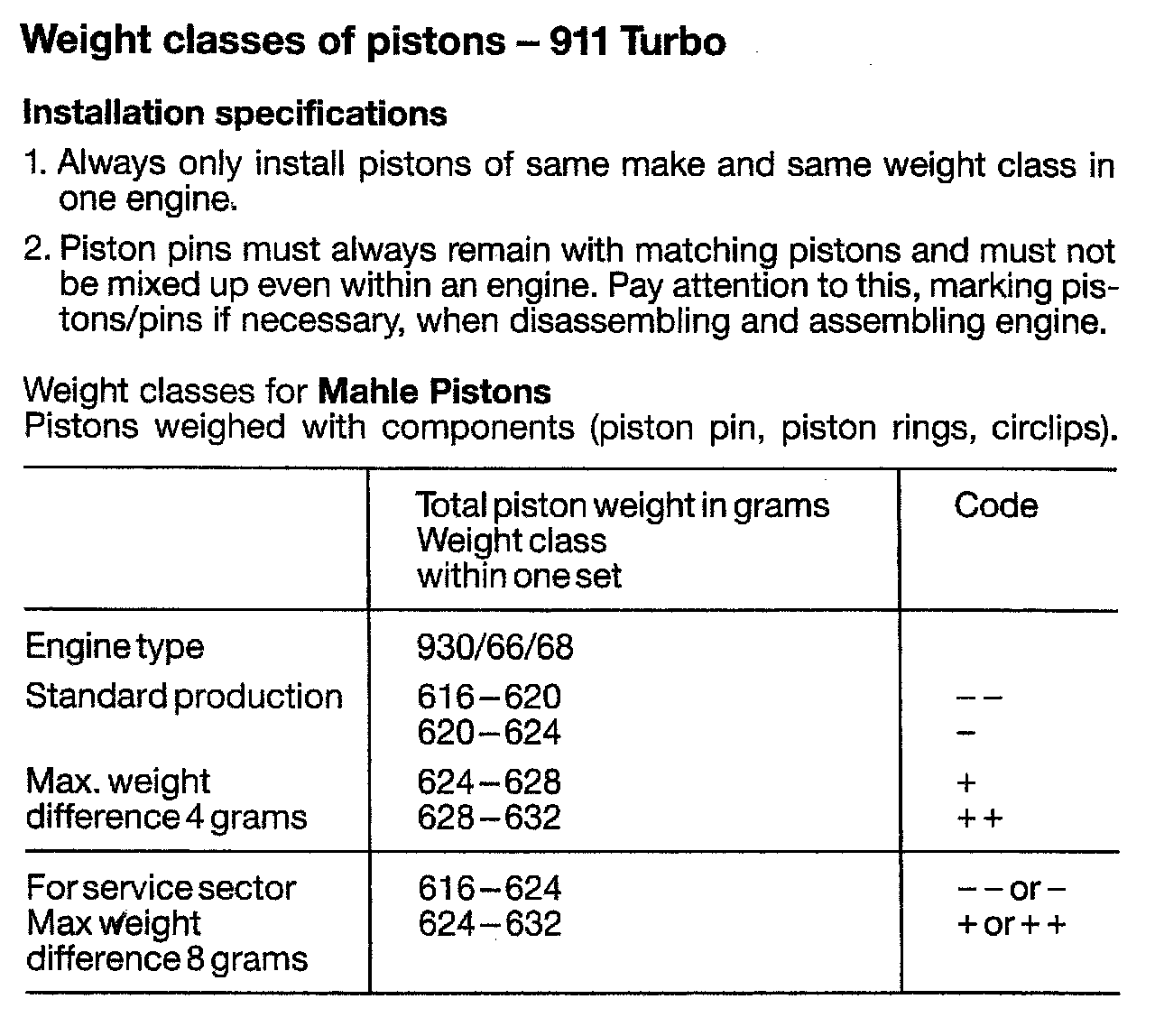

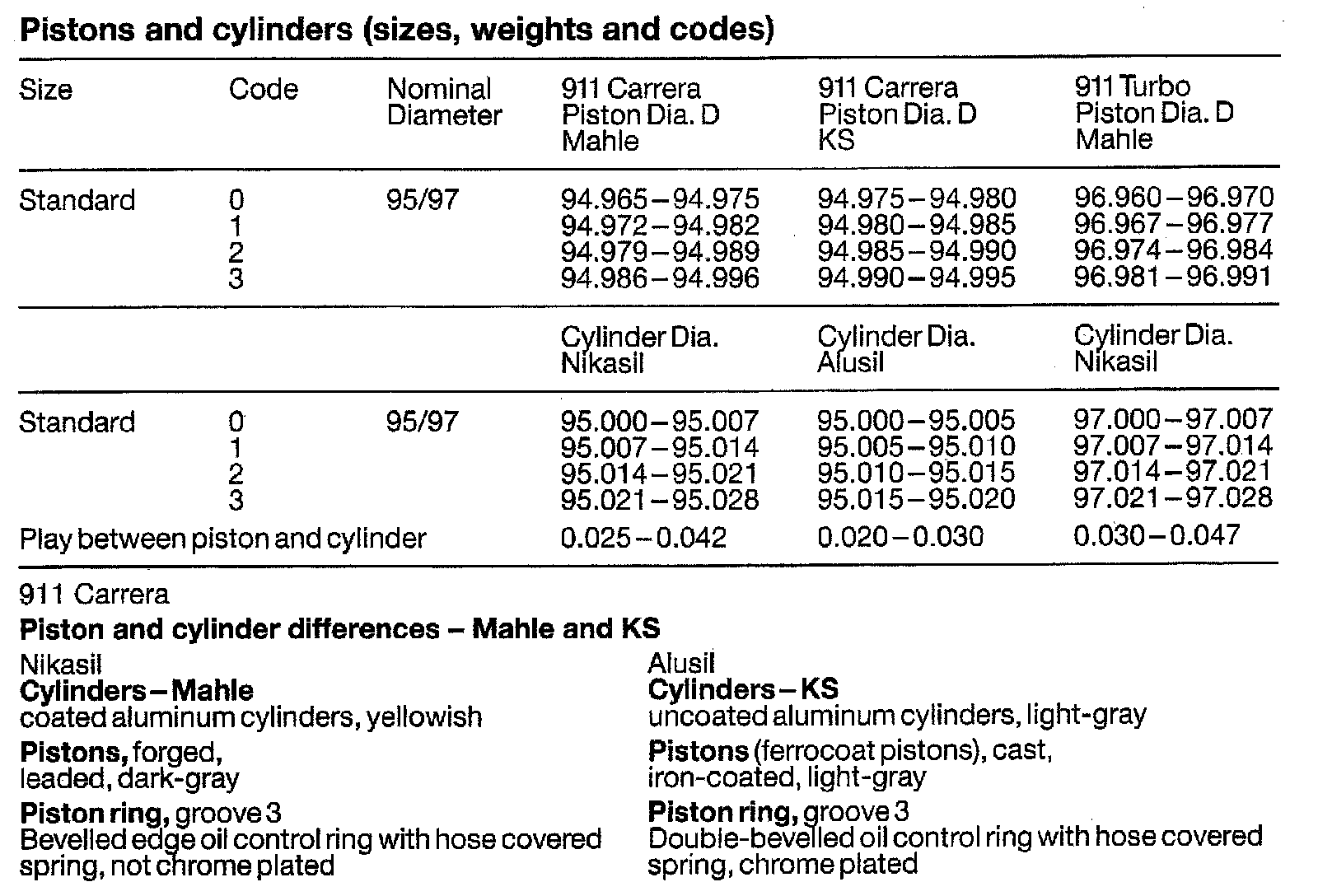

PISTON SPECIFICATIONS

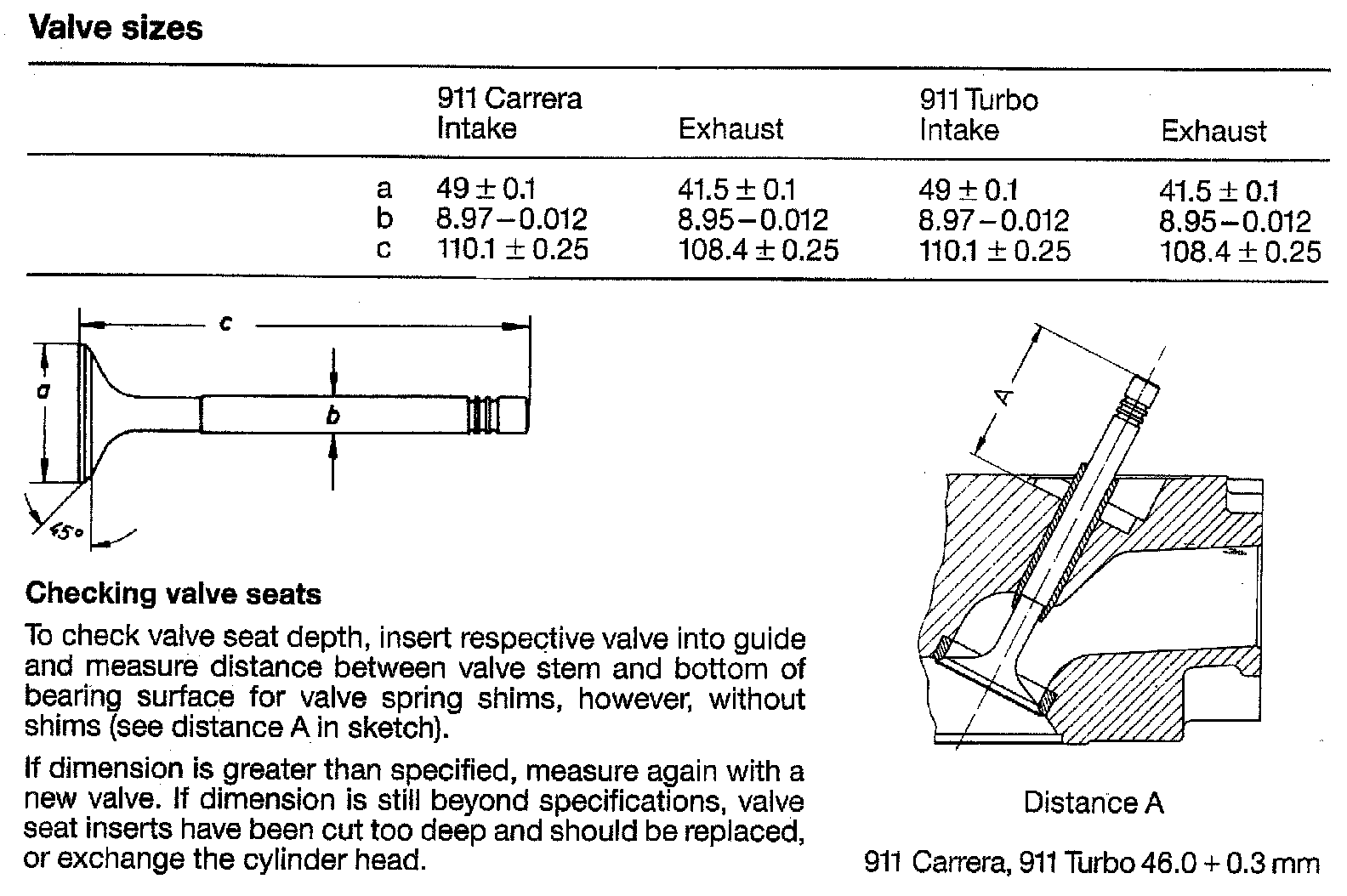

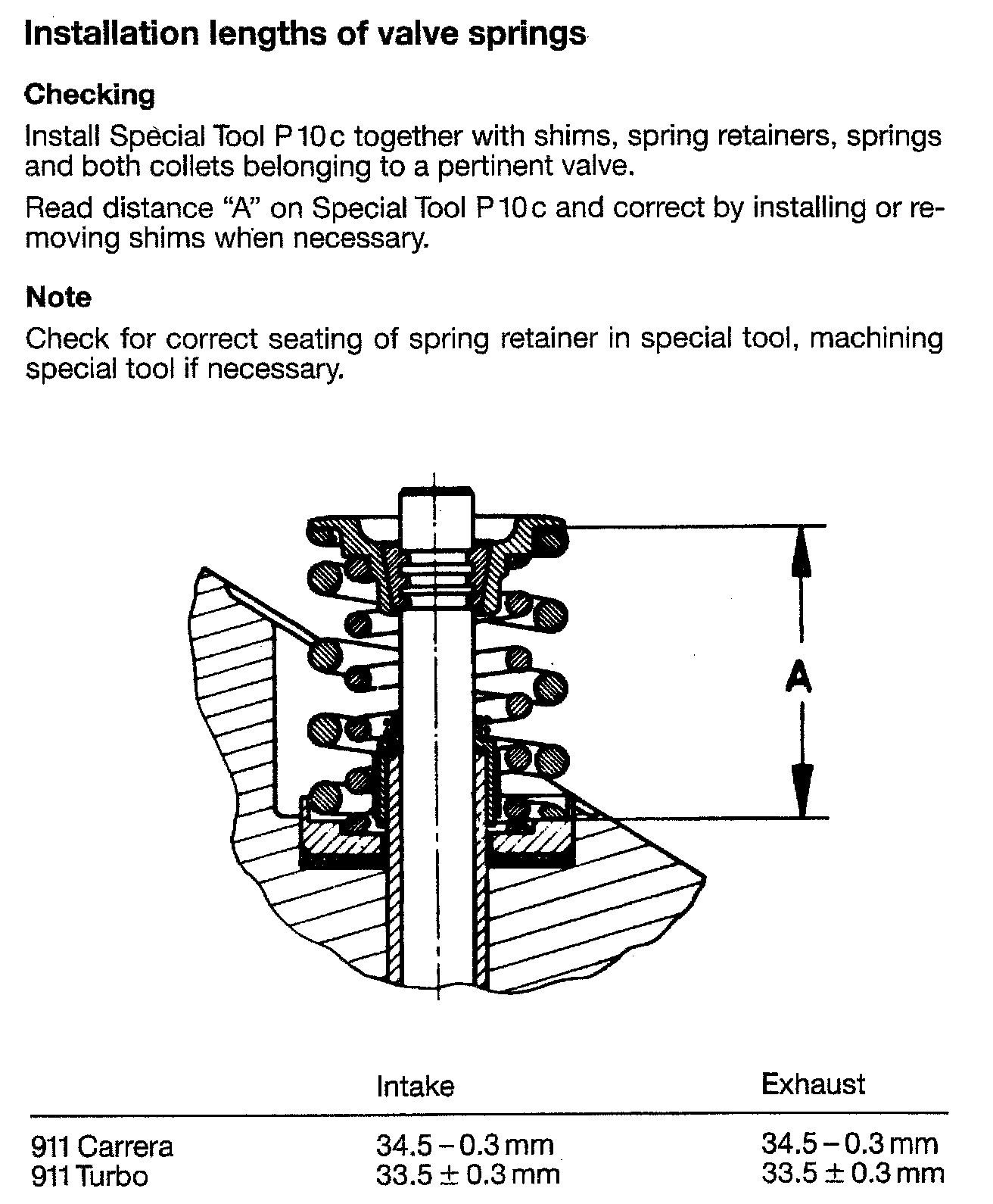

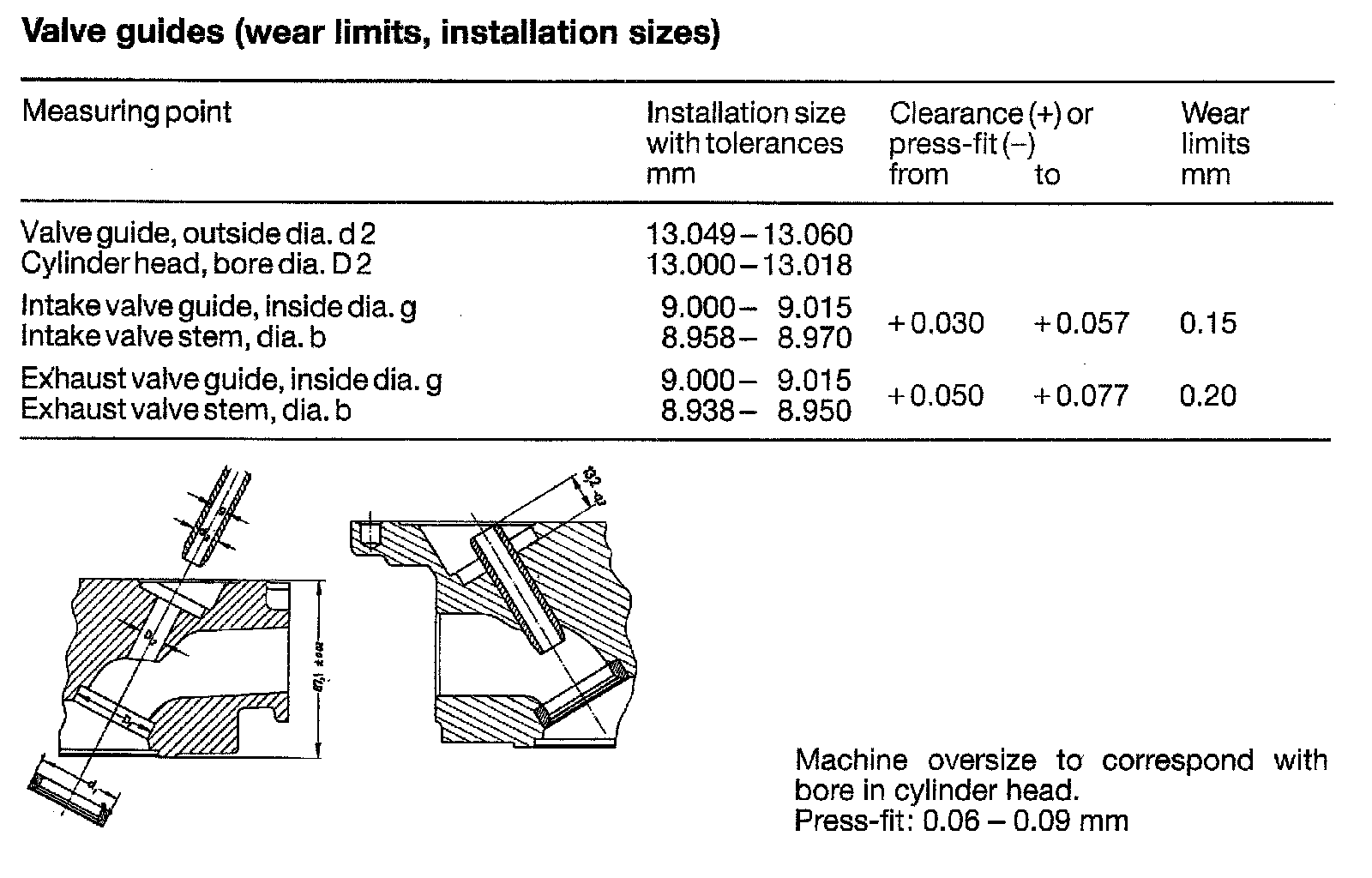

VALVE SPECIFICATIONS
