EGR Control Module: Locations

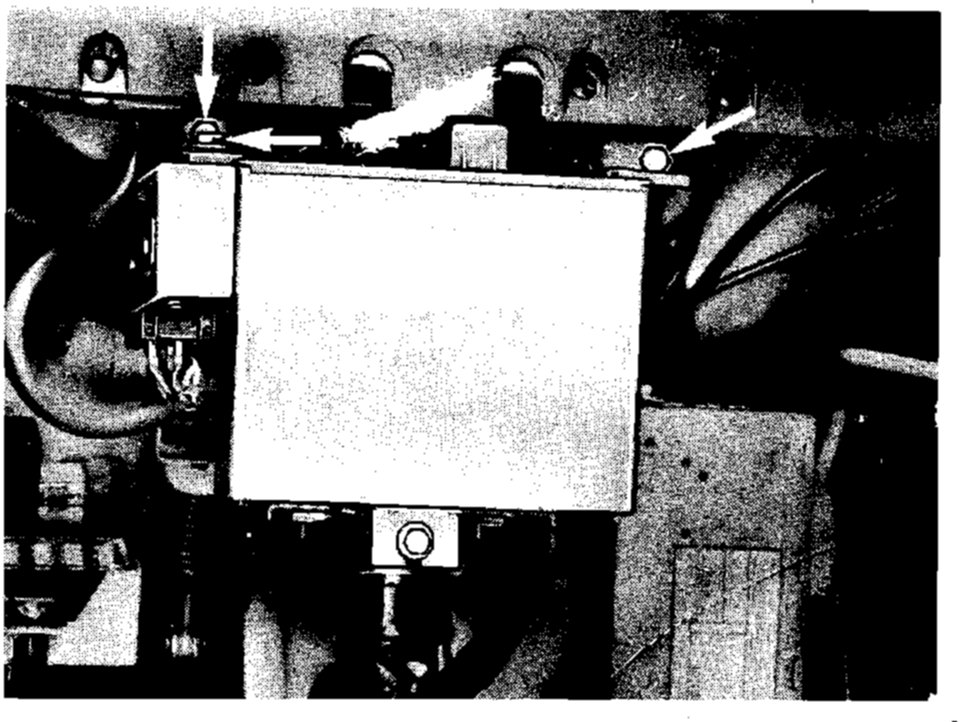

EGR Control Unit.:

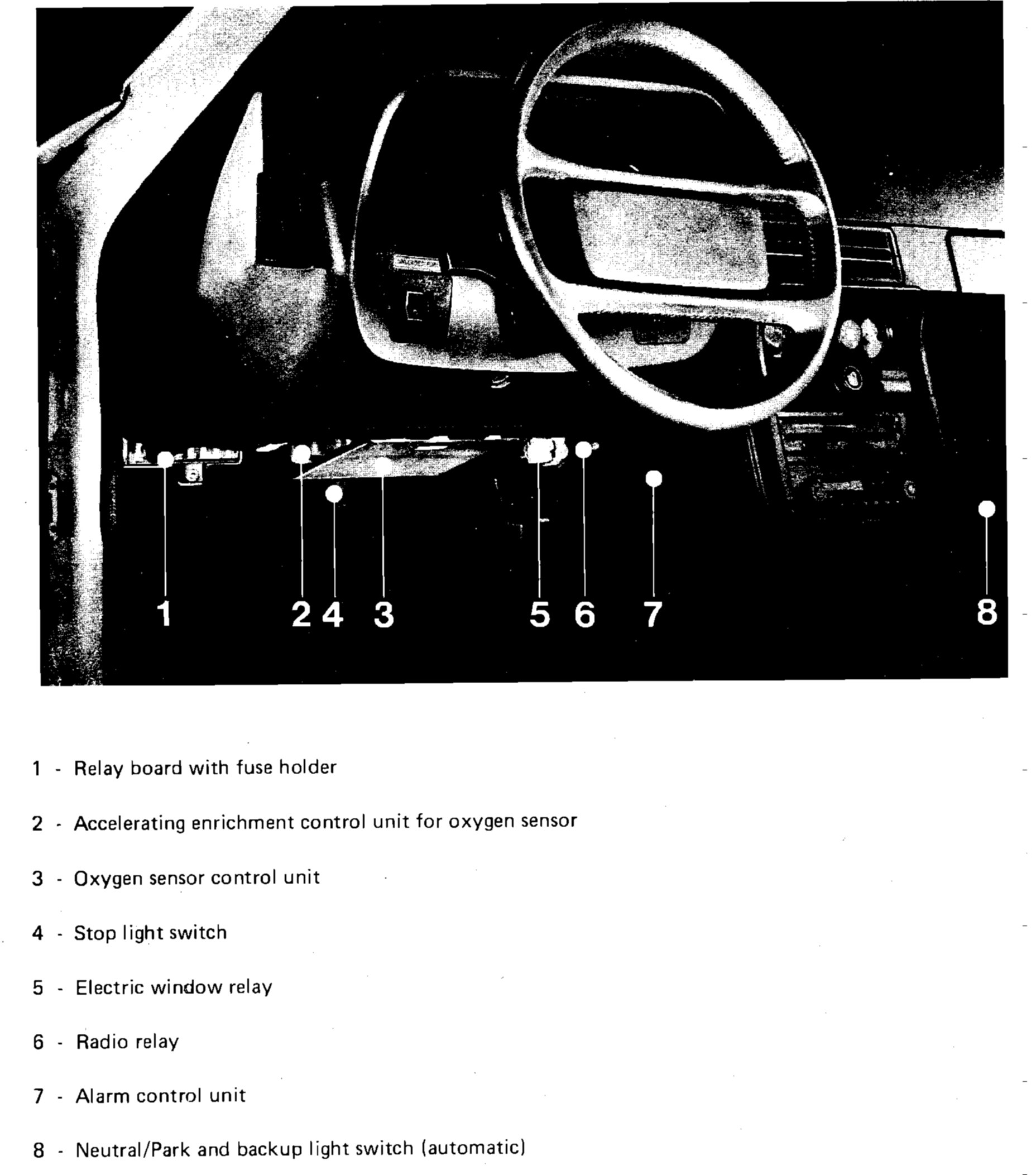

Passenger Compartment Component Locations.:




Under LH Side Of I/P

Applicable to: 924
