Technical Specifications

Clutch Drive Plate:

Flywheel Thickness:

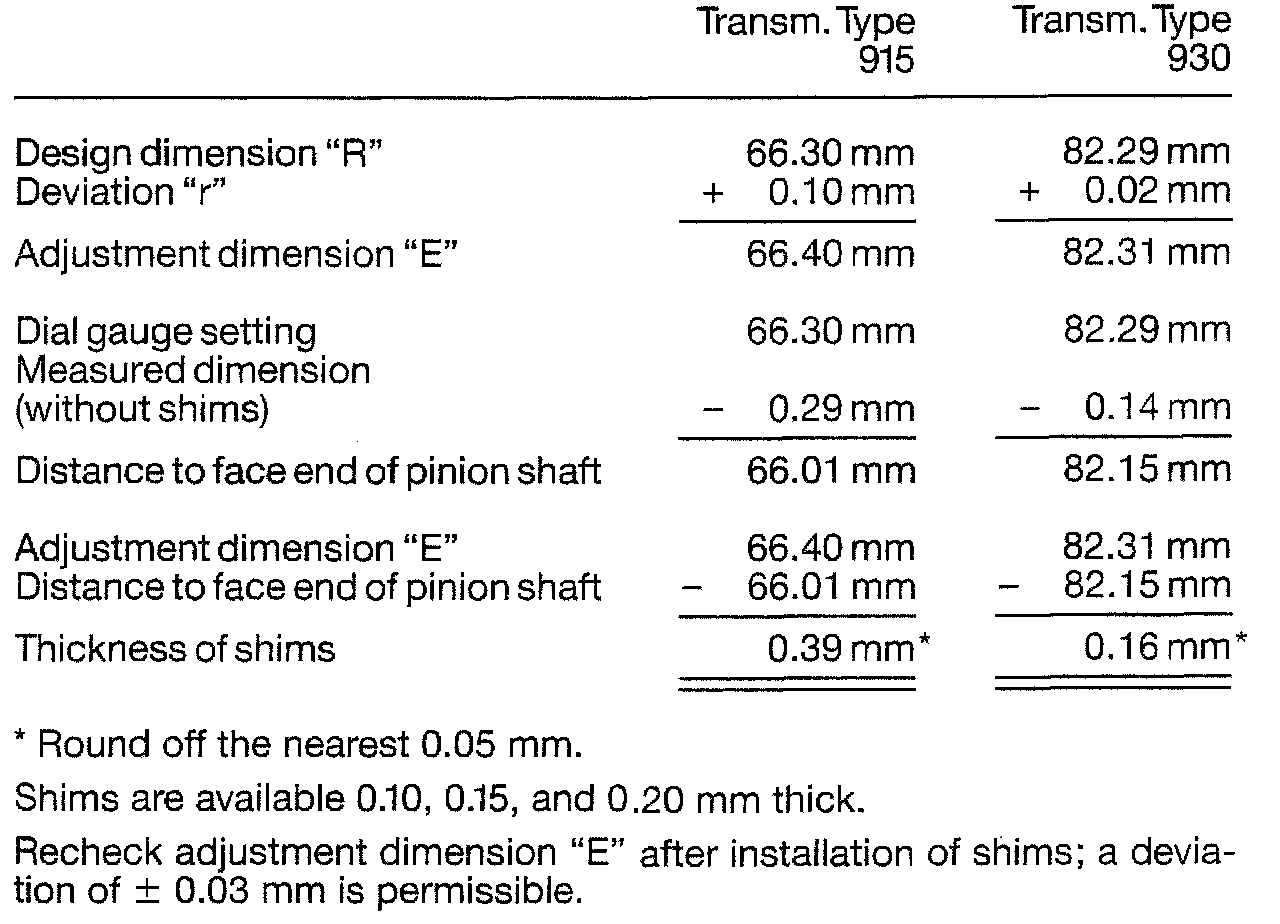

Pinion And Ring Gear Adjustment:

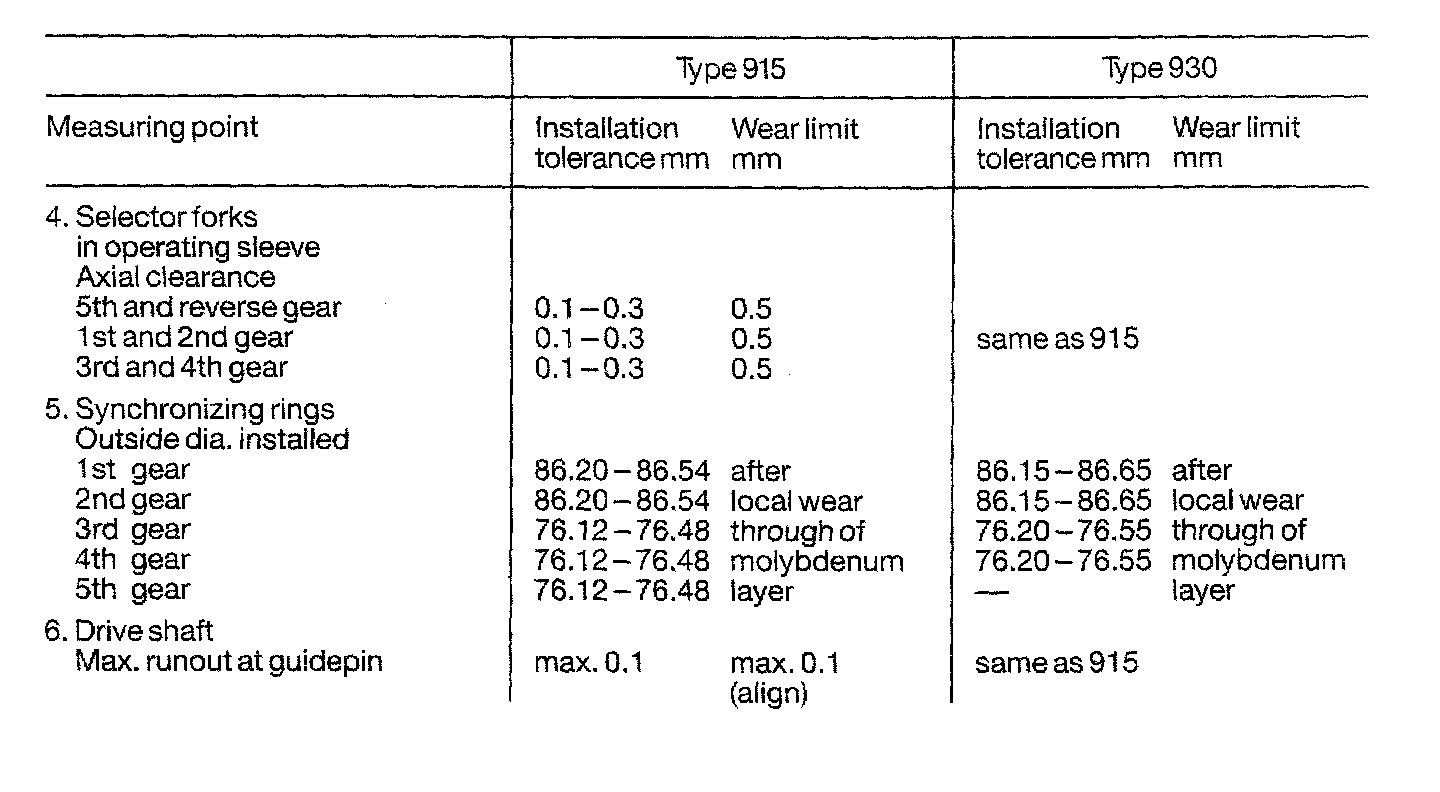

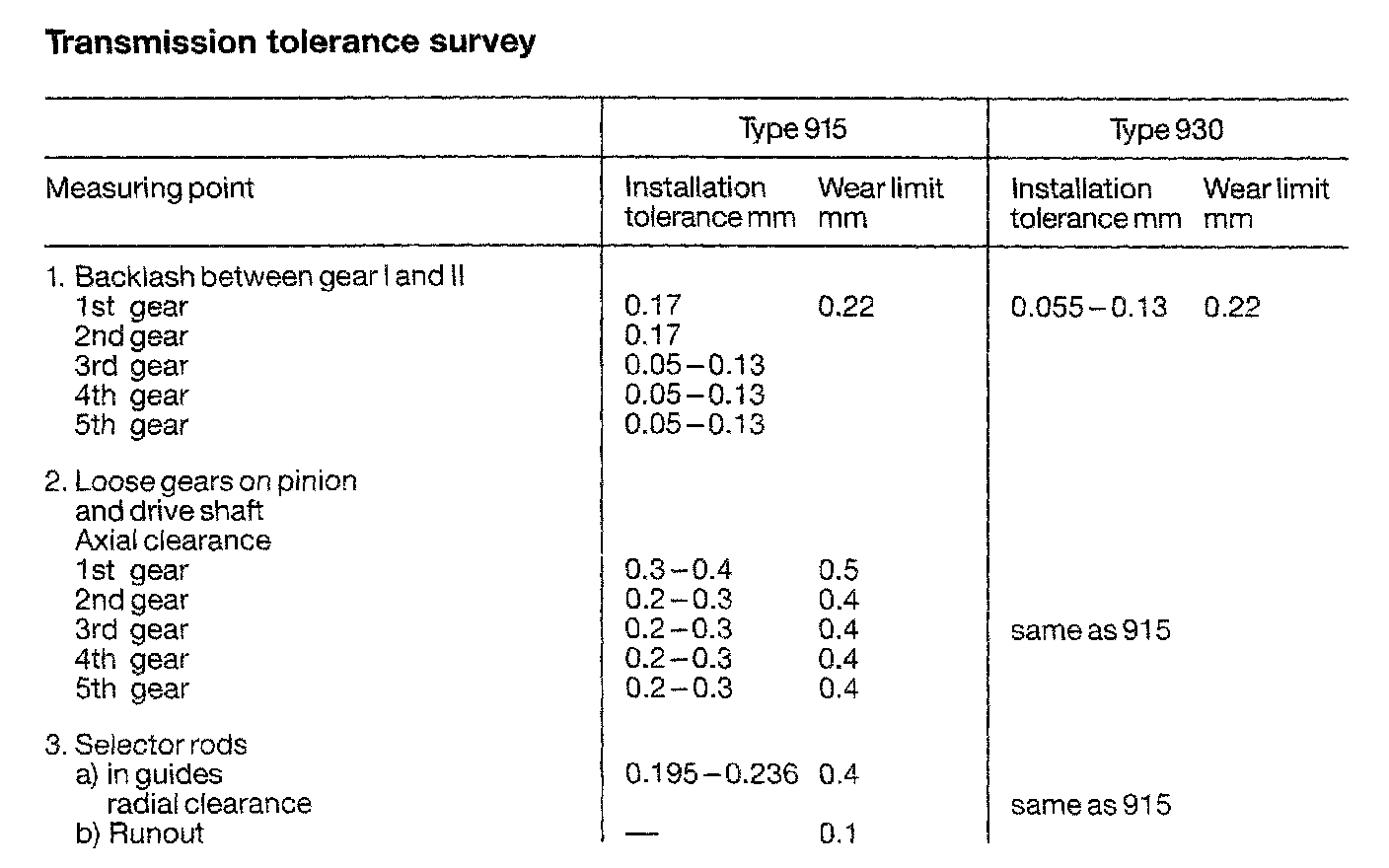

Transmission Gear Tolerances:

Transmission Gear Tolerance Cont.:
