Rear Brake Caliper Bracket Replacement

Rear Brake Caliper Bracket Replacement (All Wheel Drive and GT)

Removal Procedure

1. Remove the disc brake hardware and the slide pin boots. Refer to Rear Brake Caliper Hardware Replacement (All Wheel Drive and GT) (Rear Brake Caliper Hardware Replacement)Rear Brake Caliper Hardware Replacement (Except All Wheel Drive and GT) (Rear Brake Caliper Hardware Replacement).

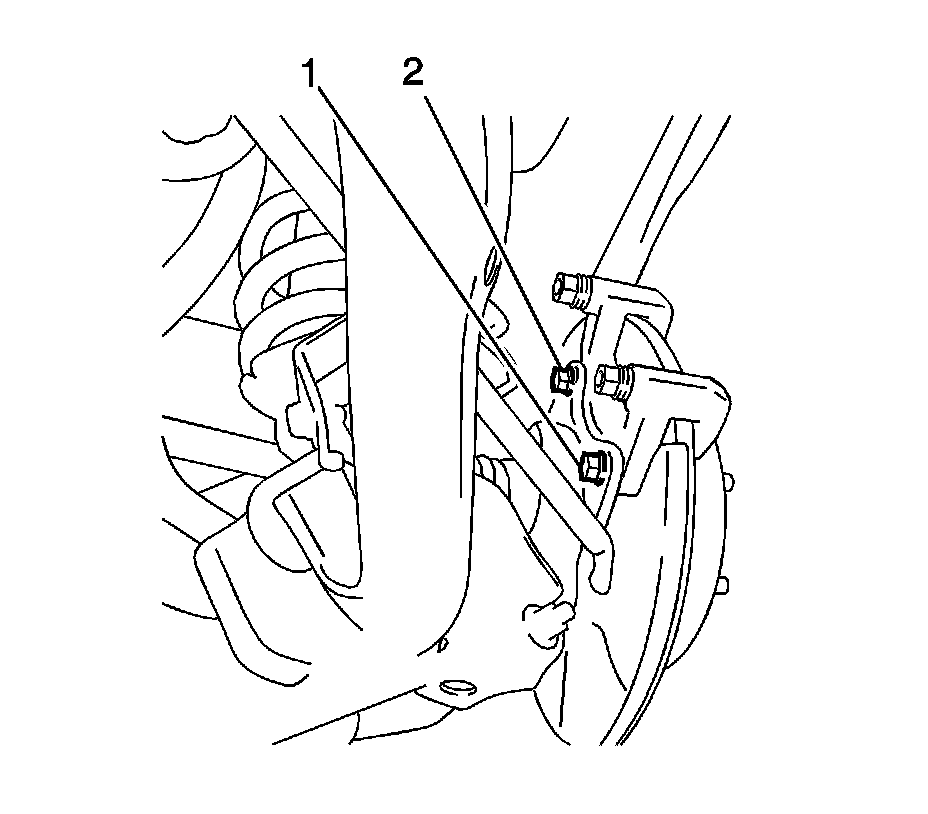

2. Remove the 2 bolts (1, 2).
3. Remove the rear brake caliper bracket.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the rear brake caliper bracket with the 2 bolts (1, 2) and tighten to 58 Nm (43 lb ft).
2. Install the disc brake hardware and the slide pin boots. Refer to Rear Brake Caliper Hardware Replacement (All Wheel Drive and GT) (Rear Brake Caliper Hardware Replacement)Rear Brake Caliper Hardware Replacement (Except All Wheel Drive and GT) (Rear Brake Caliper Hardware Replacement).
