Sunroof Housing Rear Drain Hose Replacement

Sunroof Housing Rear Drain Hose Replacement

Removal Procedure




1. Remove the headlining trim finish panel. Refer to Headlining Trim Panel Replacement (Service and Repair).
2. Remove the sunroof housing rear drain hose clamp.

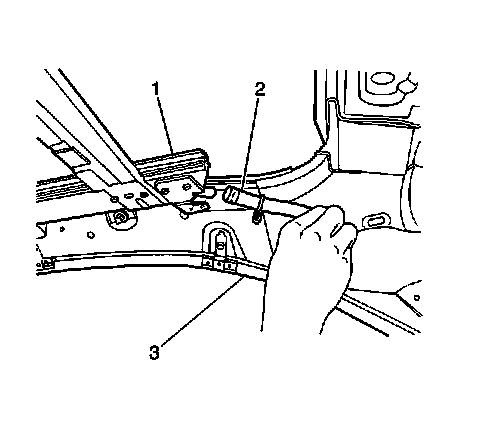

3. Remove the sunroof housing rear drain hose (2) from the sunroof housing (1).
4. Remove the lower and upper quarter trim panels. Refer to Quarter Lower Rear Trim Panel Replacement (Quarter Lower Rear Trim Panel Replacement) and Quarter Upper Trim Panel Replacement (Quarter Upper Trim Panel Replacement).

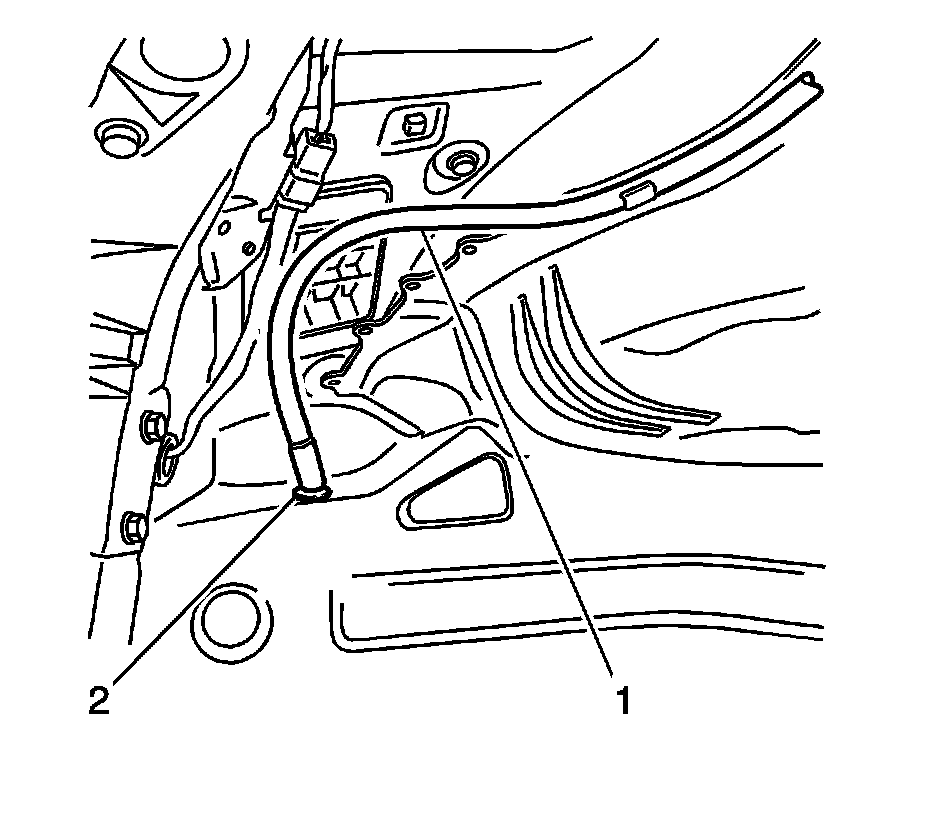

5. Pull the sunroof housing rear drain hose (1) from the quarter inner panel.
6. Remove the sunroof rear drain hose grommet (2) from the rear compartment floor pan.
7. Remove the sunroof housing rear drain hose from the rear compartment.

Installation Procedure




1. Install the sunroof housing rear drain hose (2) to the sunroof housing (1). Secure the drain hose with the clamp.
2. Install the headlining trim finish panel. Refer to Headlining Trim Panel Replacement (Service and Repair).




3. Reposition the sunroof housing rear drain hose (1) in the rear compartment.
4. Install the sunroof rear drain hose grommet (2) to the rear compartment floor pan.
5. Install the lower and upper quarter trim panels. Refer to Quarter Lower Rear Trim Panel Replacement (Quarter Lower Rear Trim Panel Replacement) and Quarter Upper Trim Panel Replacement (Quarter Upper Trim Panel Replacement).
