Radio Rear Quarter Trim Panel Speaker Replacement

Radio Rear Quarter Trim Panel Speaker Replacement

Removal Procedure




1. Remove the right lower quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Quarter Lower Rear Trim Panel Replacement).

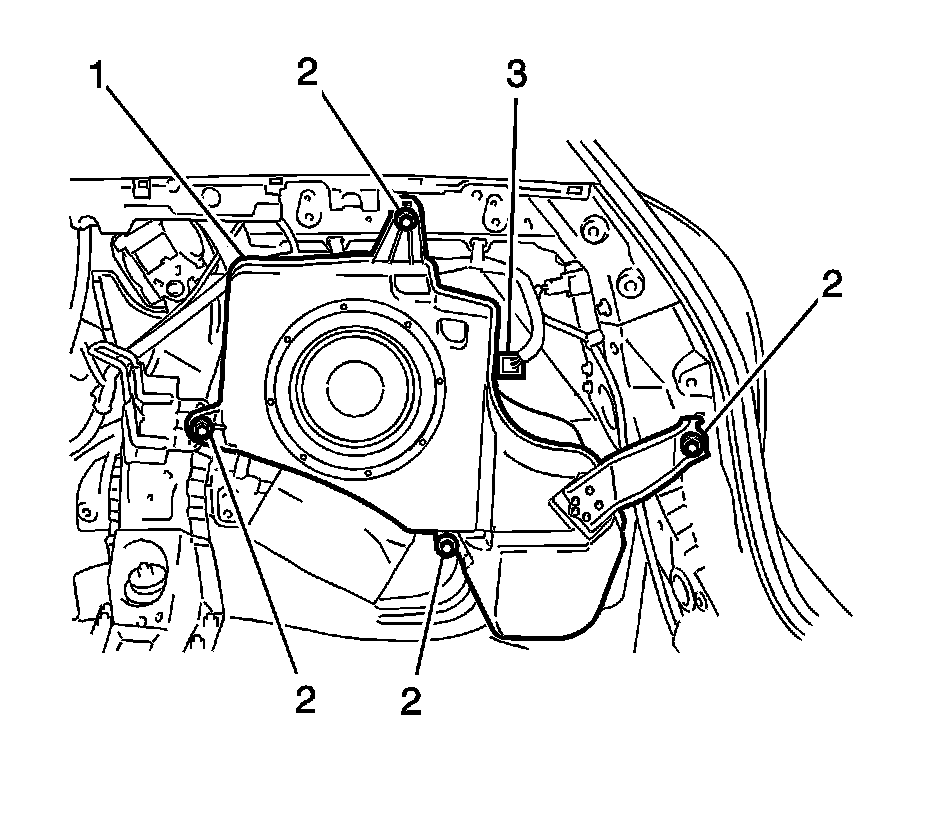

2. Disconnect the electrical connector (3).
3. Remove the four bolts (2).
4. Remove the rear quarter trim speaker (1) from the vehicle.

Installation Procedure




1. Install the rear quarter trim speaker (1) to the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the four bolts (2).

Tighten the four bolts to 13 Nm (10 lb ft).

3. Connect the electrical connector (3).
4. Install the right lower quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Quarter Lower Rear Trim Panel Replacement).
