Air Conditioning Clutch Coil Installation (SP10 Compressor)

Air Conditioning Clutch Coil Installation (SP10 Compressor)





Important: Coil flange protrusion must match front head hole to prevent coil movement and allow for correct lead wire location. The lead wire must then be tightened by pulling it toward the compressor body to prevent it from touching the pulley.

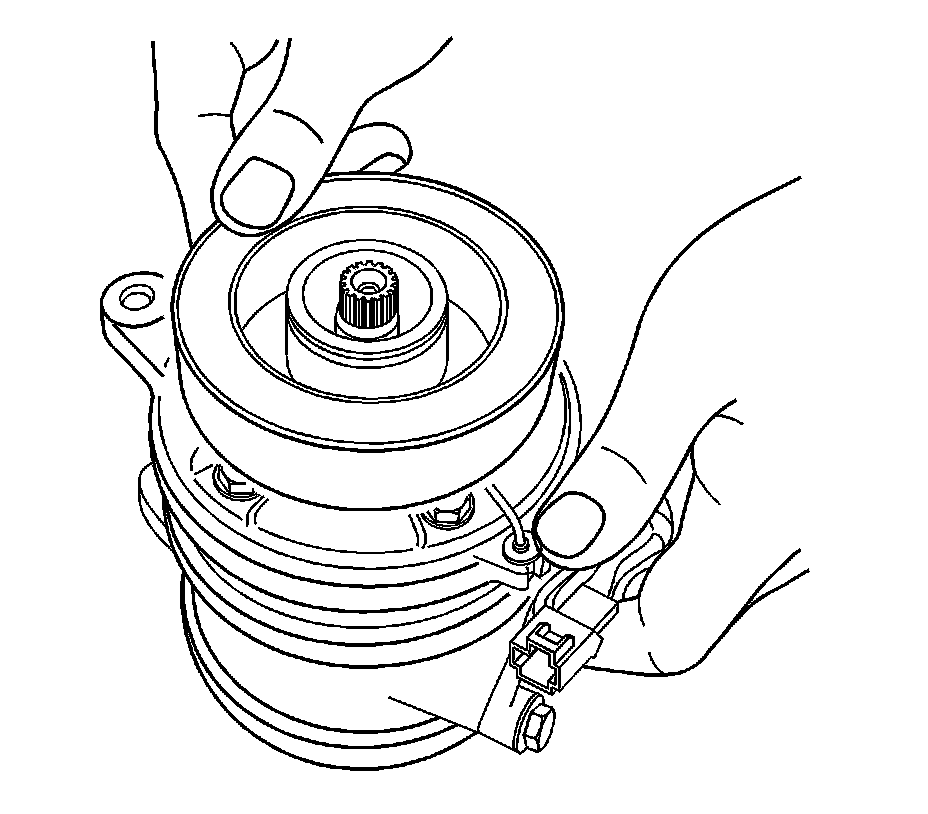

1. Gently install the coil and housing assembly. The lead wire clamp must be inserted tightly onto the front head slot.

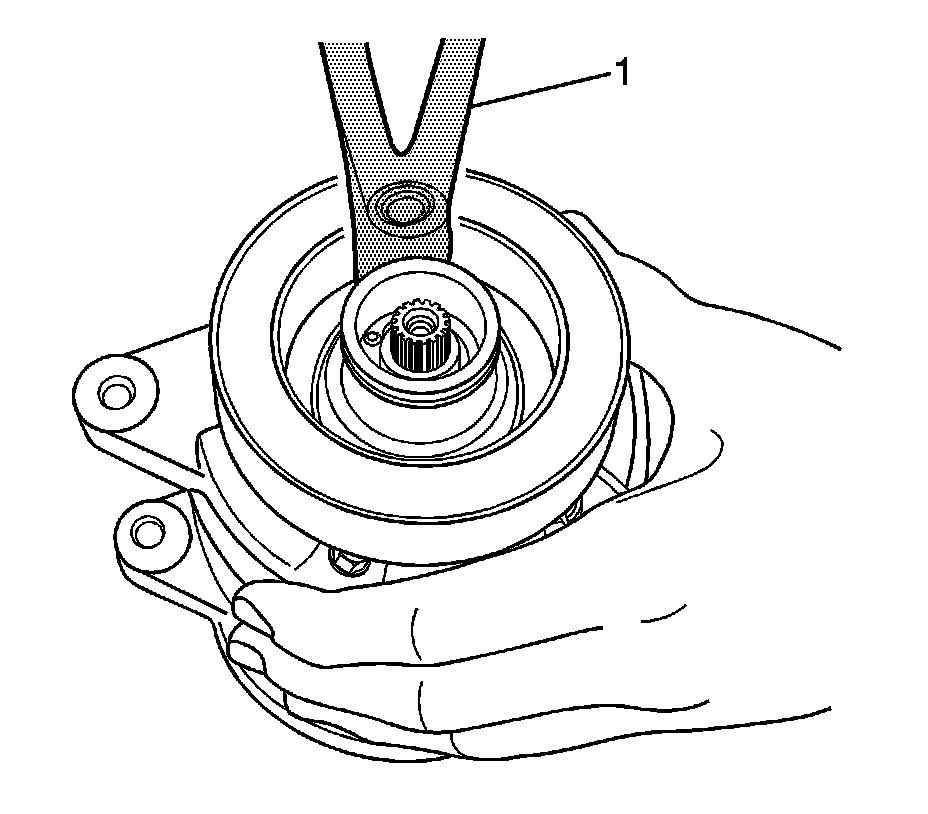

2. Install the retainer ring using the snap ring pliers (1).
Important: Sharp edge side of the coil retainer should be placed on its upper side during assembly. Upon completion, squeeze the retainer to ensure it is well installed.


3. Install the pulley and bearing assembly. Refer to Clutch Rotor and/or Bearing Install (SP10 Compressor) (Clutch Rotor and/or Bearing Install (SP10 Compressor))Clutch Rotor and/or Bearing Install (V5 Compressor) (Clutch Rotor and/or Bearing Install (V5 Compressor)).
4. Install the clutch and drive assembly. Refer to Compressor Clutch Plate/Hub Assembly Install (SP10 Compressor) (Compressor Clutch Plate/Hub Assembly Install (SP10 Compressor))Compressor Clutch Plate/Hub Assembly Install (V5 Compressor) (Compressor Clutch Plate/Hub Assembly Install (V5 Compressor)).
